Descriptions:

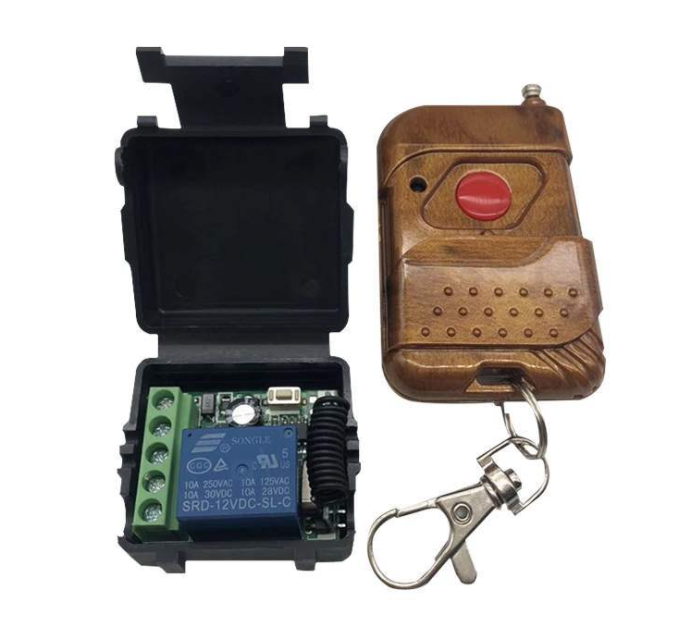

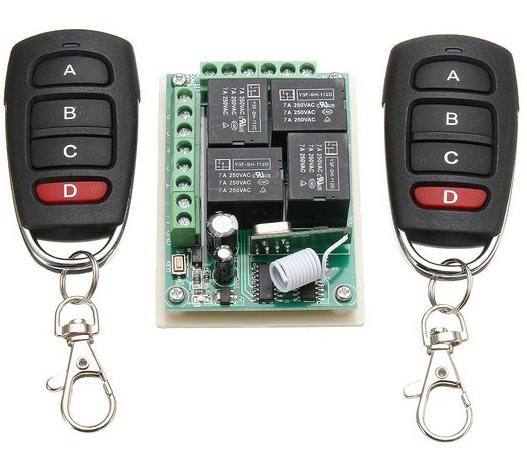

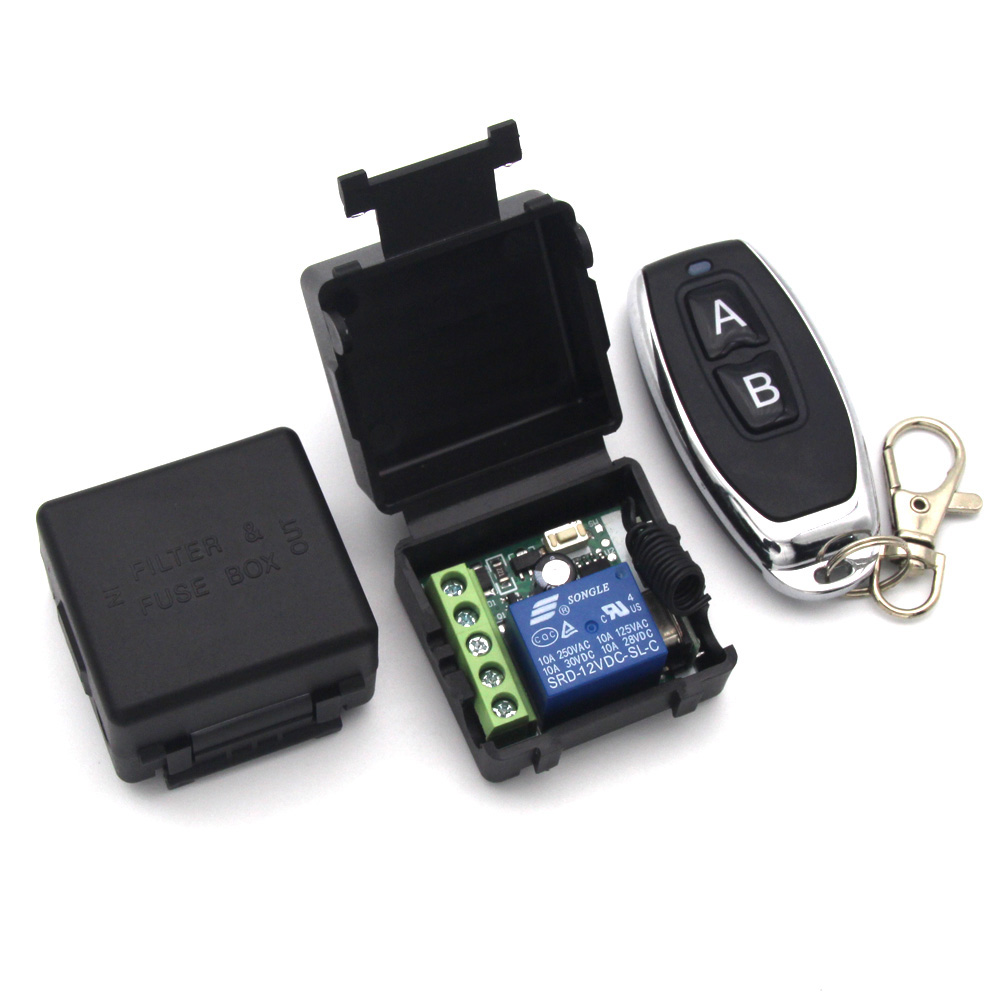

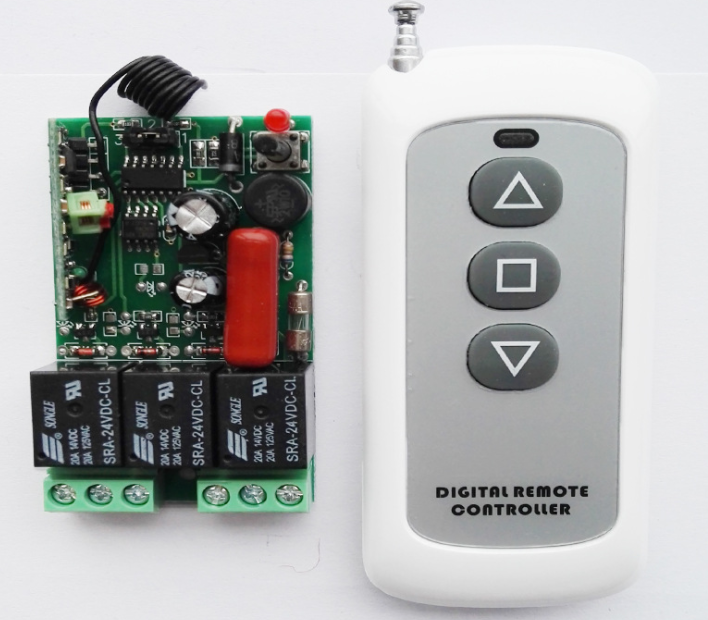

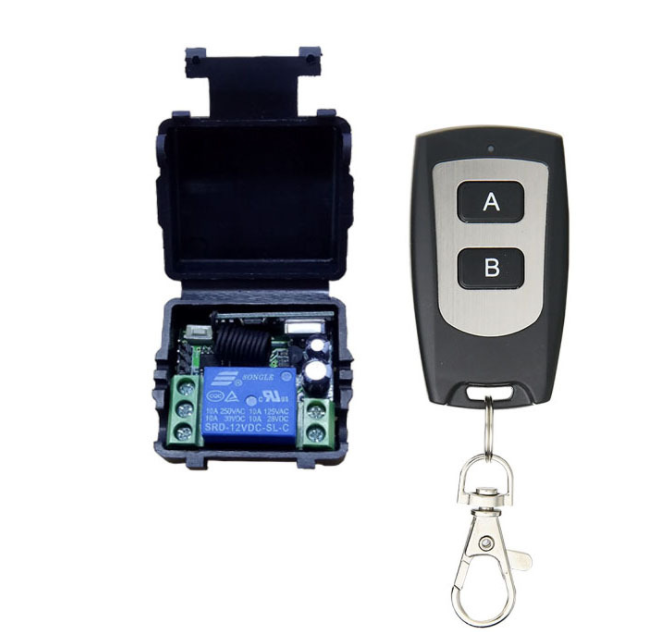

The RFID access remoter is including of remote button and receiver.

Technical Parameters:

1. Working voltage: DC12V
2. Quiescent current: 8mA
3. Working frequency: 315MHz, 433MHz (optional), other frequencies can be customized
4. Load power: 10A-2200W
5. Receiving sensitivity: -105dbm
6. Frequency deviation: ±0.2MHz
7. Coding method: learning type
8. Working mode: inching, self-locking, interlocking,
9. Modulation method: ASK
10. Remote control distance: 100M (open place without interference)

Features:

*Support Multiple Working Mode: Momentary, Toggle and Latching Mode.

*Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
*Support storing the quantity of remote control: 25 Pcs(NOTE: The system can only store 25 pcs of remote controls, if the remote get more than 25 pcs, the initial remote control will be lost).
*RF Working Mode: Superheterodyne Reception(Modulation Mode: ASK).

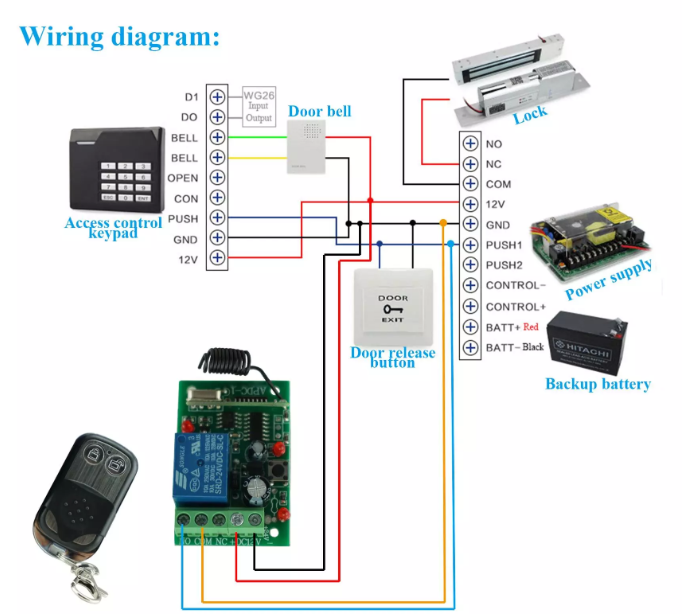

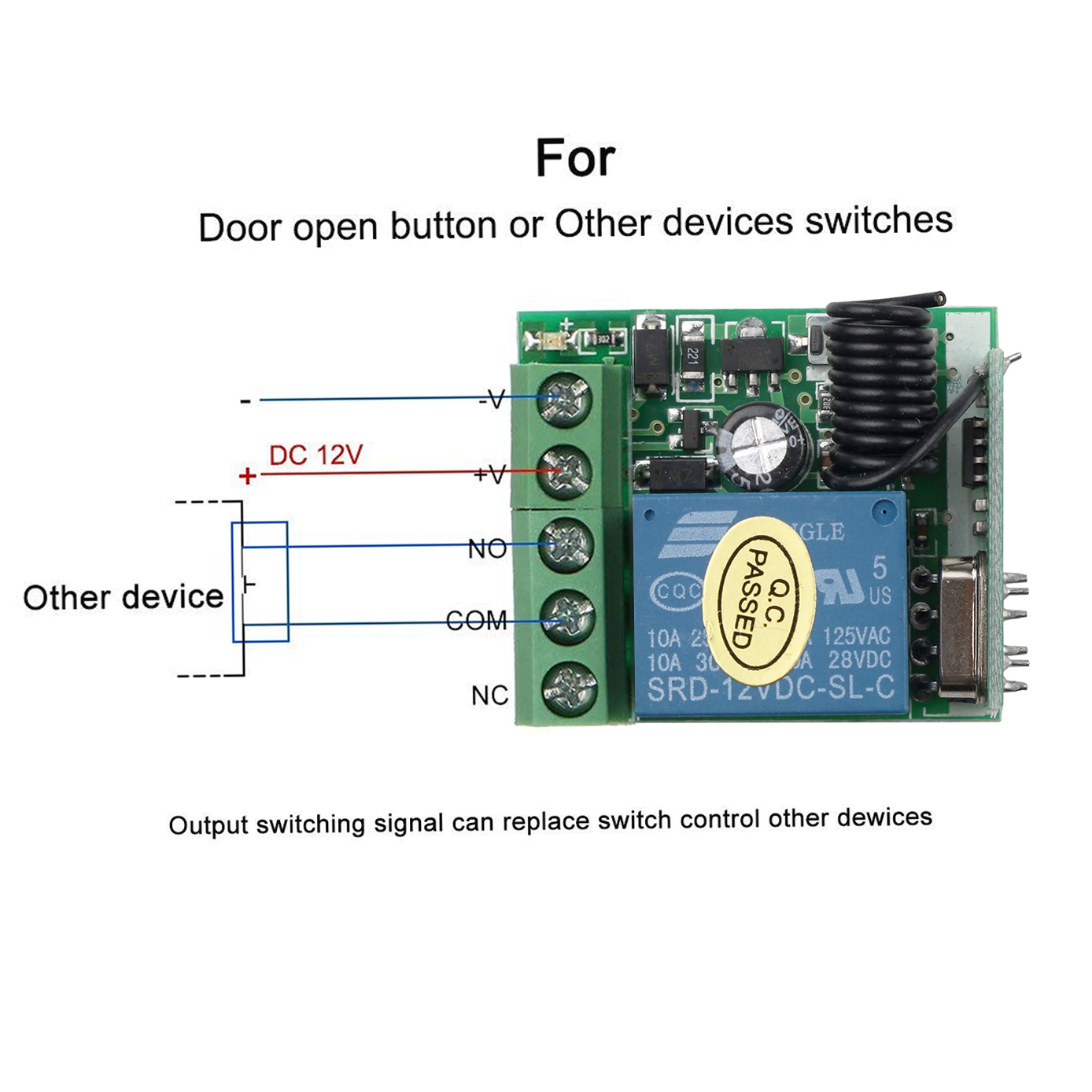

Wiring Diagram:

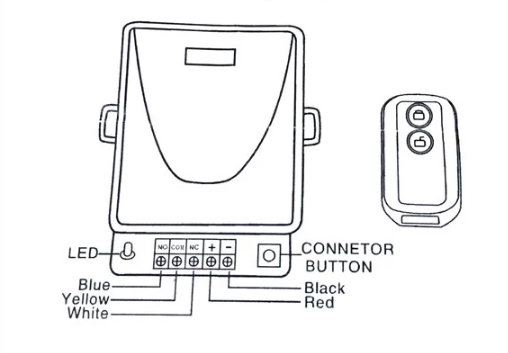

Wiring instructions:
1. +: Connect the positive pole of the 12V power supply;
2.-: Connect to the negative pole of the 12V power supply;
3. NO: output terminal; normally open terminal of the relay;
4. COM: output terminal; relay common terminal;
5. NC: output terminal; normally closed terminal of the relay;
Function selection:
1. Set to jog output: unplug the jumper cap on the board and don't use it.
2. Set as self-locking output: short-circuit "T" with the middle pin with a jumper cap on the board.
3. Set as interlock output: short-circuit "L" with the middle pin with a jumper cap on the board.

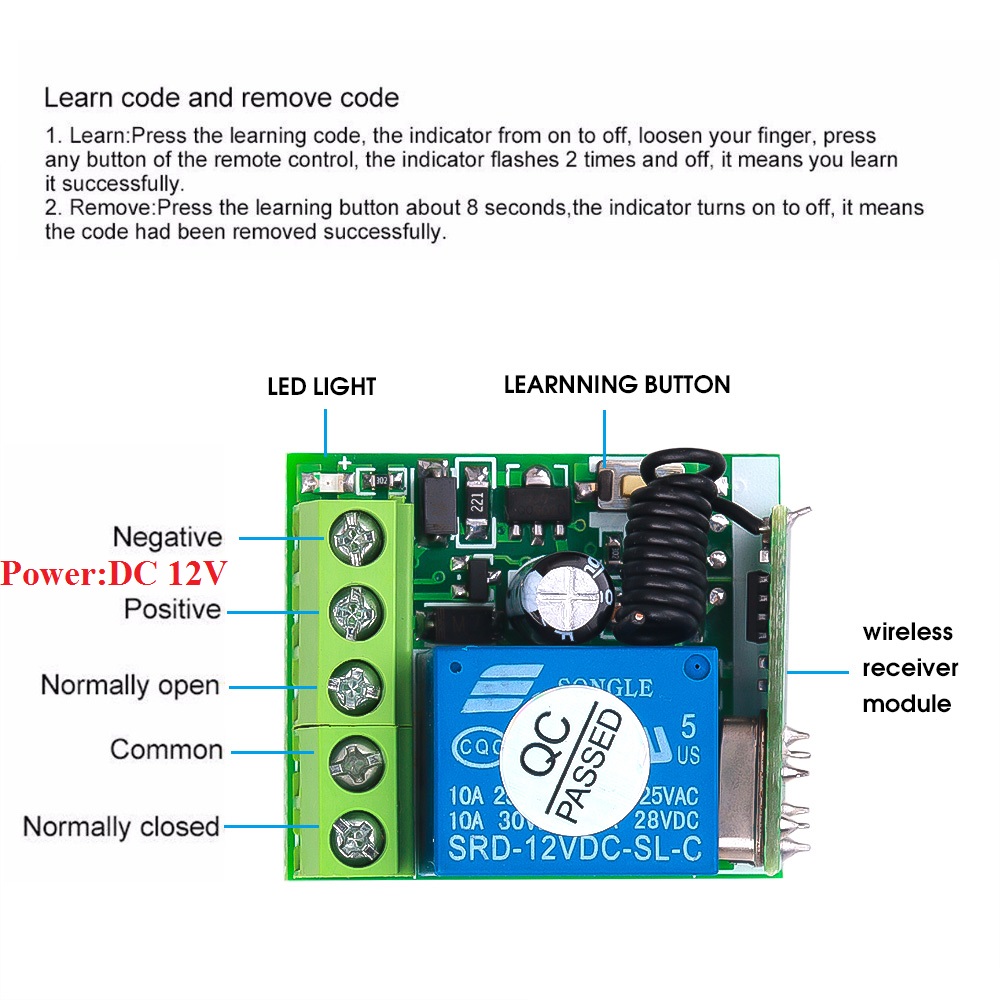

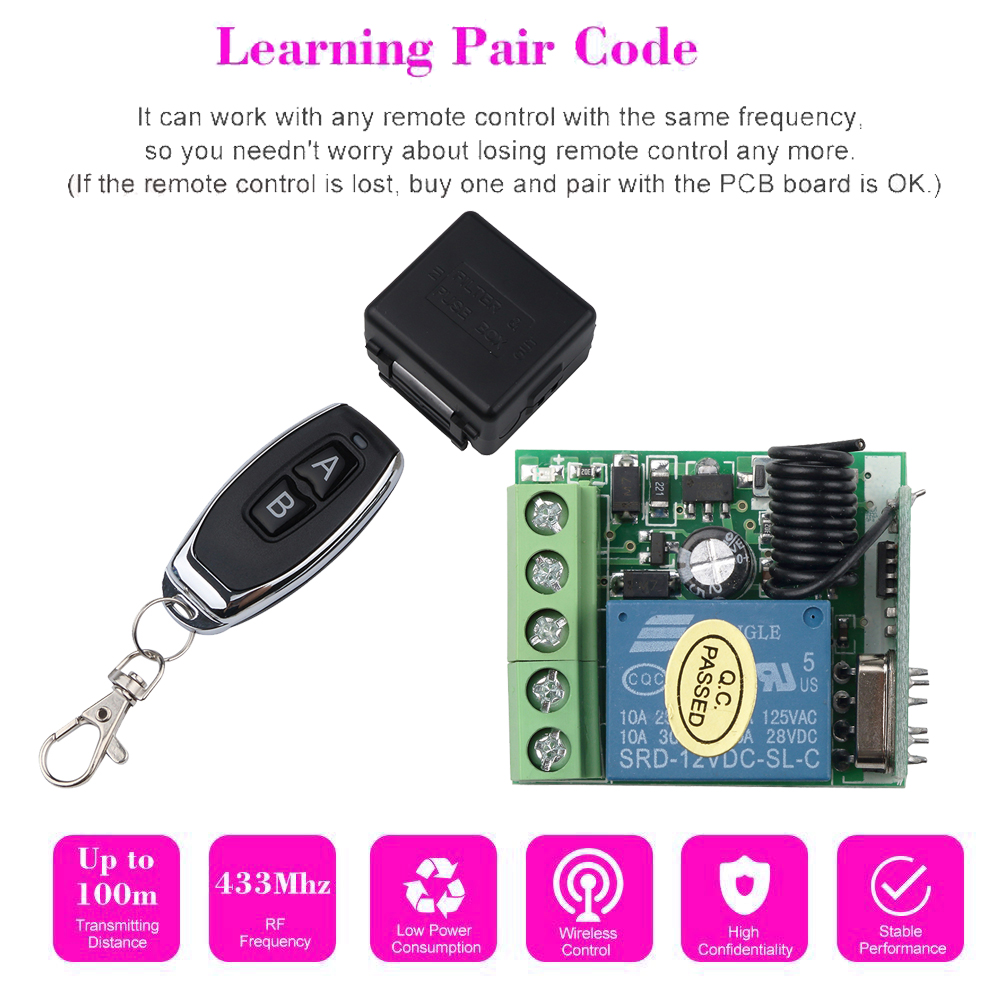

Learn to code:
1. Power on the circuit board and the LED will light up.
2. Press the KEY button on the PCBA board. After the LED goes out, release the button.
3. Press any button on the remote control, the LED flashes.
4. Learning to code is OK.
Clear the original code:
1. Power on the circuit board and the LED will light up.
2. Press the KEY button on the PCBA board, don't let go.
3. After seeing the LED flashing, release the button again.
4. Clear OK.
Explanation of output mode:
1. Self-locking: Press the remote control "A" once, the relay will be closed. Press the remote control "A" again, the relay will be off.
2. Interlock: Press the "A" button on the remote control, the relay will be closed. Press the "B" button on the remote control, and the relay will turn off.
3. Jog: Press the "A" button on the remote control to close the relay, and release the "A" button on the remote control to turn off the relay. If you keep pressing it, the relay will keep on until you release the "A" key on the remote control.

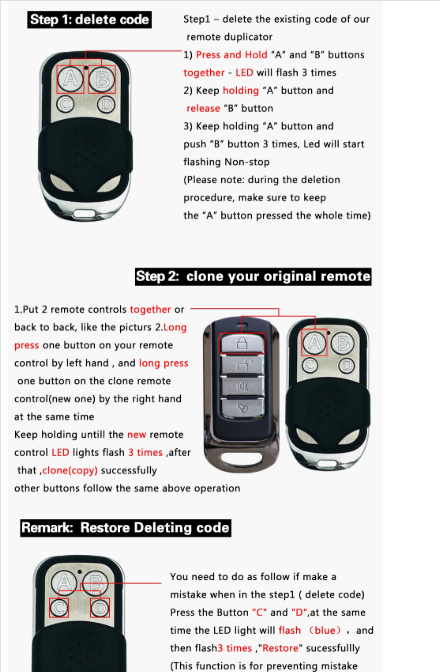

Program set up:
1.)Clearing the code :
Push the learning button on the receivers for 8 times , the codes will be cleaned .
After clearning the code, all the remote control cannot work any more.
2.)Learning the code: (self lock)
Press the learning key(on the Receiver) one time, the LED (on the Receiver)will blink one time.
When the LED is on, press the button of the remote control(the user want to let it learn), the LED (on the Receiver)will blink for 3 times and then turn off, Learning  succeed.
3)Learning the code: ( interlock)
Press the learning key(on the Receiver) 2 times, the LED (on the Receiver)will blink 2 times. When the LED is on, press the button of the remote control(You want to let it learn), the LED (on the Receiver)will blink for 3 times and then turn off, Learning to succeed.
4.)Learning the code: ( jog )
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learnt is for "ON", the second time learnt for "OFF".
For example: button A = ON, button B = OFF
Press the learning key(on the Receiver) 3 times, the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed.
A = ON, B = OFF .
NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the receiver will stop working or not working properly.

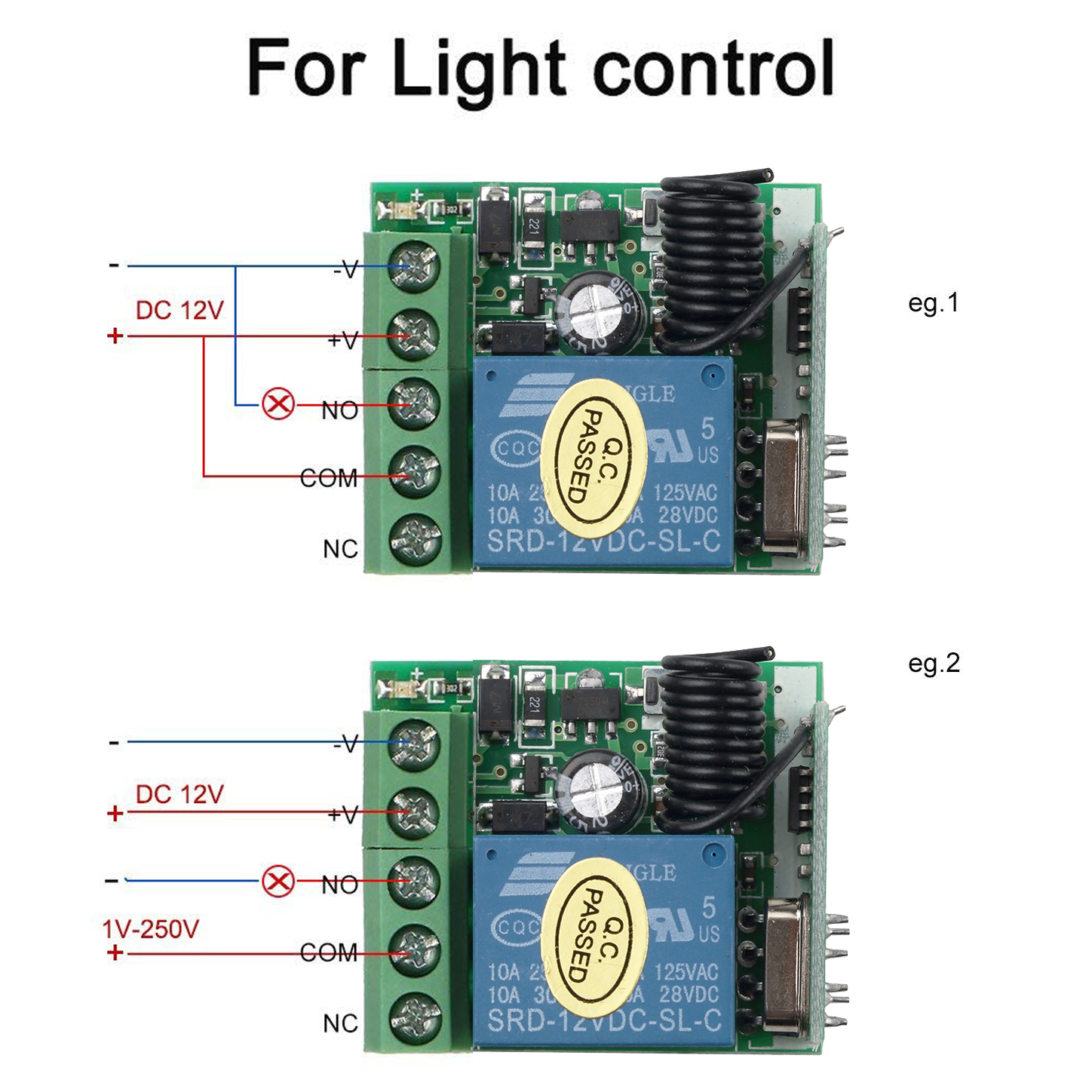

Program set up examples:

Applications:

Warm Tips:

Precautions:
1. Do not operate with power, turn off the power to operate, and power on after the test is confirmed to be correct.
2. When the remote control voltage is low, please replace the battery in time (when the remote control battery voltage is low, the remote control distance will generally become shorter).
3. When using wireless electronic products, pay attention to avoiding metal masks, large electronic devices, electromagnetic fields and other strong sources of interference to avoid short distances between the remote control and the receiving device or failure to work properly.
4. Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product. In severe cases, it will damage the product and bring hidden dangers to your safety.
