Product Descriptions:

Full automatic hydraulic bollard, also known as lifting ground column, lifting road pile, anti-collision road pile, hydraulic automatic lifting column, isolation pile, etc. Normally, roadblocks are raised to prevent vehicles from passing, and visitors can pass freely. In case of special circumstances, lower the lifting barriers to allow vehicles to pass

Technical Parameters:

Control system:electric-hydraulic operated
Maximum weight of passing cars:≤8 T
Power supply:220 V (control voltage: 24V)
System power:1.5kW / 2.2kW
Rising time:≤ 4 s (adjustable)
Dropping time:≤ 2 s (adjustable)
Working temperature:-35°C ~75°C
Material:#304 stainless steel
Diameter of pillar
168mm, ( 275mm, 324mm are optional)
6mm(8mm, 10 mm are also available)
Features:

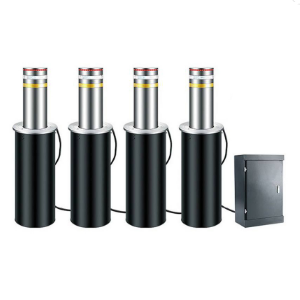

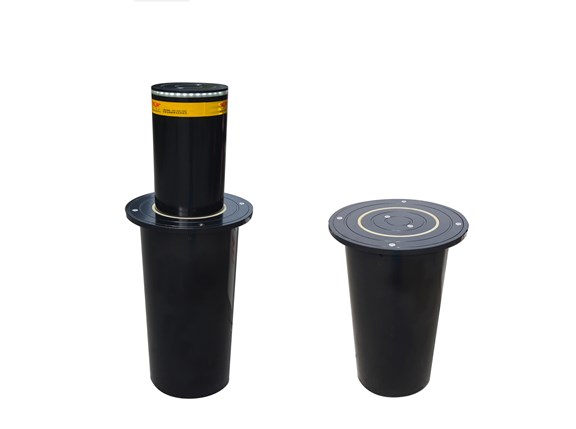

The Full automatic hydraulic bollard is mainly composed of automatic lifting column, cylinder, guide shaft, cover, outer box, lock and other parts. Lifting body: It is made of 304 national standard stainless steel 8mm/6mm thick steel pipe, which has high-strength load-bearing and collision resistance; no electrical appliances and wiring in the column, waterproof and safe.
1. The structure is sturdy and durable, the load is large, the movement is stable, and the noise is low.
2. Adopt PLC control, stable and reliable system operation performance, easy to integrate.
3. It can be linked with other equipment such as barriers and can also be combined with other control equipment to realize automatic control.
4. In the event of a power outage or failure, such as when the fully automatic lifting column is in a raised state and needs to be lowered, the raised column can be manually operated to fall back to the ground level to allow vehicles to pass.
5. Adopting the international leading low-pressure hydraulic drive technology, the whole system is safe, reliable and stable.
6. Remote control device: Through wireless remote control, the lifting of the barrier column can be controlled within 30 meters around the controller (according to the radio communication environment on site).

Advantages:

1. Safe and reliable
Fully automatic lifting column When encountering emergency situations such as power failure, the emergency lowering button can be turned on by hand, and the column body is lowered to open the passage and let the vehicle pass. The upper and lower parts of the internal fixing mechanism are respectively equipped with a current detection sensor and an electromagnetic sensor, thereby realizing the overcurrent protection of the power unit and the effective limit of the cylinder movement, and the operation is stable and reliable.
2. Economical
Since the fully automatic lifting column is an electric integrated mode, it is environmentally friendly and energy-saving, low consumption, lower failure rate, longer service life, and lower maintenance costs. In addition, the non-traditional guide mechanism design is adopted, which makes installation and maintenance easier and faster.

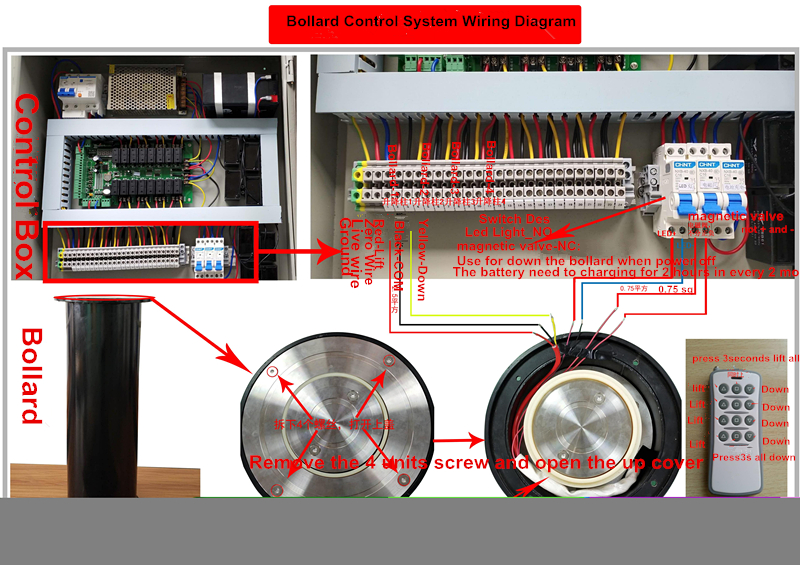

Wiring Diagram:

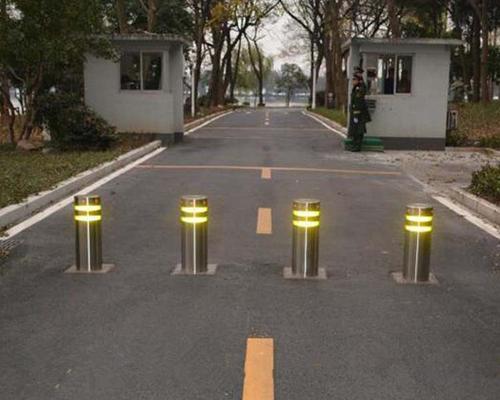

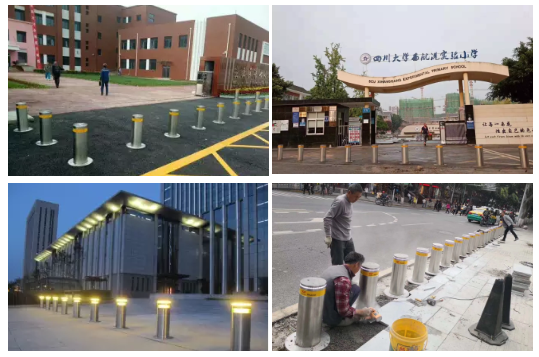

Install Examples:

Full automatic hydraulic bollard are widely used in many occasions such as urban traffic, military, military special zone, government, important national unit gates and surroundings, embassies, docks, pedestrian streets, highways, toll stations, parking lots, airports, schools, banks, large clubs, etc. . For some vehicles with the intention of illegal intrusion, it has a timely, effective and compulsory stop function to achieve the purpose of ensuring safety
