Descriptions:

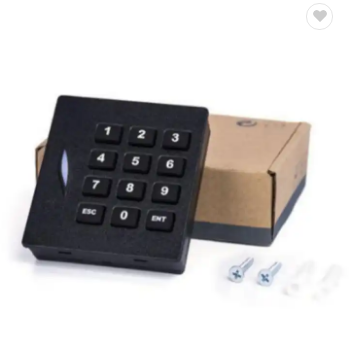

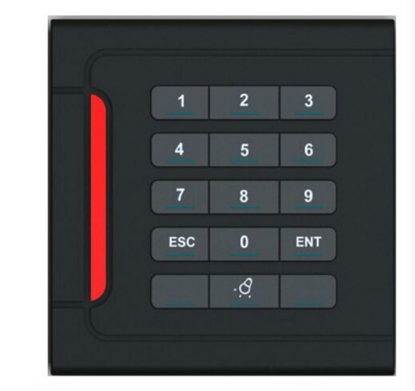

Keypad rfid  ID/IC Card Reader
Wiegand 26/34 communication,suitable for all kinds of access control installationsThe RFID reader uses electronic technology, smart card technology, radio frequency communication technology, cryptography and other technologies to read and identify the user card, and transmit the user card information to the access control controller through the Wiegand protocol for processing. It is mainly used as the child of the access controller. Equipment application, can also be used as an independent product to interface with third-party systems, which is one of the typical applications of RFID in the security field

Technical Parameter

Reader-86ST
Read Range:Up to 5-10 CM

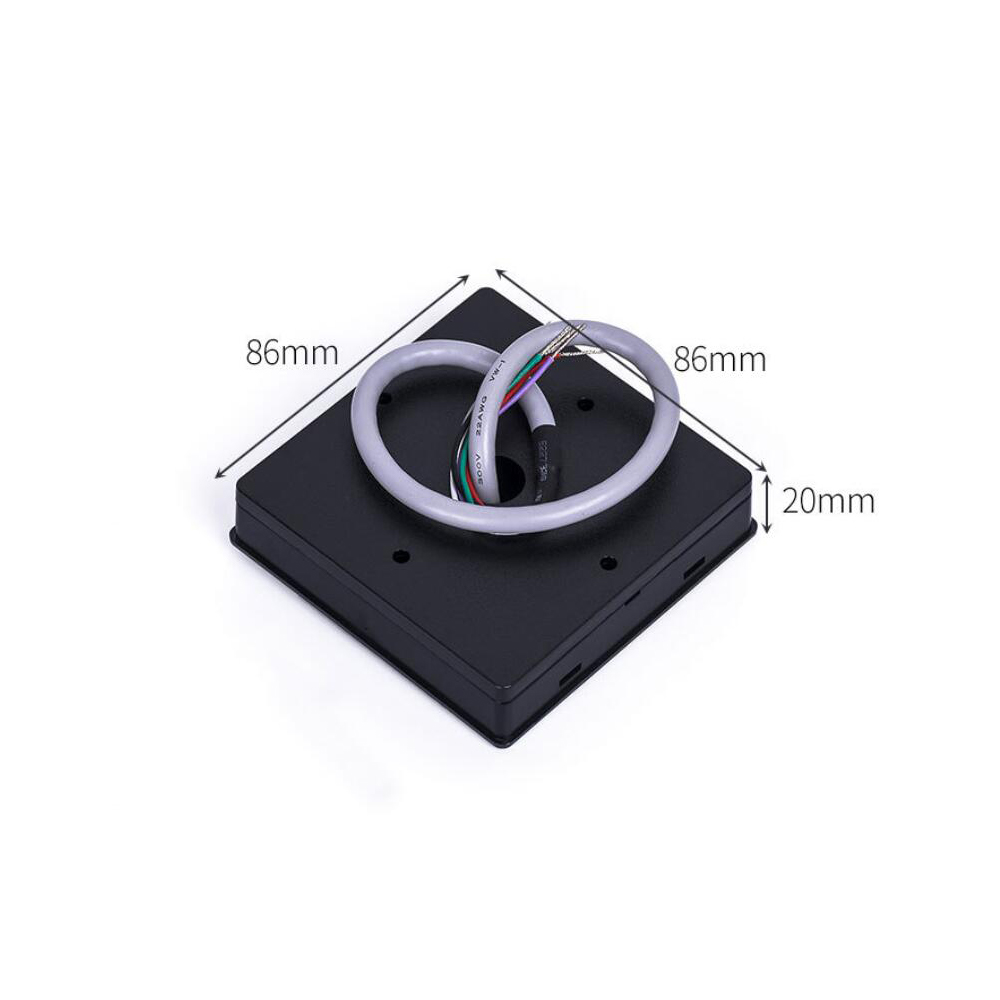

Size:KR102E:86*86*20 mm
Reading Time:≤200ms
Input Port:External LED Control,External Buzzer Control
Output Port:KR102E: 26/34bit Wiegand (Default)
Power/Current:DC12V / Max.70mA
LED:Red and Green LEDs
Operating Temperature:-20°C to 65°C(-10° to +70°C)
Material:ABS+PC with texture
Operating Humidity:10% to 90% relative humidity ,non-condensing
Beeper:Yes
Operating Humidity:IP65

Feature
1.ID/IC card swipe verification
Advanced anti-crash circuit design, anti-surge protection, anti-misconnection protection.The buzzer sound is clear and loud, and will not be disturbed.
2.Wiegand 26/34
Support Wiegand 26 and Wiegand 34, just short the gray wire to ground or leave it in the air to switch between Wiegand 26/34

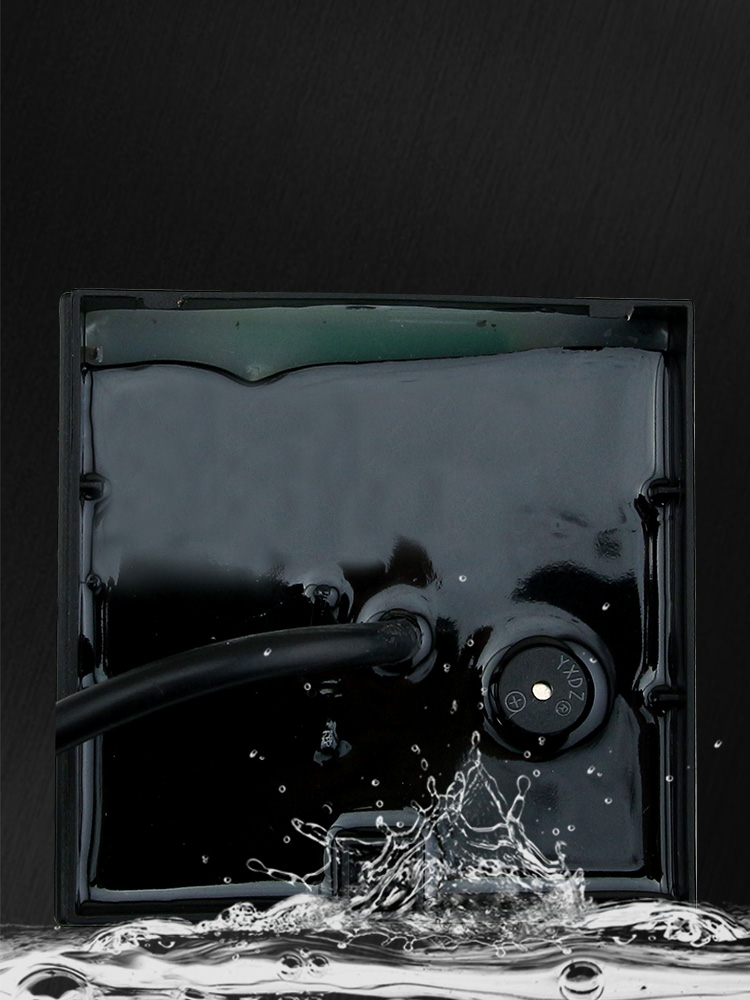

3.Internal waterproof design
Phillips screw at the bottom, easy to install; the output adopts glass discharge tube and semiconductor discharge circuit, which is resistant to electrostatic shock; the internal black resin glue package (can be effectively waterproof), can be used indoors and outdoors

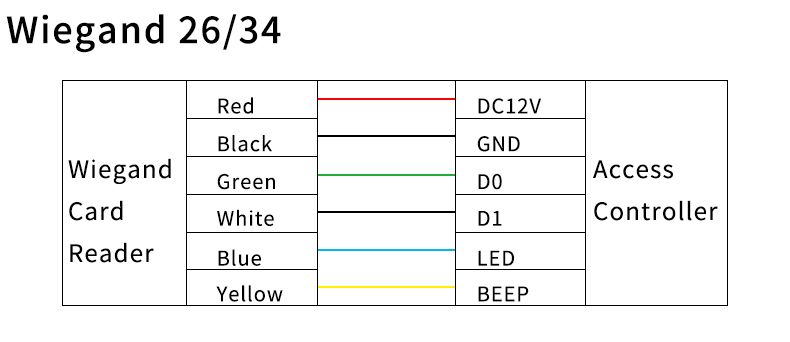

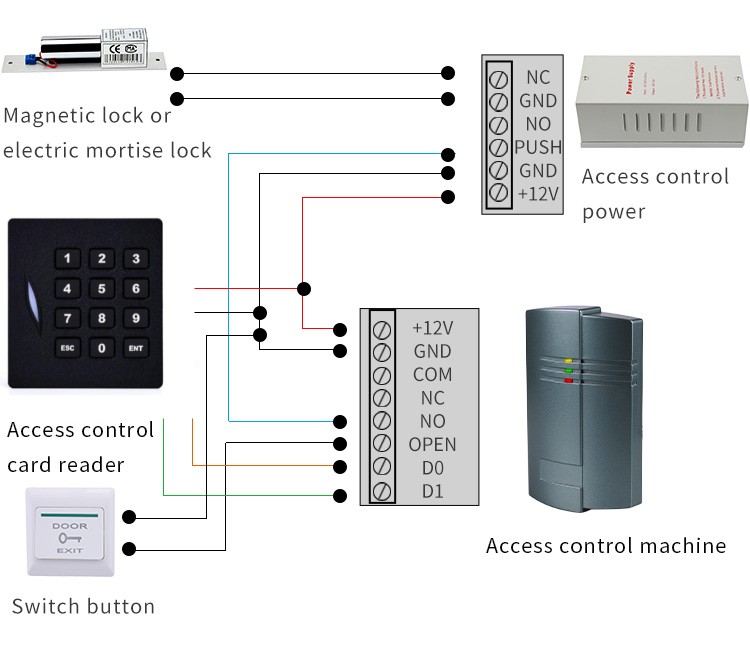

Wiring Diagram

Free technical service

When the gray line is connected to GND, the output becomes WG34, and when the gray line is not connected, the output is WG26. The access control card reader is only used to read the card, and cannot set the card separately. It needs to rely on other equipment to connect the equipment - access control all-in-one machine, access control controller, card attendance machine (if you need to purchase other connected equipment, please contact online customer service)

FAQ:

1.What is your minimum order quantity?
Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.
2.What is your payment term?
Bank T/T, Paypal, L/C, Western Union and MoneyGram.
3.What about the shipping way?
Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost,
but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers
requirements.
4.How long does it take?
Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.
5.What about the warranty?
We provide 1-2 years warranty from the date of delivery but lifetime technical support.
