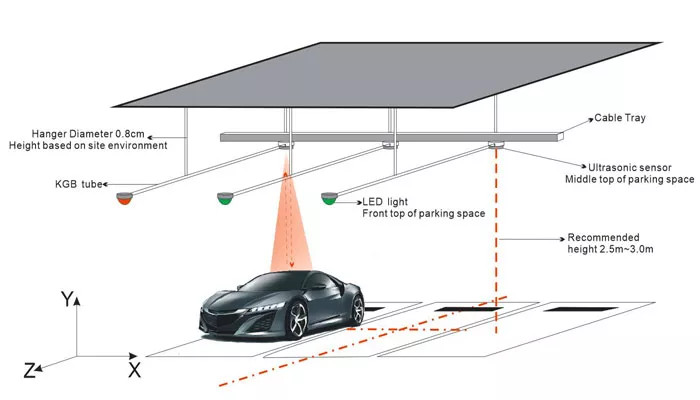

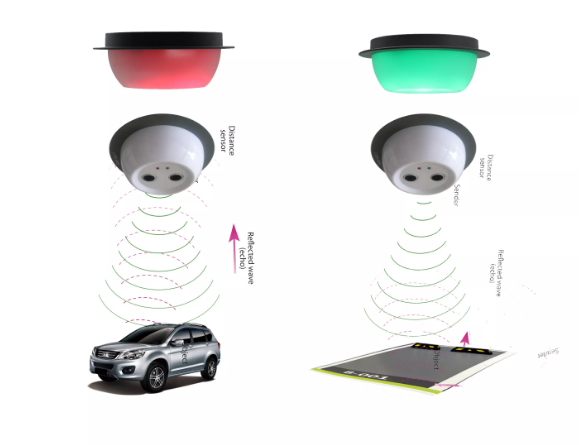

Parking Lot Detector use ultrasonic wave to detect parking lot occupancy information, and using LED indicator to distinguish its status (RED is occupied, GREEN is available), which can guide the motorist to find space quickly and improve parking management level. At the same time send the status to the upper controller.

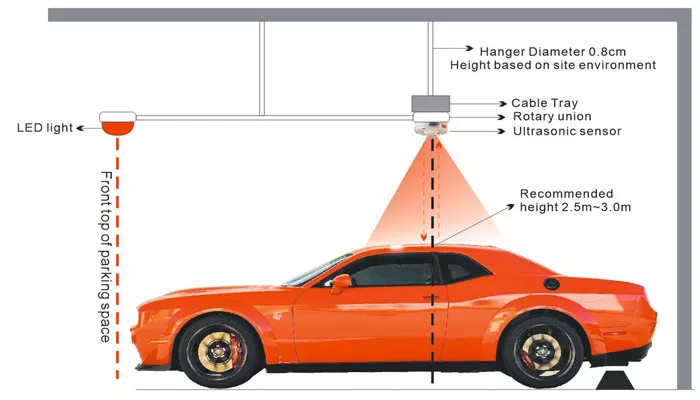

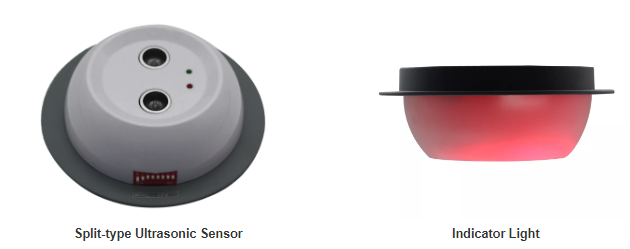

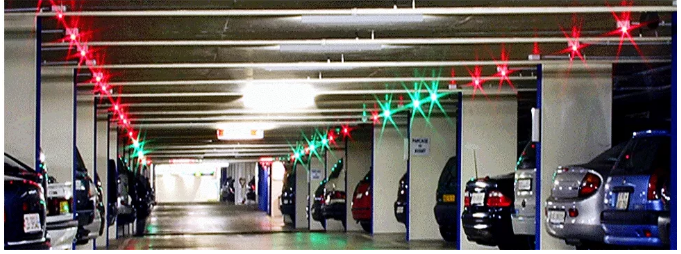

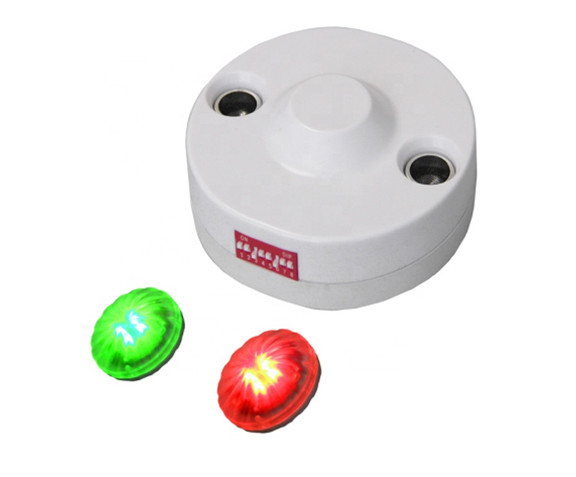

The Split-type Ultrasonic Sensor is consist of sensor+indicator which  excuse an excellent performance in the parking guidance system

Features:

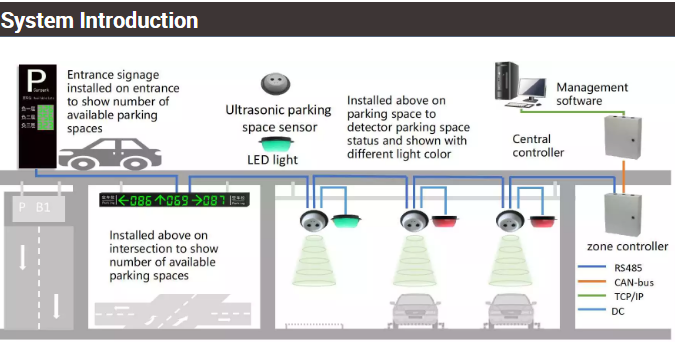

1. Ethernet, CAN-bus and RS485hybrid networking is used for the whole system architecture. Compared to the ultrasonic guidance system with traditional RS485 networking, it features long communication distance, high communication efficiency, high use ratio of bus and reliable fault-tolerant mechanism. Thus, the system networking capability is greatly improved and the stable and reliable data transmission is guaranteed. Meanwhile, it can effectively cope with the construction and implementation of parking guidance system of large-scale parking lot;

2. 8-level detection range setting satisfies different engineering installation environments;
3. With advanced intelligent study-type anti-interference algorithm, the problems of ultrasonic about adjacent-channel crosstalk and non-interference of the neighboring car during detection are effectively solved. Thus, the stability and reliability of parking state detection is guaranteed.
4. The industrial design is overall adopted. Through strict tests of static, lightning stroke & surge and group pulse, the reliable use of fluorescent lamp and large-scale electromechanical device under the influence of harsh environmental factors such as lightning stroke in parking lot is effectively guaranteed;
5. All devices are designed with the short circuit, transposition and misconnection protection to prevent the electrical damage to the related devices caused by the circumstances of short circuit, transposition and misconnection due to the wrong wiring during construction;
6. The zoning information of parking is free of influence of the physical installation location of detector and display screen. Any detectors and display screens under it can be associated;
7. Associated information of parking can be saved permanently after downloaded, and can be independent of the computer;
8. The whole controller could be remotely upgraded to always satisfy the user’s requirements;

9. The controller possesses the function of debugging at engineering site. After it is installed, one-button detection of device’s communication could be realized.

Technical Parameters.:

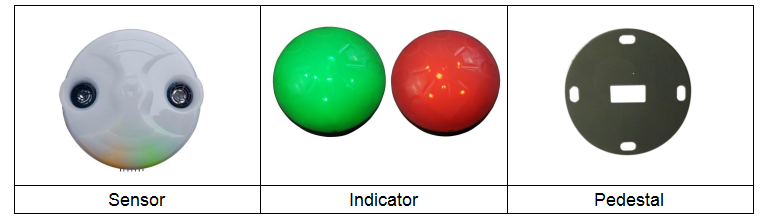

Parking Lot Detector Split type is consists of 2 parts: Detector +Indicator
A)Detector parameters:
Operation voltage:10-30V,Recommend:24V
Power consumption:0.5W
Operating principle:Ultrasonic measuring
Detecting range:
Communication mode:RS485
Dimension:Φ100*50mm
Operating temperature;-25 to +65 degree
Application:Indoor hoisting
Mounting:Hoisting
Work demand:Matching with parking lot indicator
Uplink:Uplink to Nod Region Controller RCM standard series

B)Indicator parameters:
Operating power:0~5V,depend on detector output power
Typical power consumption
Green light:3.5V*80mA
Red light: 5V*73mA
Blue light:5V*73mA
LED quantity:6 red,6 green,6 blue
Outer shell material:ABS
Dimension:Φ100*50mm
Operating temperature:-25~65° C
Visual angle:180 degree
Visual range:More than 50m

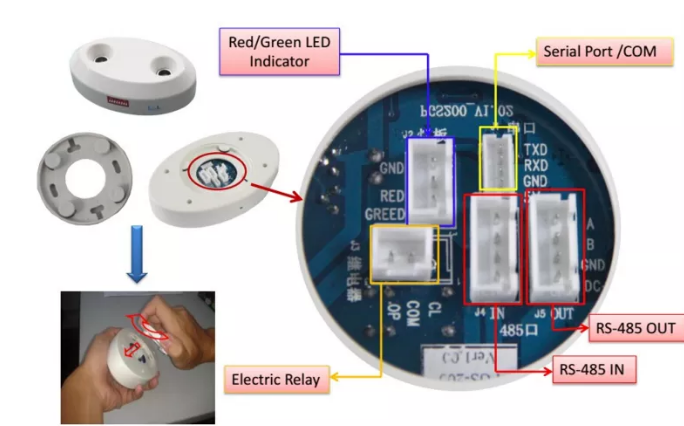

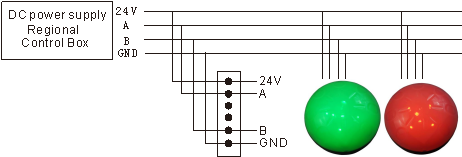

Wiring Diagram

System Connection Instructions

Jumper Setting

Detection Distance: Sen 1 0			Add Detector：Add（4——>0）
Sen10	Installation height（Y）	Horizontal distance from parking line（X）	Addr	Addr
0 0	180CM--230CM	<=0.8m	0 0 0 0 0	00
0 1	220CM--250CM	<=0.8m	0 0 0 0 1	01
1 0	240CM--270CM	<=0.8m	……	…
1 1	260CM--290CM	<=0.8m	1 1 1 1 1	31

Note:
1,When set the jumper, please repeatedly thrust and pull out several times to remove oxide layer to ensure good contact.
2,the car head No more than 20 cm from parking line

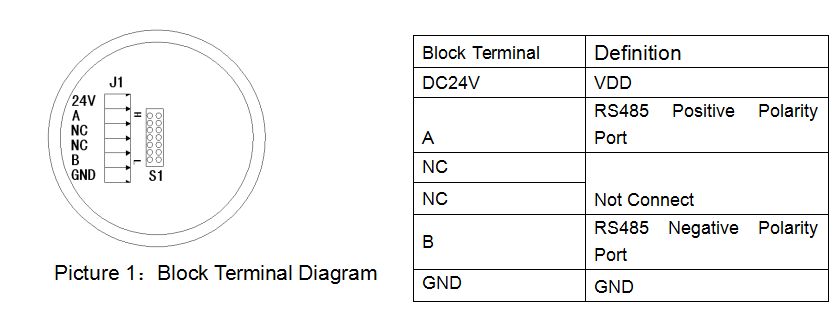

[J1] Instruction of Block Terminal
