Description:

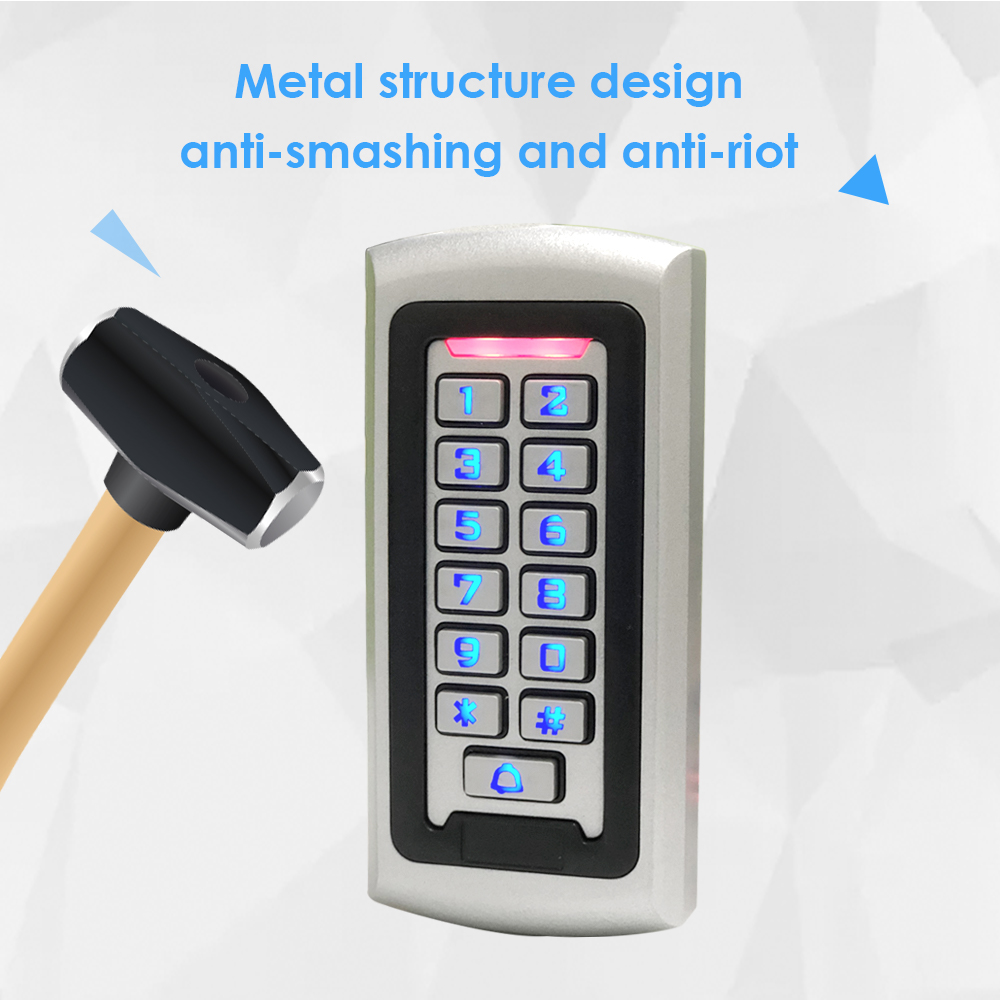

Metal IP68 Stand alone Keypad RFID Access Control Waterproof

The unit is single door multifunction standalone access controller or a Wiegand output keypad card reader.
This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option.The inbuilt card reader supports 125KHZ EM cards.The unit has many extra features including lock output current short circuit protection, Wiegand output, and a backlit keypad.These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses laboratories, banks and prisons

2.Features:

Full programming from the keypad

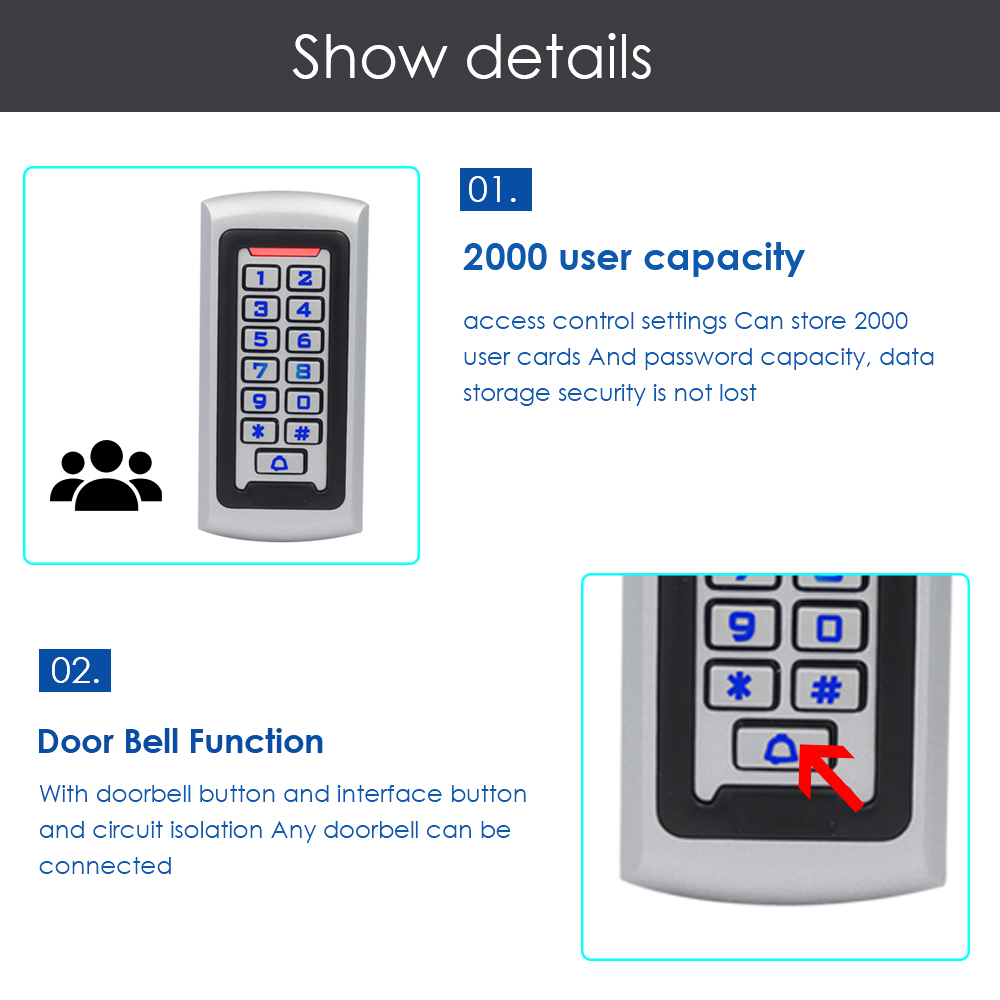

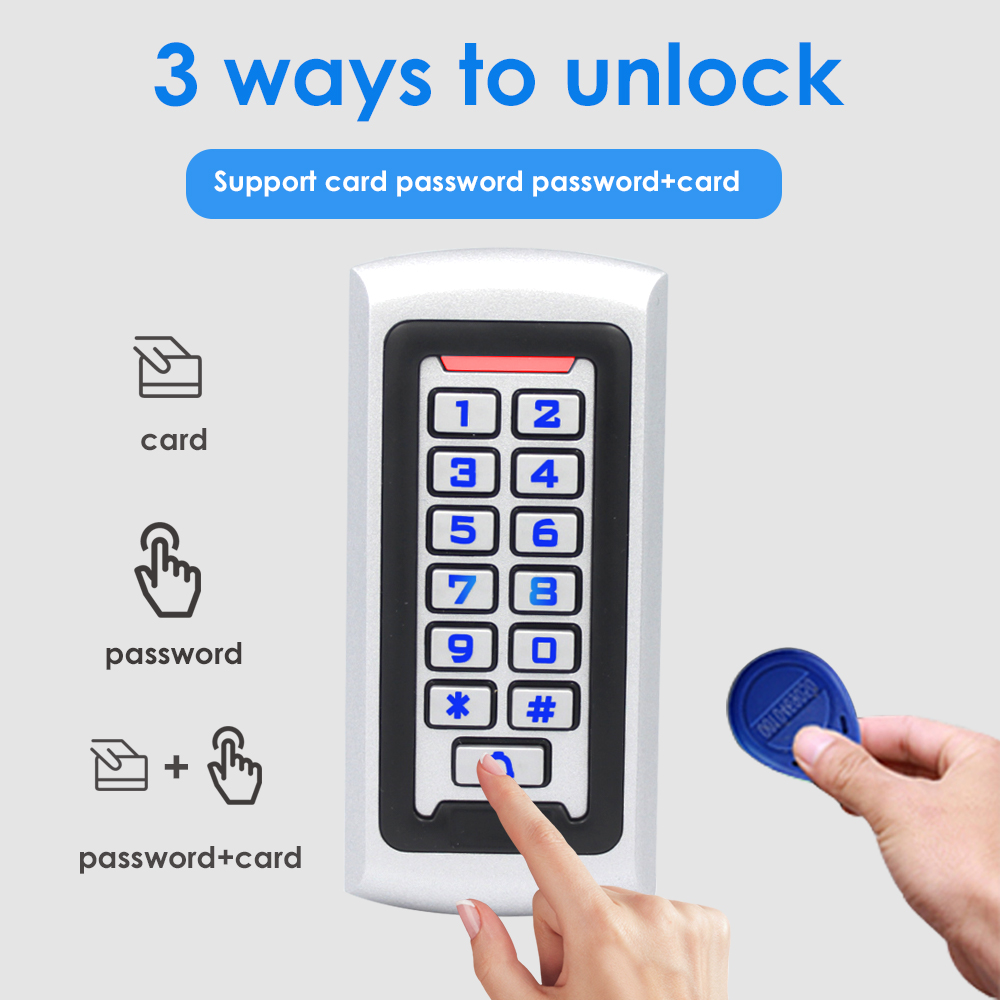

2000 users, supports Card, PIN, Card + PIN
Can be used as a standalone keypad

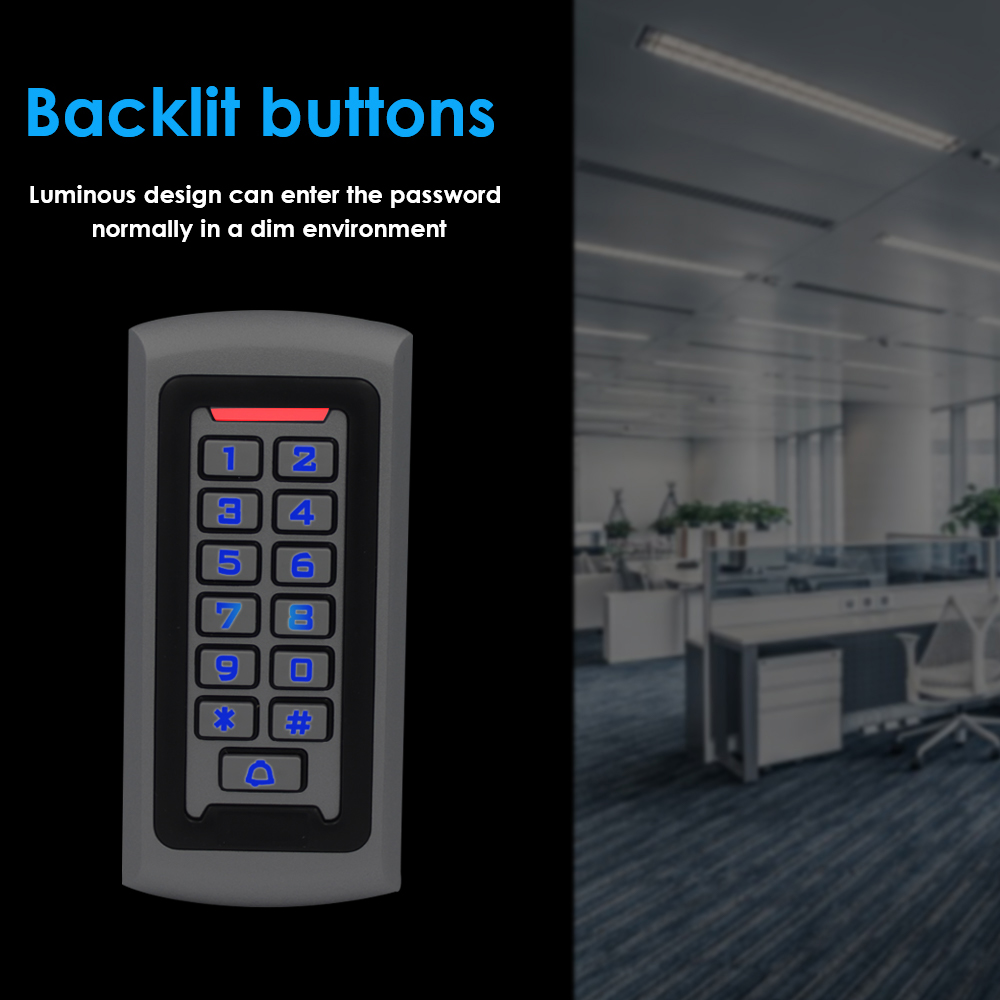

Backlight keys

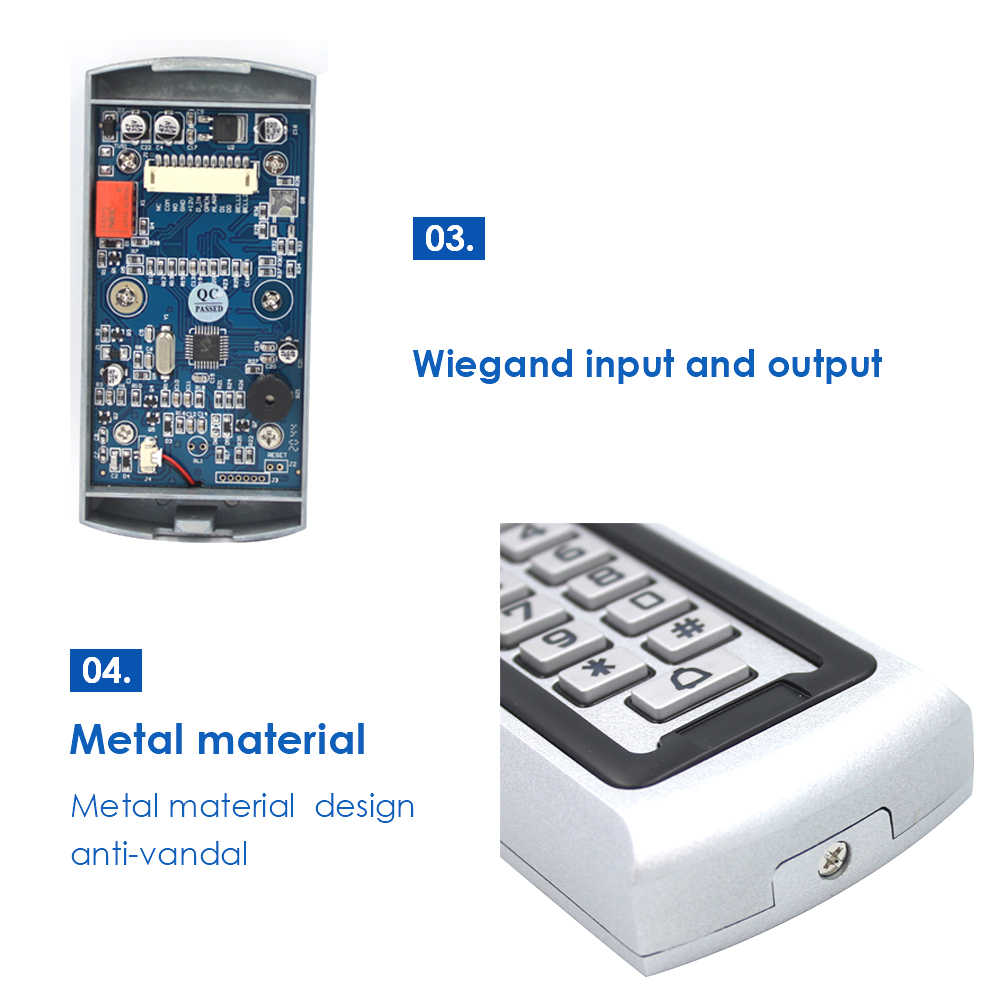

Wiegand 26 input for connection to external reader
Wiegand 26 output for connection to a controller
Adjustable Alarm time and Door Open timeVery low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built in buzzer
Red, Yellow and Green LEDS display the working status

3.Technical Parameters:

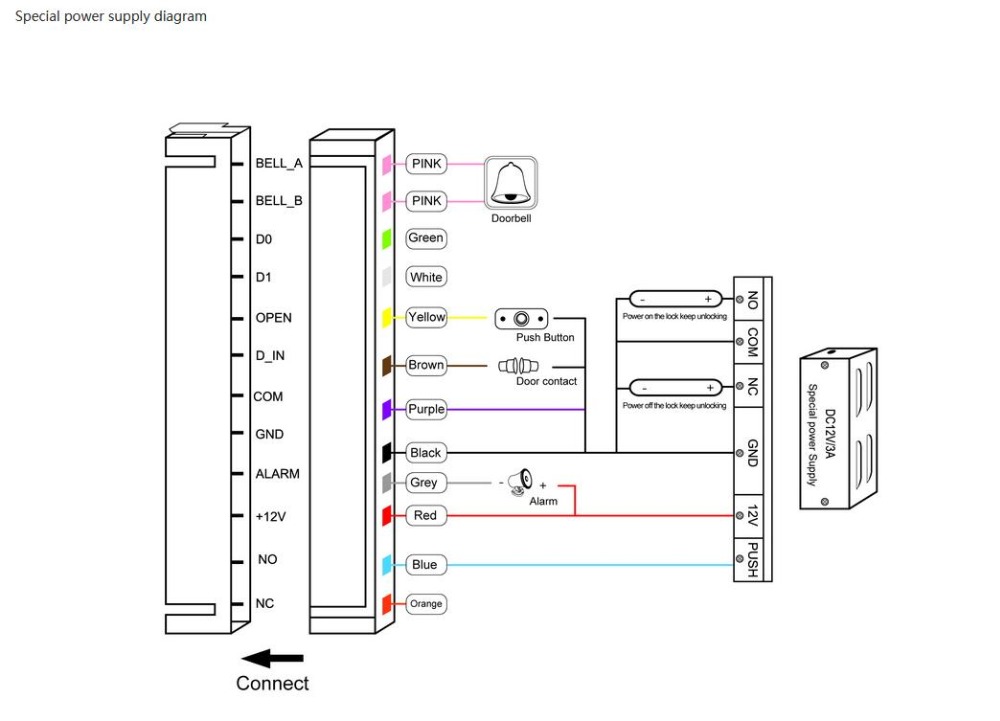

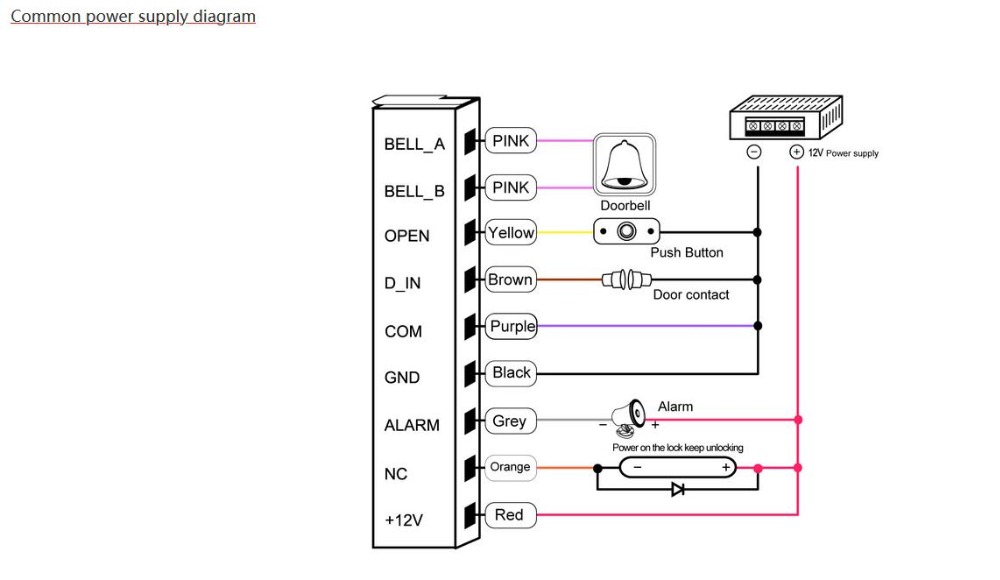

4.Wiring Diagram
