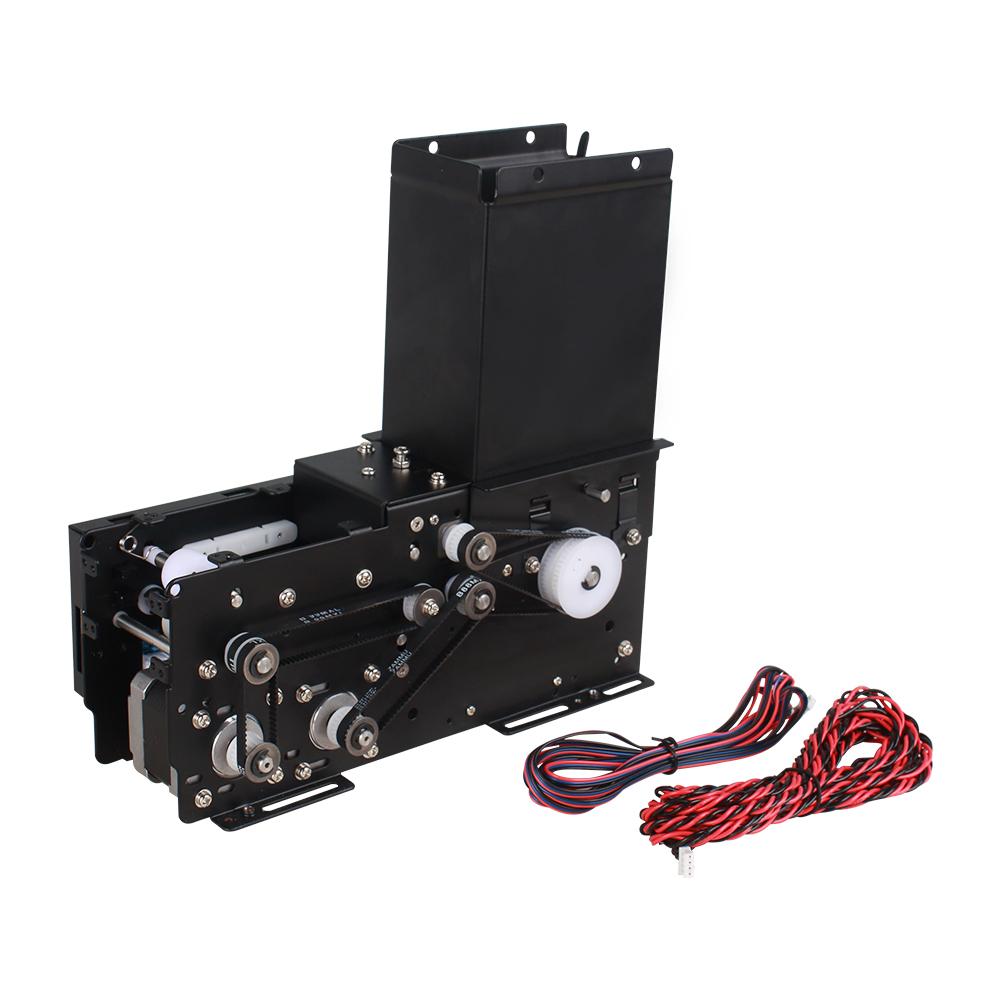

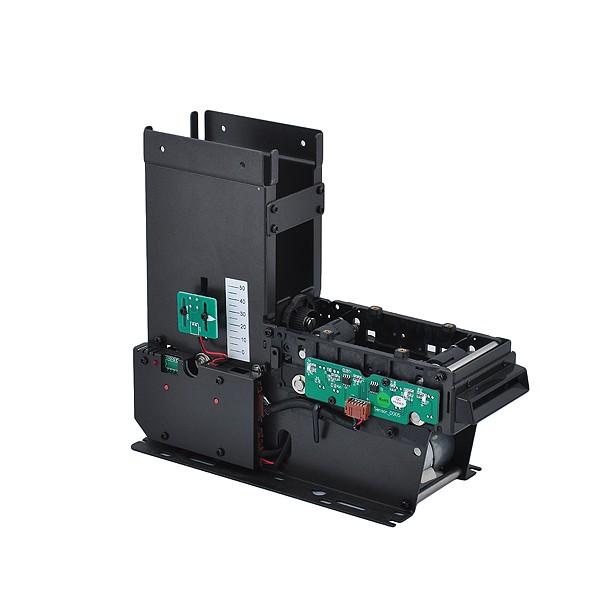

CD-101 ,card dispenser parking access system with 1 kinds of card reading function and it is smart card with PC/SC protocol ISO14443  For all card with card dispense function. It can operate even dirty cards. In china market,
it is widely use in hospital, telecome, financial card issue work. It also use for vending machine use, and also many other self-service kiosks. Please feel free contact with us for the further detail of barcode ticket dispensing parking lot system

Specifications:

Operation power：24VDC(Max.Current 2A,static current 0.1A)
Card stay position：Multiple card stop position
Operation condition：Install in the cabinet
Card thickness：width:54±0.5 mm Length:85±0.5 mm Thickness:
Card material：Paper or PVC
Stacker capacity：150 pcs standard cards at thickness of 0.76mm
card type：RFID ISO14443 Type A/B
Transmission device：500,000pcs
IC card contact point：500,000pcs
Magnetic head life span： 8ooooo passes
Few card Alert
7-50 pcs (Preset 15pcs of 0.76mm thick cards)
Interface:RS232

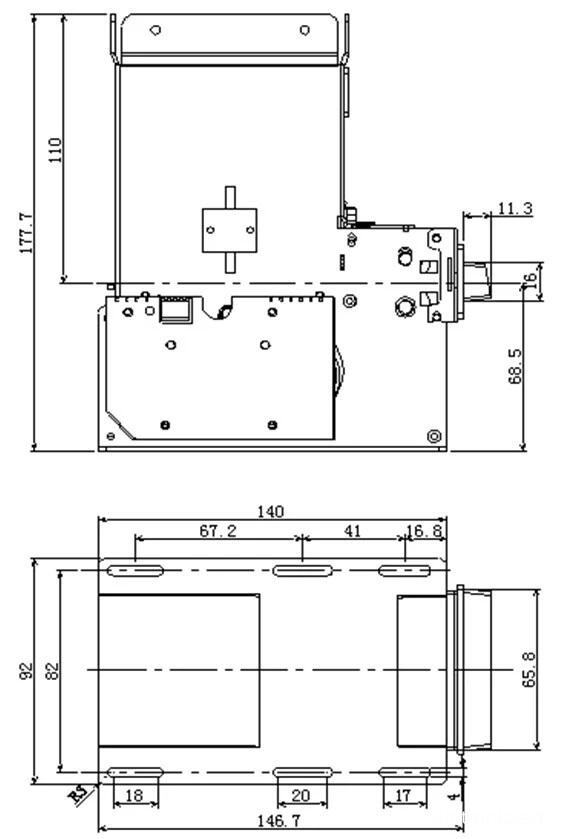

Dimension:290*93*204mm
Weight:2.4KG

Features:
Direct connectivity to the inductor
Automatic buzzer alarm when fewer cards or failure

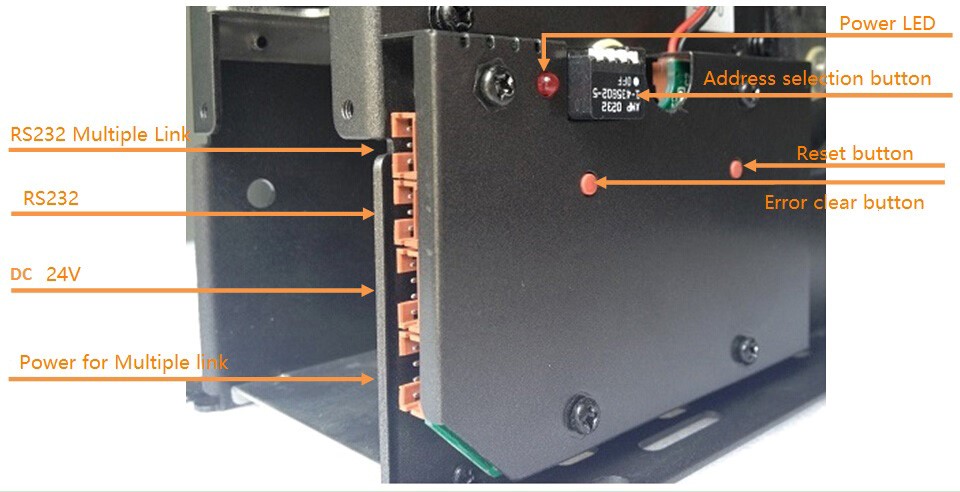

Provide RS232 and I/o voltage two control interface
Card recycling capacity is 40pcs, automatic buzzer alarm when cards warehouse is full
Automatic reset after the wrong alarm 100 seconds
security recoveries: prevent cards lost (only TCD800 series)
The adjustable capacity of card warehouse
Card thickness:0.2mm-1.5mm(adjustable)
Motherboard slip design makes the installation and removal simple, convenient and fast

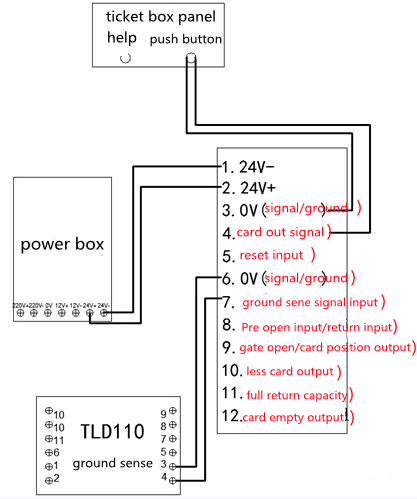

Wiring Diagram:
