Descriptions:

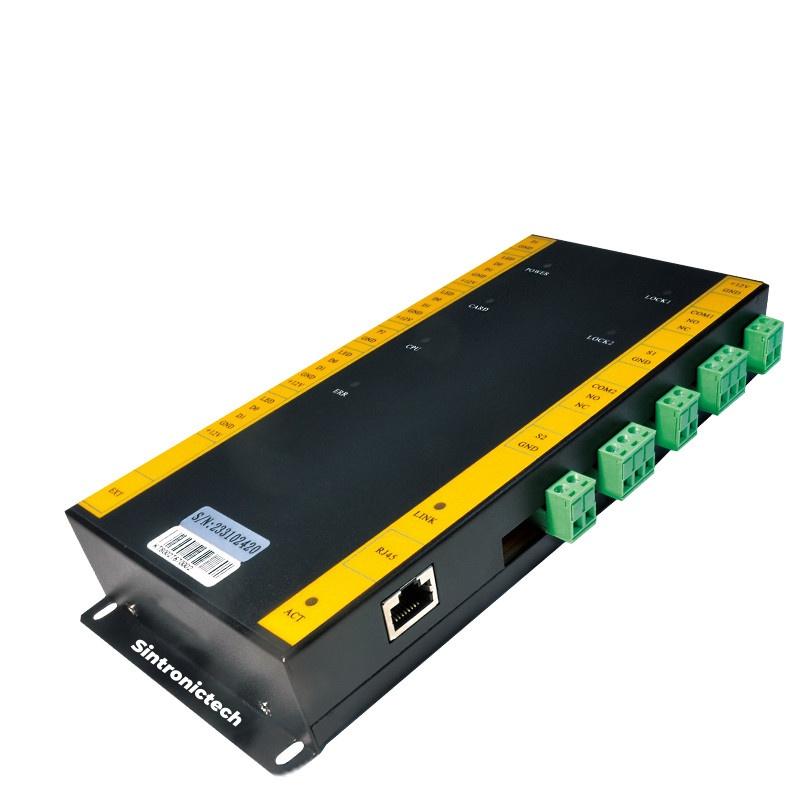

This 64 series TCP/IP network access controller adopts high-performance main control chip and integrates access control, personnel authority management and access record storage.
Suitable for access security management of office buildings, communities, factories and parks. It supports multiple door opening modes, easy installation and stable operation

Features

ARM cpu, it have very stronger fucntion. Its main function include:
Attendance / Access control / Access alarm / Fingerpint /  Web function /cell phone .
Attendance :support normal shif rules and Multi-shif rules ,this can meet variety of attendance needed.
Access control:support Time profile / password manage / anti-passback / inter lock / first card / task list .
Access alarm:support door open too long warm / door forced open / invalid card / fire alarm / Threat code / force lock
Fingerpint: support finger reader, it's better use our company Finger device, so it can use one software to manger.
Fire alarm:Fire alarm triggered , All doors are opened automatically and alarm is output at the same time
QR  function:support various QR code generators
web function:support PC,tablet ,cell phone use IE or Chrome  browser etc.
Cell phone: support Android phone and Apple phone, supportWIFI/2G/3G/4G remote control,can open door at anywhere at any time via phone!

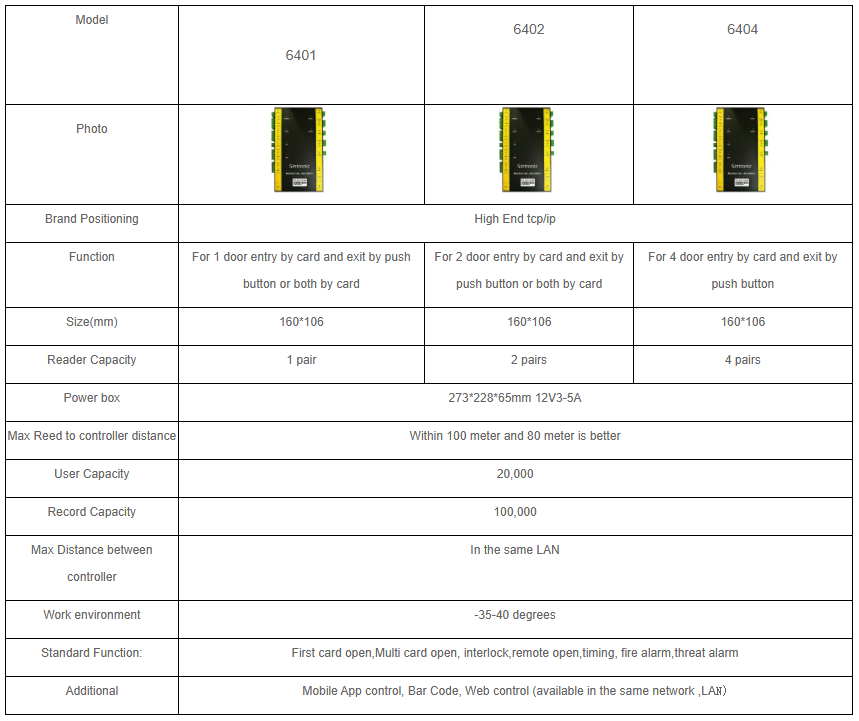

Specifications:

Size:160*106mm
Power Box Size:273mm*228mm*65mm
Communication Model:TCP/IP
Power Supply:12VDC 4-7A
Reader Input Format:Wiegand26- 40
Card Capacity:40,000 Units Record Capacity:100,000 Units Database
available:Access,SQL2008
,compatible with
SQL2000,SQL2005
Software:Free

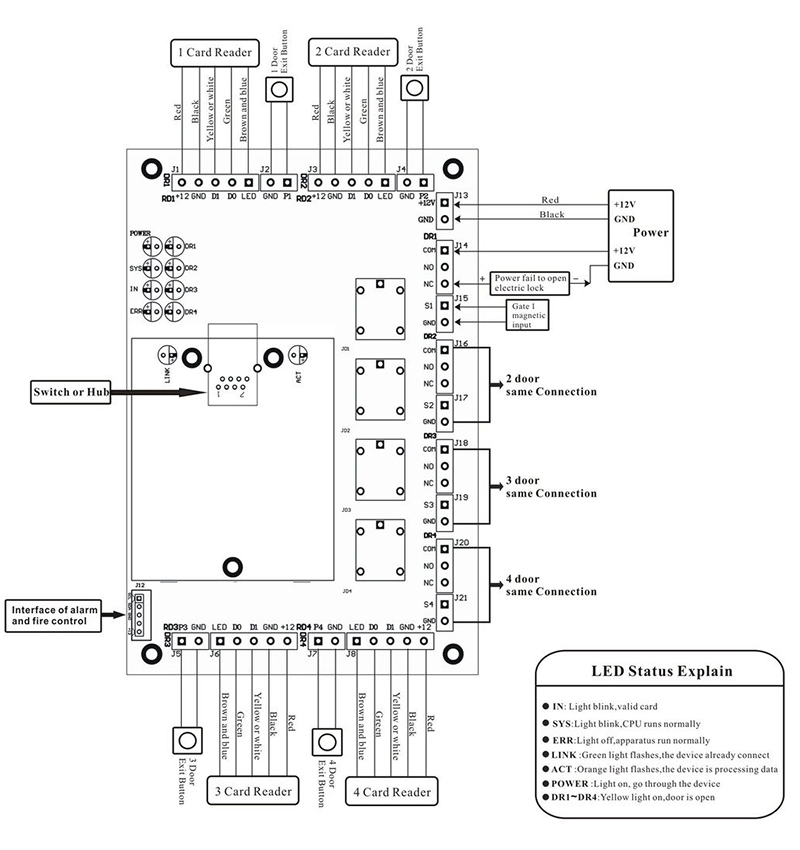

Wiring Diagram:
