How does vertical tripod turnstile wiring to access controller

 DOWNLOAD

Vertical tripod turnstile wiring to access controller guidance

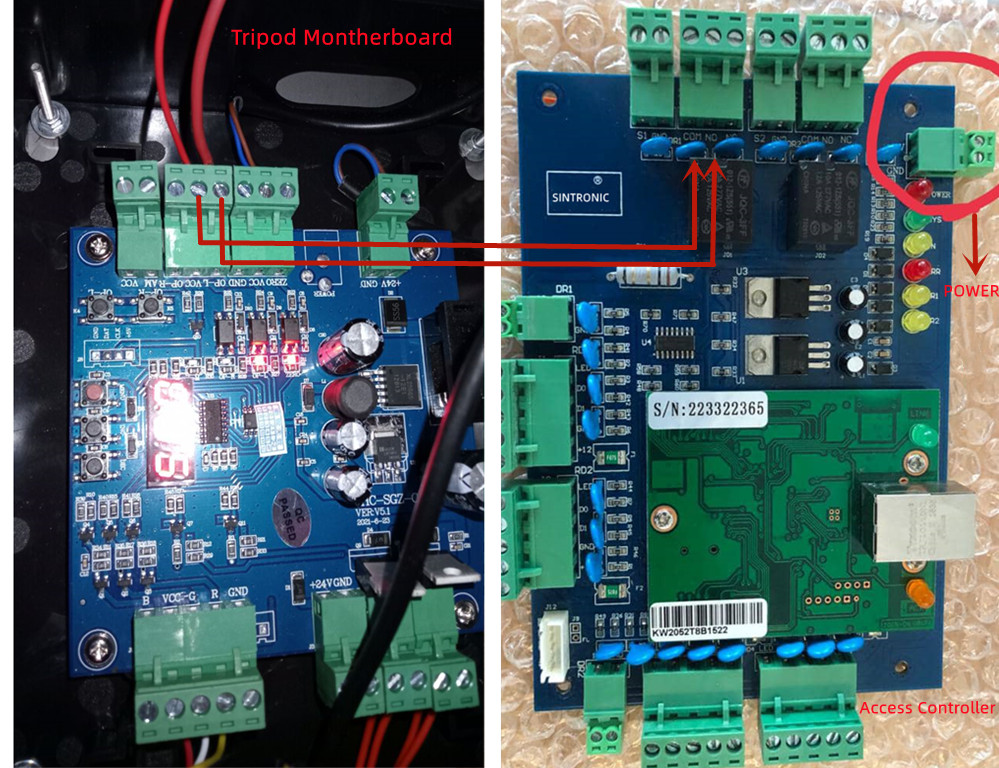

1.Tripod turnstile motherboard signal left or right open signal and Vcc signal  wiring connect according  to access contoller no or nc signal port and com signal interface.

Kind reminder

.If you need normal close then the nc signal wiring to tripod left or right open signal port

.Otherwise you need normal open then the no signal wiring to tripod left or right open signal port

2.Test and Approval
