Multi-door interlock setting procedure

Functional requirements: To achieve interlocking, a double-door or four-door controller is required, and the door magnetic signal must be connected. (Single door controller has no interlock function)

Usage scenario: There are two doors in the passage leading to the bank vault, commonly known as the AB door; the two doors cannot be opened at the same time. If door A is opened, door B cannot be opened. Only after door A is closed, door B is allowed to open, which plays the role of protecting the vault.

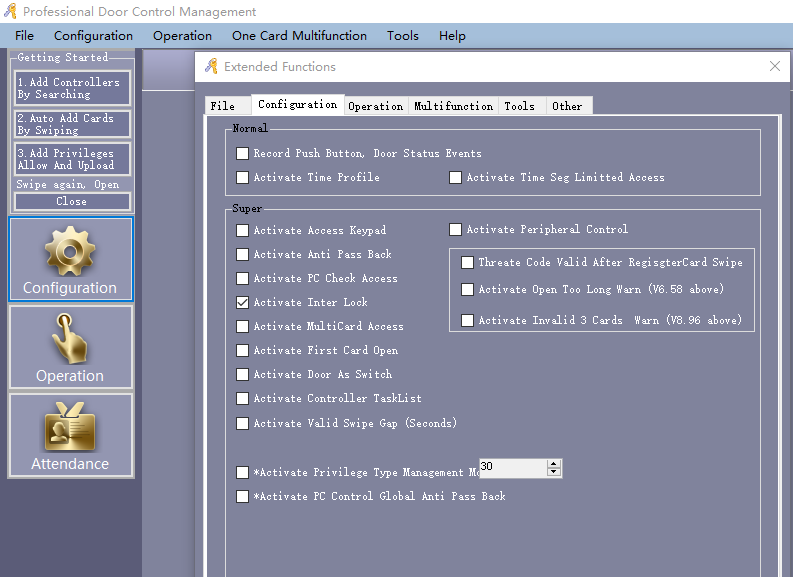

1.Enable multi-door interlock

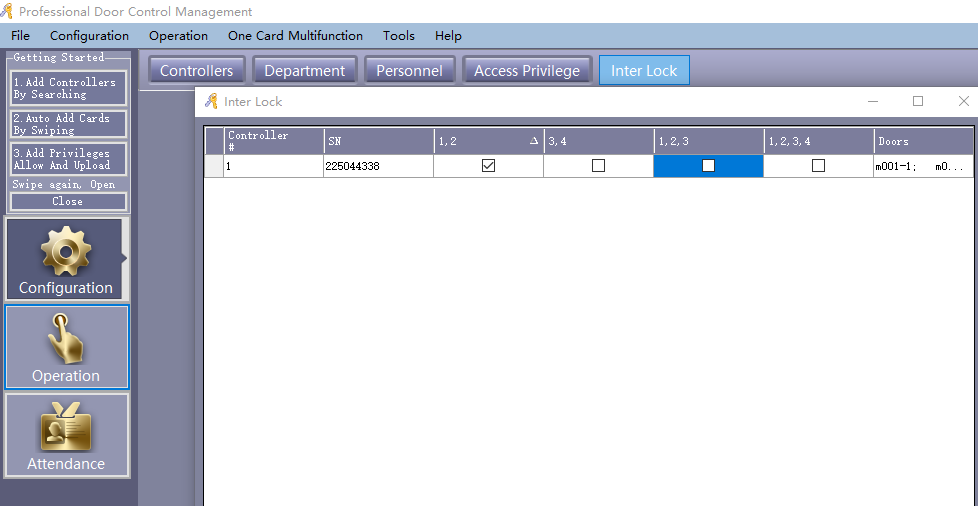

2.Set up multi-door interlock

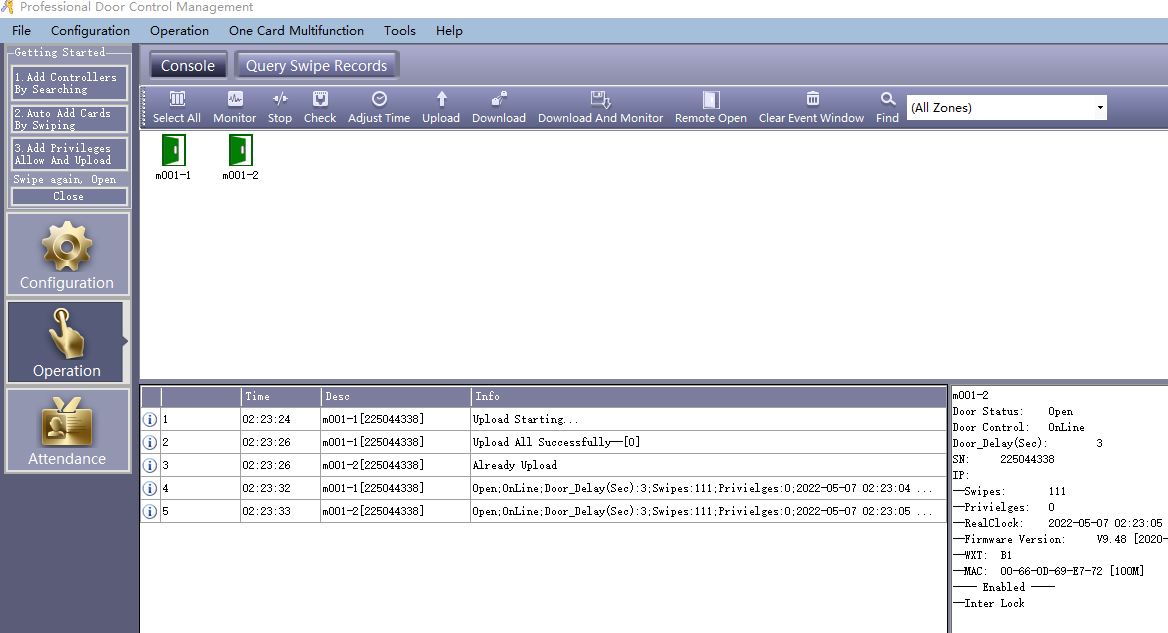

3.Console upload
left click operation-console-select all-upload
