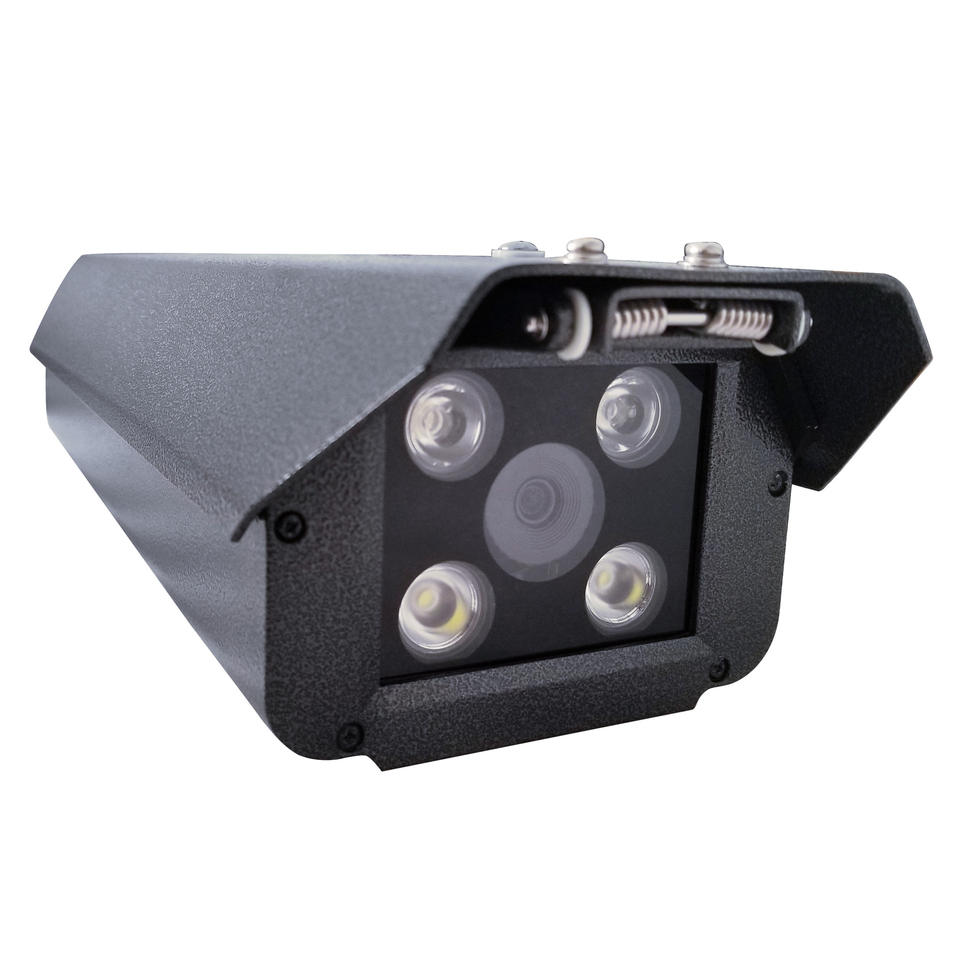

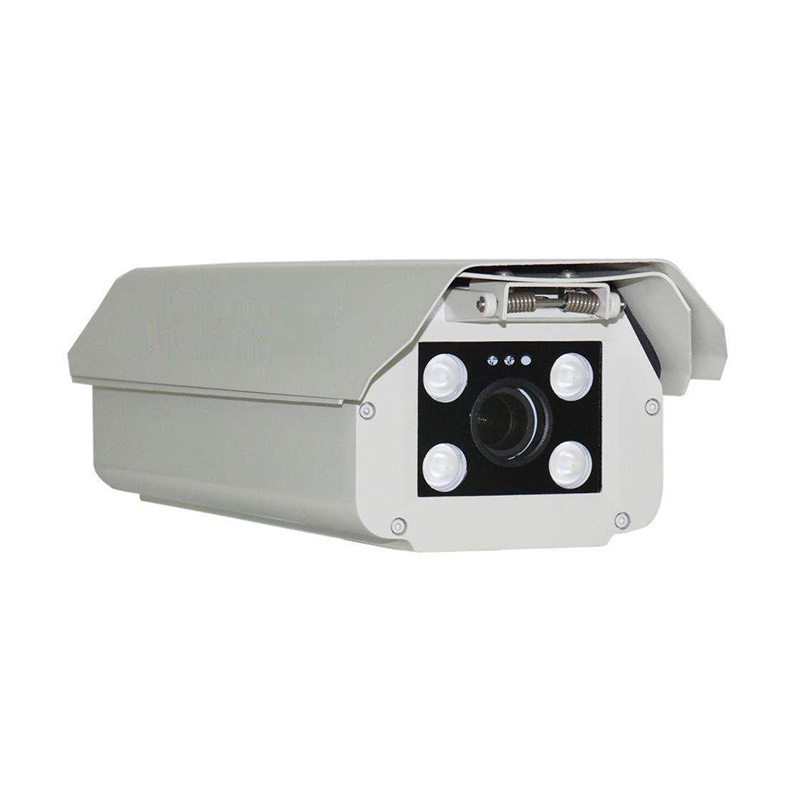

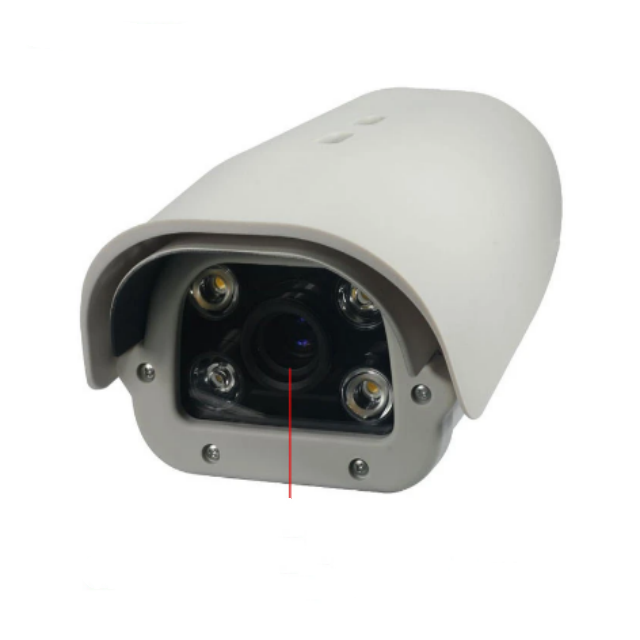

Sintronic,s Car license plate recognition camera
| Hardware | |
| Name | HD All-In-One Hardware-Based ANPR Automatic Number LPR License Plate Recognition IP Camera |
| Model No. |
Camera-400CPR |
| Processor | Hisilicon, specialized license plate recognition chip |
| Sensor type | 1/3" Progressive Scan CMOS |
| Minimum illumination | 0.01Lux |
| Electronic shutter | 1/25 to 1/30,000 seconds |
| Lens | CS interface, fixed iris, 6mm prime lens/ 2.8-12mm electric zoom lens, optional |
| Fill light | 4 high-power LED white lights |
| Performance | |
| Plate recognition rate | >90% for oversea license plate |
| Recognition license plates |
>24 countries/area license plate, more in developing Video triggering, coil trigger, vehicle capturing rate≥99% |
| Triggering mode | Video triggering, coil trigger, vehicle capturing rate≥99% |
| Image output | 1080P(1920×1080),960P(1280x960),720P(1280x720),D1(704x576),CIF(352x288) |
| Picture output | 2 mega-pixel JPEG |
| Ultra-wide dynamics | 120dB |
| Video compression format | H.264 High Profile , Main Profile, Baseline , MJPEG |
| Interface parameters | |
| Network interfaces | 10/100M network adaptive,RJ45 adaptor |
| IO interface | 2-route input/2-route output 3.5mm connecting terminals |
| Audio interface | 2-route input/2route output 3.5mm connecting terminals |
| SD card | Support SD2.0 standard Micro SD(TF)card with a maximum capacity of 32G |
| Serial interfaces | RS485,RS232 |
| Power supply | AC220V |
| Power consumption | ≤7.5W |
| Working temperature | -35℃~+70℃ |
| Protection grade | IP65 |
| Surging overvoltage protection | 4KV |

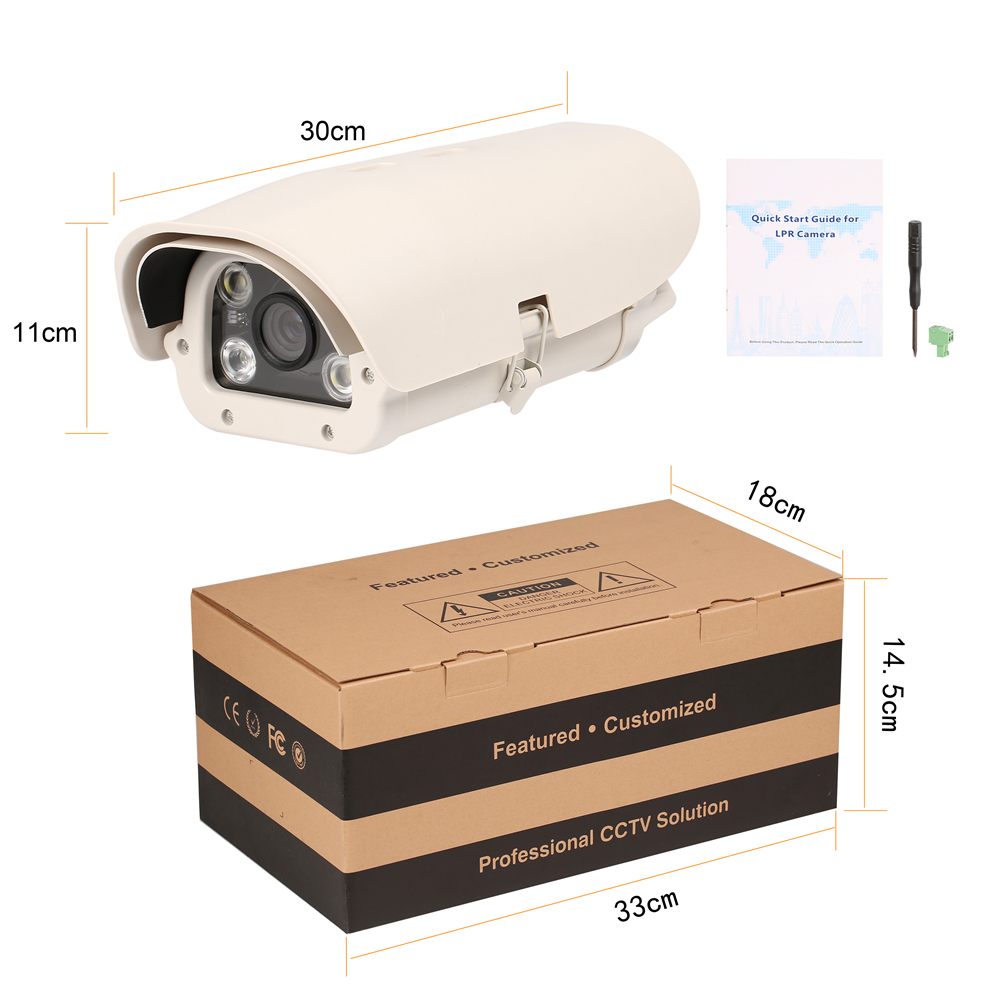

| Size(mm) | 452(L)*148 (W)*120(H) |
| Weight | 2.75kg |

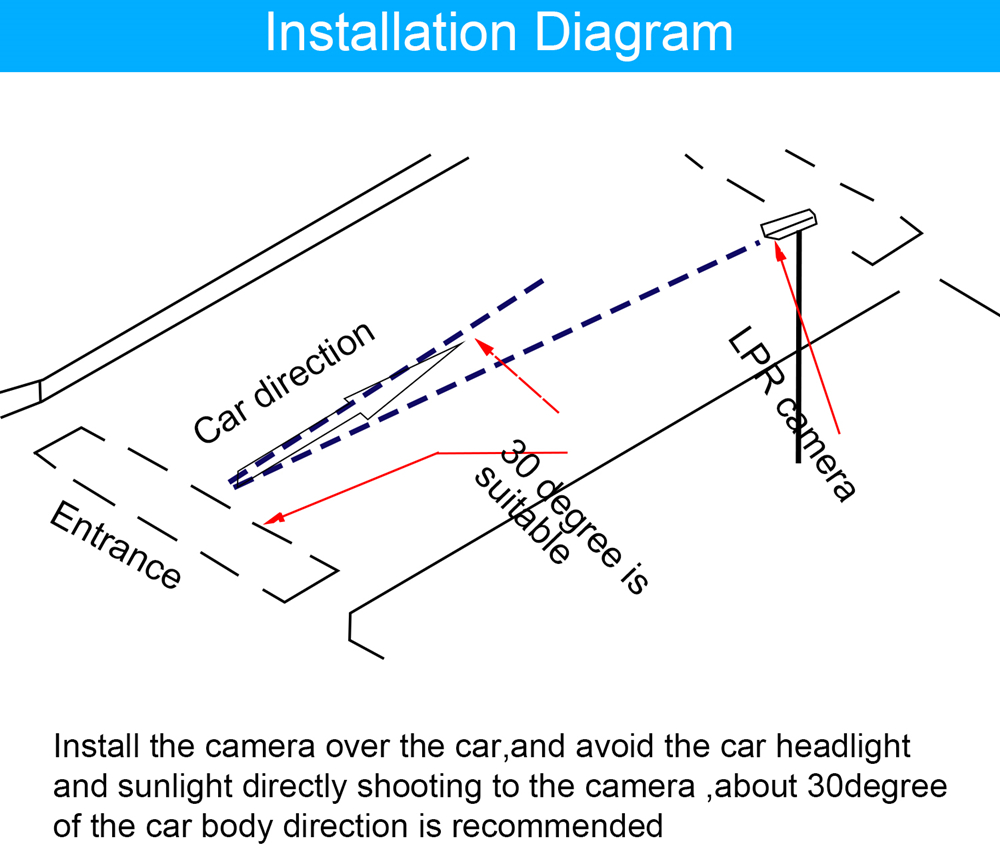

Installation Guide:

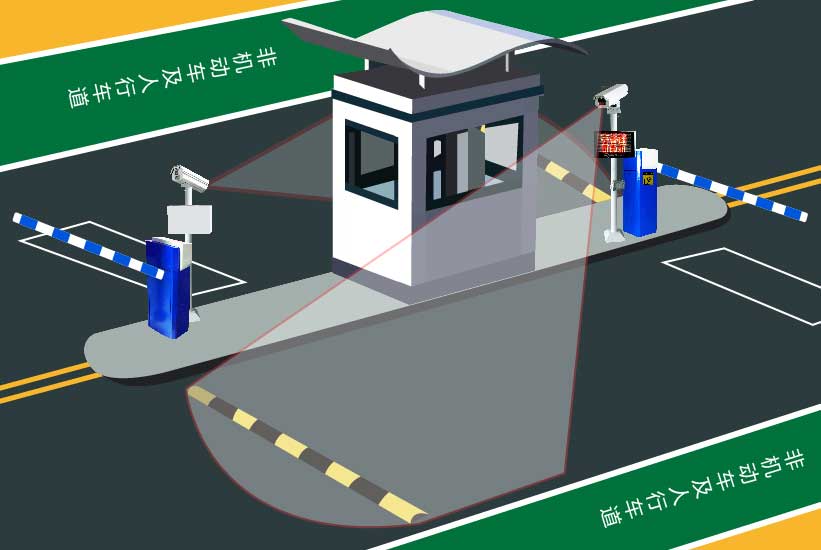

Applications:

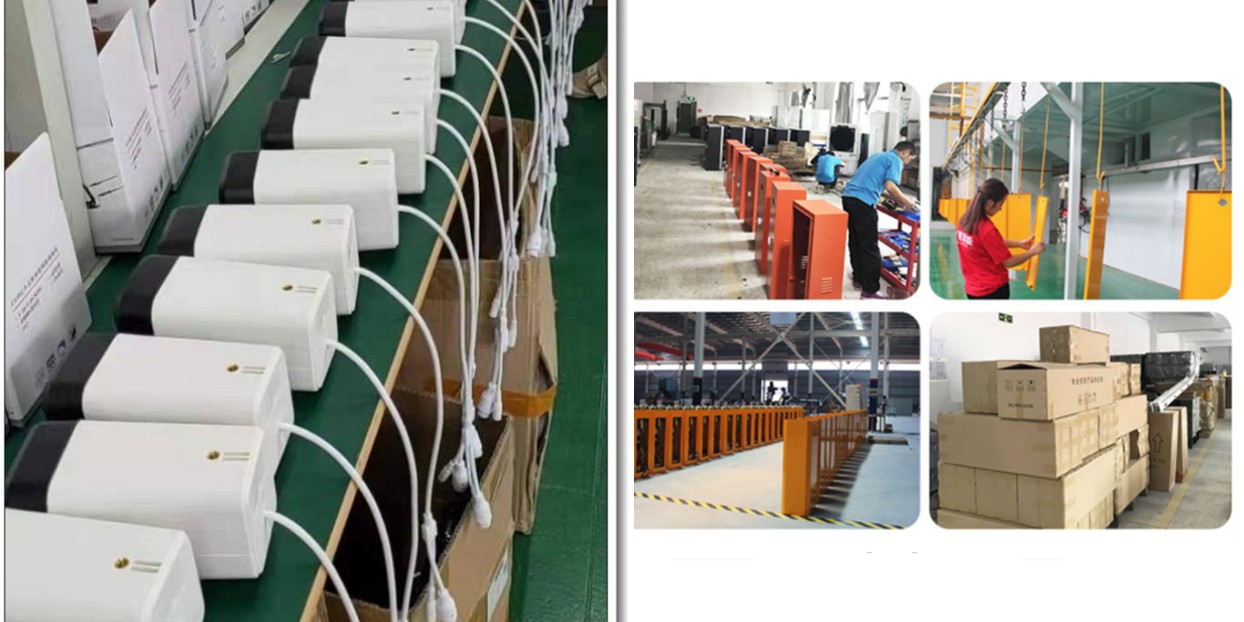

We are original manufacturing factory in china
