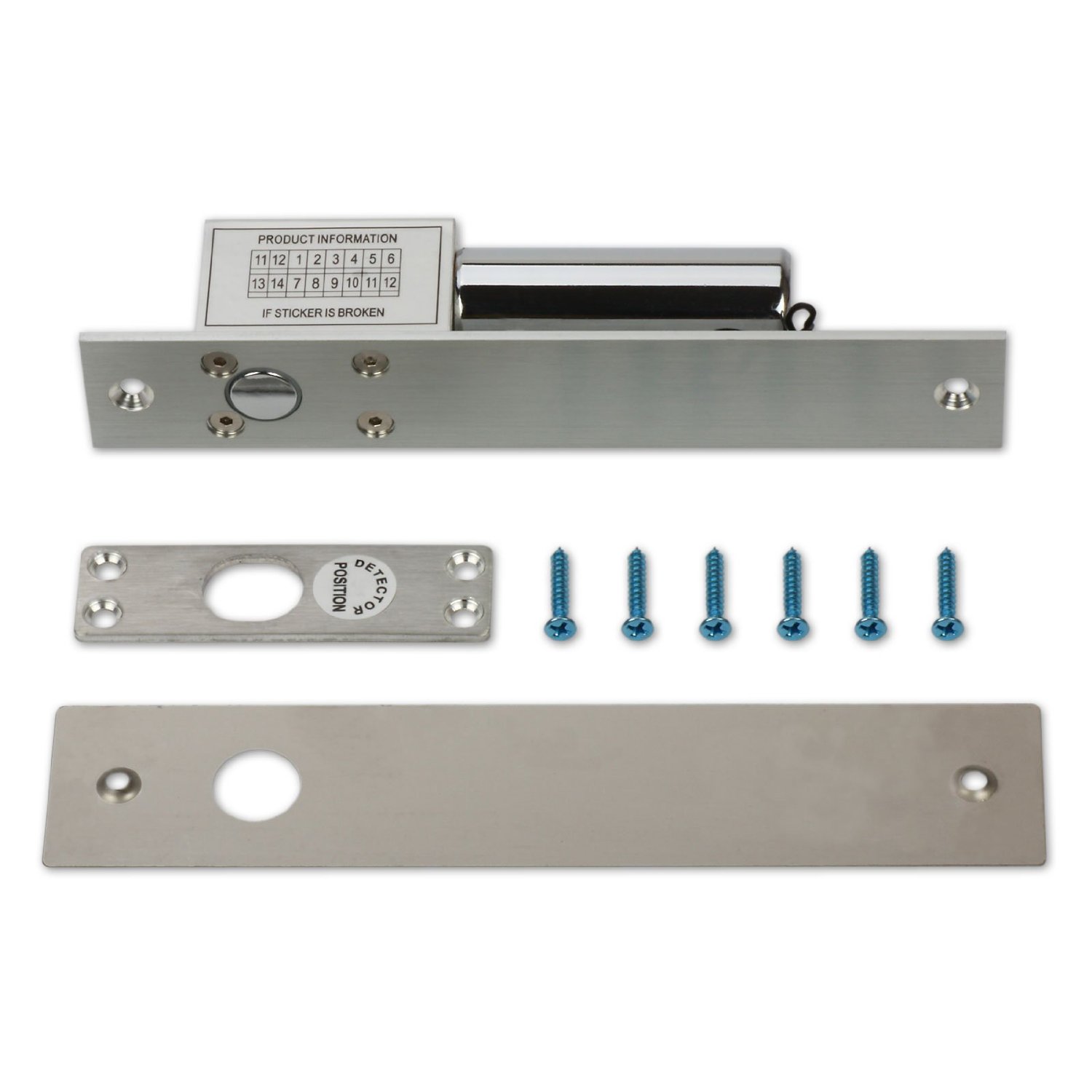

Descriptions:

The Electric drop bolt lock also called "anode lock or mortise lock", it is actually just a type of "anode lock", which is an electric lock that opens the door when the power is cut off. According to the fire protection requirements, when a fire occurs, the building will automatically cut off the power supply, and the electric bolt lock should be opened to facilitate people to escape, so the function of the electric bolt lock is to open the lock (open the door) when the power is turned off.

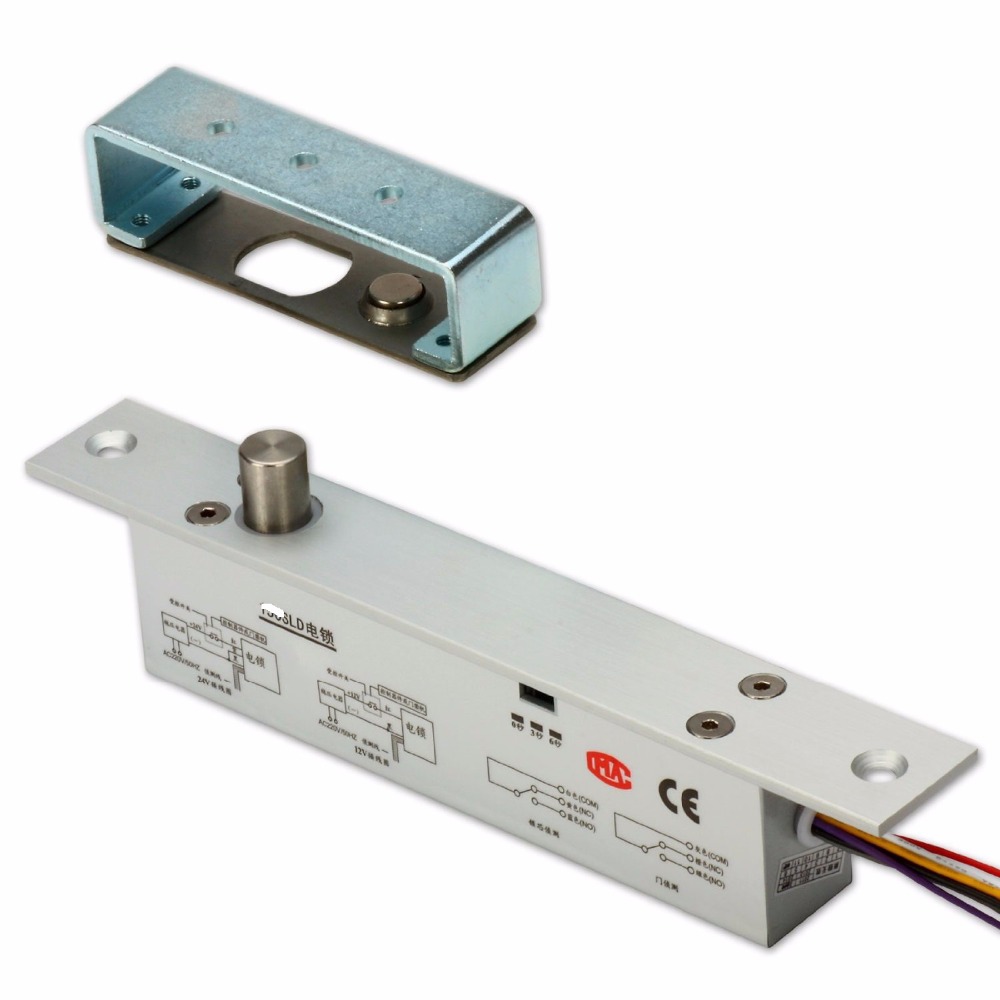

Technical Parameters:

Color: Silver
Material: Aluminium Alloy
Working Voltage: DC 12V
Working Current:

Ordinary Mode:
Start State: 450mA
Persistent State: 450mA

Low Temp Mode:
Start State: 750mA
Persistent State: 180mA
Lock Mode: Magnetic Induction
Lock Size: 20.3 * 3.4 * 4.2cm / 8 * 1.34 * 1.65in (L * W * H)
Lock Weight: 425g / 15oz
Face Plate Size: 21.3 * 4.2cm / 8.4 * 1.65in (L * W)
Face Plate Weight: 31g / 1.08oz
Magnetic Base Size: 9 * 2.5cm / 3.54 * 0.98in (L * W)
Magnetic Base Weight: 16g / 0.58oz
Package Weight: 500g / 17.6oz

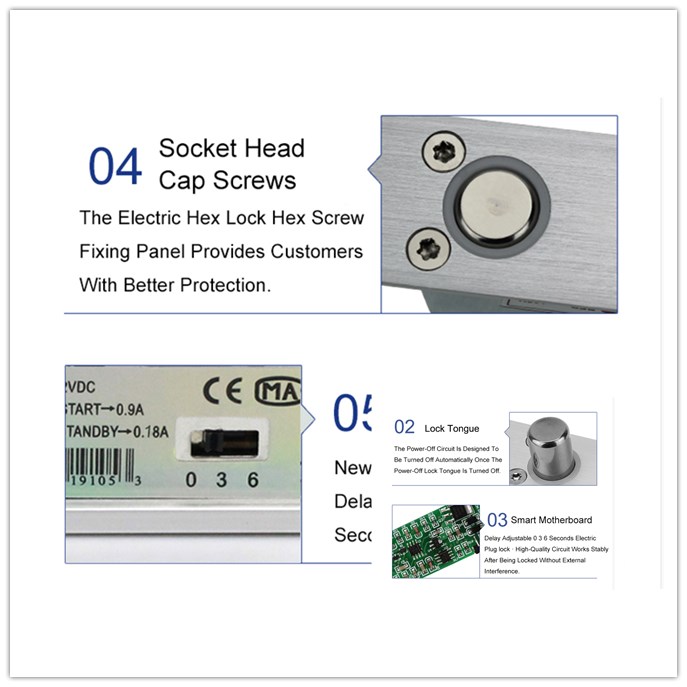

◆ Photoelectric control technology to prevent mechanical failure

◆ Ultra-low temperature design, safer and more durable
◆ Ultra-low power consumption design, more durable and environmentally friendly
◆ 500,000 power-on lock durability
◆ Built-in reverse current prevention device (MOV)
◆ Intelligent single-chip configuration, three-level current application
◆ High-strength aluminum alloy lock body, stainless steel bolt
◆ The product has passed the EU CE and China MA certification

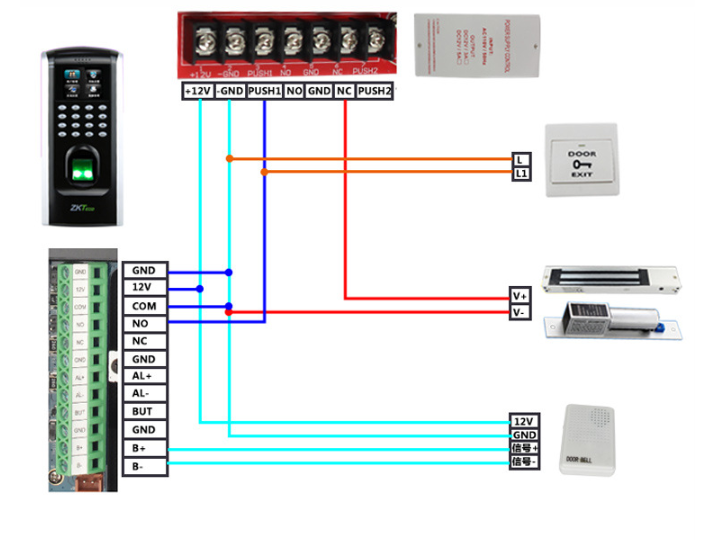

Wiring Diagram

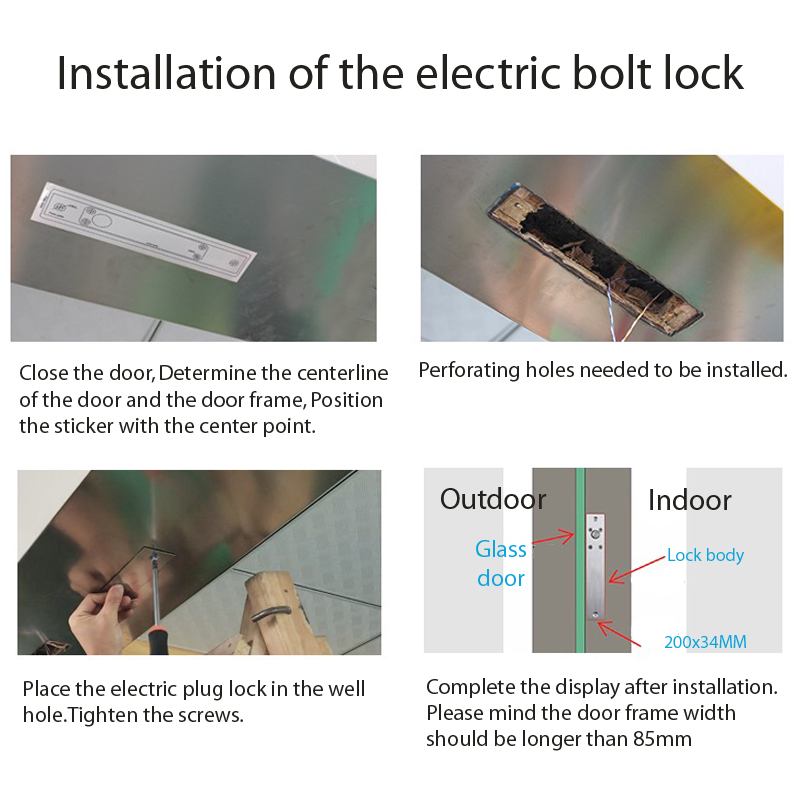

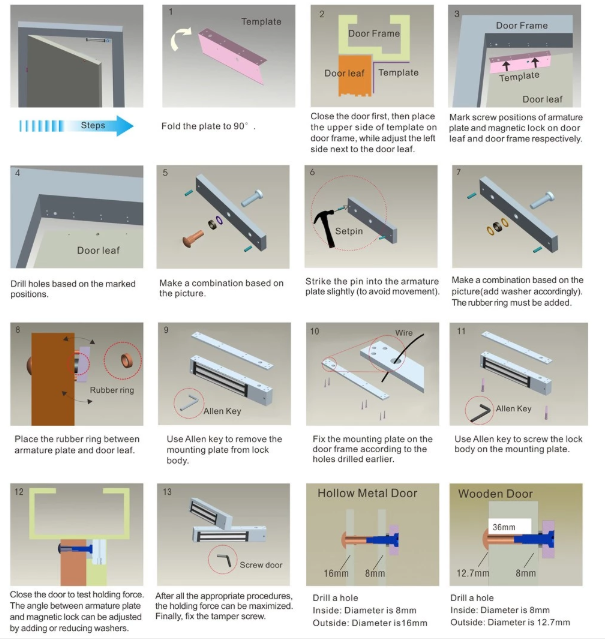

Installation guide

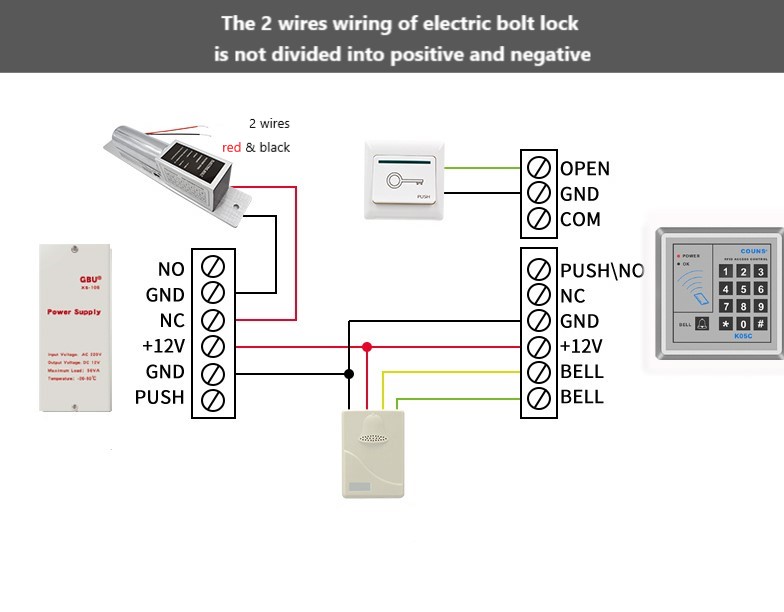

Wiring Diagram:
