Stand Alone Unit

  • Face recognition machine
  • Face recognition machine
Face recognition machine Face recognition machine

Face recognition machine

  • SA-CYNFace
  • Operating Voltage: DC 5~12V
  • Interface: RS485, Wiegand 26/34
  • OEM:Yes
  • Product description: We're professional Face recognition machine manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
  • INQUIRY

Descriptions:

The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition. And it can present the corresponding feedback on the screen. The product can recognize 5 people at the same time, the farthest can recognize the human face as far as 5 meters, and face tracking and detection takes about 20ms. Face feature extraction takes about 300ms; face comparison takes about 0.1ms.
And it has good robustness to light and wear glasses and so on. This product can be equipped with RFID card module, so the system can be realize to use card and face recognition. This product supports a variety of hardware functional interfaces (including: HDMI high-definition output, serial port input/output, network interface/ Wi-Fi access); It has a complete software interface (including: device management, personnel/photo management, record view, etc.).

At the same time, this product can connect with the company developed a variety of applications, such as: attendance system, access control system, visiting system, real name certification.

1.Technical Parameters:

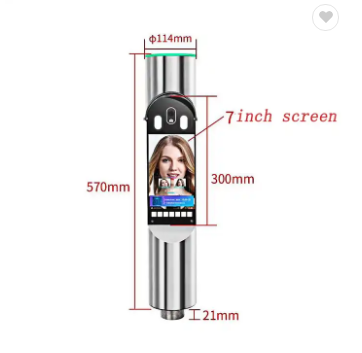

Screen parameter

1024 * 600 7 inches

Video camera

Resolution

200W pixel

Aperture

2.4

Focal length

6mm

White balance

Automatic

Interface

Audio

1 channel audio input ( line in ); 1 channel audio output ( line out )

Video

HDMI 2.0 type - A interface 1

Local-storage

Flash memory 8G

Serial communication interface

1 RS232 interface

Reset interface

Built - in reset button

Wireless communication

2.4G WI-FI ( optional ) + 13.56M IC card reader ( optional )

Network interface

1 RJ45, 10M/100M adaptive Ethernet port

Function

Face detection

At the same time support testing and tracking of 5 people

1:N face recognition

Under the condition of supporting 97 % pass rate, 99.7 % pass rate

1:1 face comparison

Support optional card swiping module to achieve 1:1 face comparison

Stranger test

Support

Identification distance configuration

Support

UI interface configuration

Support

Device interface

The interface includes equipment management, personnel/ photo management, record query, etc.

Mode of deployment

LAN usage

Power supply

DC12V(±10%)

Working temperature

-10--+55

Working humidity

10%--90%

Power consumption

10W MAX

Weight

5.9Kg


2.Features:

l Support external HDMI large screen;

l Support external ID card / RFID reader;

l Support serial port input and output, support Wiegand output, output content supports configuration;

l Support the RFID card , can also achieve the integration of human cards;

l Dynamic face detection based on video stream and tracking recognition algorithm are adopted;

l Support to store 50, 000 face photos, 1 million recognition records;

l The accuracy rate of 1: N recognition is high (99.7% under 97% pass rate).

l Recognition speed is fast, face tracking and detection takes about 20ms time, facial feature extraction takes about 300ms, and face comparison takes about 0.1ms.

l Support stranger detection, stranger level can be configured;

l Support face recognition or stranger detection of the scene of the photo preservation;

l Support interface docking;

l Support customization;

l Support screen display content configuration;

l Support identification distance configuration.

3.Application scene

Suitable for office area, gate passage, hotel, office building, school and other places where face recognition gate is needed.
