OEM Outdoor Led Display For Parking Guidance System

Model:Parking- 303OD Screen

Technical Parameters:

Size: (can be customized according to customer requirements) One-way 1065*270*90mm Working voltage: AC 110～240V
Two-way 1370*270*90mm Power consumption: ≤15W (one-way)
Three-way 1690*270*90mm Environmental humidity: 30%--90% (relative humidity)
Appearance material: cold plate laser cutting and baking varnish Communication method: RS485
Light source: Red/green LED lamp beads Communication distance: ≤300m

Features:

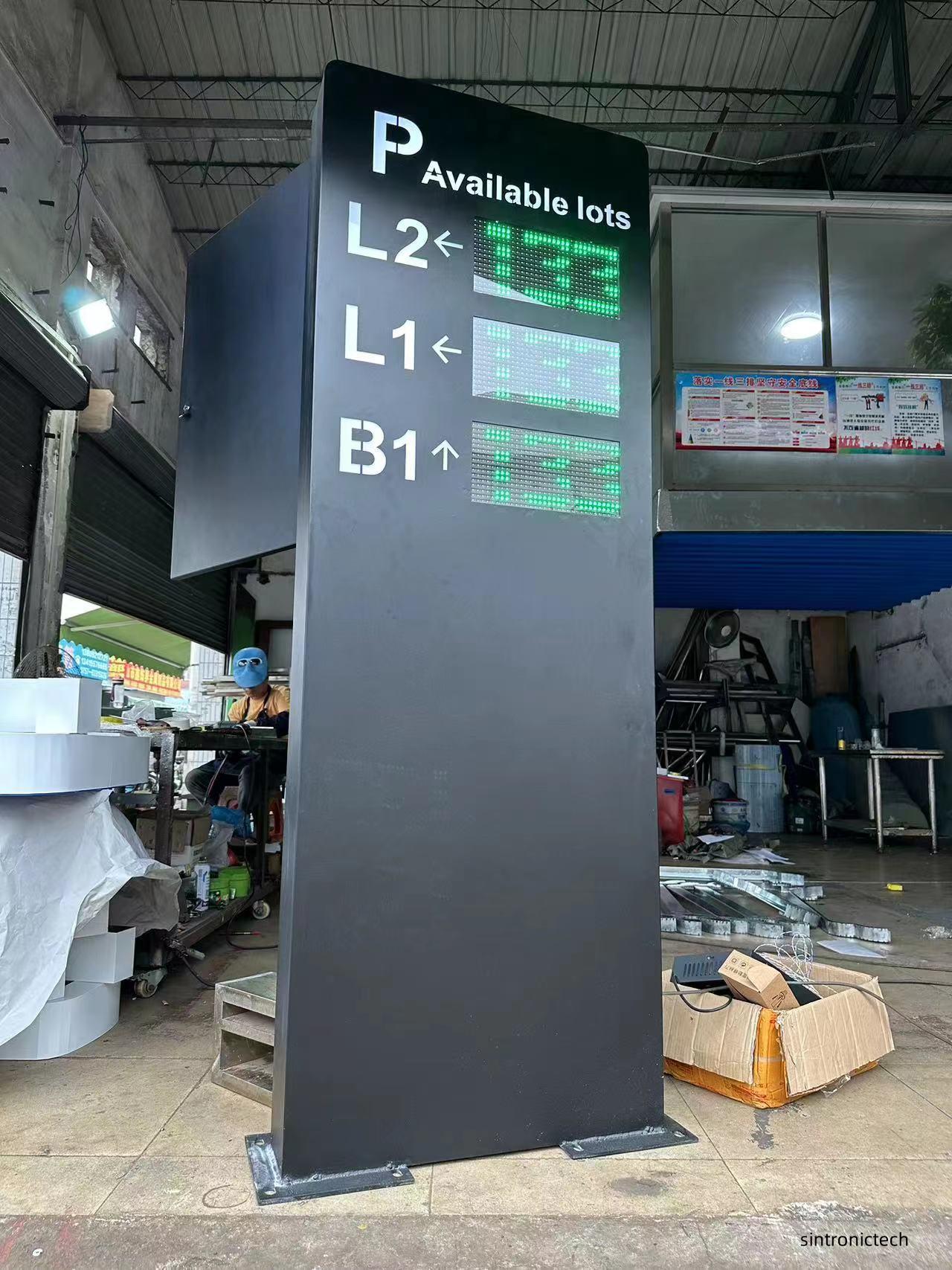

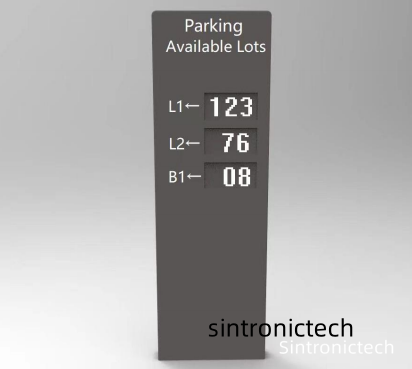

1.Sintronic Parking space guidance outdoor led display  is made by high brightness LED module, drive circuit, control circuit, bracket and so on. with a dynamic digital and fixed words real-time displaying mode, it receive and display the empty slots information sent by the data center real-time. It can work 24 hours and can set up different address to show empty slots information in different area for the parking guidance system

2.Install sintronic Parking bay direction guidance indoor display in an important fork in the parking lot. Receive the output information of the concentrated controller, display the number of empty parking spaces in the area in the form of numbers, arrows, and guide car owners to quickly find the empty parking spaces to ensure the smoothness of the parking lot and the full use of parking spaces.
