RFID Reader

Rfid reader QR bar code

Item Number:Reader-10Barcode
Interface:RS232,RS485,USB,Wiegand 26/ 34,RJ45
Power Supply：DC 9-12V < 100mA
Read Type:Paper barcode, Screen Barcode, IC card.
Product description: We're professional QR bar code rfid reader Manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

Descriptions:

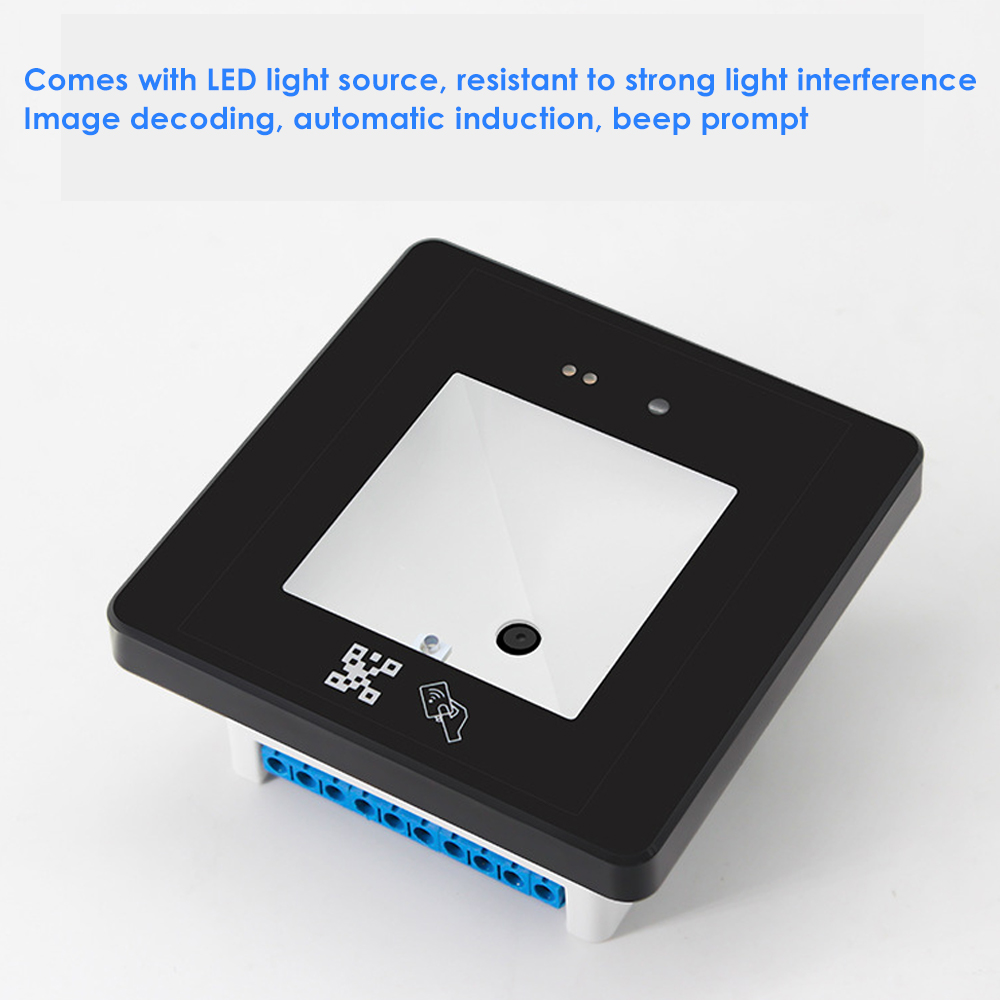

QR Code Access card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.

Parameters:

Card type	EM or Mifare
Code Type	QR Code, 1D
Interface	Wiegand26/34, RS232,USB,RS485,TTL
Decode mode	Immage decoding
Reading directions	Camera centric slant 45°
Reading feature	Auto-induction & beeper
Voltages	4-12V Wide voltage input
Current	800mA
Reading range of range	3-6CM
Reading speed	<200ms
Reading range of QR	0-20CM
Materialcase	PC & temperrd glass
Humidity	10%~90%
Temperature	-20℃~70℃
Operate system	Windows(XP,7,8,10), Linux
Size	86mm×86mm×42mm

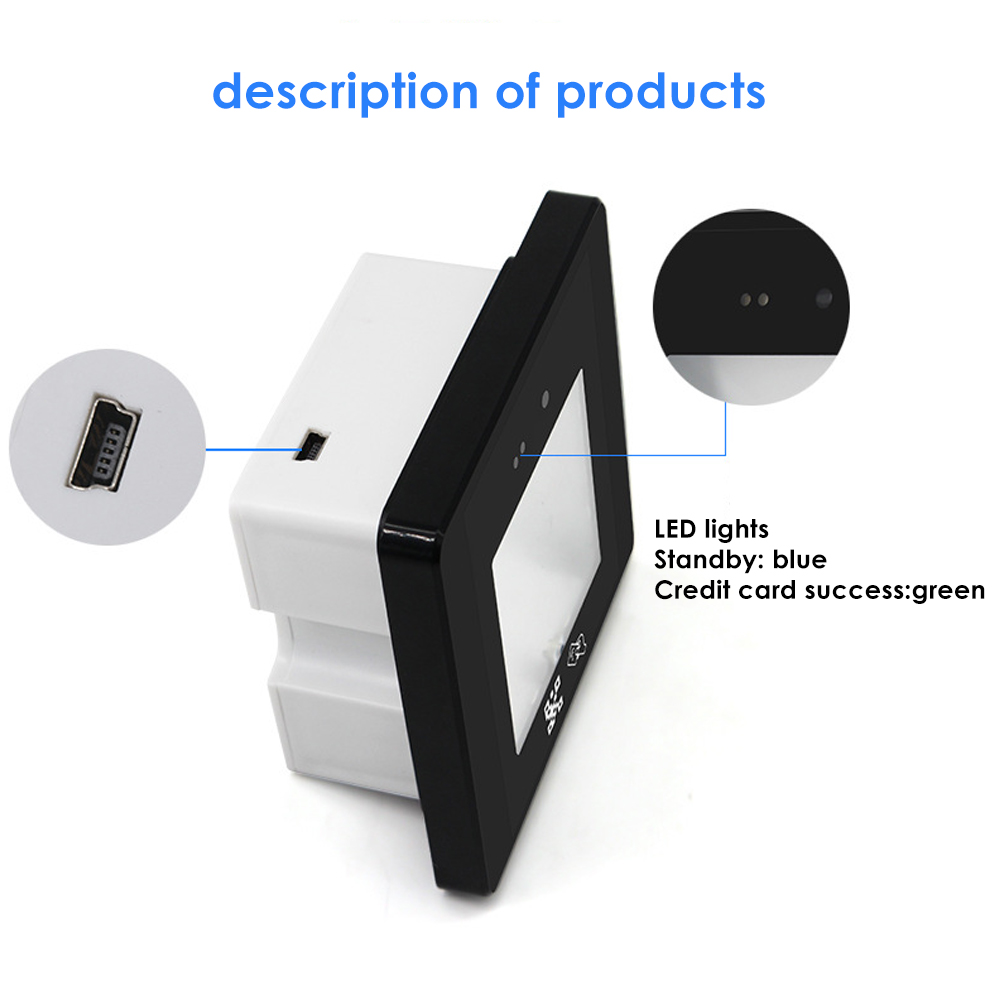

Status light	Red-work,Green-feedback,Light Green-internet
Wight	150G
Remark	Use sharp objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted.

Model

R10-ID	QR 2D Barcode + EM (125KHZ)
R10-IC	QR 2D Barcode + Mifare (13.56MHZ)

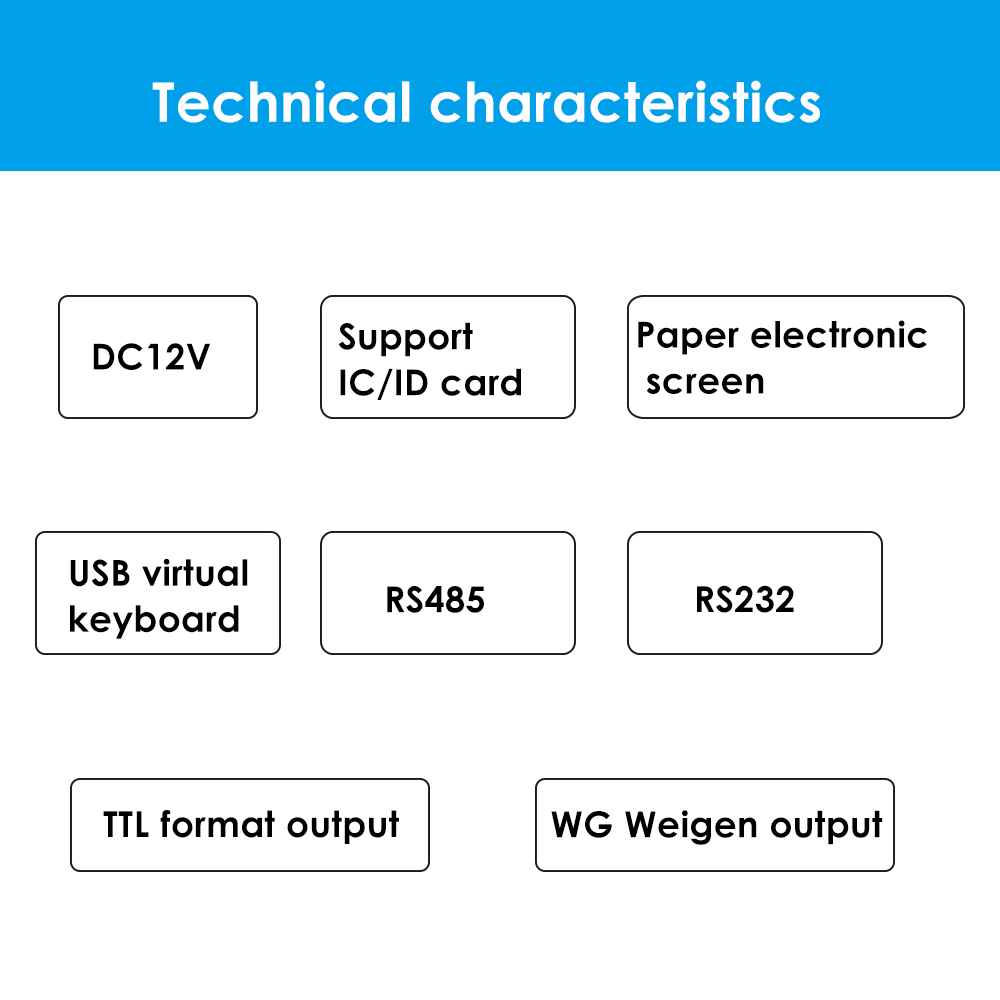

Features:

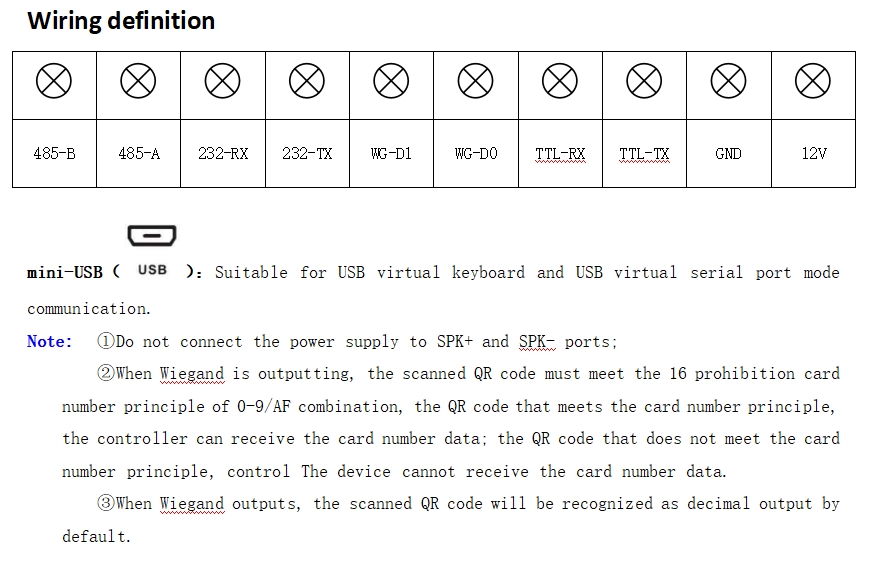

Wiring Diagram

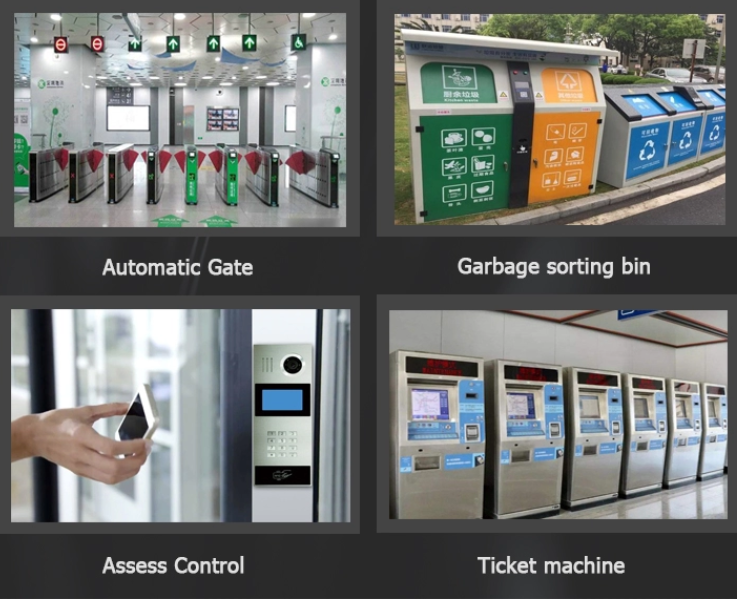

Applications:

At present, QR Code Reader for access control is widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, administrative hall access control management, supporting gates, access control, visitor machines, smart homes, etc.; it achieves a perfect upgrade for traditional credit card systems in various industries.

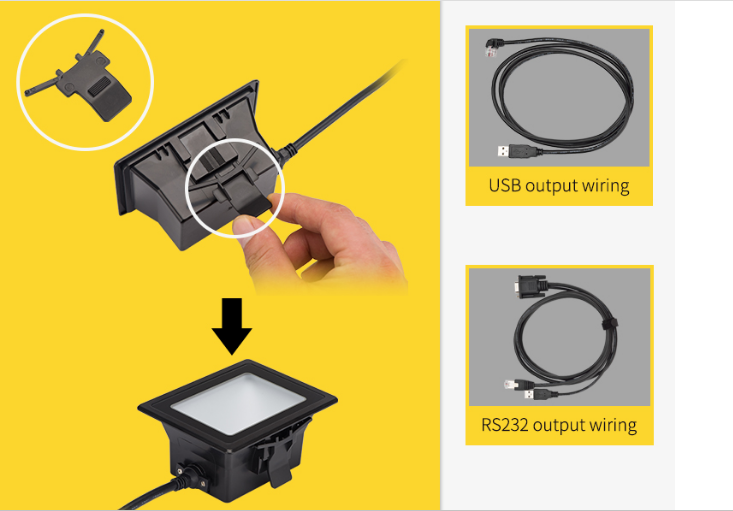

install example of bar code reader
