Technical Parameters:

1. Detection procedure: level sensitivity adjustment, which can meet the needs of different occasions.

2. Personnel passing rate: more than 40 person-times per minute.

3. Power supply: 110-240V AC, 50/60Hz, power consumption: ≤18W.

4. Testing standard: one yuan coin
5. Display mode: 6-zone digital tube display
6. Working environment: -10℃~45℃, ≤95%RH.

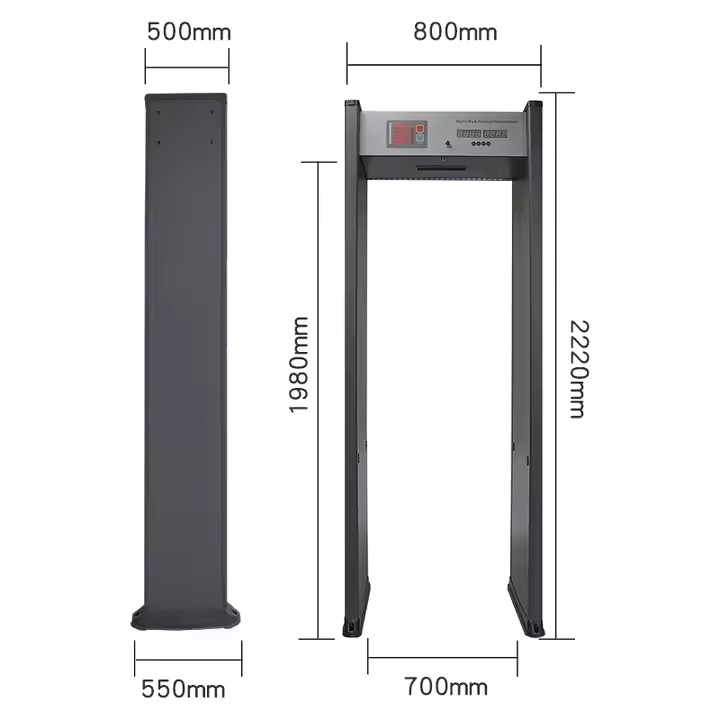

7. Channel size: 1980 (height) * 700 (width) * 500 (depth) mm
8. Dimensions: 2220 (height) * 820 (width) * 580 (depth) mm
9. Packing size: door panel: 2280*570*210mm (2 pieces/carton)
Main box: 770*530*260mm

Features:
1. Digital tube display: automatic counting of the number of people passing through and the number of alarms, the highest display is 99999 times;
2. Multi-location detection: 6 detection zones to accurately determine the hiding position of metal objects;
3. Double-column LED indicator, which is displayed with the human body contour to accurately locate prohibited items;
4. Sound and light alarm function: It can alarm multiple locations at the same time according to different positions of metal;
5. The overall sensitivity is adjustable: to meet the different testing requirements of users in different places;
6. Password protection function: Double password protection is used to allow only authorized personnel to operate. The password can be modified as needed, and the password is lost and restored. The security is higher.
7. Adopt digital and left-right balance technology to prevent false positives and false negatives, and greatly improve anti-interference ability;
8. It is made of special synthetic materials, which is waterproof, fireproof and shockproof;
9. Easy to install: The system is an integrated design, which can be installed or disassembled in only 20 minutes.
10. The digital application is controlled by the module application and various settings;
11. The strong and weak indicator lights can automatically check the surrounding magnetic field environment;
12. Human body safety: in line with EMC electromagnetic radiation standards, using weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, film, video tapes, etc.;
