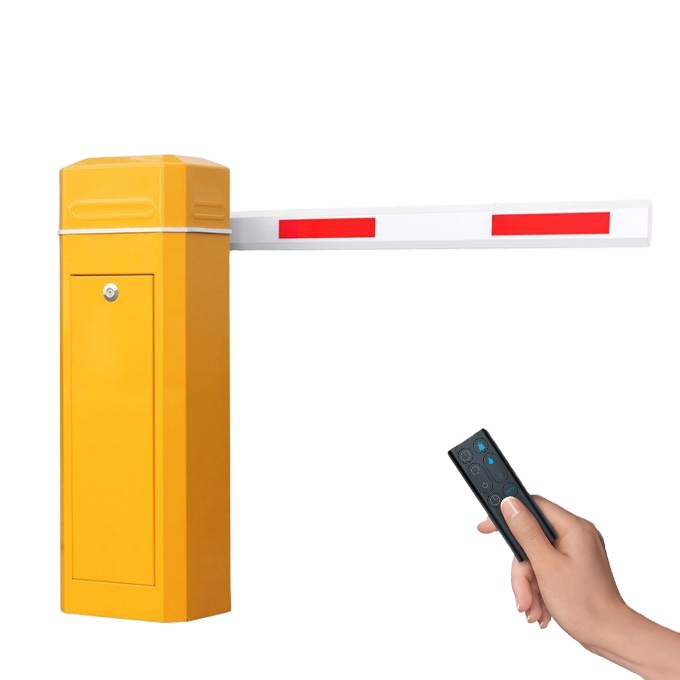

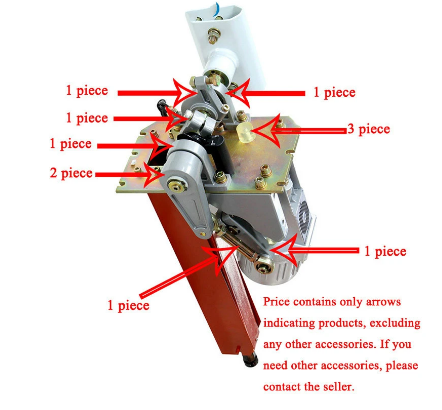

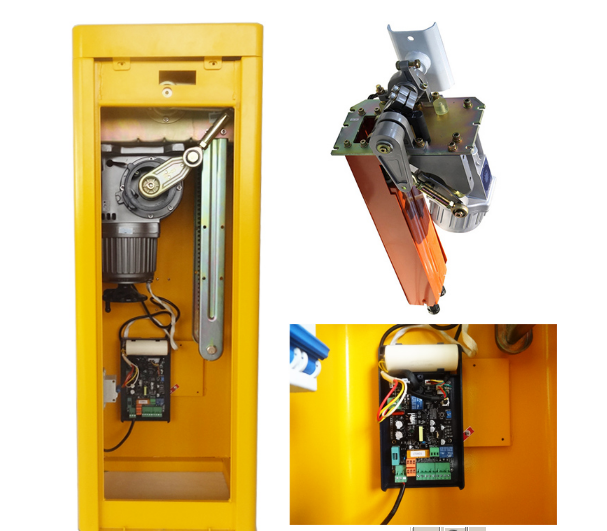

Sintronic Car Park Barrier electronic boom gate low price good quality adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, noclutch design , more reliable quality and more convenient use. The movement adopts two-stage worm gear transmis sion and curved crank arm three-link structure, and the landing rod is fast and stable. Easy maintenance and long service life

Technical Parameters:

item	value
Product name	parking barrier gates
Service	OEM/ODM
Support	one year warranty

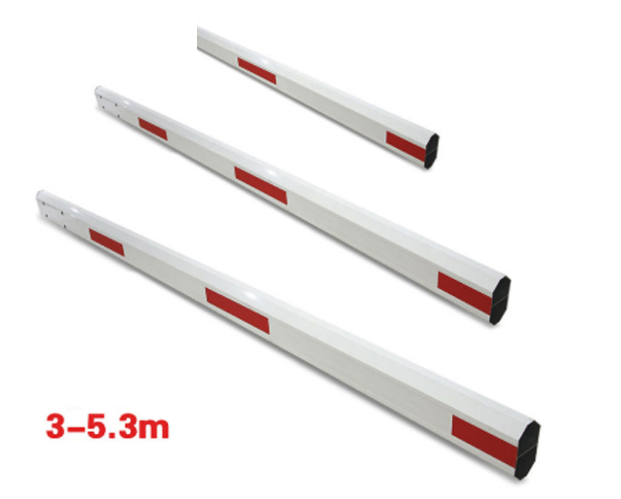

arm length	3-6 m
Boom dimension (WxH)	45x80mm
arm （pole）weight	3kg, 4.5kg, 6kg
Voltage	220V ± 10%, 110V ± 10%
Frequency	50/60Hz
Motor voltage	220V
Traffic light	optional
Power	120W
color	Traffic yellow/orange/silver
Rail lifting time	1.5S(fast) / 6S(ordinary)
Relative humidity	<90% coagulation free

Feature
1. Manual release device to operate the barrier when power off.
2. Motor cooling fan to avoid the over-heating possibility
3. Automatic reversing when the barrier boom meets the obstruction
4. Auto closing realization through menu setting on the control panel

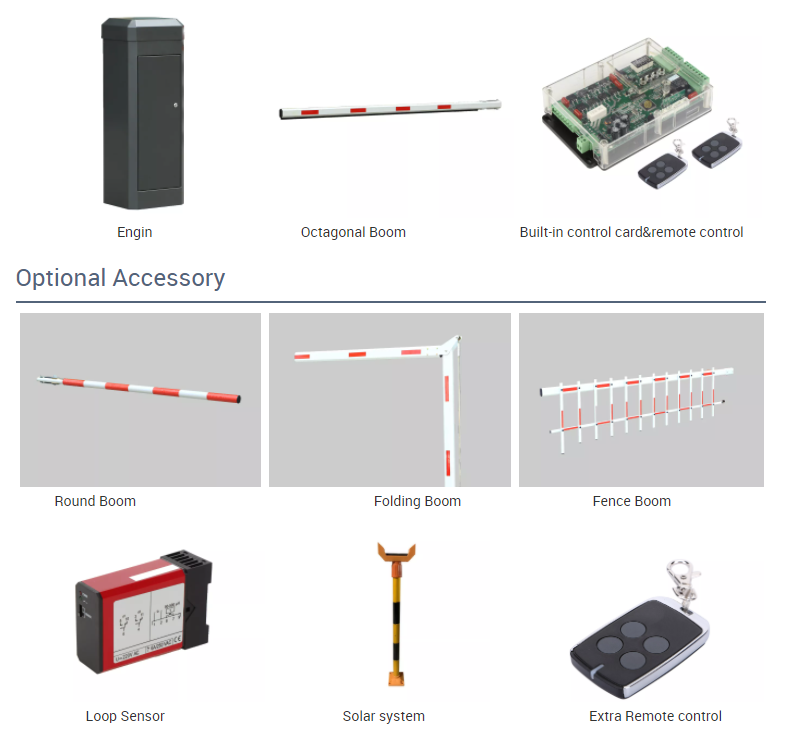

5. Interfaces available for infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), traffic light
6. RS485 Communication Module is compatible

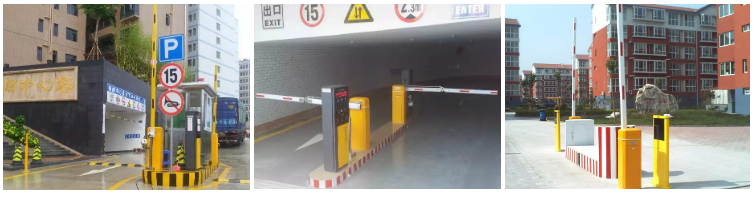

Applications:

it is widely use in the place which need rfid card parking ticket management system such as
commercial parking lot, factory , commercial building, plaza, offcie building, hospital , goverment
