RFID ticket box

Ticket Box -A1325
Product description: We're professional RFID parking system ticket box manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

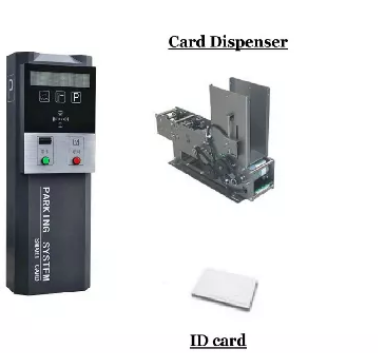

Sintronic parking ticket box is a bracket structure for installing card reader , card dispenser, card collector and push button for the RFID smart parking ticketing system which is for enty by read card gate open and for exit by collect card to open the boom barrier gate

Technical Parameters:

Working Voltage	AC110V/220V
Working Temp	-25℃~+70℃
Card Type	IC,ID,Barcode Ticket
Traffic Flow	>2500 car/day
Communication	RS485, TCP/IP
Middle/Long Rang Reading	2-15m
Application	Pay-at-Exit, Pay at entry, Pay-on-Foot
IP Grade	IP55

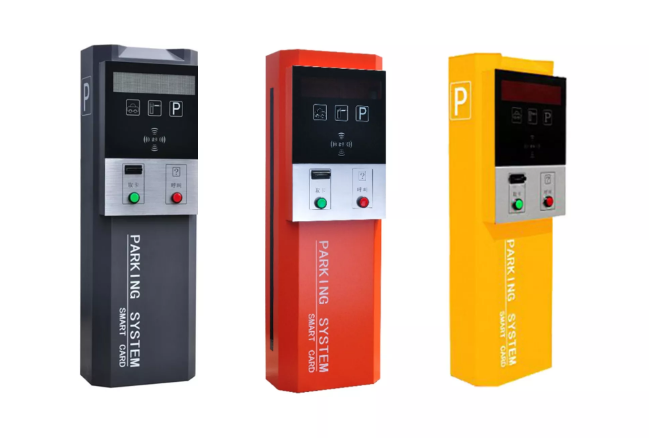

Color	Black, red,yellow

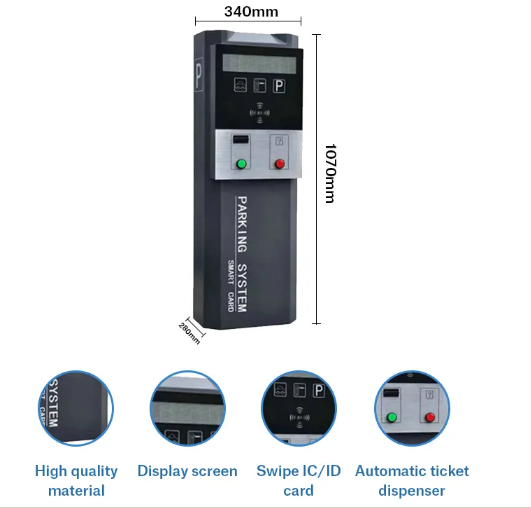

Feature
1.Used for parking lot access control, temporary parking dispen card , collect card ; long term car swipe card to entry
2.Display and voice prompts for entry and exit information;
3.Embedded operating system to ensure long-term fault-free operation of the system;
4.Support for writing IC cards. 5.Convenient, flexible and diversified charging standard setting mode

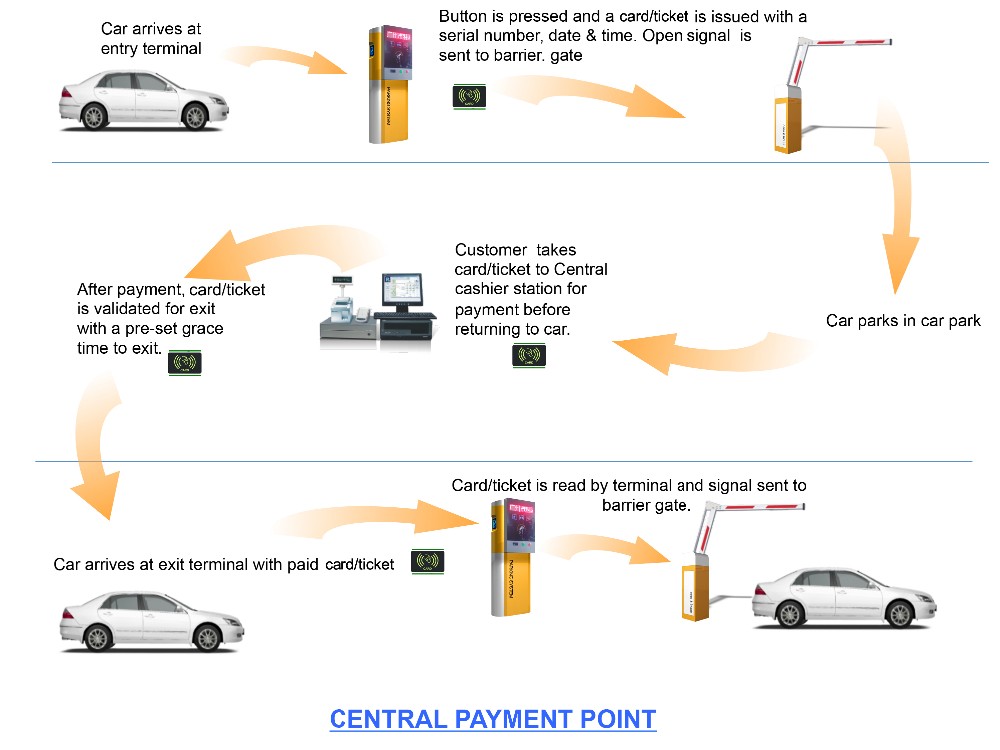

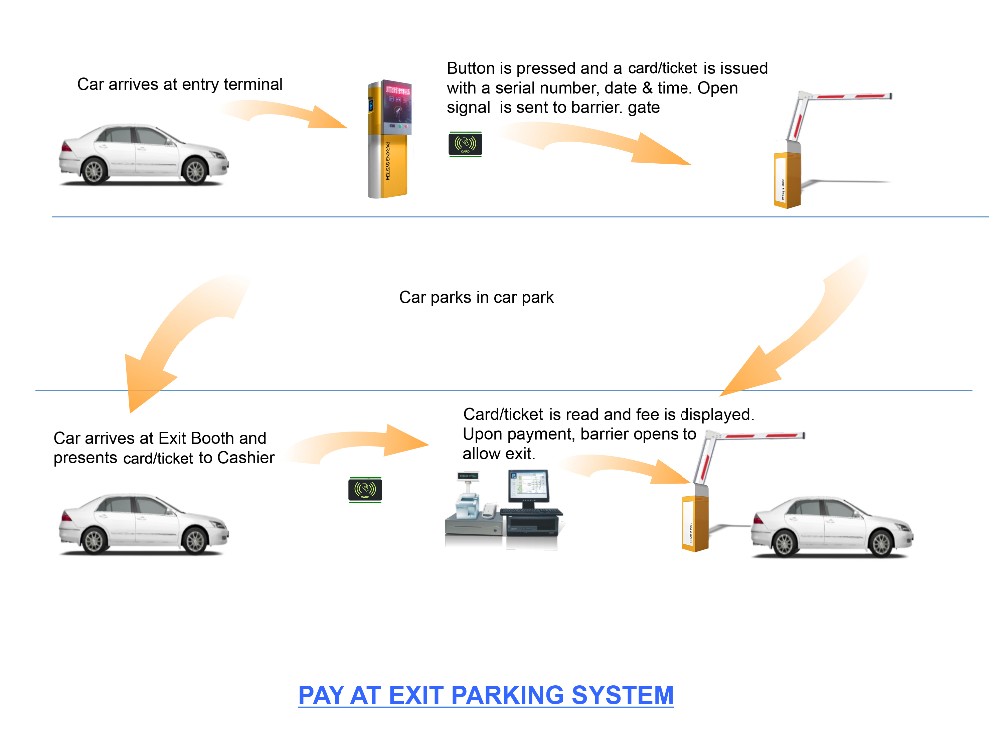

System Diagram
