Descriptions:

Normal management of the Access Control are "One for One", that means one card reader control one door.
Valid card can open the door, invalid card can not open. But we can found that in many fields,
"One for More Controllers" are needed. Such as: Lift or cabinet
Sintronic lift elevator controller is consist of main controller +I/O board and can apply the functions of  when people swiping card the elevator will open the gate in the appointed floor
Elevator / Cabinet Controller
Can use for lift elevator or storage cabinet one to more access control

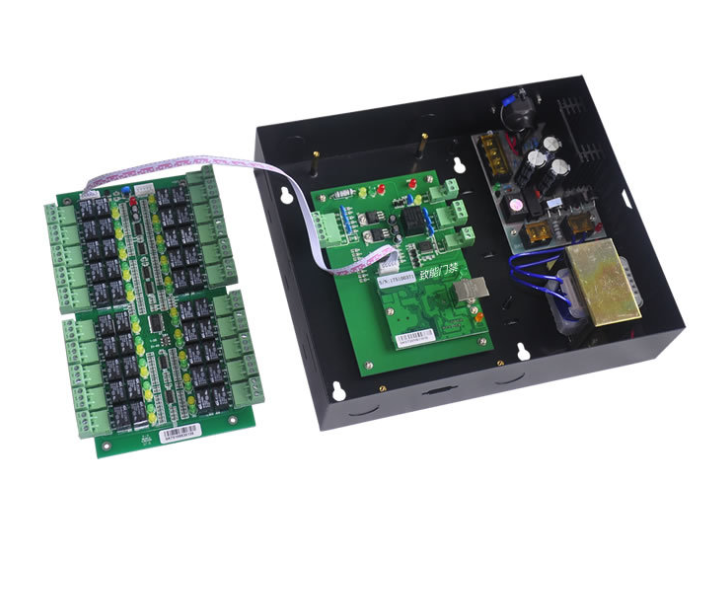

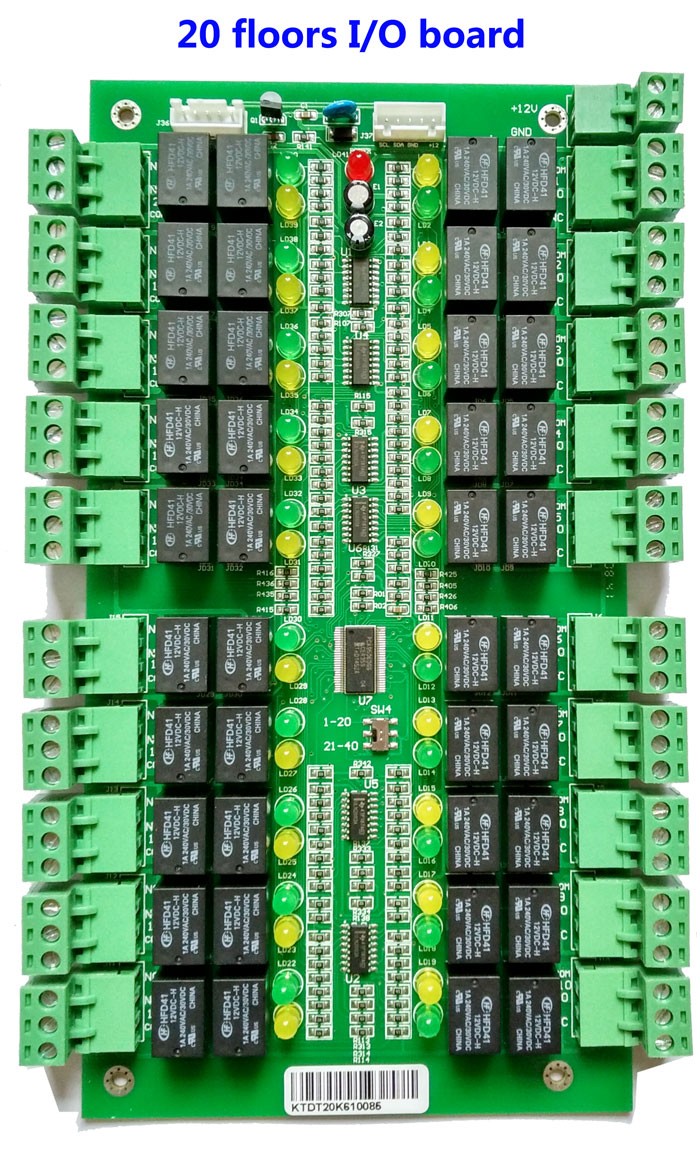

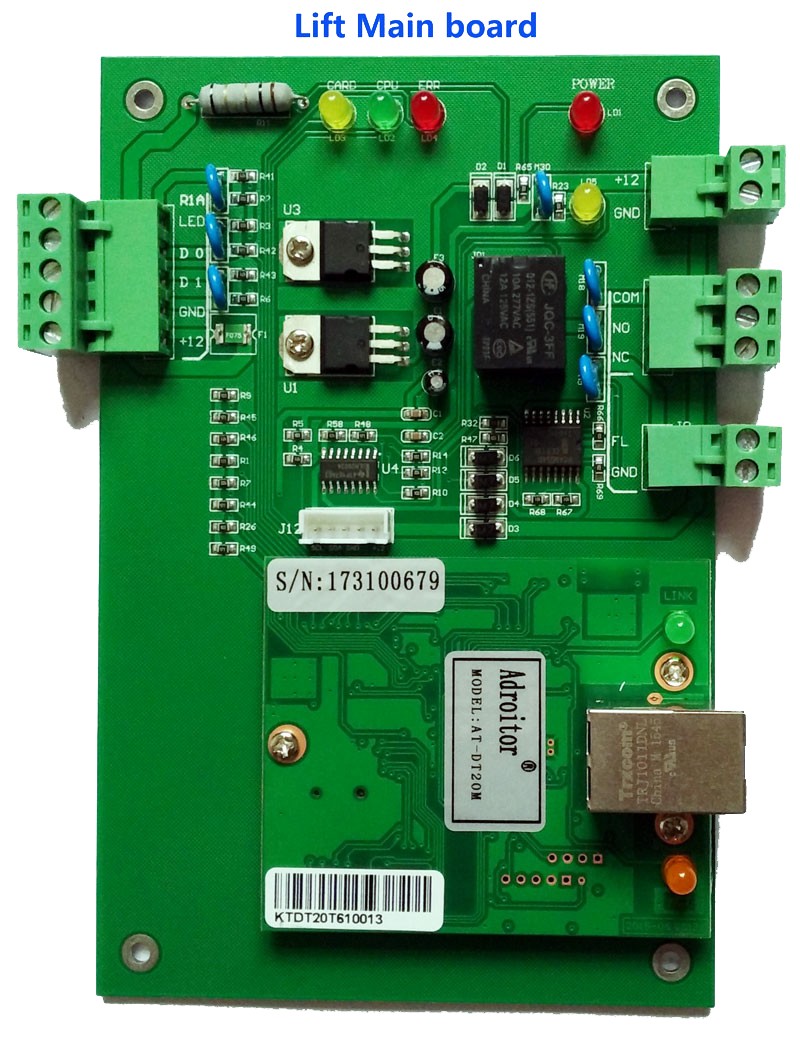

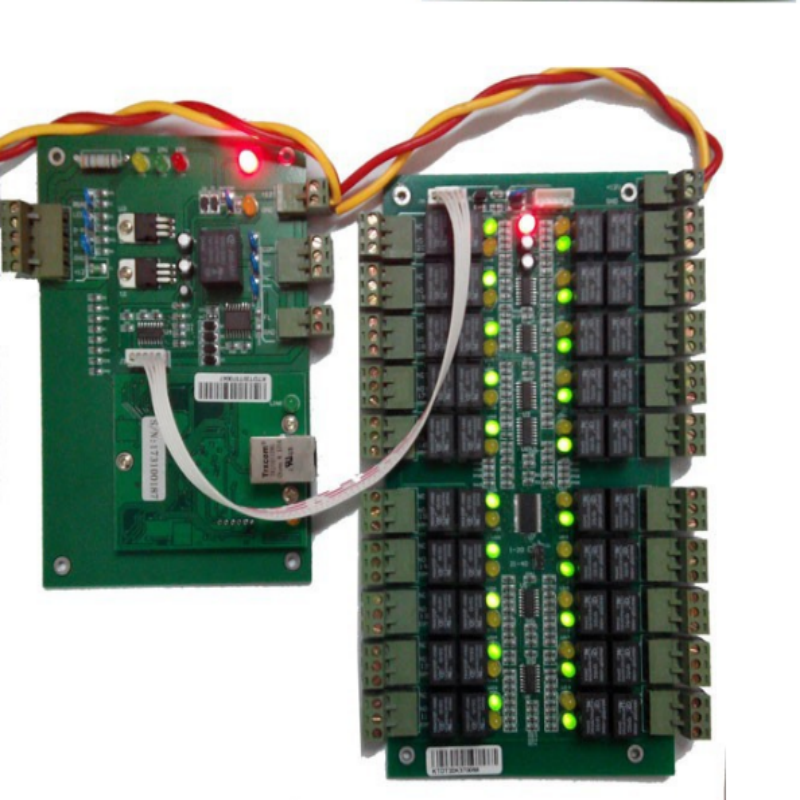

Our controller system is consist of main board+extended board which can have 20 floors and 40 floors elevator control
For 20 floors solutions it need 1 unit of main board+1 unit of extended board
For 40 floors solution it need 1 unit of main board+2 unit of extended board

2.Technical Parameters:

3.Feature

• Only Authorised people use elevator.
• Secured and safe.
• Faster and easy floor selection with  a card.
• Flexibility to move from floor to floor.
• Controls access / use of elevator by time of day and day of week(e.g. No restriction during
daytime and controlled usage by night.)
• All / selected floors can be access controlled.
• Selected floor can be Deactivated during certain hours. (e.g. during public functions, parties,
etc.)
• Simple electrical interface to any elevator.
• Power saving as un-necessary landing calls are avoided.
• Landing A/C optional
• Suitable for Duplex Elevator Controller
• Recording of elevator usage by cardholder with date and timestamp
• Every Transaction stored with date & time stamp
• Access by Card/ Card + PIN/ finger

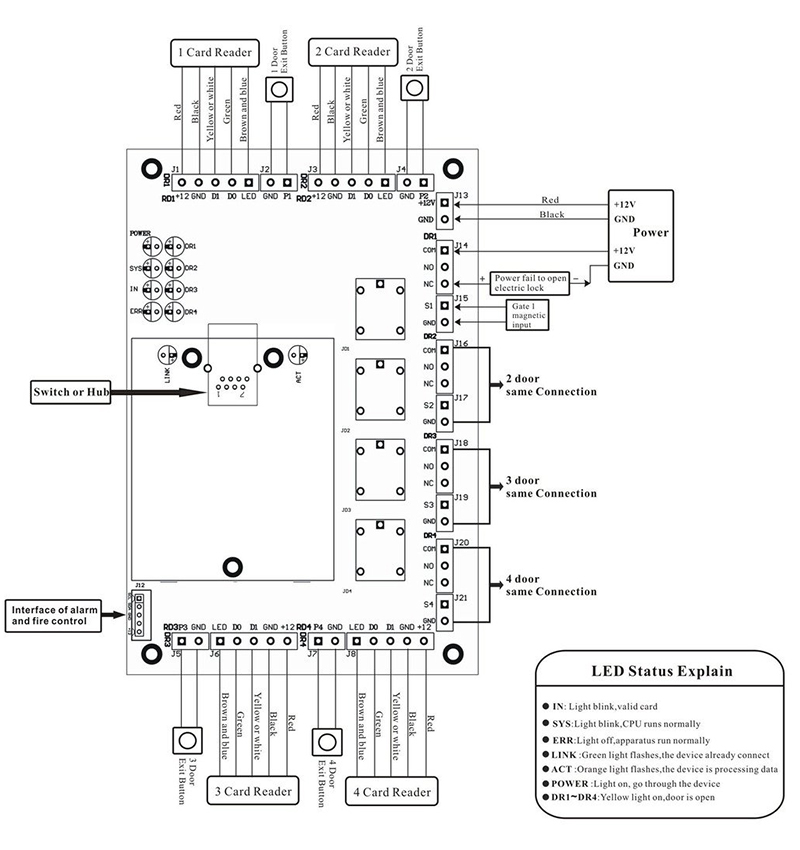

4.Wiring Diagram

For Elevator access control

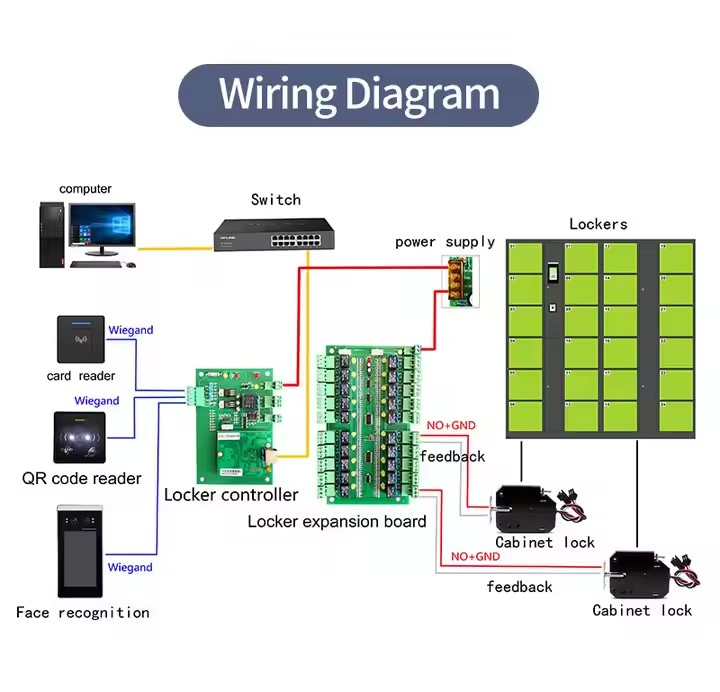

For Cabinet Access Control

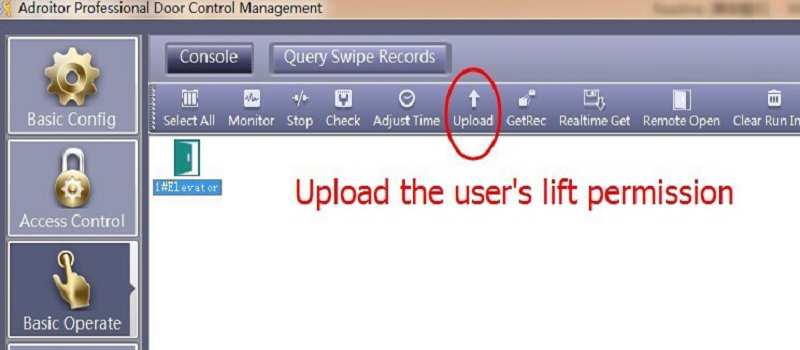

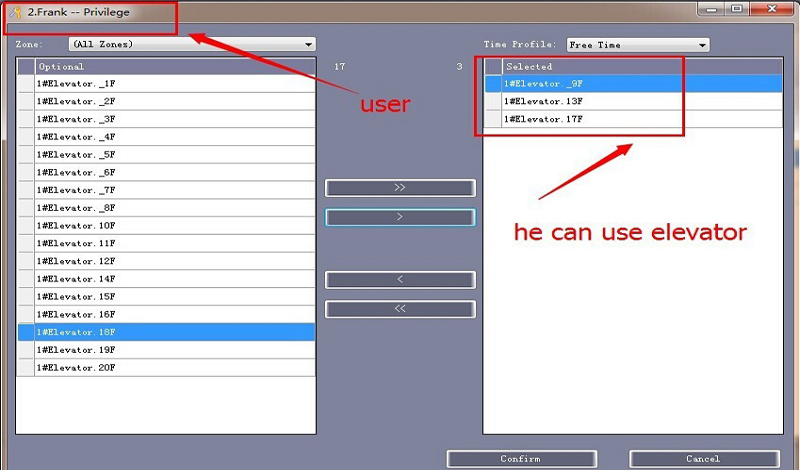

5.Free Software
