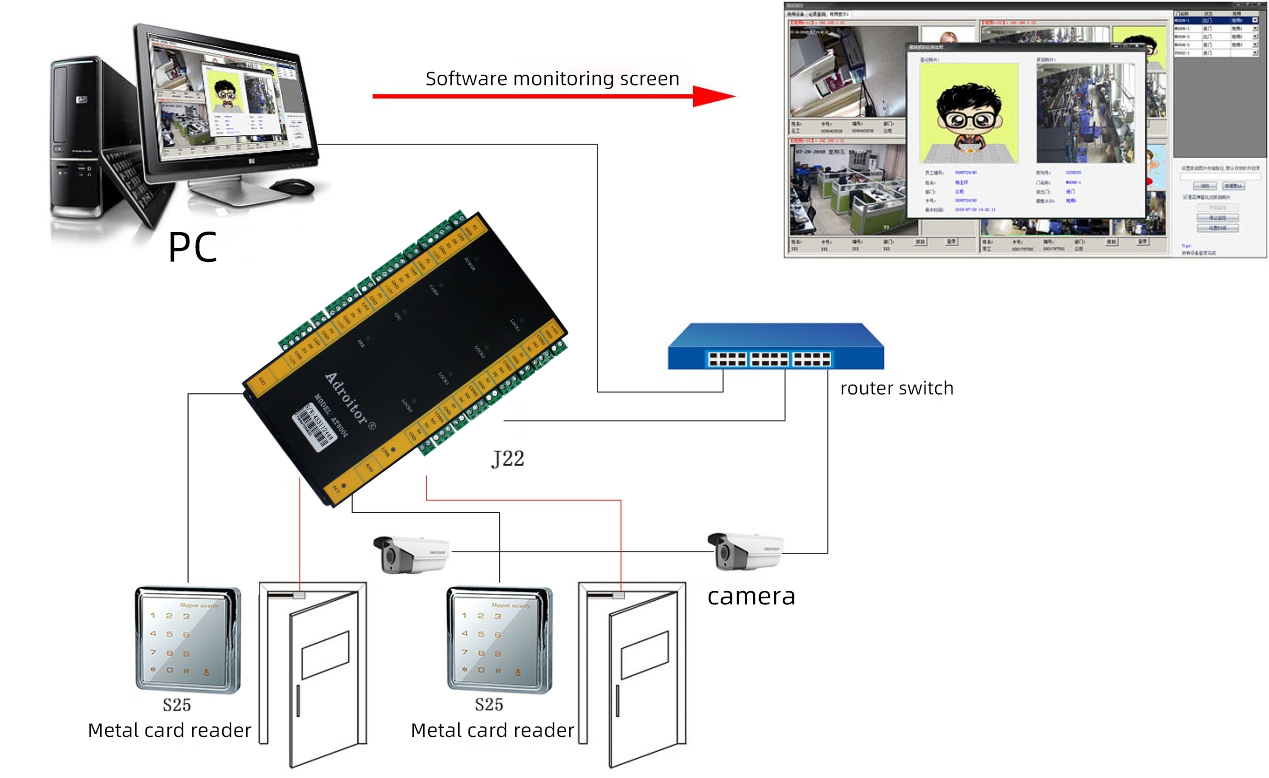

This outstanding wifi access controller is using the newly technolgy for provide mobile app access control , QR barcode access control and web page access control also support video and photo screen shot by linking to dahua ot hikvision camera.
1.Technical Parameters:
|

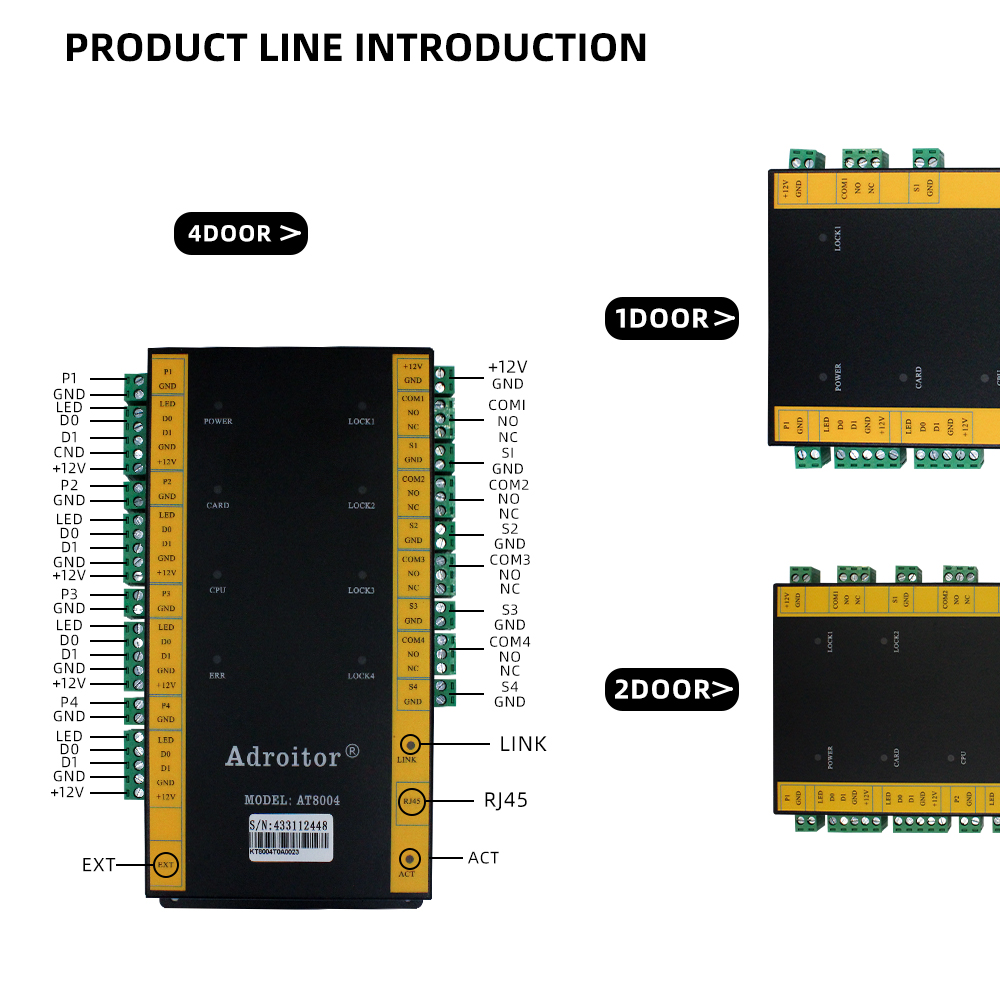

Model |
AC-64Bit401
|
AC-64Bit402
|
AC-64Bit404
|
|

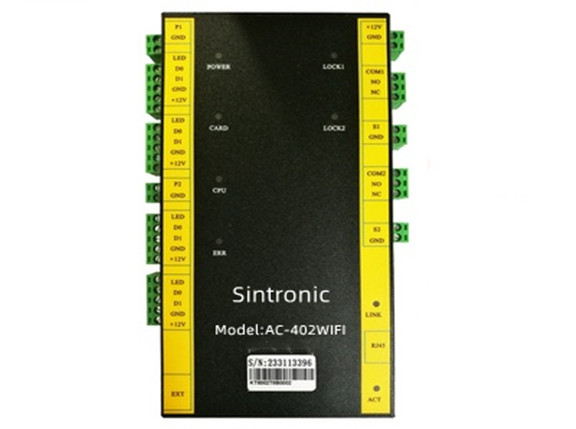

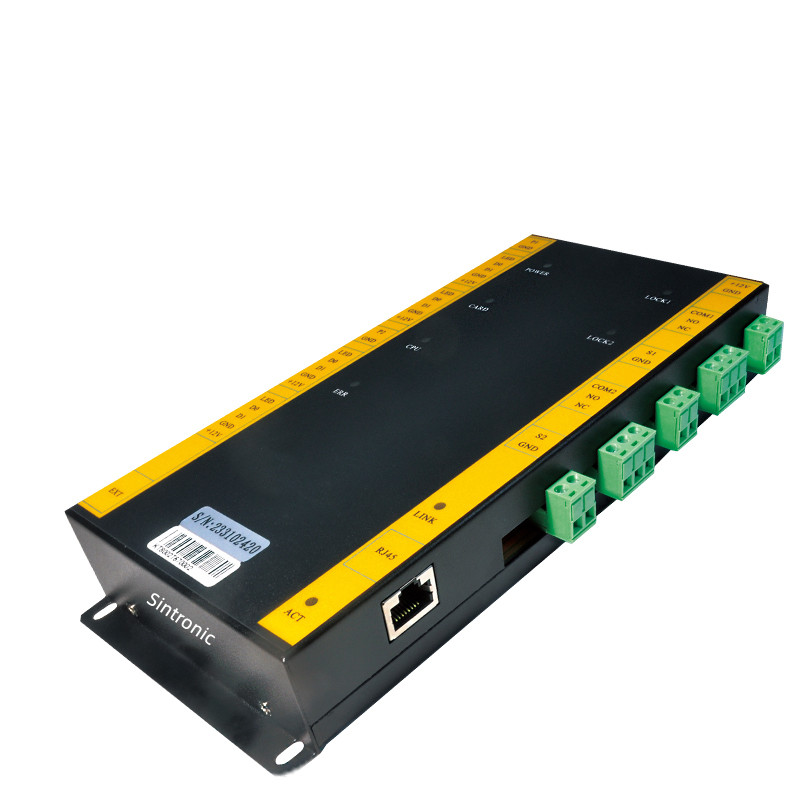

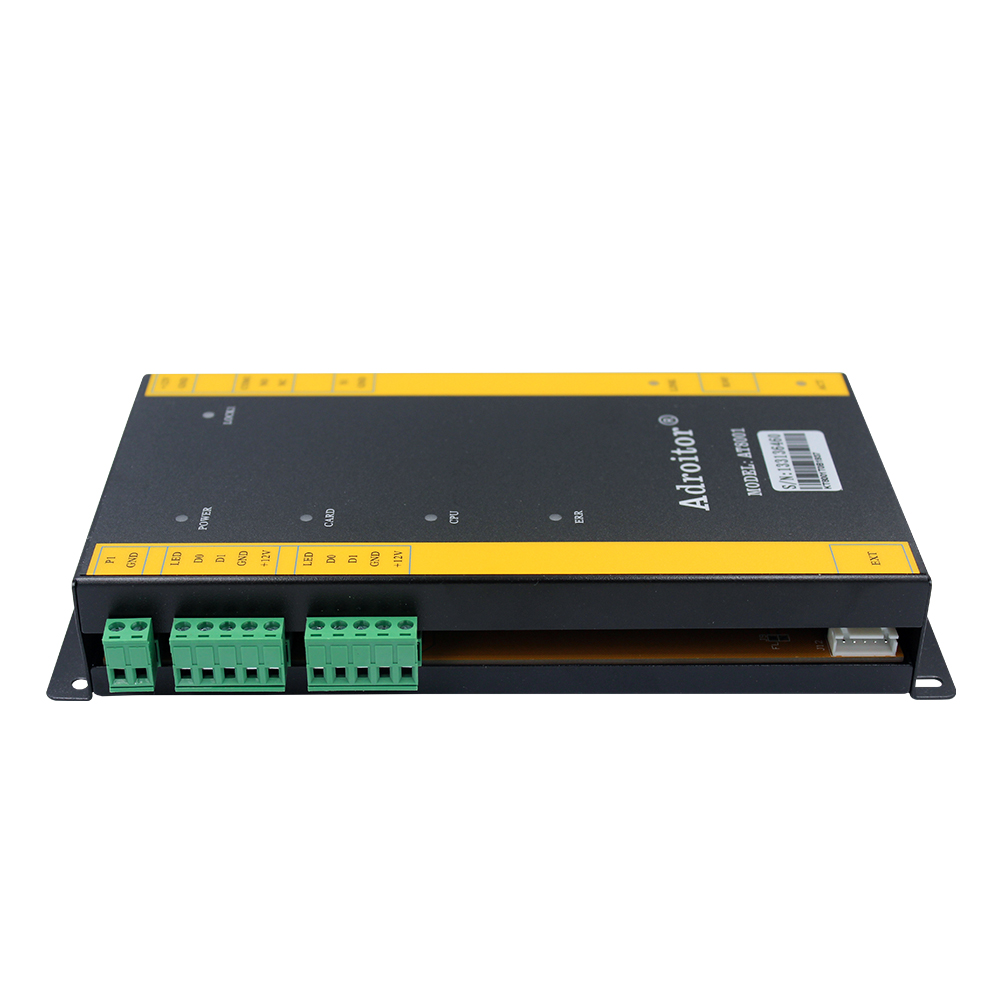

Photo |
|
|
|
|
Brand Positioning |
High End tcp/ip |
||
|
Function |
For 1 door entry by card and exit by push button or both by card |
For 2 door entry by card and exit by push button or both by card |
For 4 door entry by card and exit by push button |
|
Size(mm) |
160*106 |
160*106 |
160*106 |
|
Reader Capacity |
1 pair |
2 pairs |
4 pairs |
|
Power box |
273*228*65mm 12V3-5A |
||
|
Max Reed to controller distance |
Within 100 meter and 80 meter is better |
||
|
User Capacity |
20,000 |
||
|
Record Capacity |
100,000 |
||
|
Max Distance between controller |
In the same LAN |
||
|
Work environment |
-35-40 degrees |
||
|
Standard Function: |
First card open,Multi card open, interlock,remote open,timing, fire alarm,threat alarm |
||
|
Additional |
Mobile App control, Bar Code, Web control (available in the same network ,LAN) |
||
2.Features
ARM cpu, it have very stronger fucntion. Its main function include:
Attendance / Access control / Access alarm / Fingerpint / Web function /
cell phone .
Attendance :support normal shif rules and Multi-shif rules ,this can meet variety of attendance needed.
Access control:support Time profile / password manage / anti-passback / inter lock / first card / task list .
Access alarm:support door open too long warm / door forced open / invalid card / fire alarm / Threat code / force lock
Fingerpint: support finger reader, it's better use our company Finger device, so it can use one software to manger.
Fire alarm:Fire alarm triggered , All doors are opened automatically and alarm is output at the same time
QR function:support various QR code generators
web function:support PC,tablet ,cell phone use IE or Chrome browser etc.
Cell
phone: support Android phone and Apple phone, support
WIFI/2G/3G/4G remote control,can open door at anywhere at any time via
phone!

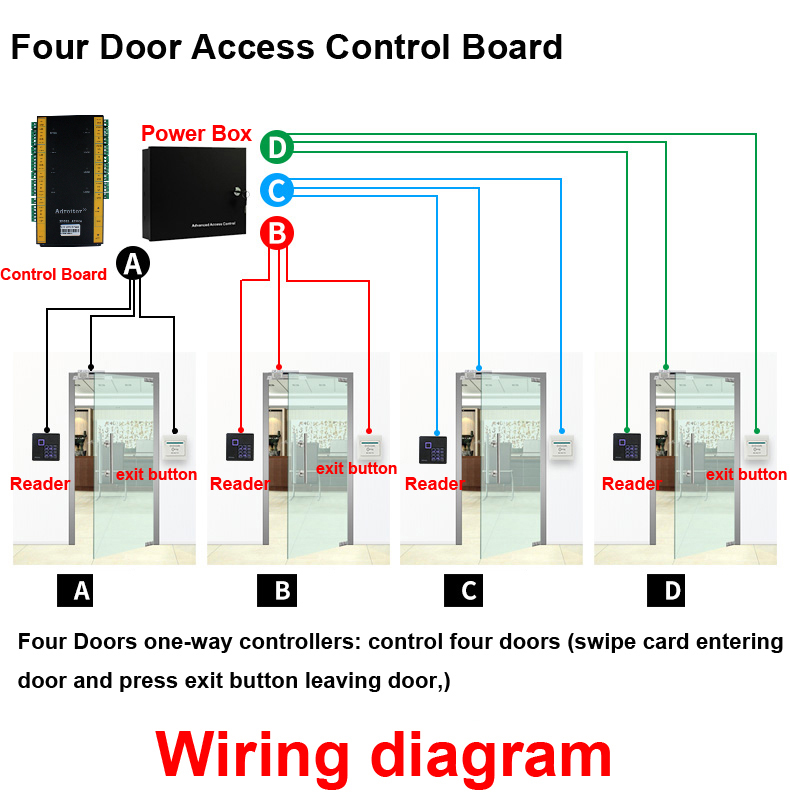

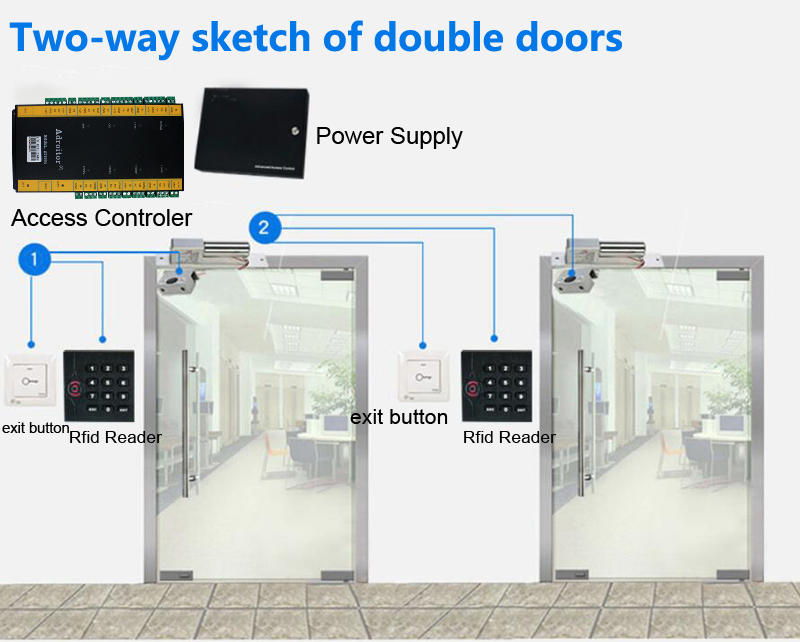

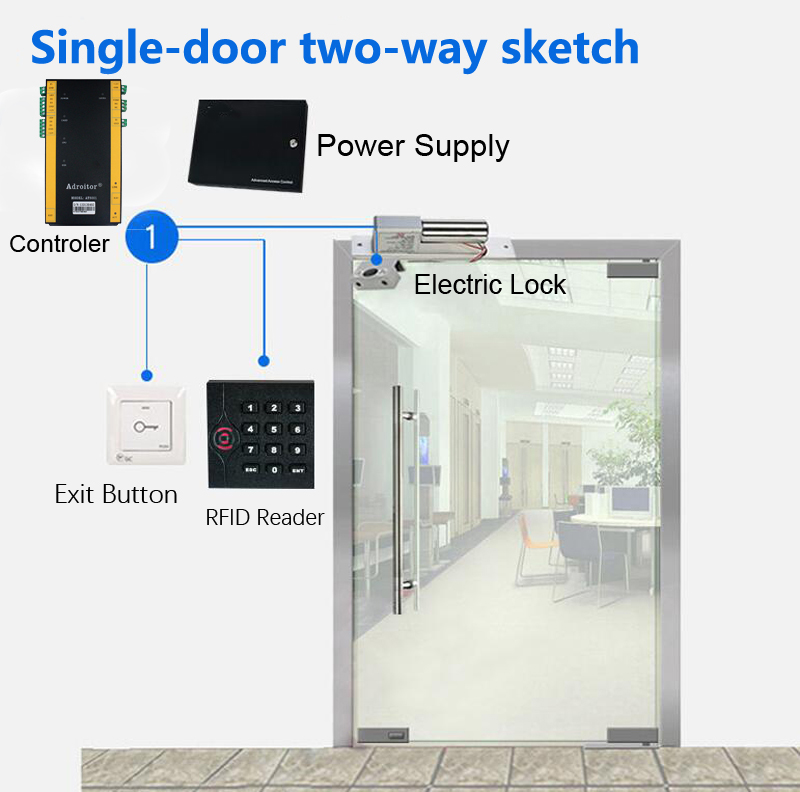

3.Wiring Diagram
