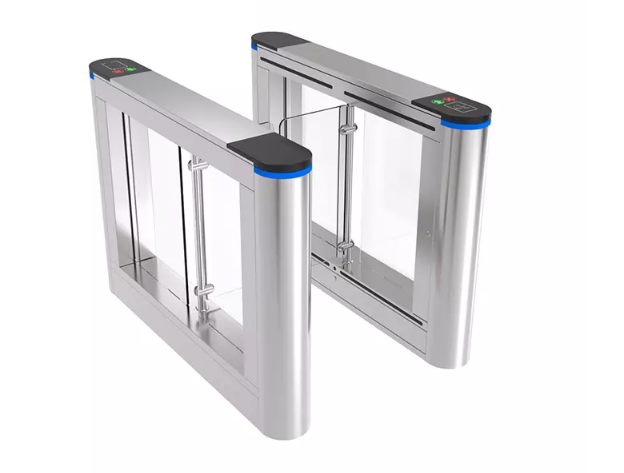

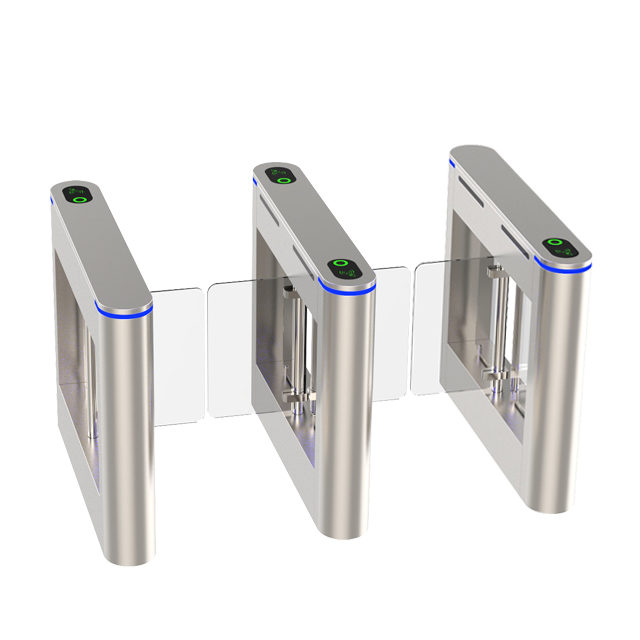

OEM Mini Acrylic Flap Swing Turnstile Gate

Description

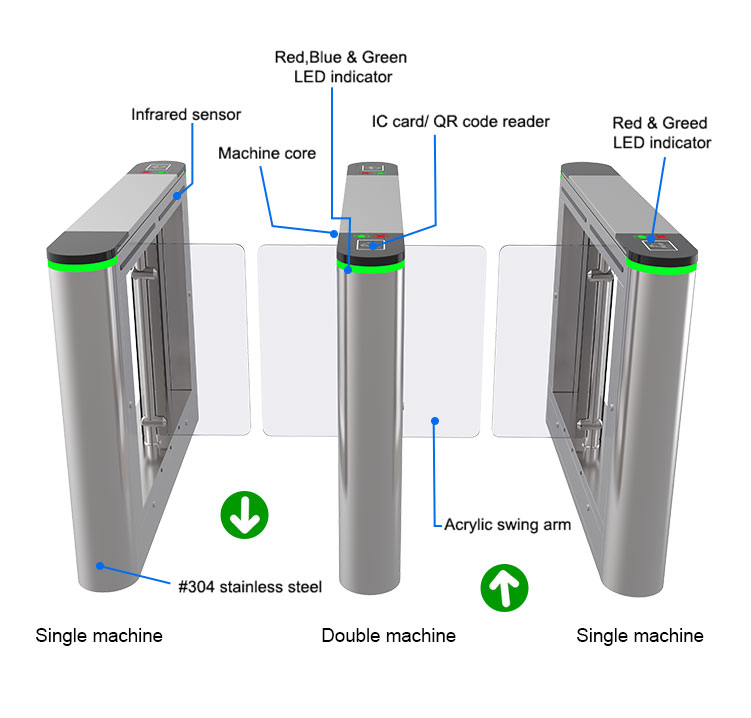

Sintronic,s High Speed Passage Swing Turnstile Gate  is composed of a chassis, a movement, a gate swing, a control system, an infrared sensor, and a control device. The arresting body of the swing gate is a plane with a certain area, perpendicular to the ground, through rotating and swinging to achieve arrest and release. The commonly used materials for brake pendulums are generally stainless steel, plexiglass, and tempered glass; some also use metal plates and special flexible materials to reduce the injury of pedestrians in accident

The classification of swing gates is usually divided from the shape. There are vertical, bridge and cylindrical types. The vertical and cylindrical types are small in size and easy to install, but the passage length is short and the function of the pedestrian detection module is limited;  The bridge swing gate has a longer channel, a stronger pedestrian detection module, and higher security

Technical Parameter:

Material:304 Stainless steel
Size: 1200/1400*200*1000 mm
Input Voltage: 110/220VAC,50HZ
Entrance Width:≤370mm
Service Life:≥5million times

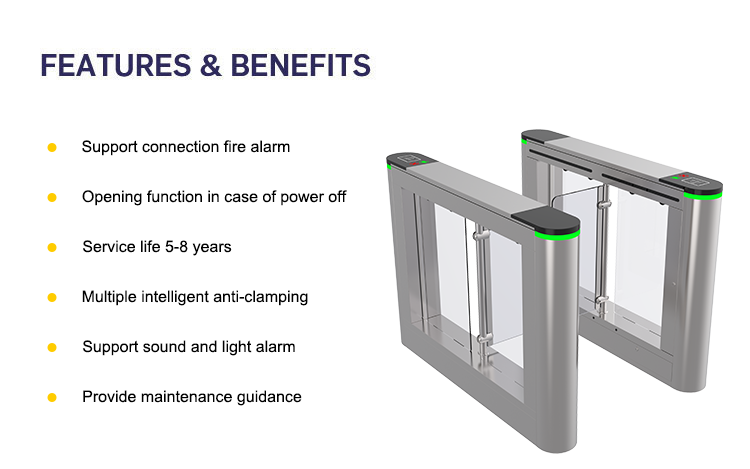

Feature：

1. Anti-collision function of swing gate
When the swing gate lever is in the locked state, it cannot be pushed by external force and can withstand the impact force within a safe range. Equipped with an emergency escape control device, so that the system will automatically unlock the brake levers into a free passage mode, which is convenient for evacuation of people (remote control possible)
2. The pass indication function of the swing gate
LEDs are installed on the top of the swing gate chassis to indicate the traffic status and direction, and when there are more than two legal traffic signals given at the same time, the system will memorize all traffic requests and complete each traffic action in turn.
3. The passage restriction function of the swing gate
The swing gate can limit the number of people passing through the software to meet the personnel management under special circumstances. Multiple turnstiles can be set up and debugged in batches through software to improve efficiency and reduce maintenance costs.
4. Compatibility of swing gates
The swing gate is equipped with a dry contact signal output interface and a wide threshold level signal input interface, which is compatible with various access controllers.

Advantage:

The material of the swing gate chassis is standard 304 stainless steel or customized 316 stainless steel. The internal components of the box body are all stainless steel or anti-rust and anti-corrosion treatment, which is durable and anti-rust, strong destructive, safe and reliable. In addition, the swing gate also provides free control software and development kit protocol for man-machine interface interaction, which is convenient for control and debugging and has strong scalability. The swing gate is  have more safe, reliable and expandable options

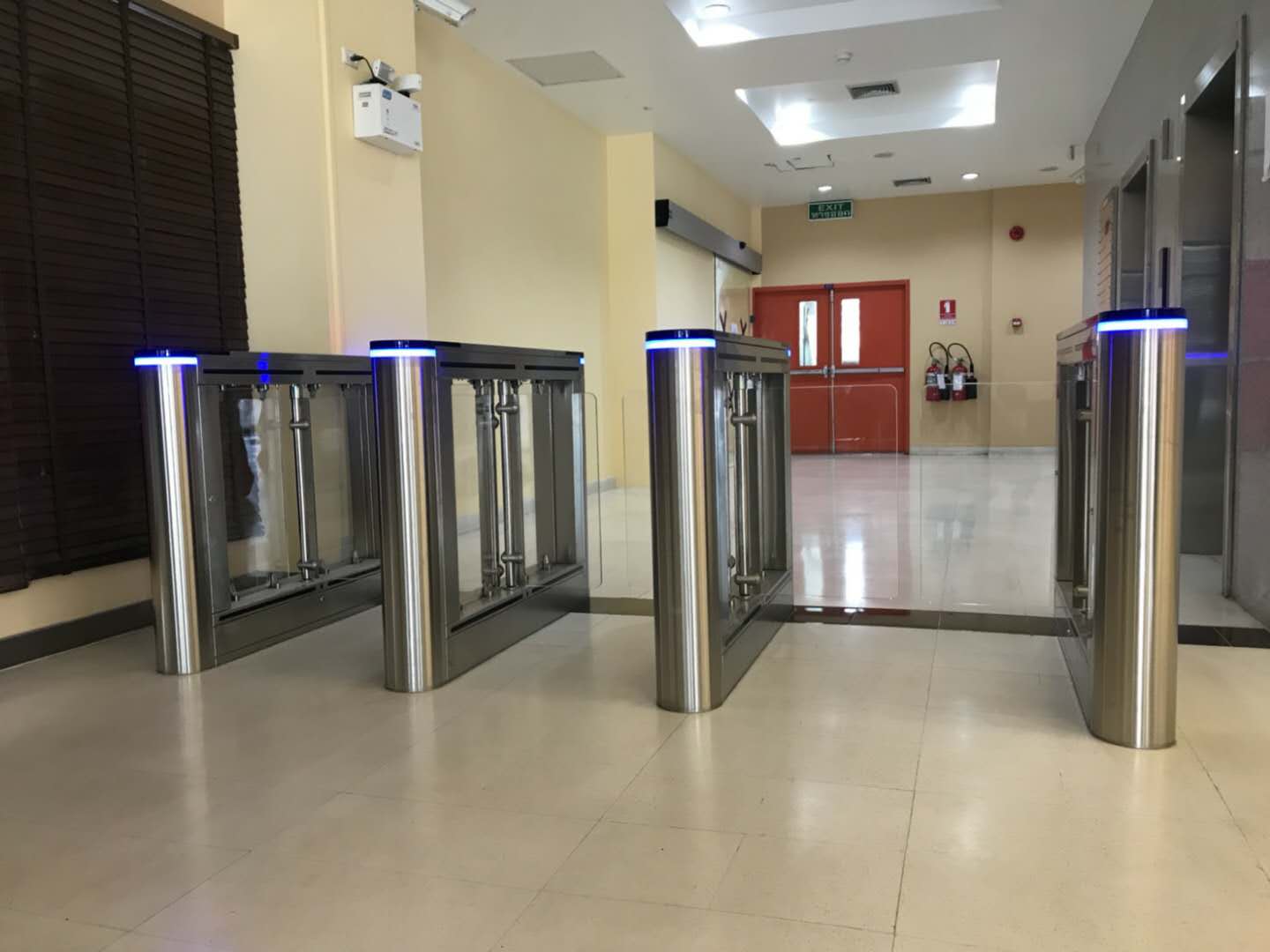

Install Example:

High Speed Passage Swing Turnstile Gate  is used in places where people's exit and entrance need to be controlled, such as dining halls, hotels, museums, gymnasiums, clubs, subways, stations, docks and other places. The use of small swing gates can make people flow through the passage in an orderly manner.

Package

Our standard package is by carton but as for the oversea client we advise to use the wooden case package

In order to protect the machine from damages during the transportation

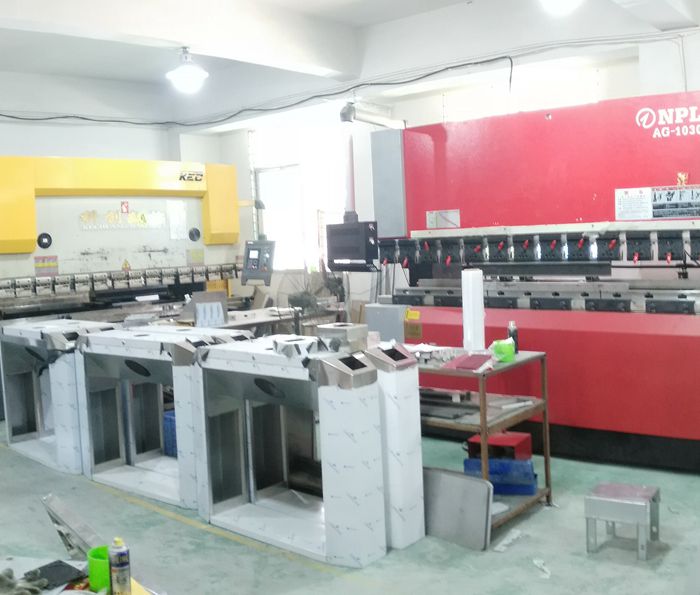

We are original manufacturing factory in china
