Swing Turnstile

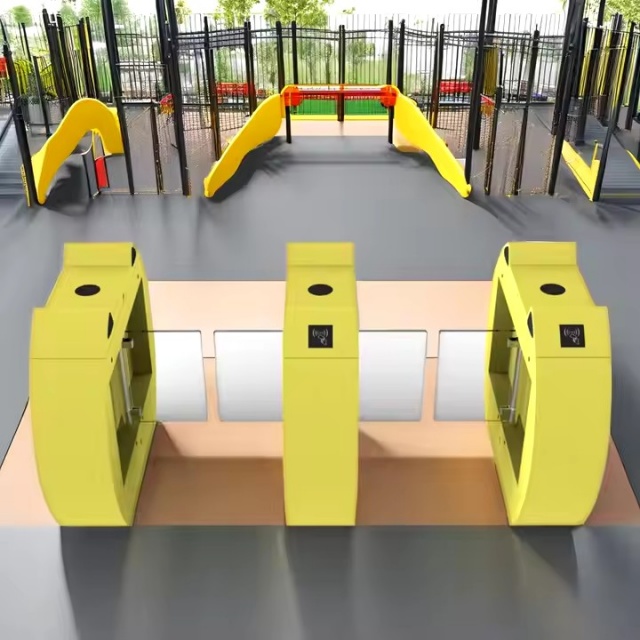

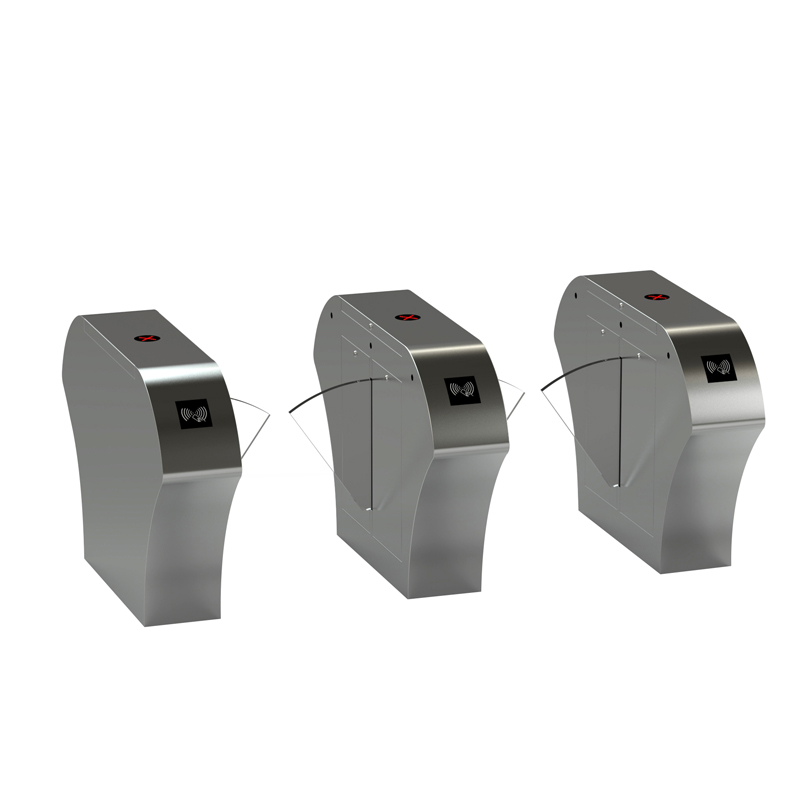

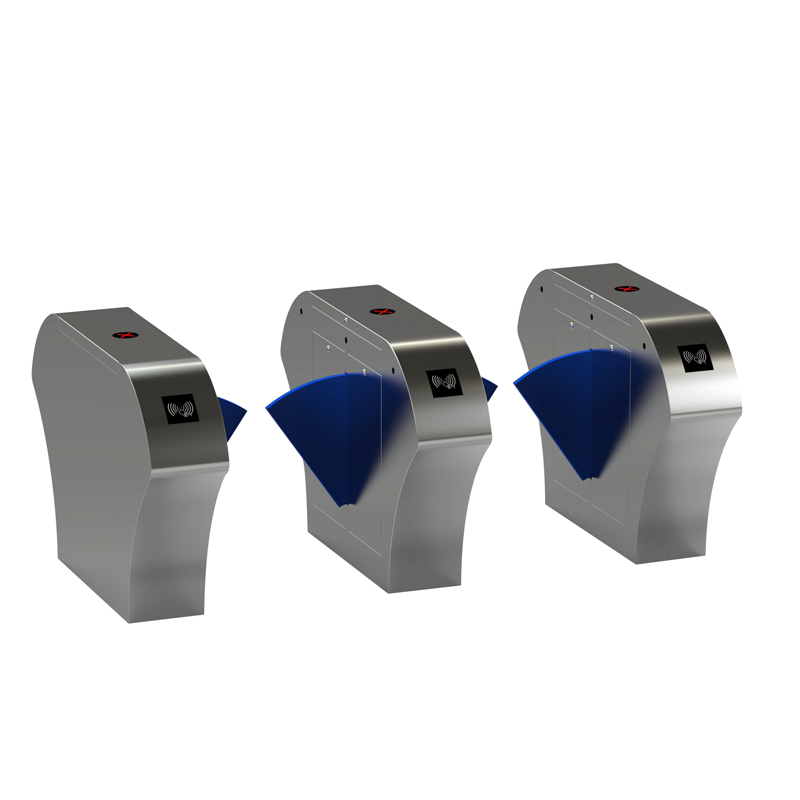

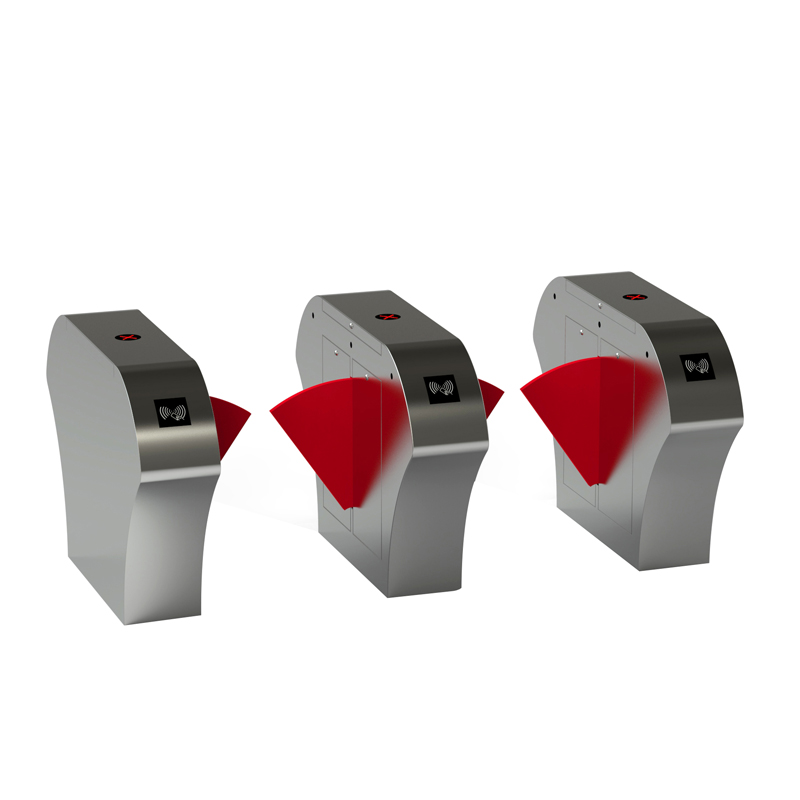

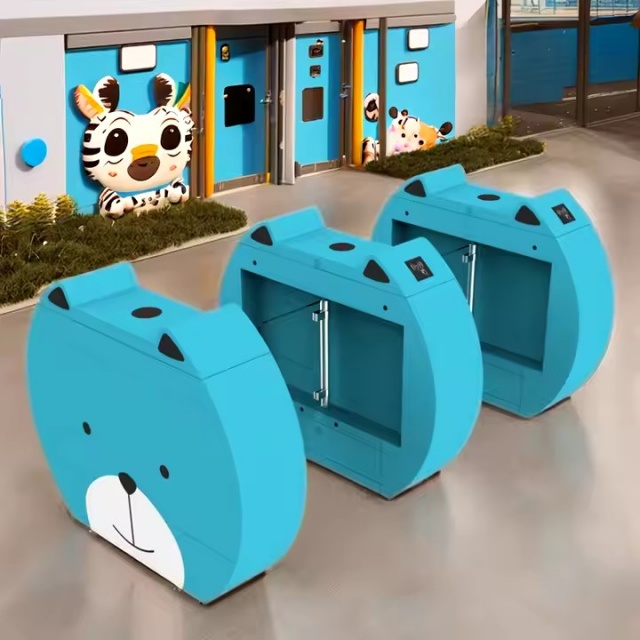

OEM Butterfly Swing Turnstile

Swing 501
Power Supply:110/230V
Working Voltage: 24 Volt DC
Warranty:12 Months
Product description: We're professionalOEM Butterfly Swing Turnstile manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now
INQUIRY

Technical Specification
Product Name	swing barrier turnstile
Model	WKT-DLMBZ
Production Process	CNC Laser Cutting,Grooving,Welding,Grinding,Assembly
Material	Iron with green Powder coated (standard), Other colors are available

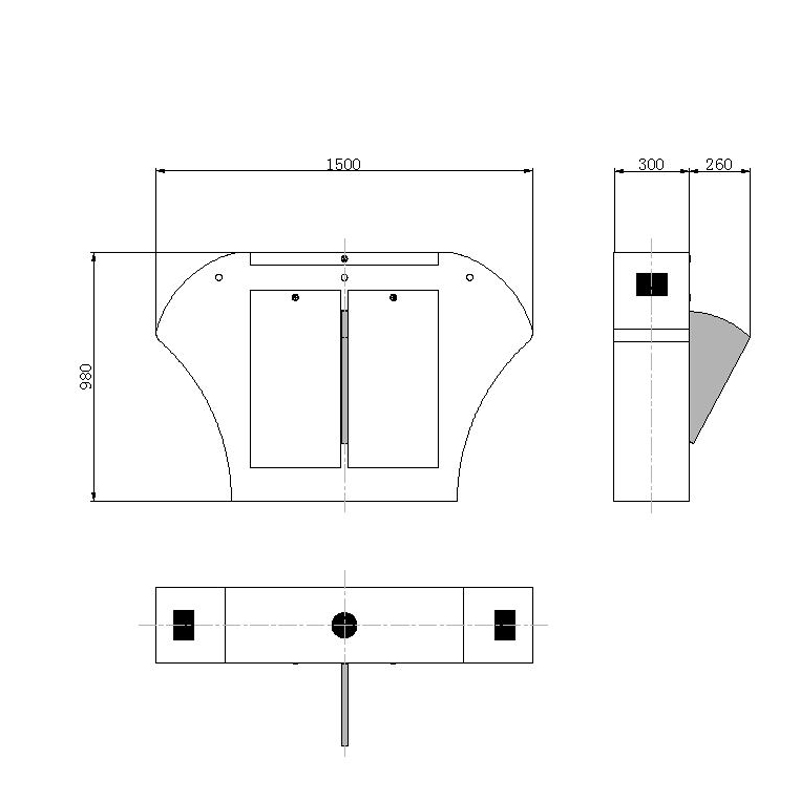

Dimension	1200280980mm(Customization acceptable)
Passage Width	550-800mm (Customization acceptable)
Passage direction	Single directional/Bi-directional(Optional)
Throughput Rate	35-45 persons/minute
Drive solenoid valve	24V
Automatic Reset Function	Automatically locked within set time(Time Adjustable)
Power input	AC100-240V,50/60HZ
Operation voltage	DC24V, 3A, Power: 40W
Operation Humidity	0~95%(No Freezing)
Operation Temperature	-10℃~+50℃
Operation Environment	Indoor/outdoor（Canopy）
Open Signal	Passive relay (dry contact)
Communication Interface	Standard RS485 interface, distance ≤1200 meters
Input Interface	Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

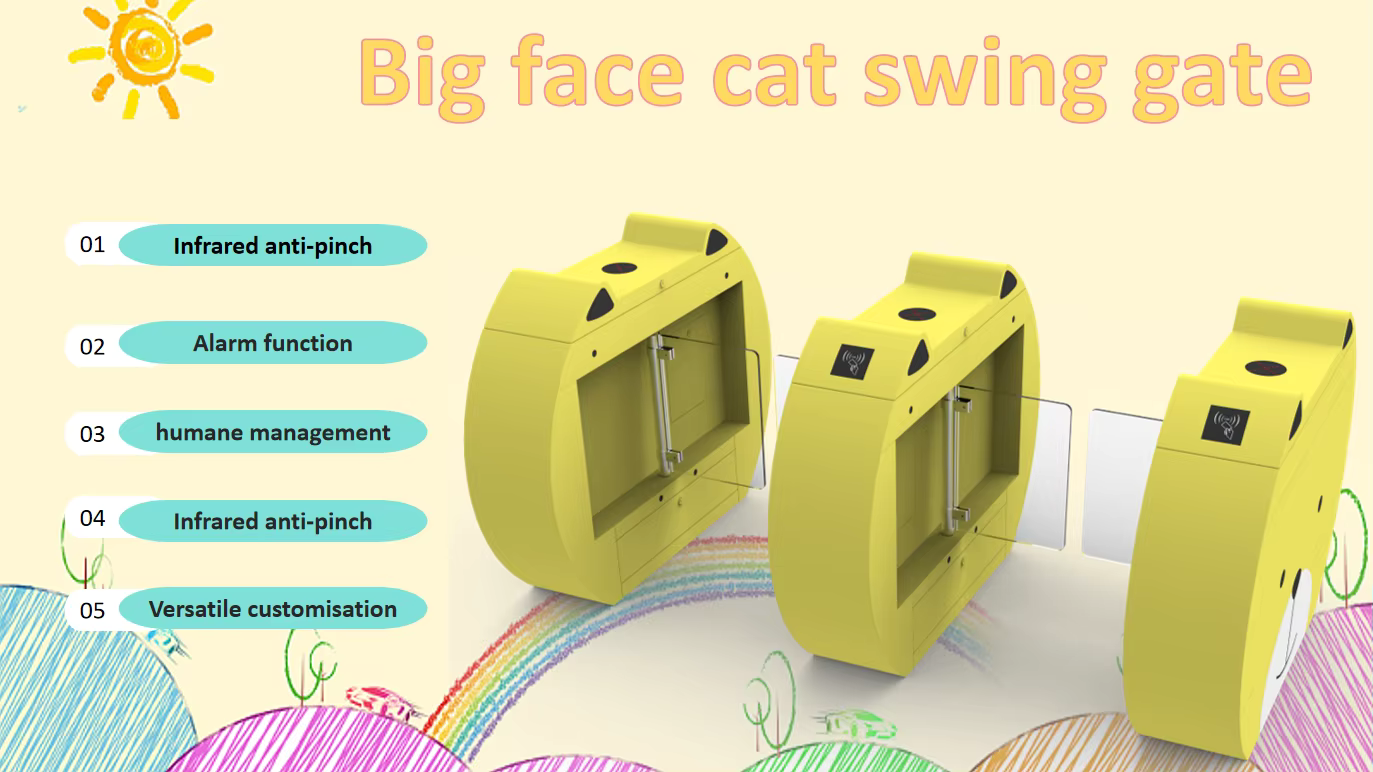

Features:

1.In case of emergency, cut off the power, the Slim swing glass turnstiles will open automatically to allow free passage which complies with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace 2.M series swing turnstile MS100 is suitable for luxury and high-end entrance solutions. 3.The whole system runs smoothly, with low noise, and high speed. 4.Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock. 5.There is a total of 5 pairs of infrared sensors The middle sensor is to prevent pinch pedestrians. 6.Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm 7.LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms. 8.Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency. 9.Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically 10.Anti-bump, Anti clamp, The optical turnstiles come with a brushless motor. During operation, if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc. We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.

Install example

◇ Office locations: smart buildings, commercial buildings, government agencies, factories, etc.
◇ Science and education units: schools, colleges, research institutes, libraries, etc.
◇ Commercial service places: supermarkets, shopping malls, hotels, clubs, banks, etc.
◇ Living place: residential area, community, apartment, dormitory, etc.
◇ Transportation sites: bus station, railway station, subway, airport
◇ Scenic area: scenic area, playground, theater, gymnasium
