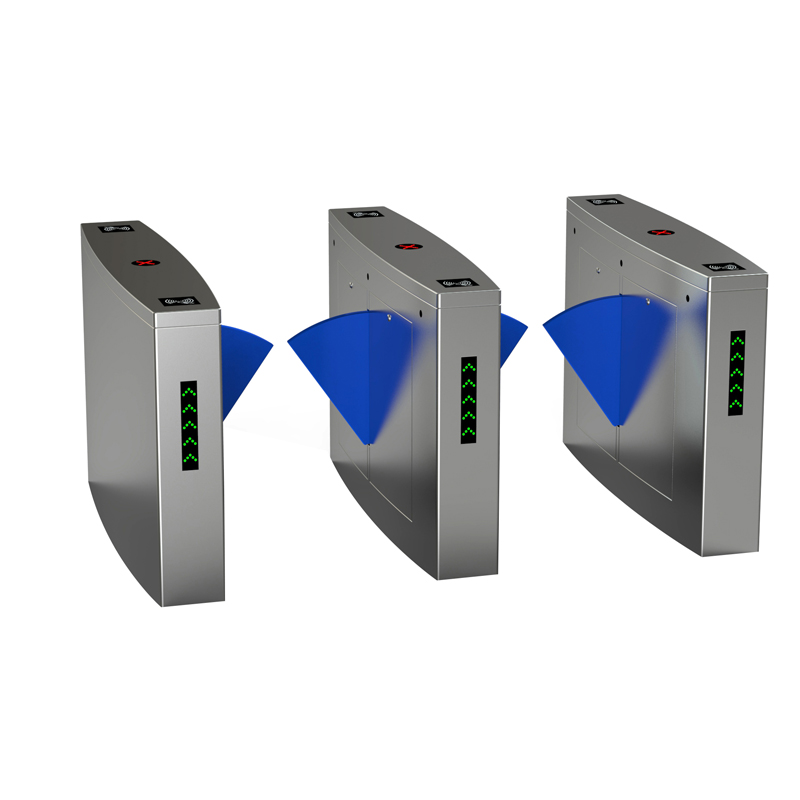

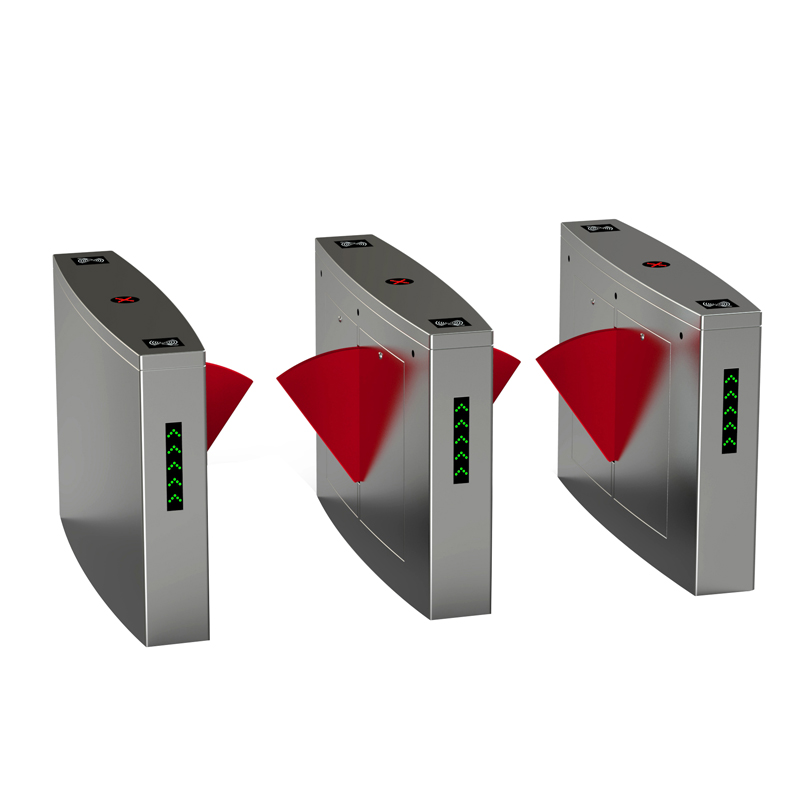

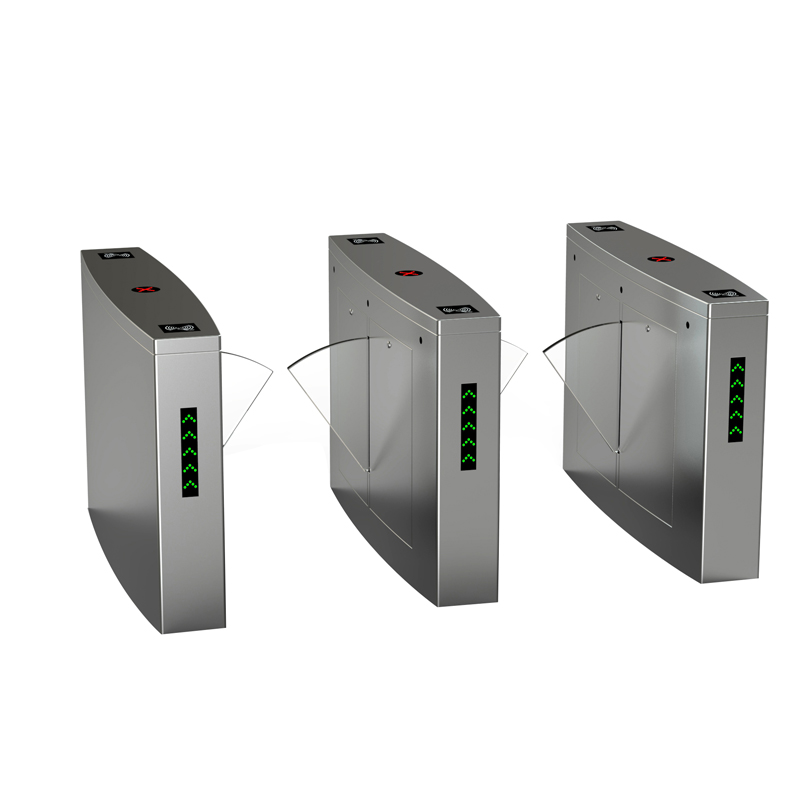

Wing Flap Turnstile Gate(OEM Drump Type)

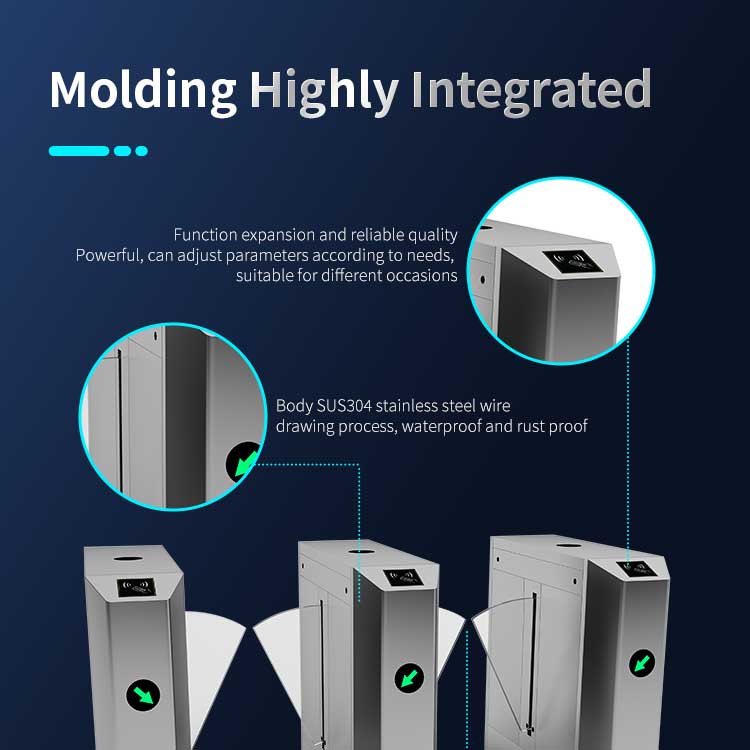

Material:304 Stainless steel

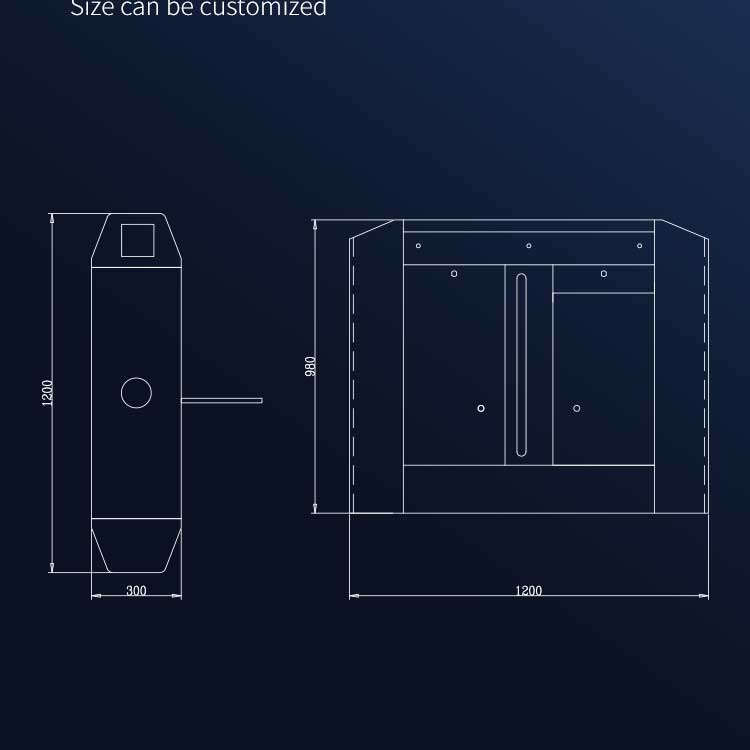

Size: 1200*280*980mm

Input Voltage: 110/220VAC,50HZ

Entrance Width:≤550mm

Service Life:≥5 million times

Features:
We Sintronic independently researched and developed a new generation of industrial-grade control system, the intelligent wing gate, by default, consists of two single movements and one dual movement to form a set of dual channels, or it can be customized as two single movements to form a set of single channels, or two single machines The core and several dual movements form a set of multi-channels.
◇Alarm function: the device will alarm when illegal entry, trailing, or overtime occurs;
◇ Illegal intrusion prevention function: when controlled passage is not given a legal passage signal or prohibited from passing, forcibly entering the channel will be regarded as an illegal intrusion, and the system will automatically alarm and ensure that the swing arm is closed.
◇ Power-on self-check function: When the device is powered on or restarted, it will automatically detect whether the function is normal, and it will give an alarm and code prompt when it finds an abnormality.◇ Anti-pinch function: Infrared and mechanical double protection, thereby effectively protecting the safety of pedestrians
◇ Emergency escape function: After receiving the fire alarm signal, the equipment will open first unconditionally, and it will be equipped with the function of automatically opening the swing arm when the power is turned off, so that the gate will be open, which is convenient for evacuation of people and meets the fire protection requirements;
◇ Passage indication function: LEDs are installed at the front and top of the box to indicate the passing status and direction.
◇ Compatibility: Equipped with dry contact signal input interface and wide threshold level signal output interface, compatible with various access control controllers.

Advantage:

◇ Input interface: relay switch signal
◇ Communication interface: RS485 standard
◇ Passing speed: 30-40 people/minute
◇ Working temperature: -30℃~ 80℃
◇ Working environment: indoor/outdoor (a awning is recommended)
◇ Average number of failure-free operations: 5 million times
◇ Opening and closing time of the gate: 0.5 seconds
◇ Automatic reset time after failure: 5 seconds

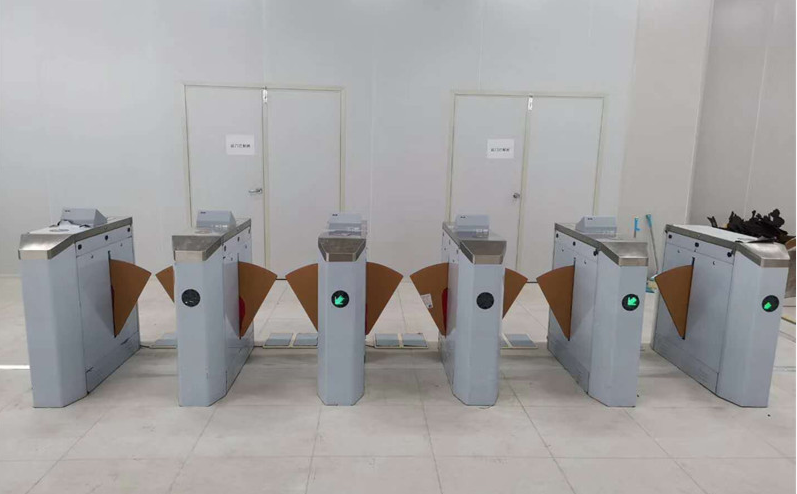

Install example

◇ Office locations: smart buildings, commercial buildings, government agencies, factories, etc.
◇ Science and education units: schools, colleges, research institutes, libraries, etc.
◇ Commercial service places: supermarkets, shopping malls, hotels, clubs, banks, etc.
◇ Living place: residential area, community, apartment, dormitory, etc.
◇ Transportation sites: bus station, railway station, subway, airport
◇ Scenic area: scenic area, playground, theater, gymnasium

Package:

Our standard package is by carton and we have option for doing the wooden case package to avoid the transportation Damages

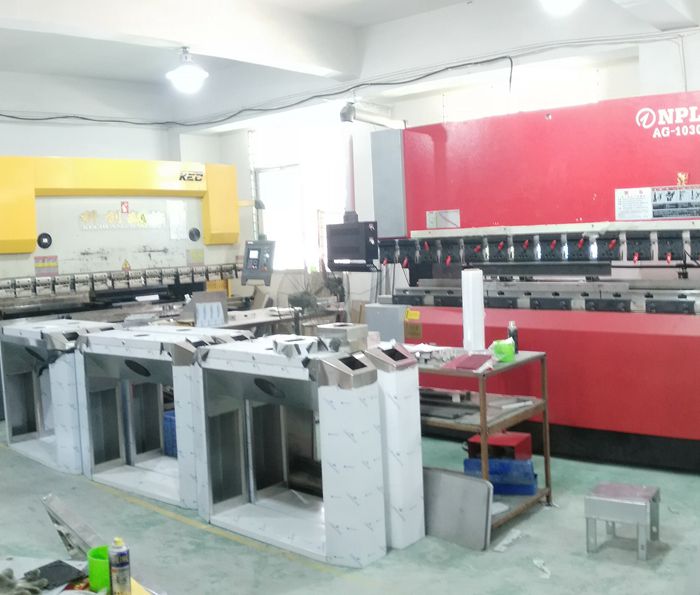

We are original factory in china
