Power

AC220±10V,50/60HZ;

Operating Temperature

-45℃-60℃

Relative Humidity

≤95%, No Condensation

Passage Width

550mm( 900mm optional)

Passing Speed

Normally open-35persons/min; Normally closed-35persons/min

Manufacturing Technique

CNC laser cutting

Motor

DC Brush motor

Gate Opening and Closing time

≤ 0.4S

Infrared Sensors

3 or 5  Pairs

Working environment

indoor and outdoor(added the rainshed)

Motor Operation Speed

1600R/Min

Communication Distance

≤1200M

Input Connection

+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms

Communication Connection

Without RS485 Communication

Barrier Material

Acrylic glass,  SS304 and so on

Material

Stainless steel 304,thickness is no less than 1.5mm

Running Life

3--5 Million(Continuous Opening and Closing Operation)

Protect Level

IP54

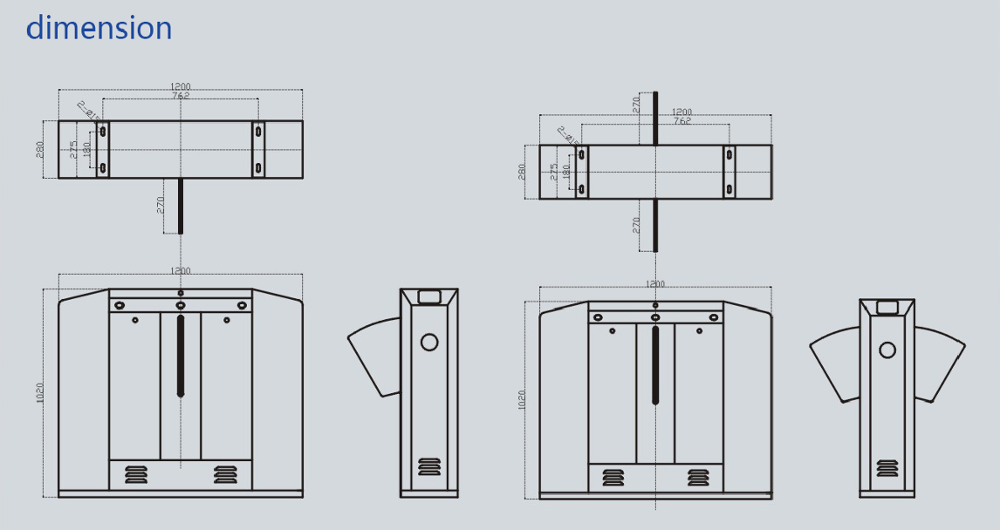

Size

1200*280*985mm

Colour

SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like

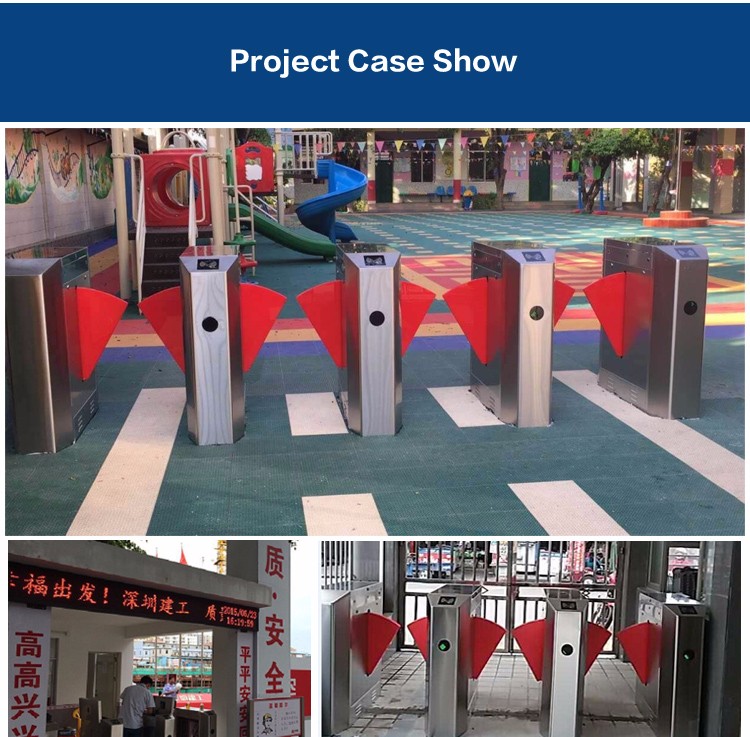

Operation Place

Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
