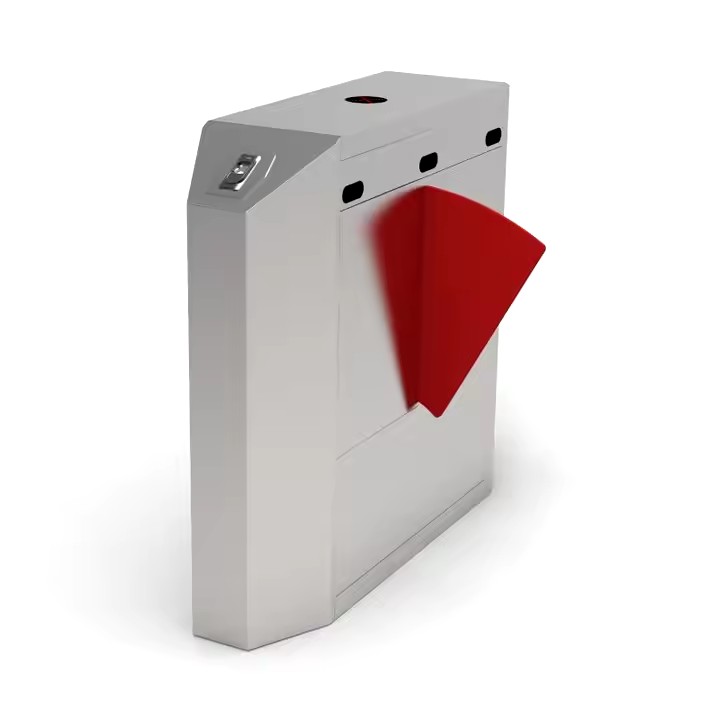

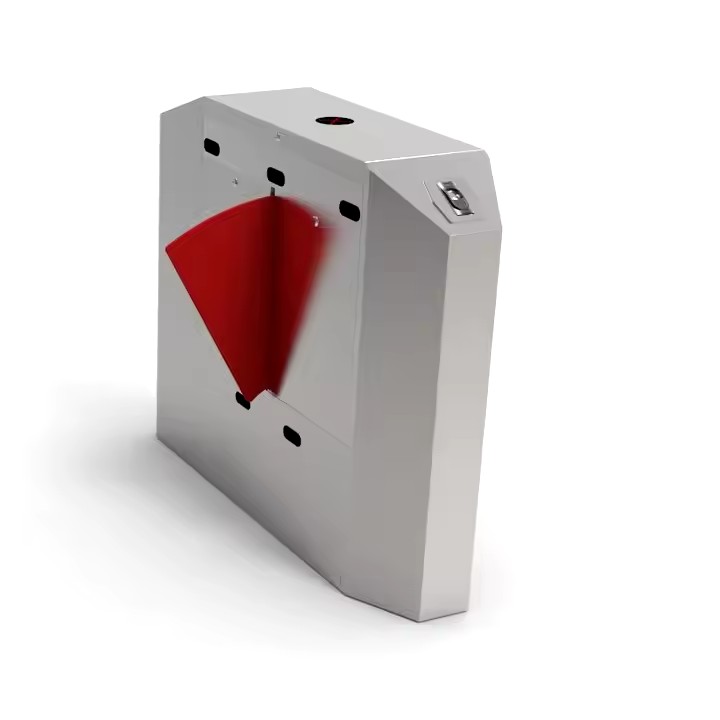

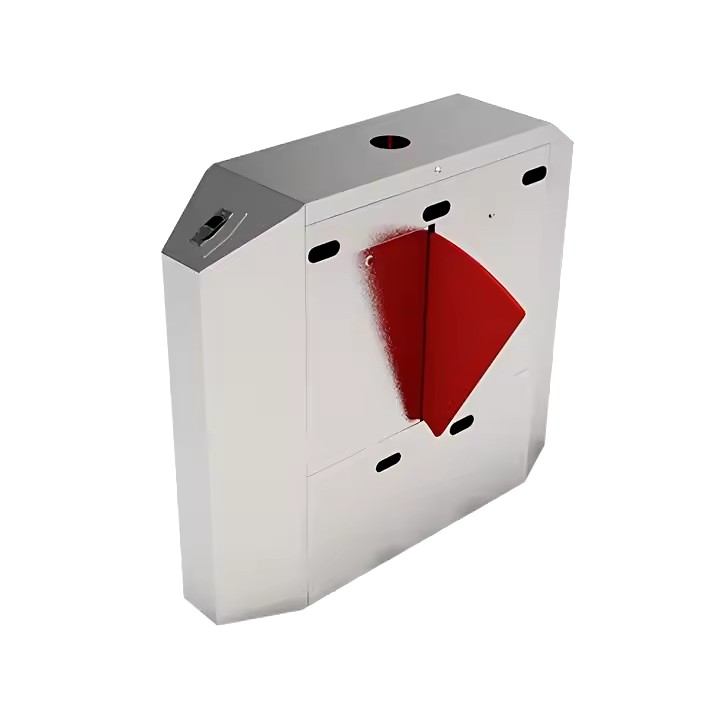

Flap Barrier Turnstile (OEM Sharp Angle Wing)

Technical parameters:

Material:304 Stainless steel

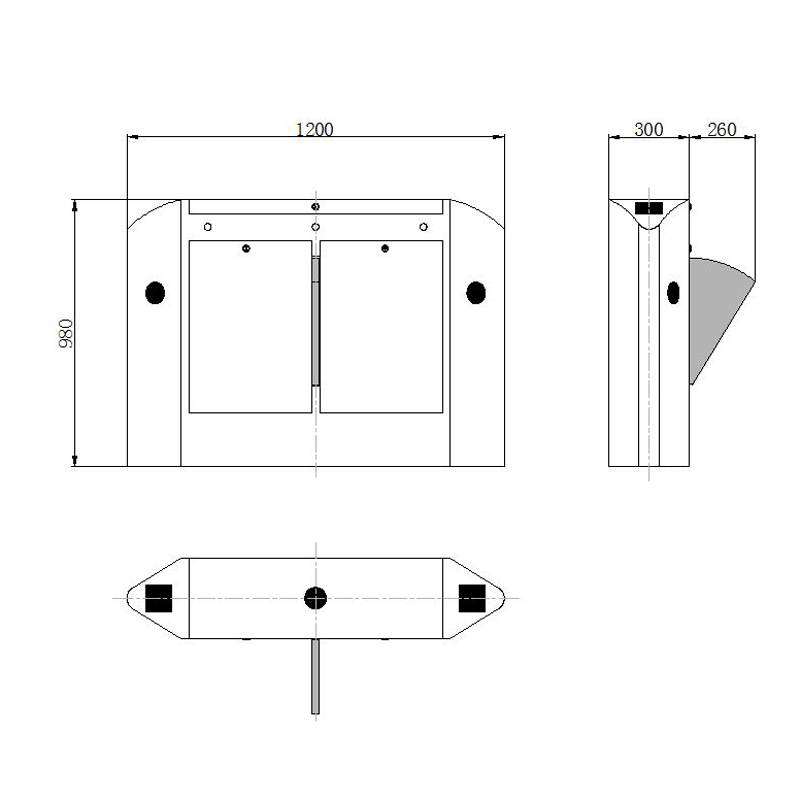

Size: 1200*280*980mm

Input Voltage: 110/220VAC,50HZ

Entrance Width:≤550mm

Service Life:≥5 million times

Features:
1.Can identify IC card, ID card, barcode or magnetic card, after swiping the card, it will automatically open or pay
It has a clear direction indication function, and an intuitive LED display panel indicates whether passage is allowed or prohibited
2.The display panel can automatically count the number of people passing through the direction
With voice and stroboscopic light warning function
After the pedestrian holds a valid card and swipes the card, when the pedestrian passes, the infrared detects a pedestrian in the middle, the telescopic arm will not close the gate, and the telescopic arm will automatically close after the pedestrian walks away
3.Non-two-way free passage

4.Single channel mode in designated direction
5.Free passage in designated directions
6.Maintain free passage or prohibit passage

Mechanical structure
Can bear high load 24 hours a day uninterrupted work
Resistant to high tensile strength
Can be used indoors or outdoors
Parts and accessories are up to industrial grade and durable
The turnstile run silently without any shaking
Communication and signal
Dry contact signal, access 12V or 24V pulse signal
Can communicate with computer via RS485, or TCP-IP

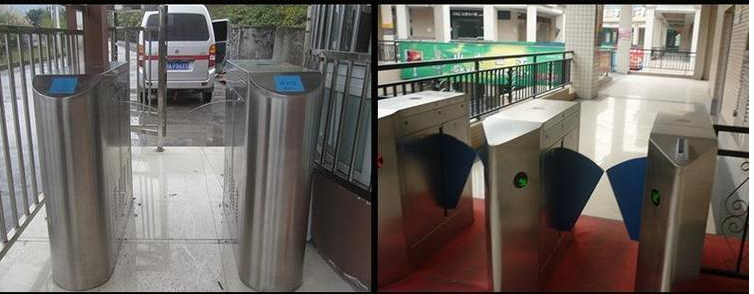

Install example

It is used in places where people's exit and entrance need to be controlled, such as dining halls, hotels, museums, gymnasiums, clubs, subways, stations, docks and other places. The use of wing gates can make people flow through the passage in an orderly manner.

Wiring Diagram

Package:

Our standard package is by carton and we have option for doing the wooden case package to avoid the transportation Damages

We are original factory
