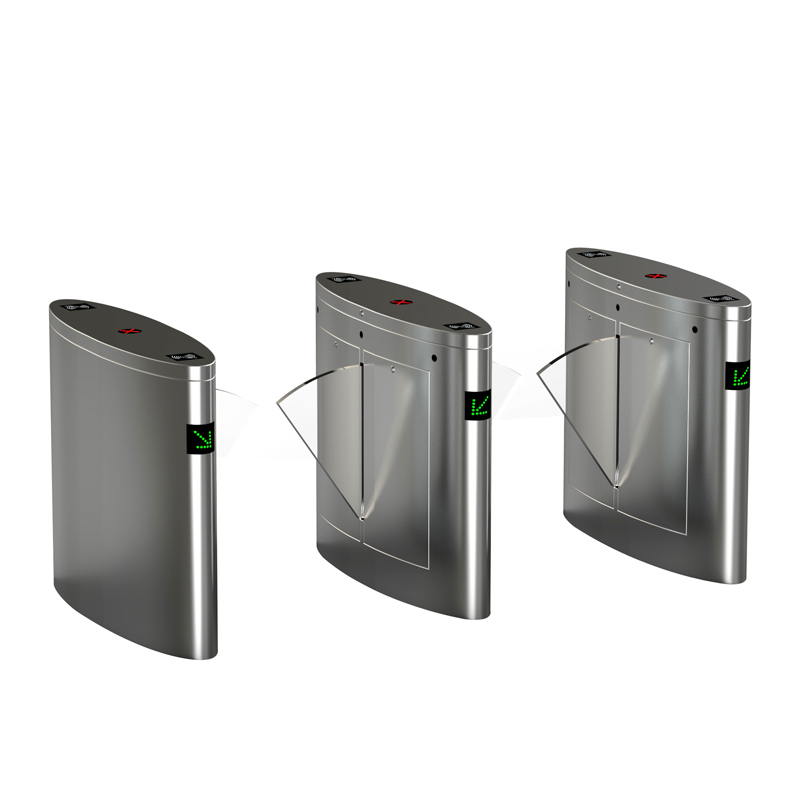

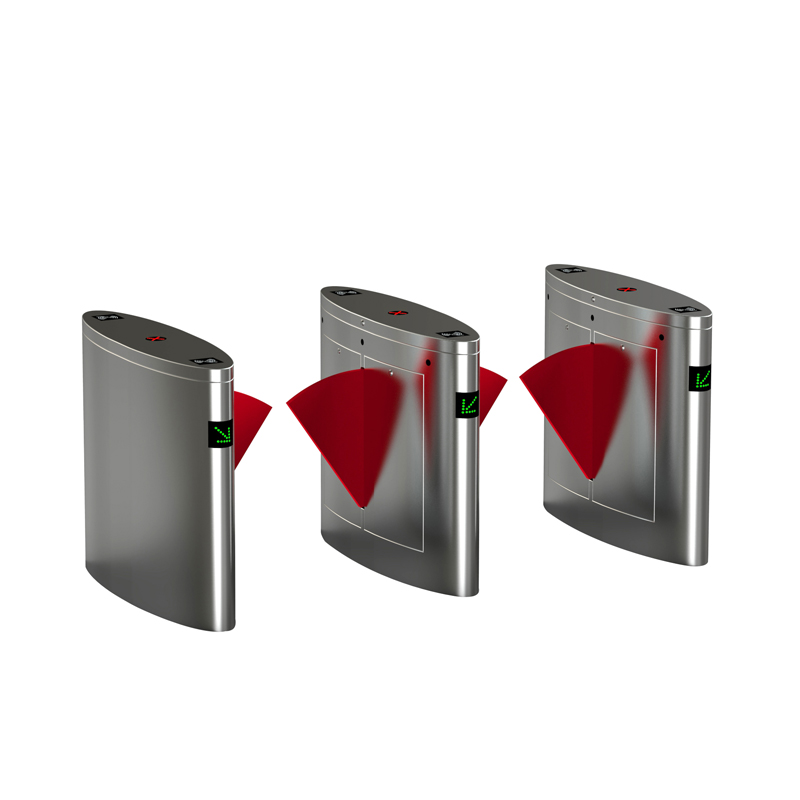

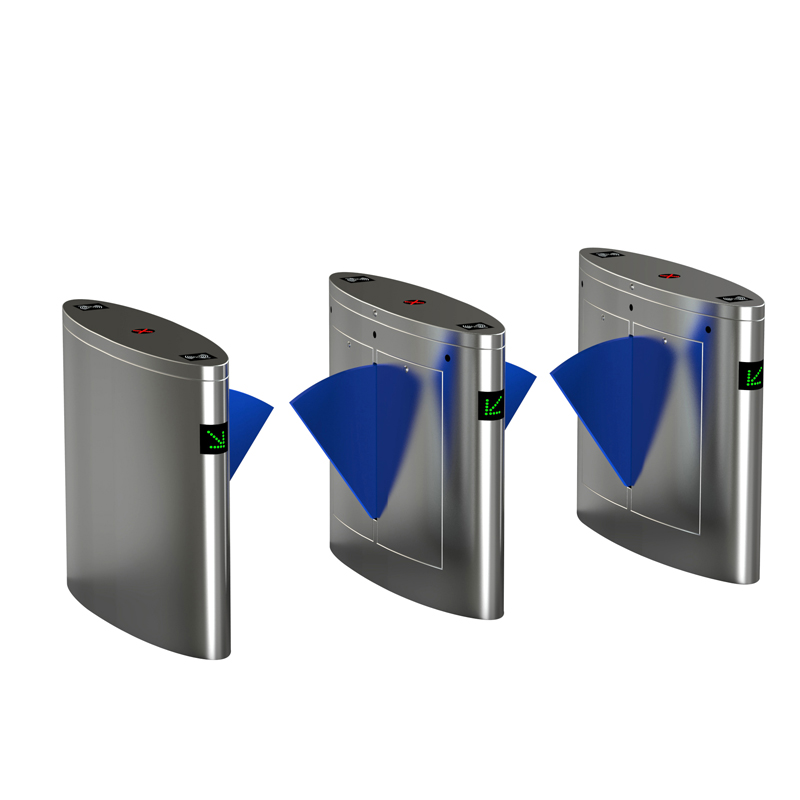

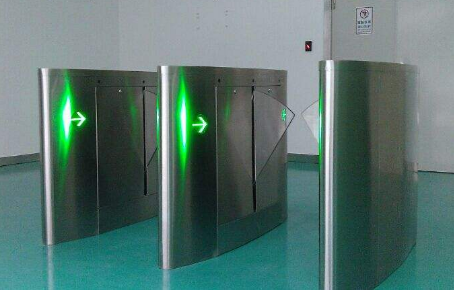

OEM Egg Type Wing Flap Turnstile Gate

Deacriptions

The Wing Flap Turnstile Gate(OEM Egg Type) is an upgraded product of the smart three-roll gate and the swing gate. The appearance of the equipment is stamped and formed by stainless steel plate, which is beautiful in appearance, rust-proof and durable. It also adopts standard electrical interfaces to the outside, which can easily integrate magnetic cards, barcode cards, and ID cards. , IC card and other card readers are integrated on the device, providing a civilized and orderly way for people entering and exiting, and at the same time preventing illegal people from entering and exiting; in case of emergency, ensure that the passage is unobstructed and facilitate the evacuation of personnel in time.

Technical parameters:

Material:304 Stainless steel

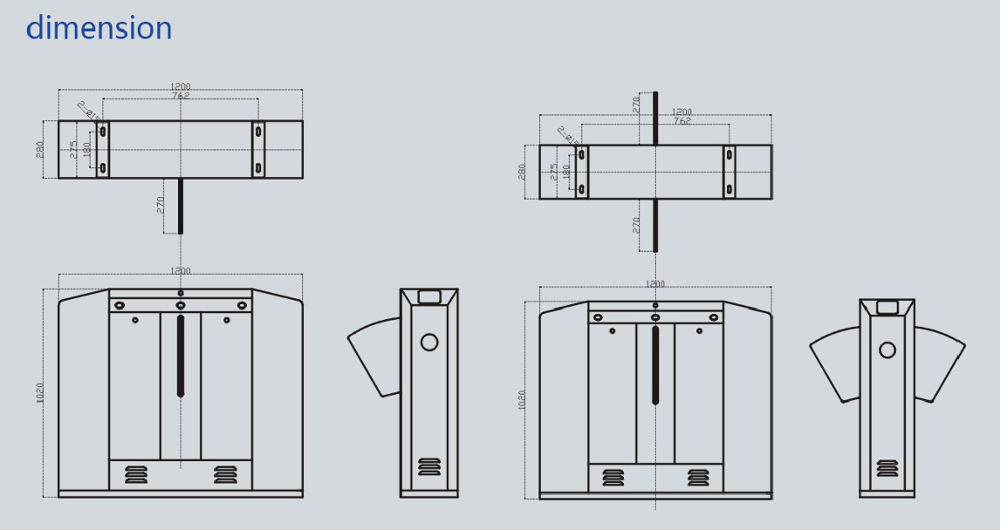

Size: 1200*280*980mm

Input Voltage: 110/220VAC,50HZ

Entrance Width:≤550mm

Service Life:≥5 million times

Features:

1) With fault self-check and alarm prompt function, it is convenient for users to maintain and use;
2) With automatic opening after power failure, self-checking of incoming calls and automatic restoration in locked state
3) There are a variety of working modes to choose from, which can be two-way card reading, or one side of the card, the other direction is prohibited, while the other side of the card, the other direction is free to pass, it can also be one-way or two-way infrared induction passage, pedestrians After passing through, the infrared sensor will close the gate, and the working mode of the gate can be set through the main board menu.
4) When a pedestrian reads a valid cartoon line, the infrared detects that the pedestrian has passed through and the gate is automatically closed or the gate is closed after the pedestrian has passed. The delay of 1-60 seconds can be set by the main board menu.
5) With automatic reset function. After reading the valid card, if the passer does not pass within the specified time, the system will automatically cancel the passer's current pass permission, and the restricted pass time can be set by the manager.
6) If a pedestrian forgets to read the card or reads an invalid card to enter the passage, the system will prohibit the pedestrian from passing and will issue an alarm. The alarm will not be cancelled until the pedestrian exits the passage; re-read the valid card to allow passage;
7) With 485 remote control gate opening and closing functions to meet the special needs of users and fire safety requirements.
8) Anti-shock function, the telescopic arm will be automatically locked when it does not receive the opening signal;
9) Infrared/mechanical dual anti-pinch function. When a pedestrian is passing, infrared detects a pedestrian in the middle, and the telescopic arm will not close the gate. After the pedestrian walks away, the telescopic arm will automatically close. When the telescopic arm is reset, it will be blocked. Automatic rebound or the motor automatically stops working within a specified time, and the force is very small, and a sound and light alarm signal is issued at the same time;

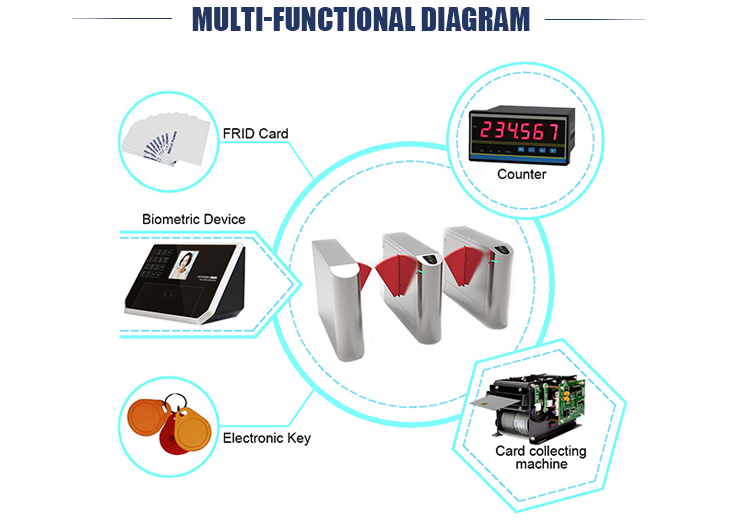

10) It has a unified and standard external electrical interface, which can be connected with various reading and writing equipment, which is convenient for system integration, and can be remotely controlled and managed through a management computer.
11) It can automatically count the number of people passing in the direction of traffic, and present it to the manager in an intuitive LED (optional) mode, so that the manager knows the number of people passing in a certain direction.
12) It has a clear direction indication function, with intuitive LED passers to indicate whether passable or prohibited.
13) It has the function of reading card with and without memory, and users can set it through the motherboard keyboard according to their needs.
14) Through software setting, the total number of personnel inside the place can be limited to meet the special needs of some special occasions.
15) The entire system runs smoothly and has low noise;
Remarks: Combining with related intelligent control system can realize intelligent access control, intelligent attendance, intelligent charging, etc.

Advantage:

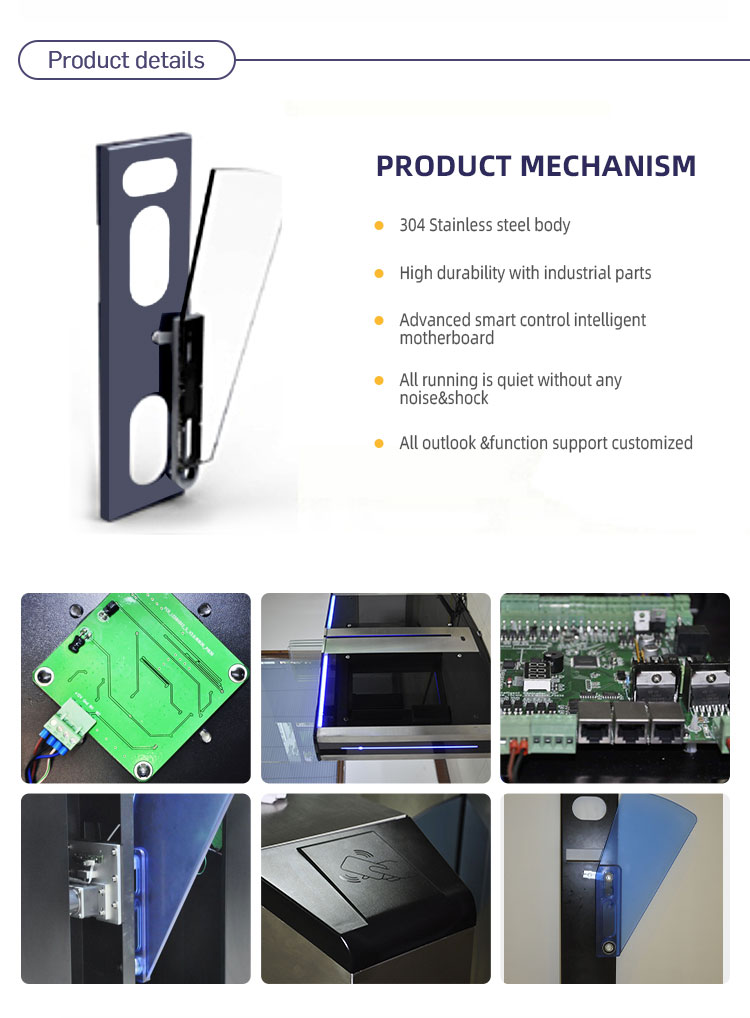

◇Structure: The shape of the entire product is made of 304 stainless steel by stamping and forming, which is rust-proof and durable. The equipment is simple to use and maintenance-free.
Install example

It is suitable for one-way or two-way control of the entrance and exit channels of the flow of people.
◇Import and export channels for stations, wharfs and tourist attractions
◇Ticket inspection channels for exhibitions, swimming pools, etc.
◇Import and export attendance, access control and consumption management of communities, factories, enterprises and institutions
◇Special channel control

Package:

Our standard package is by carton and we have option for doing the wooden case package to avoid the transportation Damages

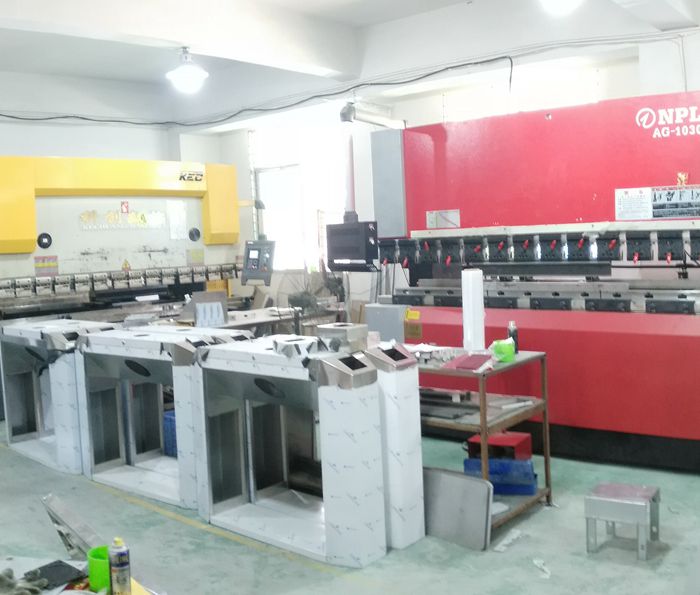

We are original manufacturing factory in china
