OEM Boat Type Wing Flap Turnstile Gate

Deacriptions

We are available to OEM different design turnstile gate for subway , metro station, park

The Turnstile Flap Barrier  Gate is the control equipment of the pedestrian passage, all made of 304 stainless steel, and designed in accordance with international standards for moisture, dust and water resistance;
The box body is based on standardized design, laser blanking, opening holes, one-time molding technology, mechanized wire drawing technology, modular docking,

Technical parameters:

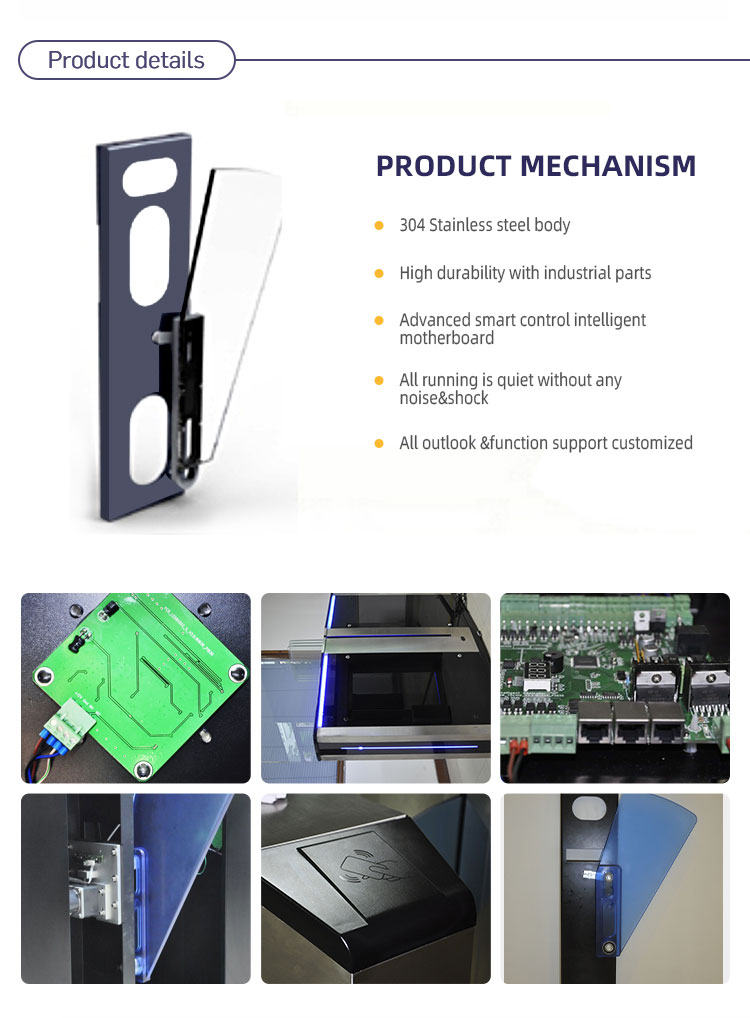

Material:304 Stainless steel

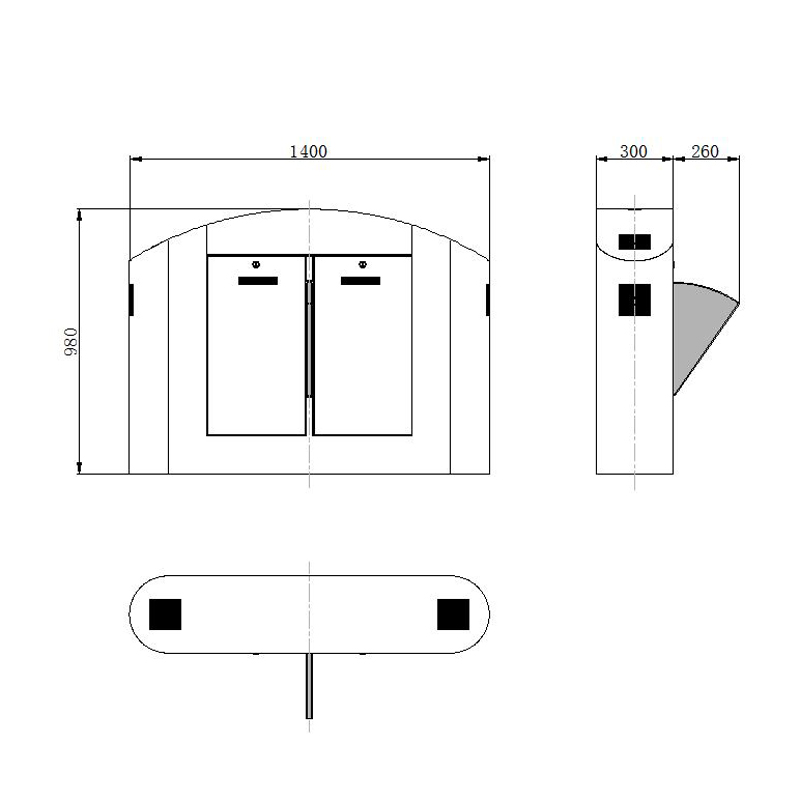

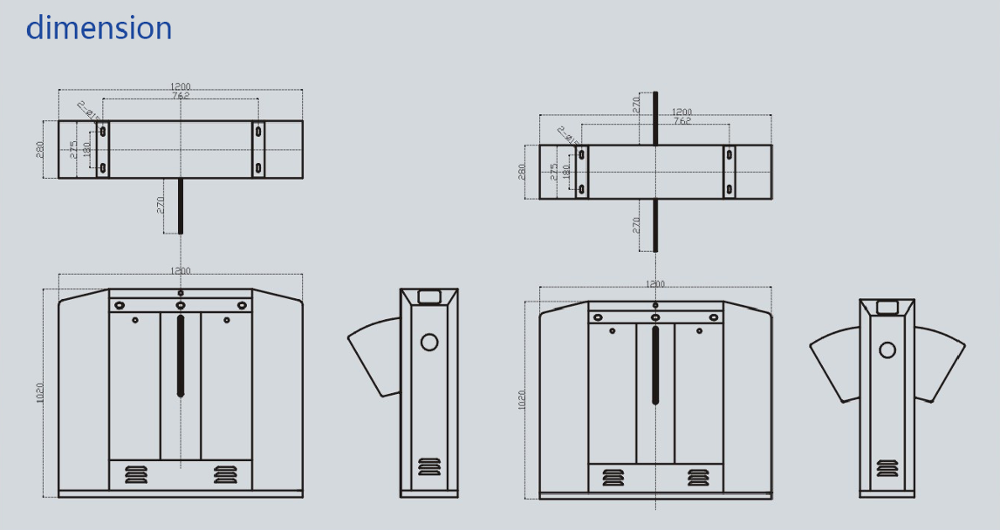

Size: 1200*280*980mm

Input Voltage: 110/220VAC,50HZ

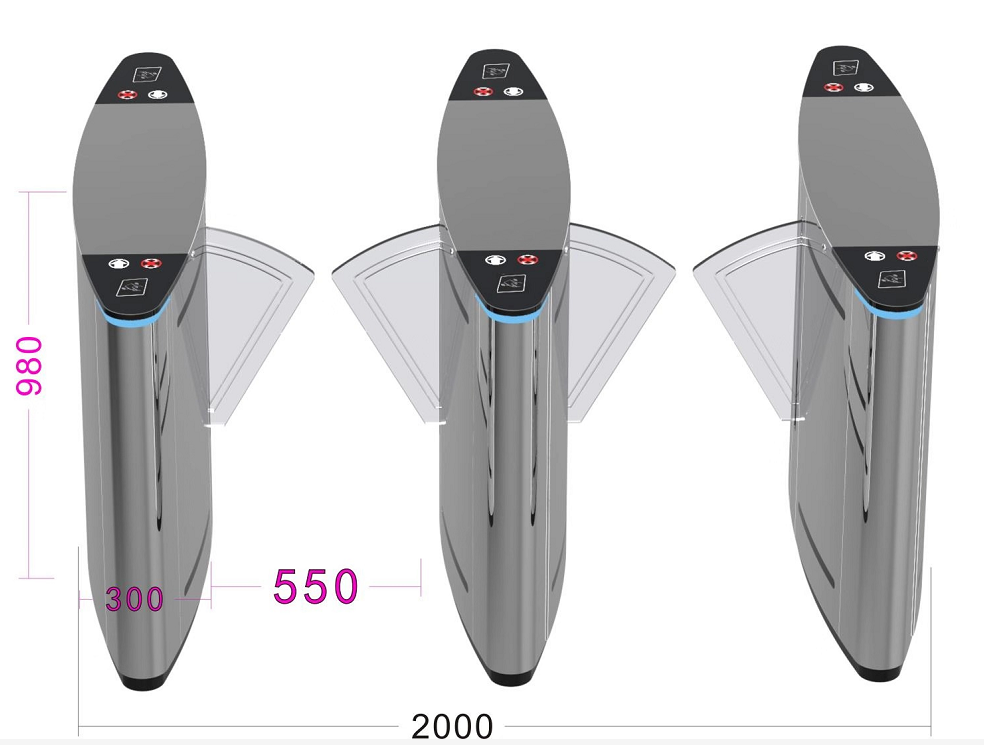

Entrance Width:≤550mm

Service Life:≥5 million times

Features:

◆Anti-pinch function: Install multiple pairs of infrared detectors near the active area of the wing gate. When people or objects in the anti-pinch area are detected, the wing gate will automatically
Stop the action; the wing gate does not continue to move until the person or object leaves the anti-pinch area.
◆Intelligent alarm function: including illegal intrusion, reverse intrusion, trailing traffic, power-on self-check and other alarms, which can be linked with other alarm monitoring equipment and set the alarm mode and parameters through software.
◆Power-off and gate-opening function: When the power is off, the system will automatically open the wing door to an open state, which is convenient for evacuation of people and meets fire protection requirements.
◆Power-on self-check function: The device will broadcast voice when power-on or restart, and it will automatically detect whether the function is normal, and it will give an alarm when it finds an abnormality.
◆Passing indication function: LEDs are installed at the front of the box to indicate the passing status and direction, and remind pedestrians.
◆Passing mode: the direction of entry and exit can be independently set to [remote/wireless controlled passage], [free passage], [no passage]
[Only in, but not out], [Only out, but not in] Visualize the motherboard, and debug according to actual needs.
◆Counting function: The built-in mainboard has a counting function to count the number of people entering and leaving.
◆Passing memory function: When more than 2 legal pass signals are given at the same time (including the same direction and reverse direction), the system will memorize all pass requests.
Complete each pass in turn.

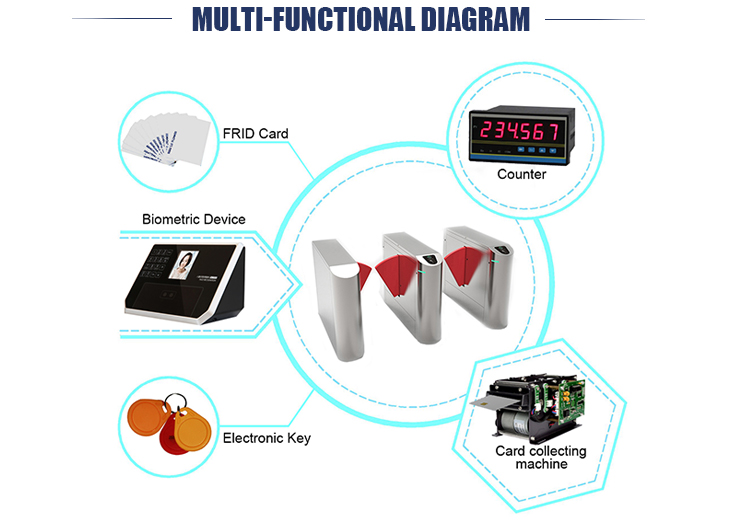

◆Extended functions: external ID, IC card, fingerprint recognition, face recognition, finger vein recognition, QR code, barcode recognition, ID card recognition,
Mobile phone APP opening, human body integrated anti-static equipment, security gate, visitor system, identification system, etc.

Advantage:

The Flap Barrier is combined with an IC card reader to form a smart wing gate; the smart wing gate is combined with a computer and access control, attendance and charging management software,
It constitutes an intelligent wing gate integrated management system, which can realize functions such as access control, attendance, current limiting, and charging functions.
The wing gate management system is a part of the "One Card", which can be installed in the passages of communities, factories, buildings, dining halls, etc.
Various management functions such as card line control, get off work attendance, and dining.

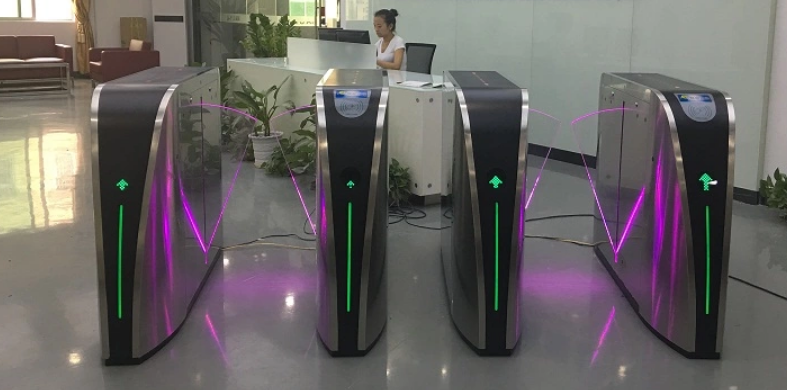

Install example

The Luxury Wing turnstile gate Easy to install, unload and maintain, with high interchangeability. Used in places where people's exit and entrance need to be controlled, such as dining halls, hotels, museums,
Stadiums, clubs, subways, stations, docks and other places. The use of wing gates can make people flow through the passage in an orderly manner

Package:

Our standard package is by carton and we have option for doing the wooden case package to avoid the transportation Damages

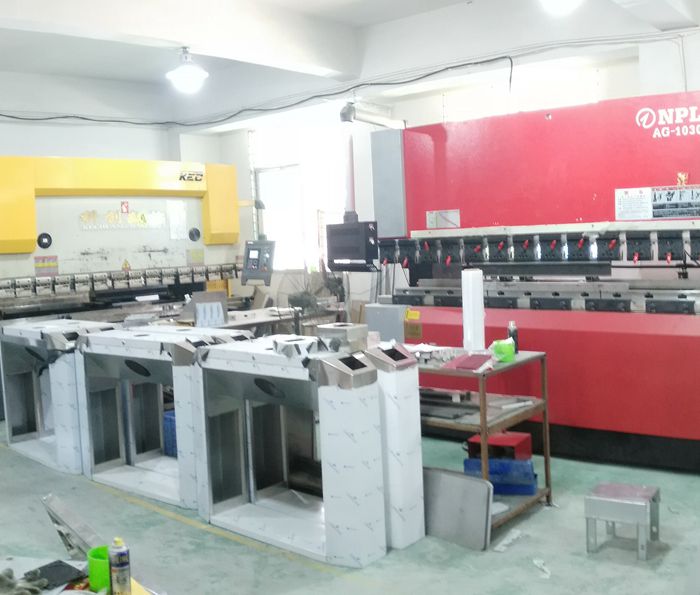

We are original manufacturing factory in china
