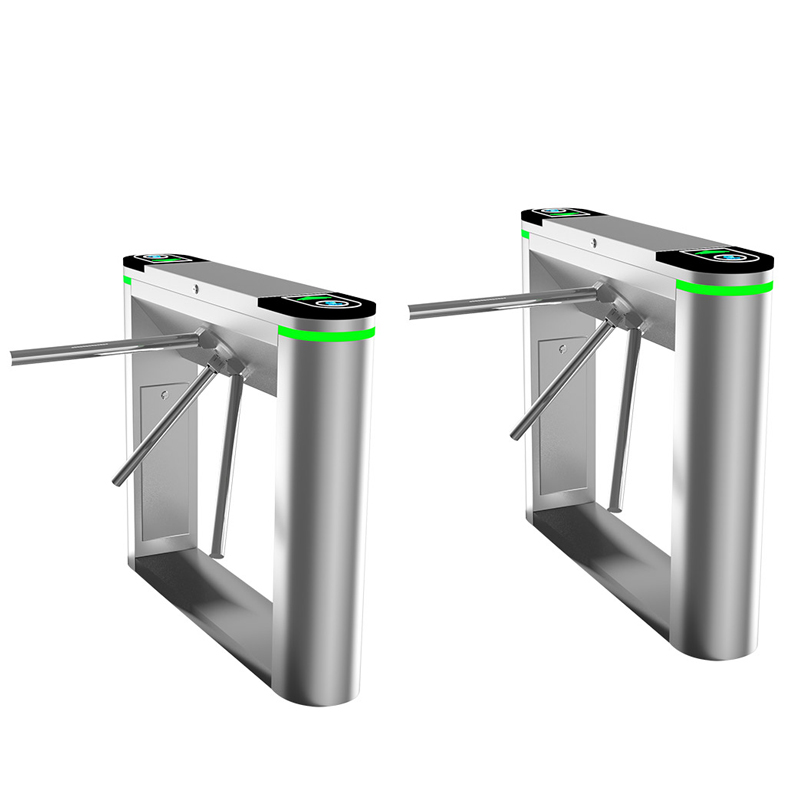

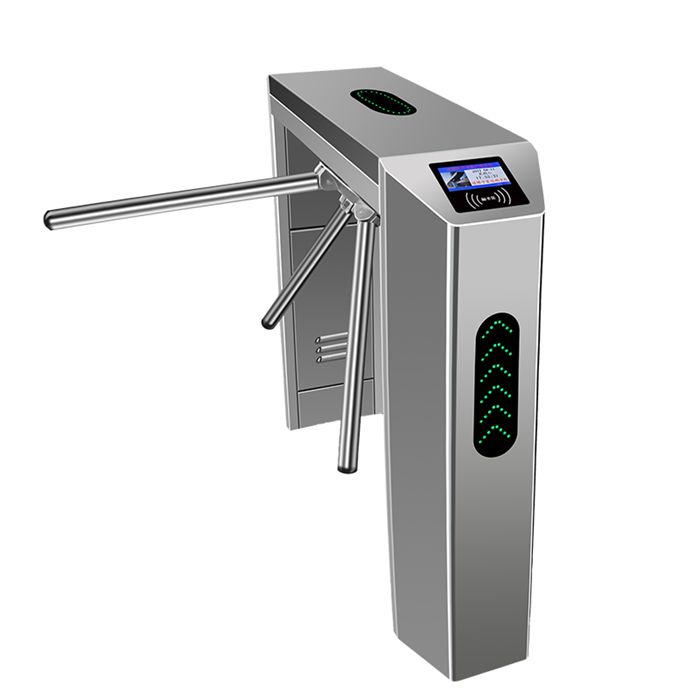

QR Bar Code Tripod Turnstile Gate System

Descriptions:

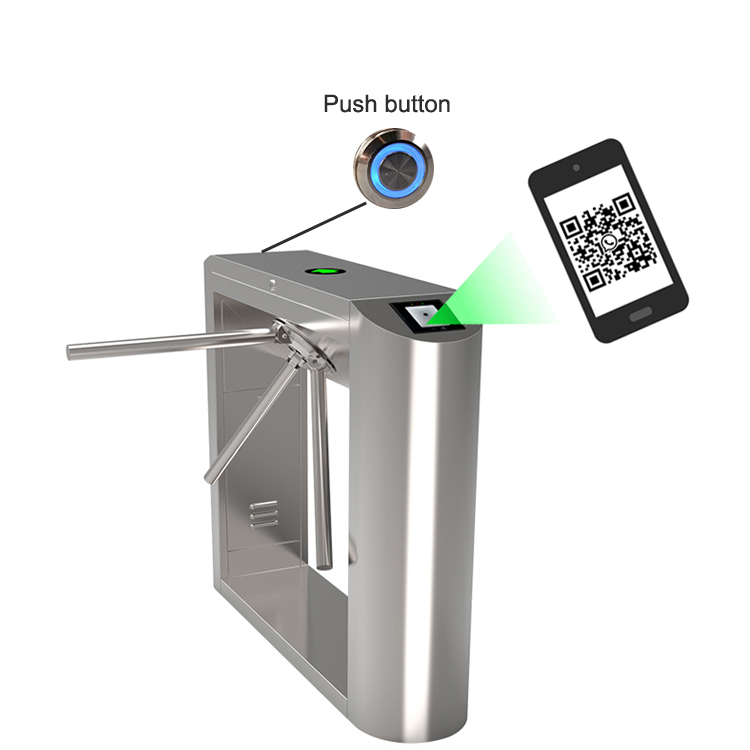

550mm Channel Width Bridge Tripod Turnstile With Entry QR Code and Exit Push Button System

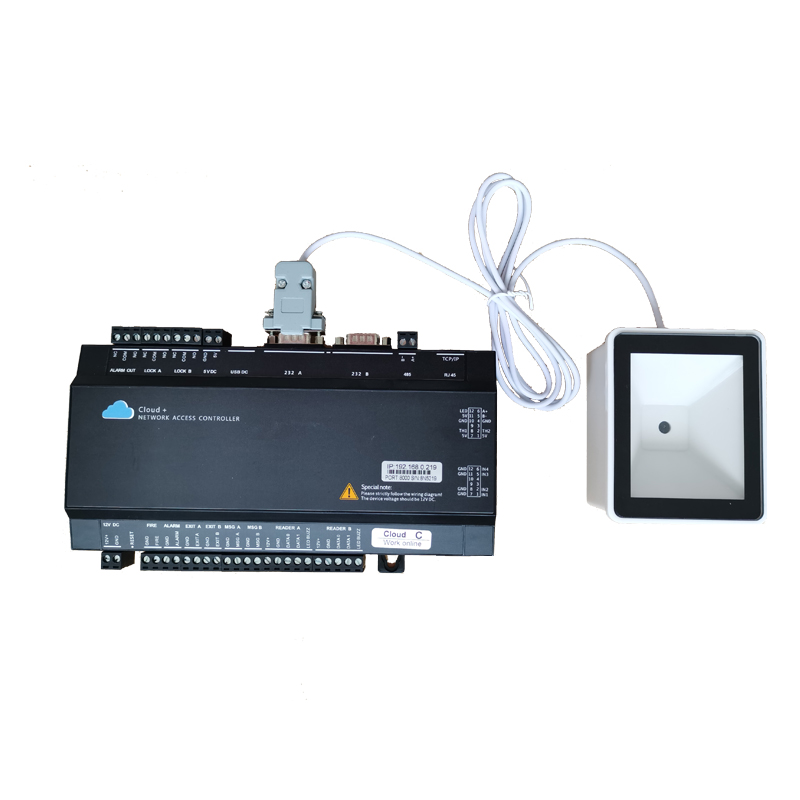

tripod turnstile gate +qr barcode reader+access controller

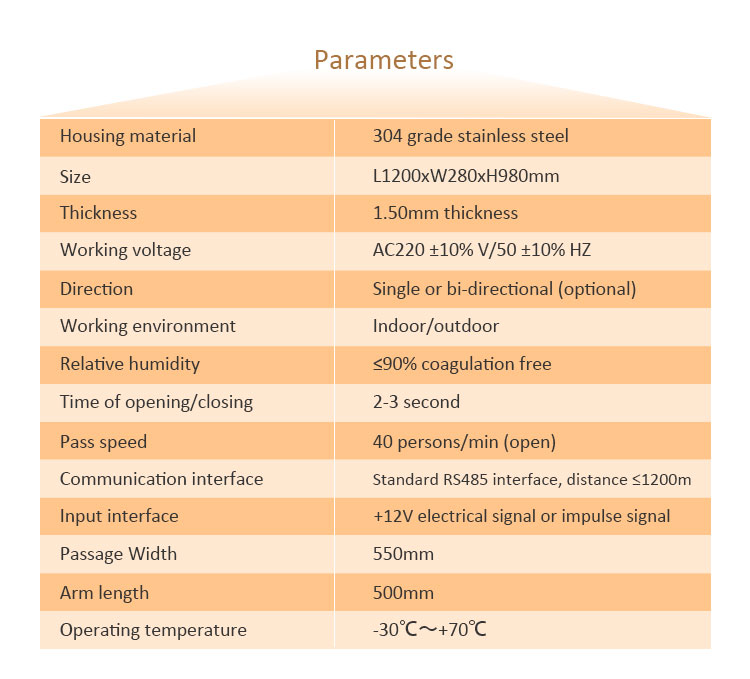

Technical parameters:

Main Features:

1.Auto-reposition function: After card read, if the passengers haven't passed within regulated time period, the tripod turnstile will be locked automatically
2.Bi-direction passing or uni-direction
3.When power off, the tripod turnstile arms will be dropped automatically
4.Self-lock function: arm will be locked automatically after passenger passing
5.LED passing arrow can show direction to indicate passenger to pass
6.Standard interfaces are convenient for connection with different readers which can send relay signal
7.RS485 interfaces can connect turnstile with computer directly
8.Stable running with little noise.

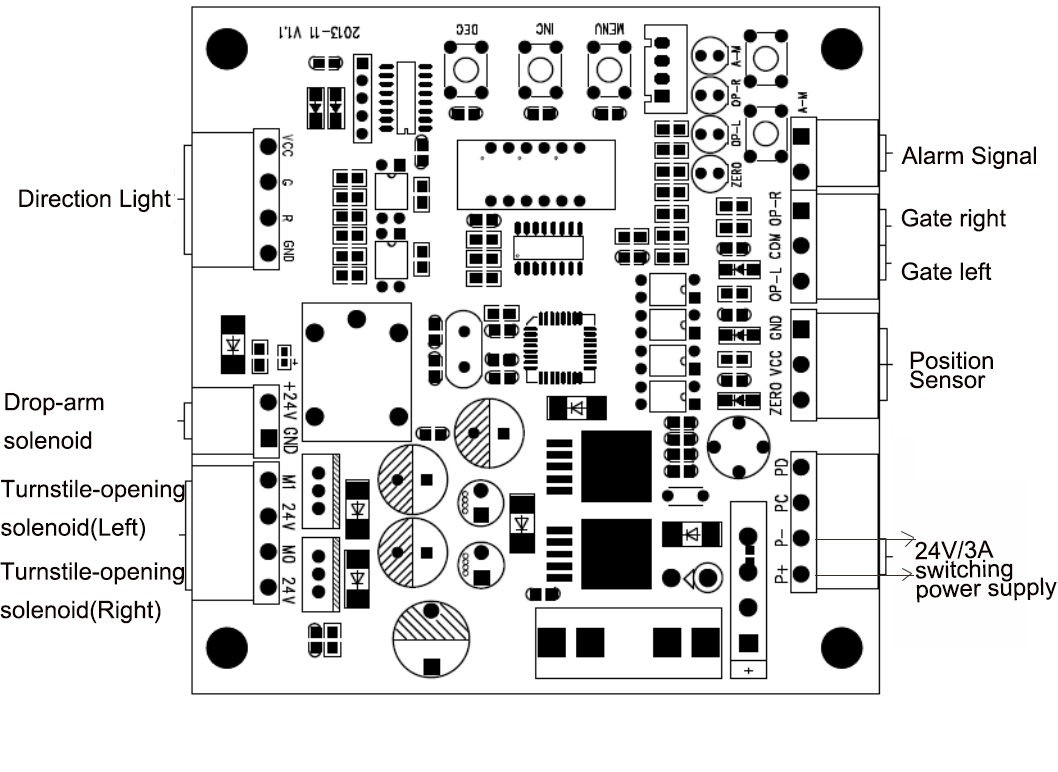

Wiring diagram

Solutions:

Sintronic,s turnstile gate can be compatible with IC card , ID card , barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.

Applications:

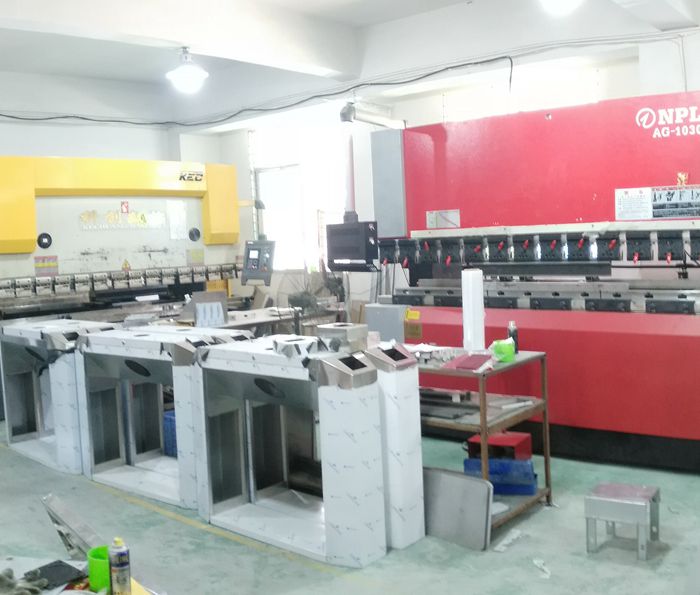

We are original manufacturing factory in china
