Functions:
1. Single/double walkway---controlled in one direction or both
2. A valid lock action can allow one passage at one time Normally open---the machine will unlock when a valid signal is received
3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change. standard port-RS485 Control panel with count and LED digital function Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing Transit speed: ?35 persons per minute Temperature: 10 below degree to 50 degree situations where need single-direction control such as market club film theatre gymnasium subway airport customs and etc. It can be divided into Vertical Emergency configuration: The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency.
Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
1. full automatic
2. IR socket
3. heavy duty and high speed
4.All the system runs stable with little noise and no mechanical impact
5.It can self-check and alarm which will be make it convenient to use
6.Several ways of working molds can be chosen at your request
7.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
8.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
9.Beam can be lifted and fall when electricity is cut-off
10.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
11.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
12.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
13.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
14.You can set the function with or without card-reading memory according to your requirement
15.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
16.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request

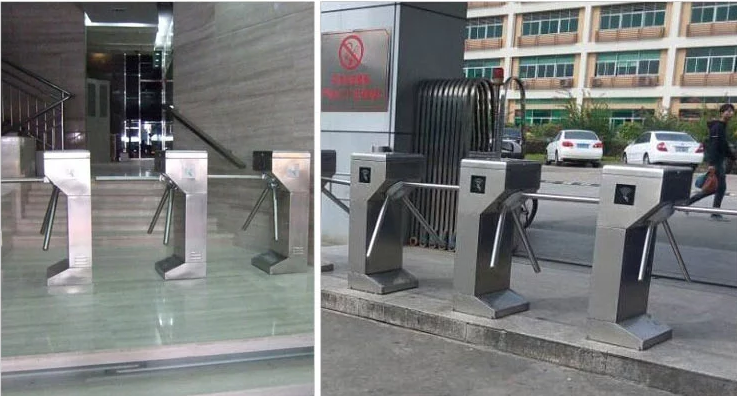

Install examples
Our Users include of Government,Retail,Finance,Telecommunications
Information Technology,Banking,Publishing,Leisure,Petrochemical,Education
Packages:
Our standard package is by carton but as for the oversea client we advise to use the wooden case package
In order to protect the machine from damages during the transportation
6.We are original manufacturer in china
We do the whole process of the turnstile gate manufacturing so that we can ensure the quality
and the excellent technical guide to our customer
FAQ:
1.Will you install the channel lock for the first time?
Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.
2.Can machines be used outside?
Answer:It can be used outside. We all have waterproof function.
