Tripod Turnstile

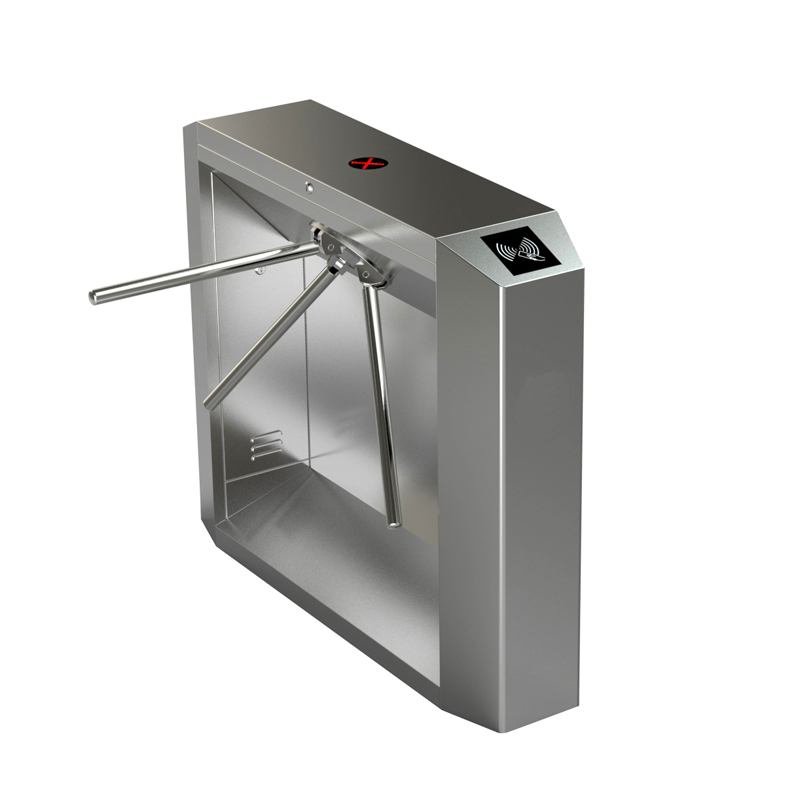

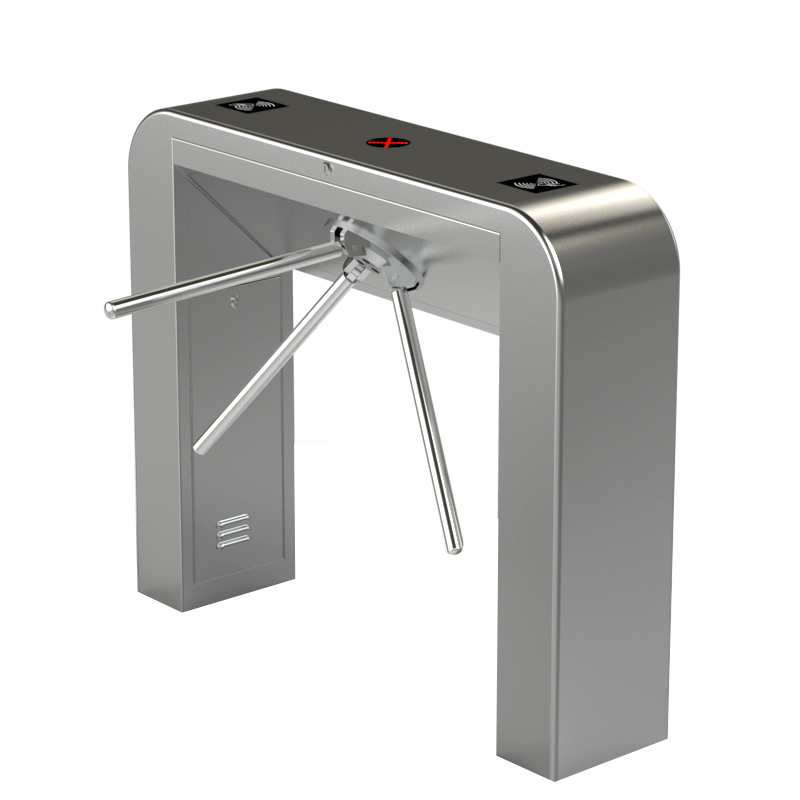

Long Bridge Tripod Turnstile Gate

TP-L04
Power Supply:110/230V
Working Voltage: 24VDC
Warranty:12 Months
Product description: We're professional Long Bridge Tripod Turnstile Gate manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

Technical Parameters

1	Power	AC220C±10V,50/60HZ; AC110C±10V,50/60HZ

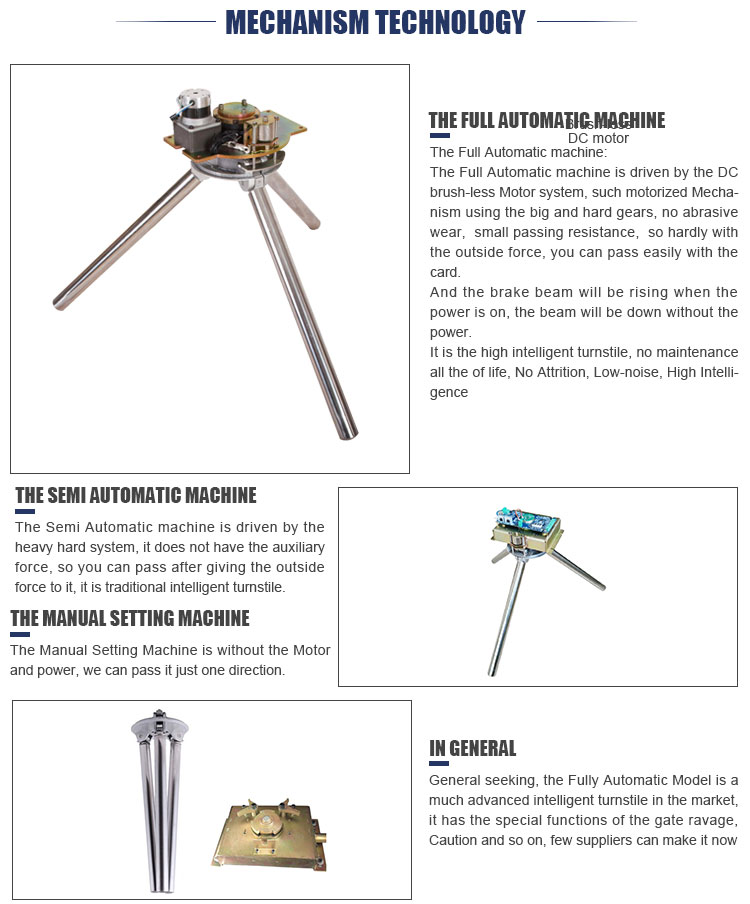

2	Machine core	Full Automatic
3	Operating Temperature	-45℃-60℃
4	Relative Humidity	≤95%, No Condensation
5	Passage Width	≤600mm
6	Passing Speed	45persons/min
7	Motor	DC motor, 30W/24V
8	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9	Communication Connection	RS485 Communication
10	Material	Stainless steel 304,thickness is no less than 1.3mm
11	Communication Distance	1200M
12	Running life	5--8 Million(Continuous Opening and Closing Operation)
13	Protect level	IP54

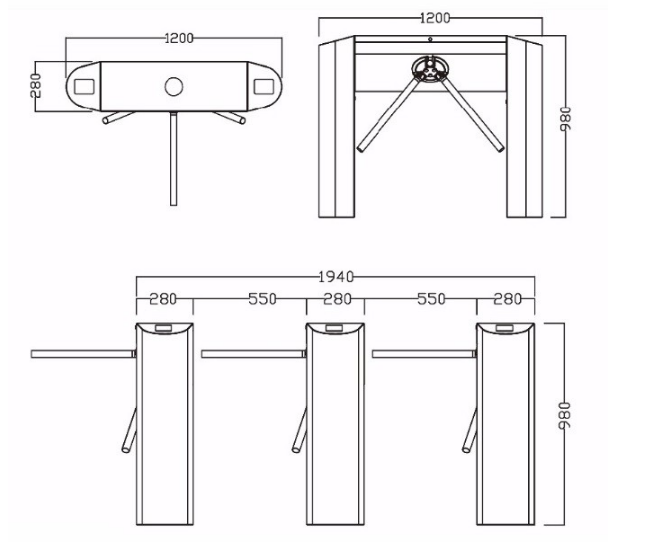

14	Size	1220280985mm(Bridge house ) ; 400330980mm(Vertical house); custom made as demand
15	Colour	SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)

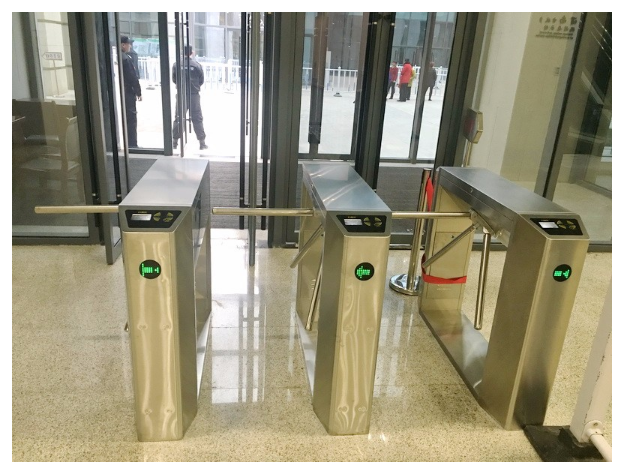

16	Operation Place	Subway Station, Hover-port,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

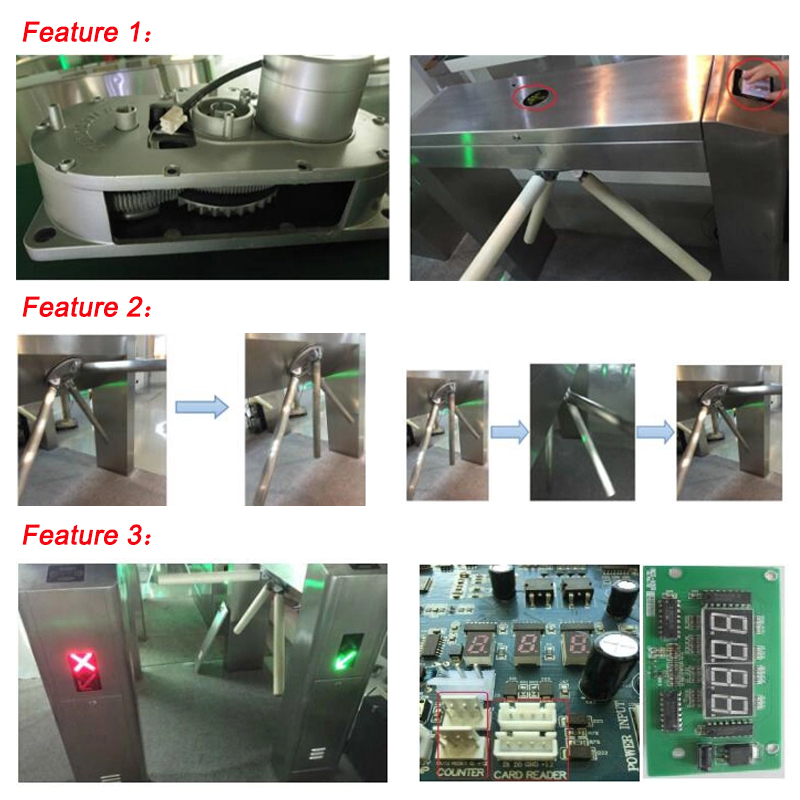

Feature

1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not.

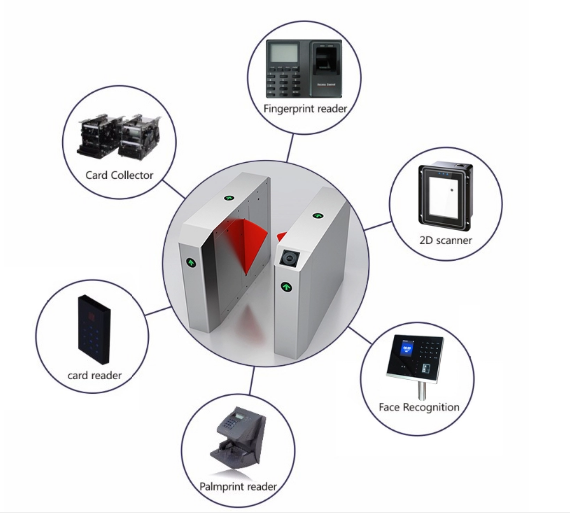

7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9.The number of the persons passed by can be counted automatically which can also be displayed in LED
10. Beam can be lifted and fall when power is cut-off, arms auto rise up when power on and auto stop on obstacle
11. The function with or without card-reading memory can be set according to your demand.
12. Self-check and alarm for coinventing to operate
13.With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
14.Each machine can be set by Physical Address (Optional).
15. Equipped with free control software for man-machine interface & control command SDK .
