A Parking Guidance System (PGS) is an intelligent smart‑parking solution designed for multi‑storey underground or open‑air parking lots. It detects real‑time occupancy status of each individual parking bay via ultrasonic sensors, shows vacant / occupied status with colored LED bay indicators, and delivers directional guidance through large entrance and lane LED display boards. It helps drivers quickly locate empty parking spaces, reduces in‑lot traffic congestion, and provides parking‑occupancy statistics for facility managers. Sintronic PGS solutions have been successfully deployed for overseas smart‑parking reference projects including Dubai hybrid parking lot, Malaysia 1000‑bay car park and Zimbabwe indoor parking guidance projectsSintronic。

Core Components of Parking Guidance System (PGS)

complete parking guidance system consists of hardware assemblies and dedicated PGS‑SW management software:

• Ultrasonic parking bay sensor: Ceiling‑mounted above each parking spot. Uses ultrasonic time‑of‑flight measurement to detect whether a vehicle occupies the bay; most models integrate LED bay indicator (Green=vacant, Red=occupied, Blue=reserved bay).

• Zone data collector / area controller: Aggregates occupancy data from a group of bay sensors, forwards collected data to central processor via RS485 / TCP‑IP bus.

• Central control processor: Receives all zone‑level parking‑bay data, processes real‑time parking‑lot occupancy calculation and distributes update commands to LED display boards.

• Entrance & lane LED guidance display: Installed at parking‑lot entrance, floor intersections and ramps; shows real‑time available‑bay count per level / per zone for drivers'quick reference.

• PGS‑SW parking guidance management software: PC‑side management platform; visual parking‑lot map view, occupancy statistics, historical log export, device status diagnosis, parameter configuration for integrators and facility operators.

• Auxiliary wiring & power supply accessories: Industrial communication cables, power adapters for sensor network deployment.

Core Working Principle of Parking Guidance System (PGS)

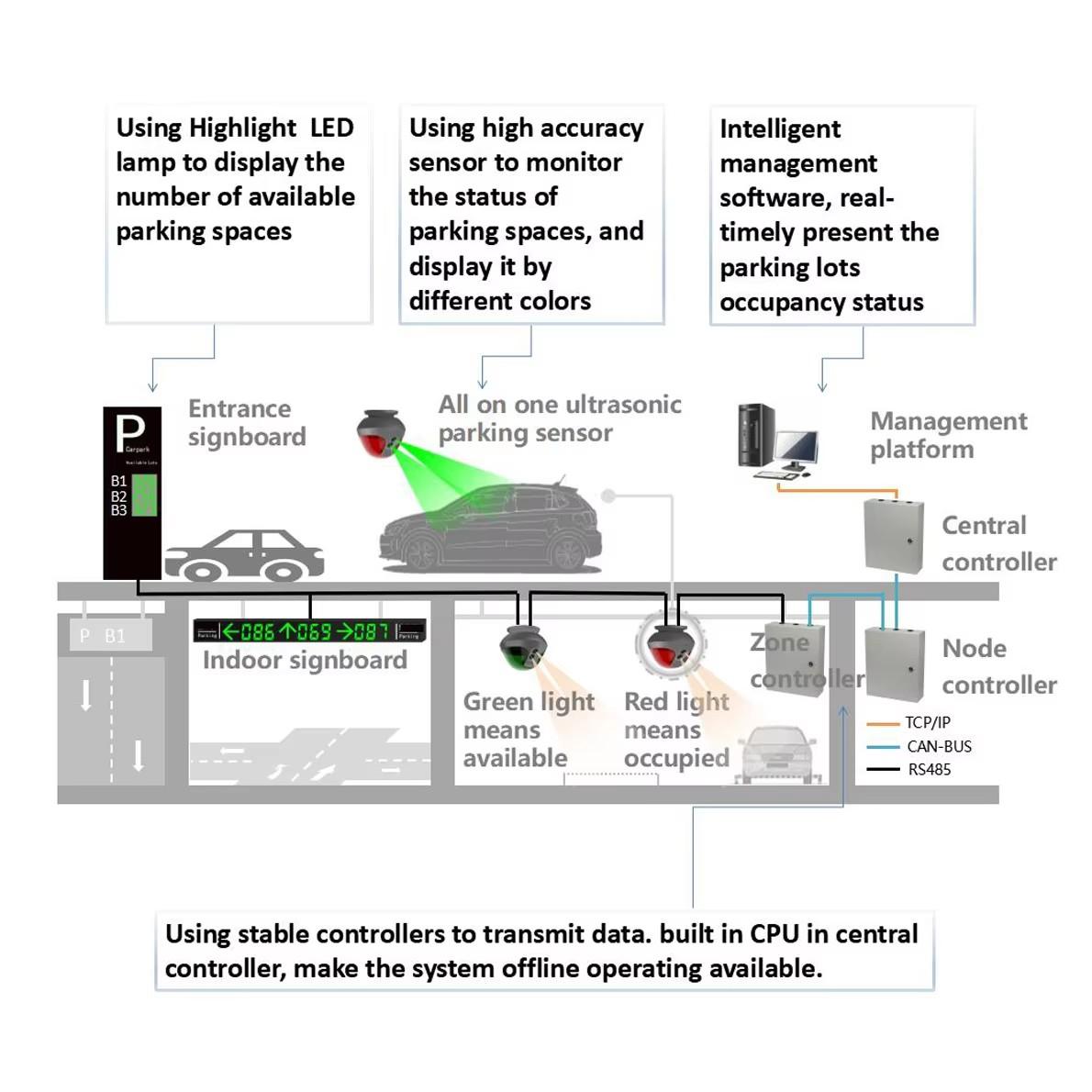

Sintronic ultrasonic‑based parking guidance system follows end‑to‑end smart‑parking workflow: Bay‑Level Vehicle Detection → Zone‑Data Aggregation → Central‑Data Processing → LED Indicator & Display Update → Software Real‑Time Monitoring. Full‑cycle operation steps are described as follows.

1. Continuous bay‑level vehicle detection

Ultrasonic sensors installed above each parking bay keep emitting high‑frequency ultrasonic sound waves. The sensor calculates distance according to the time taken for sound wave reflection. ‑ If no vehicle: Sound reflects from ground surface → bay status = vacant, local bay LED turns green. ‑ If vehicle parks inside bay: Sound reflects from vehicle roof → bay status = occupied, local bay LED turns red. ‑ Reserved special‑use bays show blue indicator status according to pre‑set configuration.

2. Zone‑level data collection & aggregation

Each group of bay‑sensor data is gathered by zone data collector / area controller. It filters abnormal detection data and transmits consolidated bay‑occupancy information to central control processor over industrial RS485 or TCP/IP network bus.

3. Central processor real‑time data calculation

Central control processor receives mass bay‑status data from multiple zone controllers. It computes real‑time available parking quantity for each floor, each zone of the whole parking facility. It generates update commands for every connected LED guidance display board.

4. Real‑time visual guidance output for drivers

‑ Individual bay‑LED indicator shows spot‑by‑spot vacant / occupied status for drivers driving along lanes. ‑ Large LED display boards at parking‑lot entrances, ramp‑ways and lane intersections refresh real‑time available‑bay numbers for each zone / each floor, helping drivers select target parking area without wandering around the lot.

5. PGS‑SW software platform monitoring & data logging

All parking‑bay status changes and device‑online status synchronize to Sintronic PGS‑SW management software. Operators can view visual parking‑lot map, export historical parking‑utilization reports, check sensor fault alarms, adjust system parameters, and export statistical data for facility‑operation analysis.

6. Status auto‑refresh cycle

When vehicles drive in or drive out of parking bays, ultrasonic sensors instantly update bay status. New data flows through zone‑controller to central processor, and all LED indicators & displays get refreshed automatically for the latest parking‑lot condition.

Main Types of Sintronic Parking Guidance System

1. Wired ultrasonic PGS system: RS485 wired bus connection, stable signal transmission, fit for large‑scale indoor underground multi‑floor parking lots such as shopping malls and office complexes.

2. Wireless & wired‑hybrid PGS system: Mixes RF wireless sensors and wired zone controllers; reduces heavy cabling workload, suitable for renovation‑project car‑park sites and semi‑outdoor parking zones.

3. Large‑capacity expandable PGS system: Supports expansion up to 1000+ parking bays; for large‑scale commercial‑complex, airport‑adjacent and exhibition‑center parking lots.

4. Simplified small‑scale PGS solution: Cost‑optimized compact variant for small‑hotel, small‑office and community‑sized parking‑lot deployments.

All Sintronic PGS hardware supports standard RS485 / TCP‑IP protocols, can realize data‑interconnection with Sintronic parking ticketing system and access‑control hardware.

Key Benefits of Sintronic Parking Guidance System (PGS)

1. Greatly reduces driver search‑time & parking‑lot inner congestion

   Drivers follow LED‑display and bay‑indicator visual guidance to locate vacant spots rapidly. It cuts down aimless cruising inside parking garages, reduces inner‑lot vehicle queuing and traffic jams for busy peak‑hour scenarios like shopping‑mall weekends.

2. Lower fuel‑consumption & exhaust emission for environmental‑friendly operation

   Less vehicle circling for searching empty bays reduces fuel burning and exhaust gas emission inside enclosed underground parking facilities, improving air‑quality inside car‑park buildings.

3. Improve parking‑space‑utilization rate & facility‑management efficiency

   PGS‑SW software provides visualized parking‑occupancy data and historical‑utilization‑reporting. Facility managers can analyze peak‑hour rules, optimize space allocation, and quickly locate faulty bay‑sensors via system alarm notifications.

4. Flexible wired / hybrid‑wireless deployment options for new‑build & renovation projects

   Choose full‑wired solution for brand‑new parking‑lot construction; select wired‑wireless hybrid variant for old‑parking‑lot retrofits to minimize cable‑trenching and reconstruction‑workload for integrators.

5. Seamless integration with Sintronic smart‑parking & security ecosystem

   Sintronic PGS can interconnect with parking ticketing system, access‑control controllers and pedestrian turnstile gates to build one‑stop smart‑building parking‑and‑security solution. OEM & ODM customization available including display‑screen text‑logo customisation, sensor‑quantity expansion, software‑UI tuning and custom‑packaging for global security contractors and parking‑system integrators.

Typical Application Scenarios

Parking Guidance System (PGS) is core smart‑parking hardware for various commercial‑grade parking‑facility projects: large‑shopping‑mall underground car‑parks, multi‑floor office‑building parking lots, hotel parking zones, hospital car‑parks, exhibition‑center parking areas, airport auxiliary parking‑lots and large residential‑community underground garages. It delivers stable field performance in Sintronic Dubai, Malaysia and Zimbabwe overseas smart‑parking reference projects, serving Middle‑East, Africa and Southeast‑Asia marketsSintronic.

Sintronic Parking Guidance System PGS Solution

As a full‑range smart‑parking‑system manufacturer, Sintronic supplies wired, hybrid‑wireless and large‑expandable‑capacity parking guidance systems, cooperating with ultrasonic bay‑sensors, LED guidance displays, and matching dedicated PGS‑SW parking‑guidance‑management software. We offer standard‑product supply, OEM / ODM customization, product datasheets and comprehensive technical assistance for global parking‑system integrators.

Our parking guidance system integrates perfectly with Sintronic parking‑ticketing, access‑control and pedestrian‑turnstile combined smart‑building solutions. If you require PGS parking‑guidance‑system hardware for your upcoming commercial‑car‑park smart‑parking‑project, please contact our sales team for technical specifications and quotation.
