The central controller is the core brain and command hub of a complete smart parking guidance system (PGS). As the upper-layer master control device, it connects all underlying hardware including parking detectors, zone controllers, LED indicators and guidance displays. Unlike single sensing devices that only capture on-site data, the central controller integrates all system data, executes logical operations, realizes unified scheduling and intelligent guidance, and supports stable operation of medium and large-scale parking lot projects worldwide.

Core Working Principle of Parking Guidance Central Controller

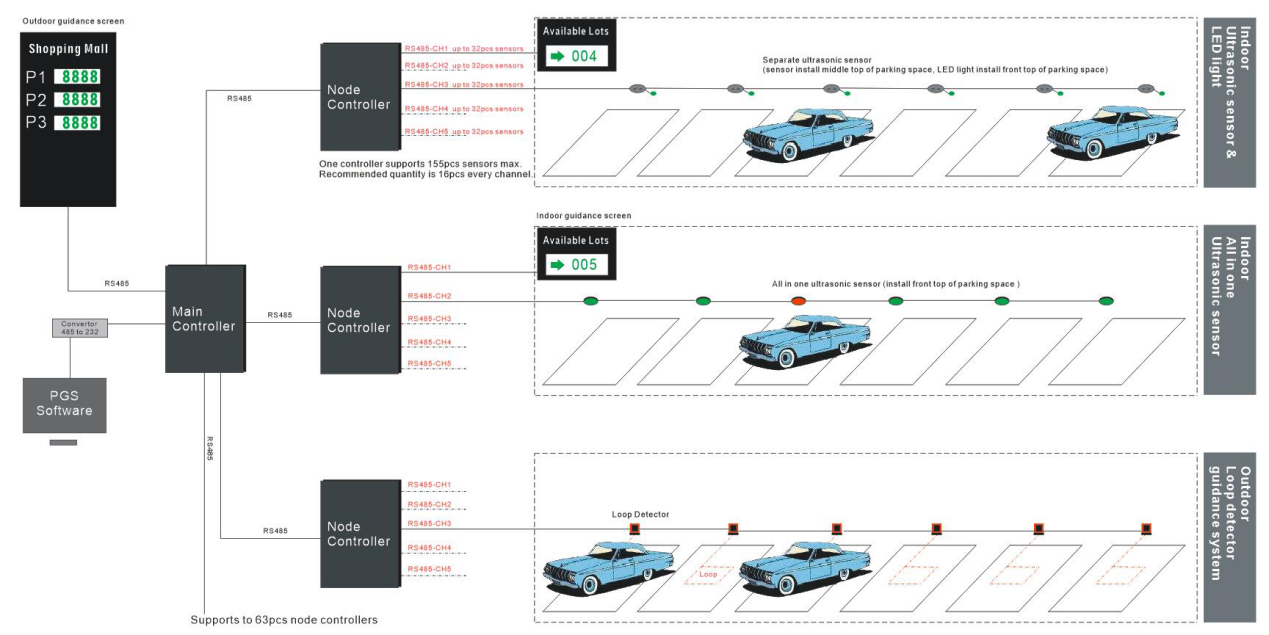

Sintronics industrial-grade central controller adopts embedded intelligent processing technology and a mature three-layer network architecture of "central controller – zone controller – parking detector". It forms a closed-loop automatic operation system, with the complete working process as follows:

1. Full-Site Real-Time Data Collection

The central controller establishes stable communication with all zone controllers and parking detectors (split-type and integrated) in the parking lot via RS485 and Ethernet protocols. It continuously collects real-time status of every parking space, including occupied, vacant, offline and abnormal states, covering indoor underground garages and outdoor parking areas to achieve full-coverage data monitoring.

2. Intelligent Data Filtering and Calculation

After receiving massive raw data, the central controller automatically filters invalid signals, calibrates detection errors caused by underground environment interference, and calculates key data such as total parking spaces, real-time vacant quantity, parking occupancy rate and equipment operating status. It supports independent offline operation, ensuring the parking guidance system works normally even when disconnected from the upper management computer.

3. Real-Time System Linkage and Guidance Output

The processed accurate data is synchronously pushed to aisle LED guidance screens, outdoor parking variable message signs and on-site indicator lights. The system updates vacant space information in real time, guides drivers to quickly locate available parking bays, and synchronizes equipment fault alarms to the management terminal to facilitate timely maintenance by engineering personnel.

4. Background Data Synchronization and Management

All parking operation data and equipment status data are uploaded to the Sintronic professional parking guidance management software. Property managers and system administrators can view real-time parking operation status, generate statistical reports, and realize remote equipment monitoring, debugging and management, achieving unmanned and intelligent parking lot operation.
