How Is Uhf Long Range Reader Work For Parking Access Control System

 DOWNLOAD

DESCRIPTIONS:

UHF PARKING ACCESS CONTROL SYSTEM IS INCLUDING OF UHF READER, ACCESS CONTROLLER, BOOM BARRIER GATE.

FUNCTIONS:

WHEN THE CAR COME AHEAD 5 METERS OR MORE THAN THE UHF READER WILL DETECT THE SIGANL AND SEND IT TO THE ACCESS CONTROLLER TO OPEN THE BOOM BARRIER GATE.

Parking Access Wiring Diagram

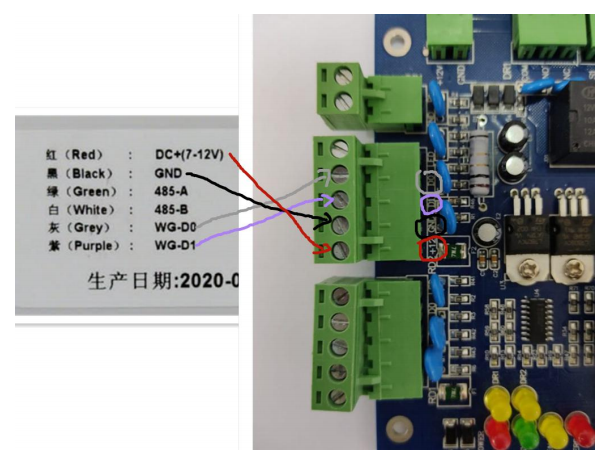

1. UHF LONG RANGE READER WIRING TO ACCESS CONTROLLER

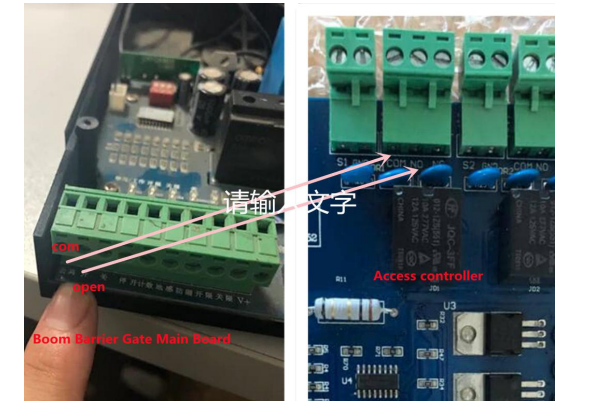

2. Boom Barrier Gate Wiring To Access Controller Diagram

FOR COMPLTE WIRING DIAGRAM IN PDF FORMAT KINDLY PLEASE CLICK DOWNLOAD TO TAKE IT
