How does the access control system control the automatic door

 DOWNLOAD

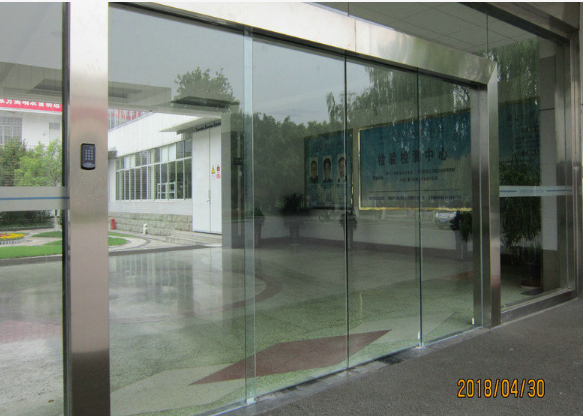

What is an automatic door? Automatic doors are generally used in certain occasions that require frequent access by people (banks, government offices, shopping malls, companies, etc.)
Via infrared or microwave sensor (probe) on top of door

Sensing that someone needs to enter or open, drive the motor to automatically translate and open the glass door, after the person leaves

Now many customers want to install an access control system on the automatic door, so that the automatic door can be opened after a legal person swipes the card. Safety elements are integrated into the convenient and luxurious features of automatic doors.
Implementation method: Take the WG2001 single-door two-way access controller + weak current isolator as an example
Remarks: The control method of the automatic door itself is that the infrared probes (or microwave sensors) for entering and exiting the door are respectively connected to the door opening signal of the automatic door.
The infrared probe of the automatic door generally has 4 lines to connect the automatic] control board terminals, two of which are power lines, don't care. The other two are control lines, which are at the wiring of the automatic i-door control board. Remove it and no other equipment will be connected. The original terminals of these two lines are connected to the COM output of the WG2001 controller relay respectively.
And NO, in theory, this connection is possible. But in fact, the relay on the controller has made a protection circuit for the electric lock. This protection may have a side effect on the automatic door. It may happen that the door is opened - half-closed immediately, or half-closed and then opened again; For some automatic doors, these two control lines are

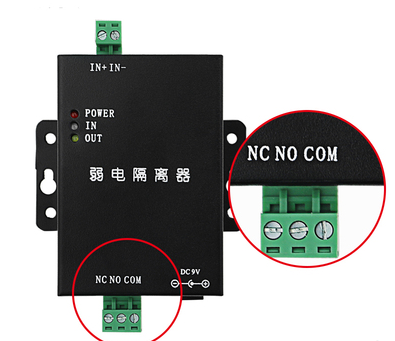

voltage, not a switch signal. Based on these two reasons, the weak current isolator must be added to the automatic door (as shown in the figure - -). The weak current isolator can solve these two problems.

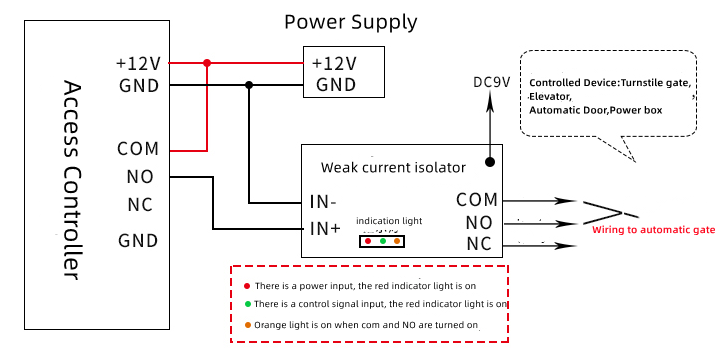

Figure 2 System wiring diagram
After the wiring is completed, please set the authorization card authority and the door opening delay time, so that the automatic door can be opened by swiping the card in and out.
If you are required to swipe your card to enter the door, use the infrared probe to open the automatic door when you go out. The wiring method is the same as above, except that you do not connect the card reader when you go out, and connect the two control wires of the outgoing infrared probe to the OUT button on the controller.
Special customer needs:
For example 2: A customer requires automatic door access control. As soon as the person arrives at the door from 8:00-18:00 during working hours, the automatic door will automatically open. During non-working hours, the door needs to be opened by a legal person by swiping the card.
Embodiment: Before the automatic door is not changed, the infrared sensor head outside the door has four lines connected to the automatic control part, and two power lines are used to supply power to the infrared sensor head, and the other two are switch signal lines, which are cut off. One of them, at the truncation, one end is connected to the COM of the weak current isolator, and the - end is connected to the NO of the weak current isolator

Operation:

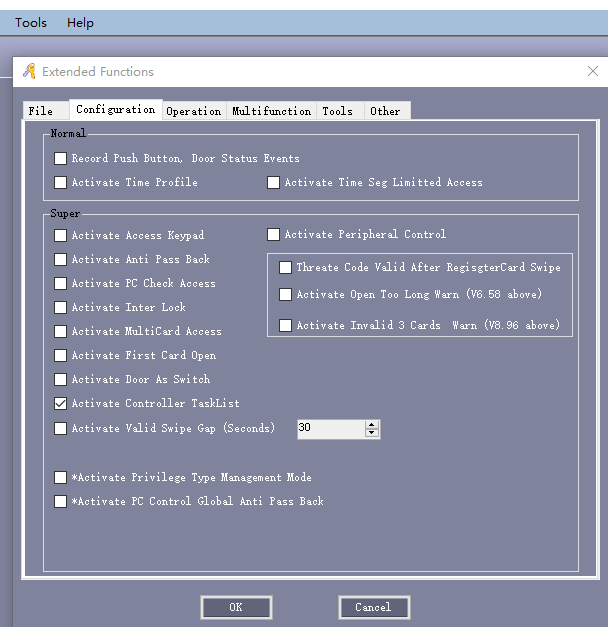

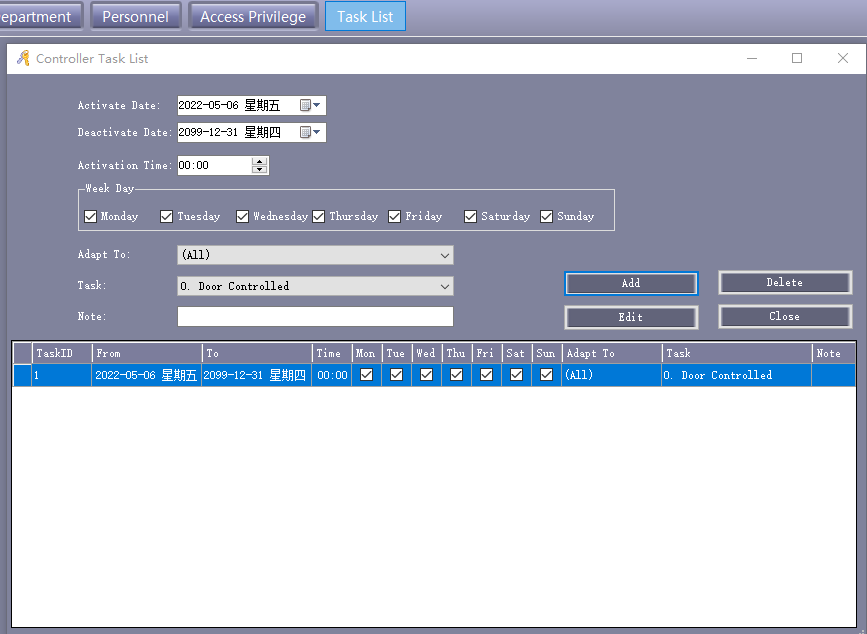

1.click the access control software and go to extended function with password 5678 to activate the controller task list
