How to do wiring of face recognition access control for different access way

 DOWNLOAD

Description:

Our face recognition access controller for face recognition access control support different access way such was reader+face access, face +access controller access, face directly access by doing the different wiring connection of the

The different signal

We take our face recognition machine SA-C5000FR for example

Wiring Diagram

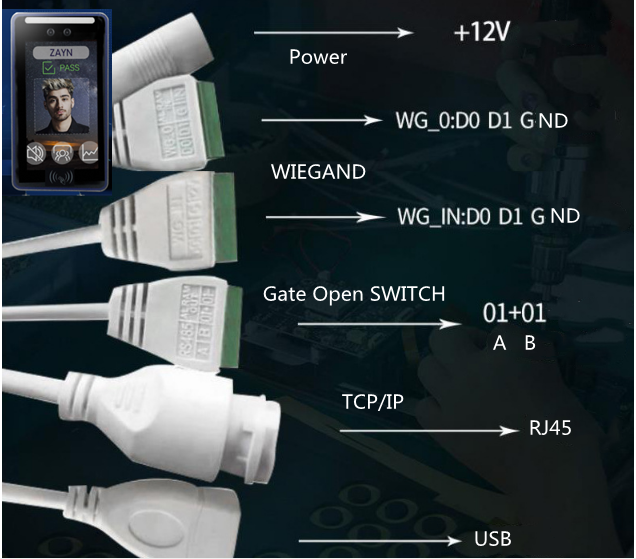

Interface

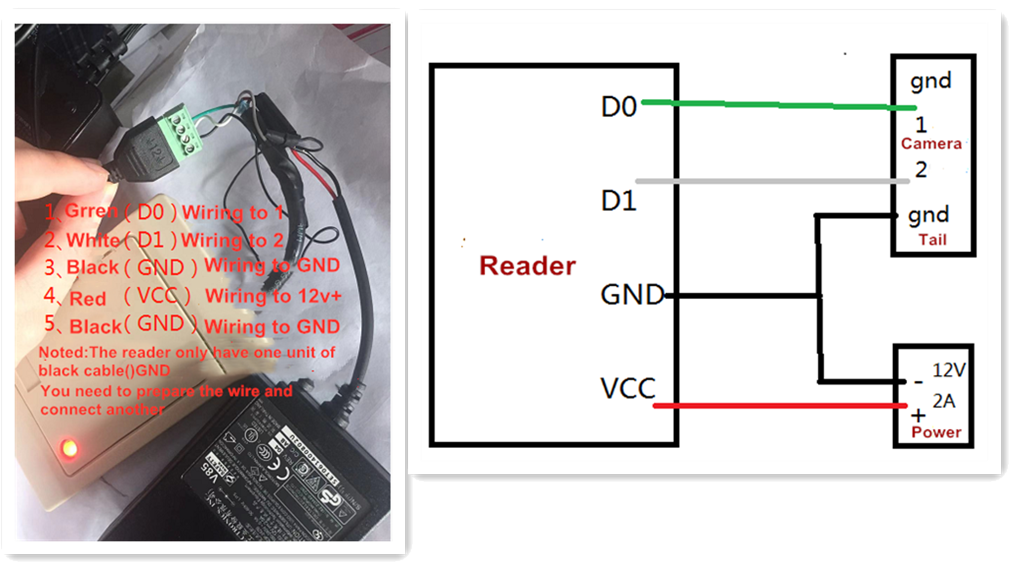

1.face recognition machine wiring for face+reader access solution

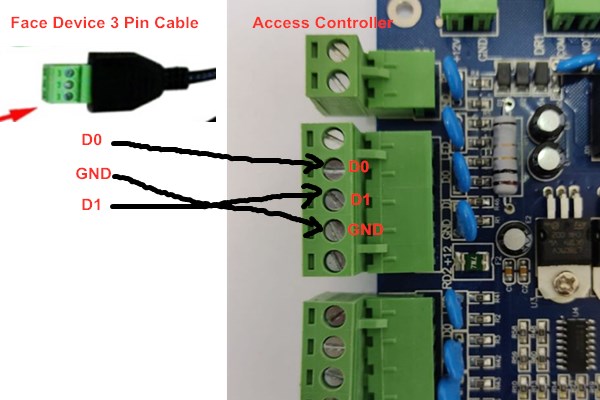

2.Face recognition machine wiring for face access by access controller solution

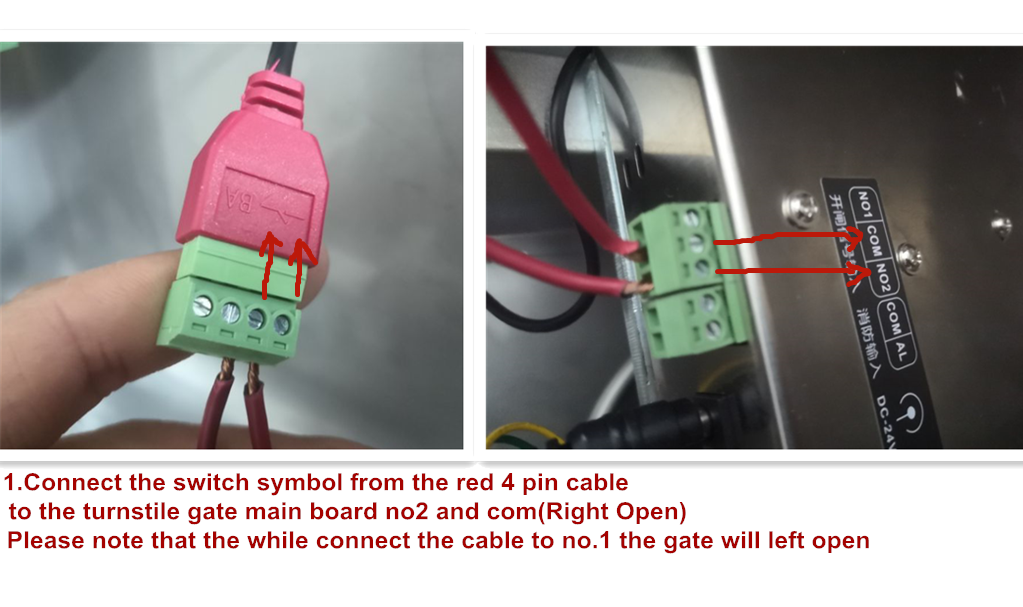

3..Face recognition machine wiring for face directly open the turnstile or electric lock

Importance notice:

The computer ip address must set up to the same lan network as the face machine ip address

For example if the face machine ip address is 192.168.1.10 then the computer ip address must be setted up to

192.168.1.1 to 244
