Controller Scheduled Task Settings

scenes to be used:
Due to the large flow of people to and from get off work, a factory is crowded. Considering safety and efficiency issues, it is now necessary to go to work (7:00-8:00) and get off work (18:00-19:00) without swiping a card, and enter and exit directly, and the rest of the time is normal. Swipe in and out.
Features:
Online (requires card swipe to open door)
Normally open (the door is always open, not closed)
Normally closed (the door is always closed, swiping cards and buttons cannot open the door)
Action time (for example, 7:00-8:00 does not need to swipe in and out, then 7:00 is set to normally open, until 8:00, you need to swipe in and out, 8:00 set online, end normally open)

A certain door can be set individually, if there are multiple times, multiple tasks can be set.

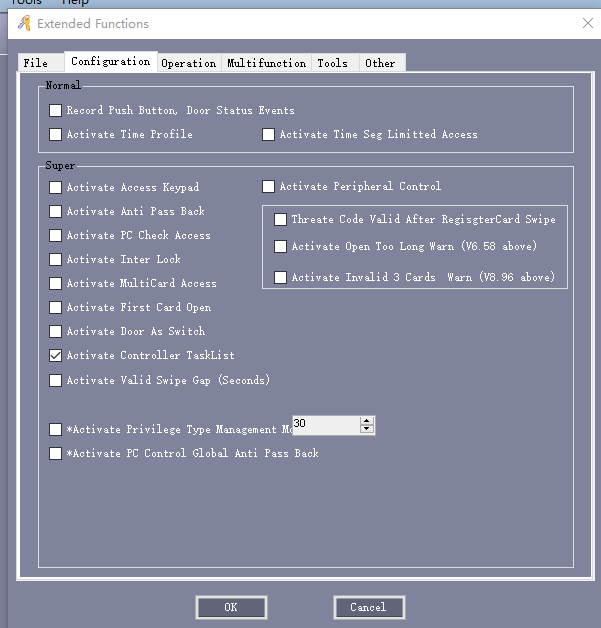

1.Enable scheduled tasks

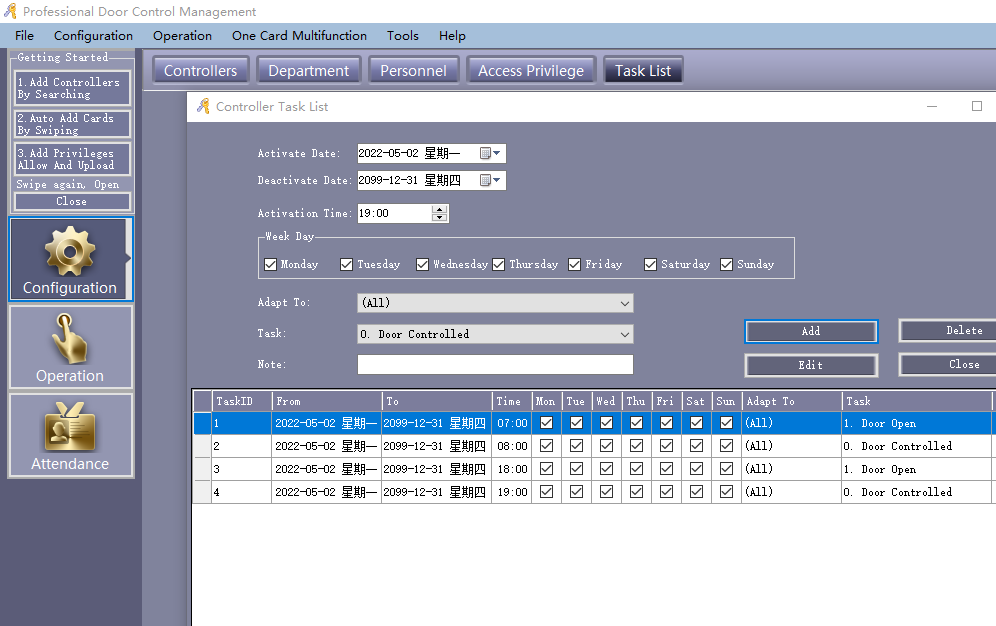

2.Add task

3.Console upload
left click operation-console-select all-upload
