Access Controller

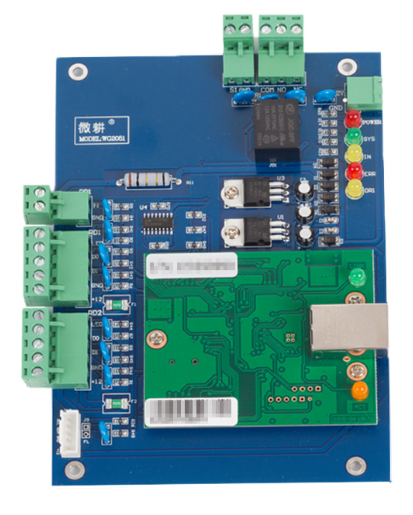

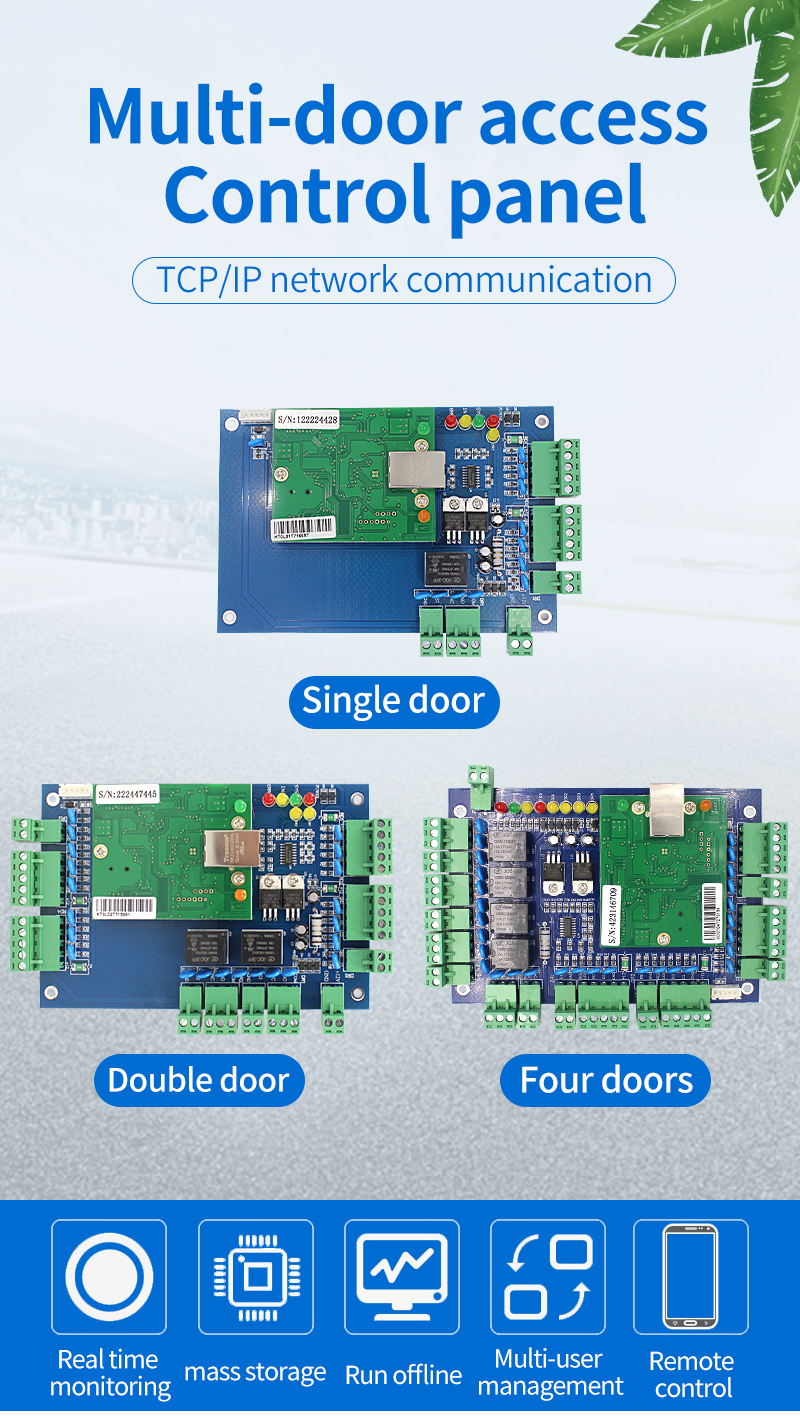

1 2 4 Door Access Controller

AC-32Bit Series
Communication:TCP/IP
Power Supply:12VDC 4-7A
Format:Wiegand26 /34
Product description: We're professional 1 2 4 Door Access Controller manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

1.Technical parameters

Model	AC-32Bit301	AC-32Bit302	AC-32Bit304
Brand Positioning	Economical tcp/ip

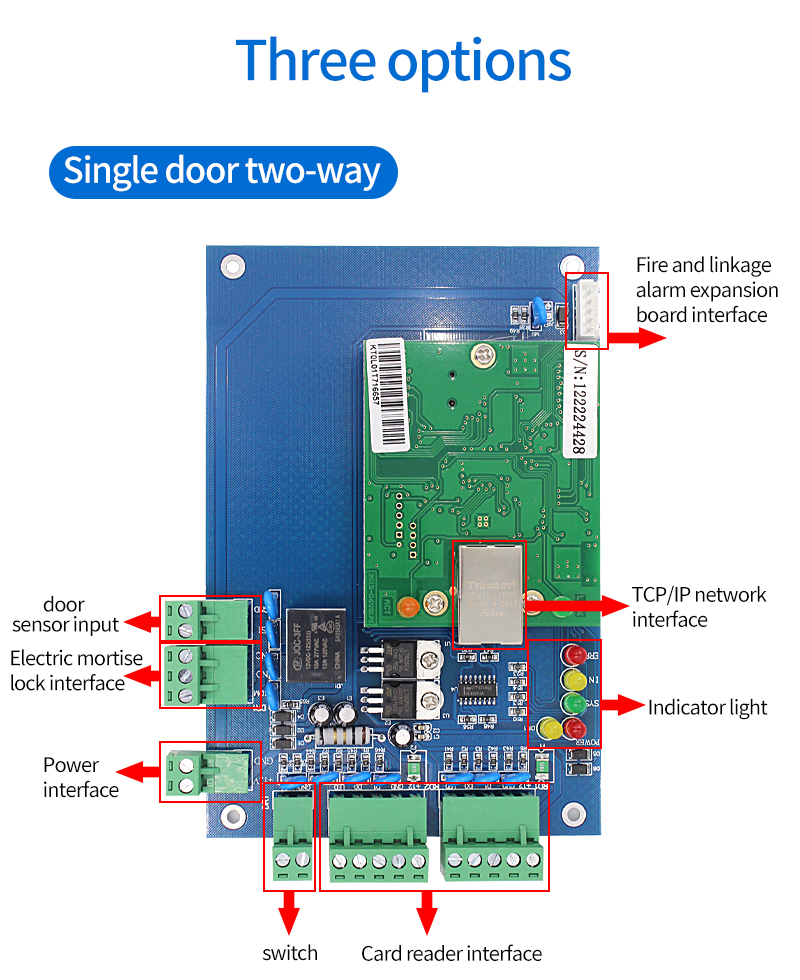

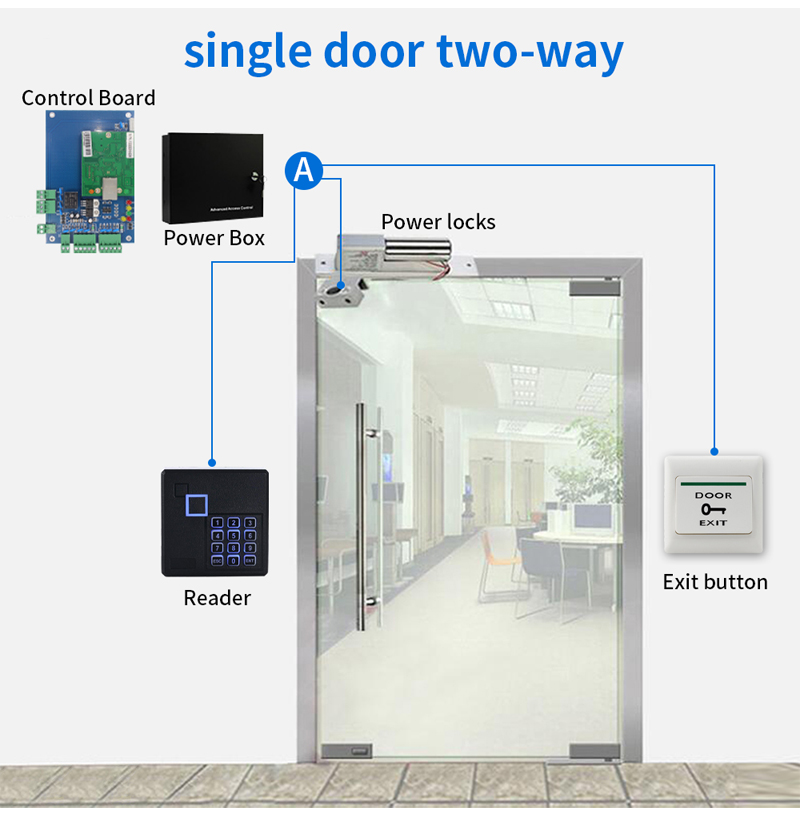

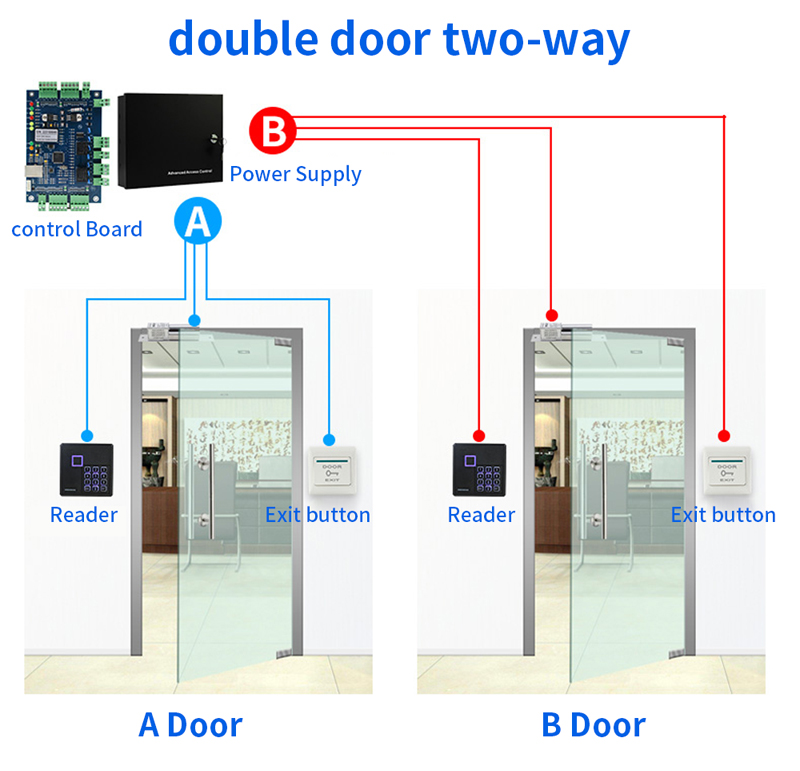

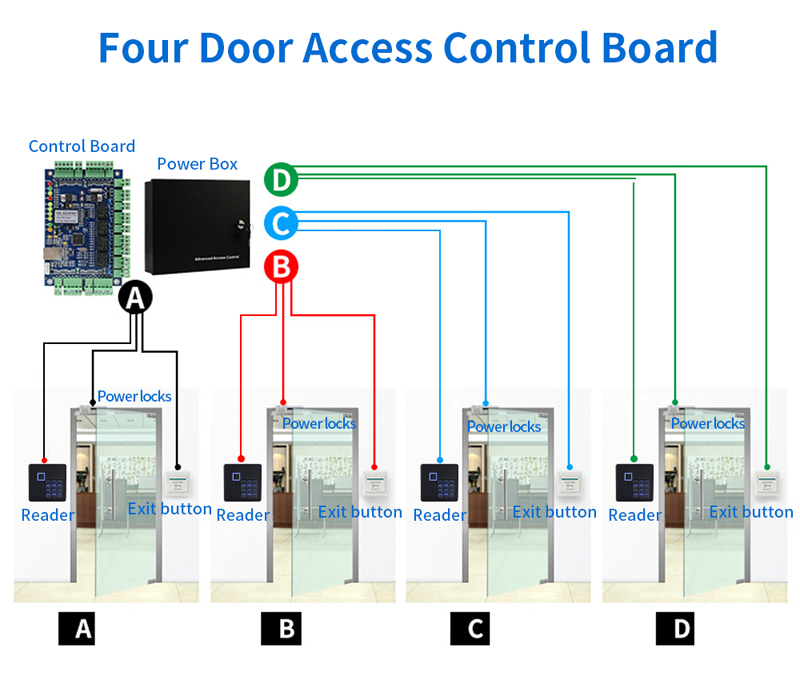

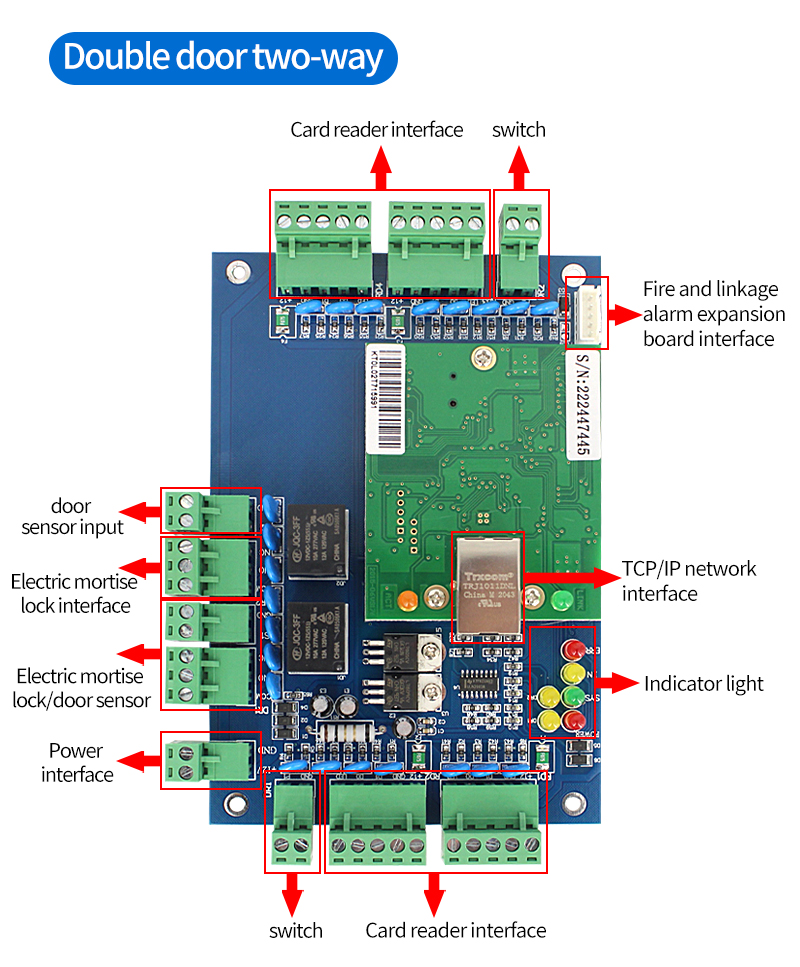

Function	For 1 door entry by card and exit by push button or both by card	For 2 door entry by card and exit by push button or both by card	For 4 door entry by card and exit by push button

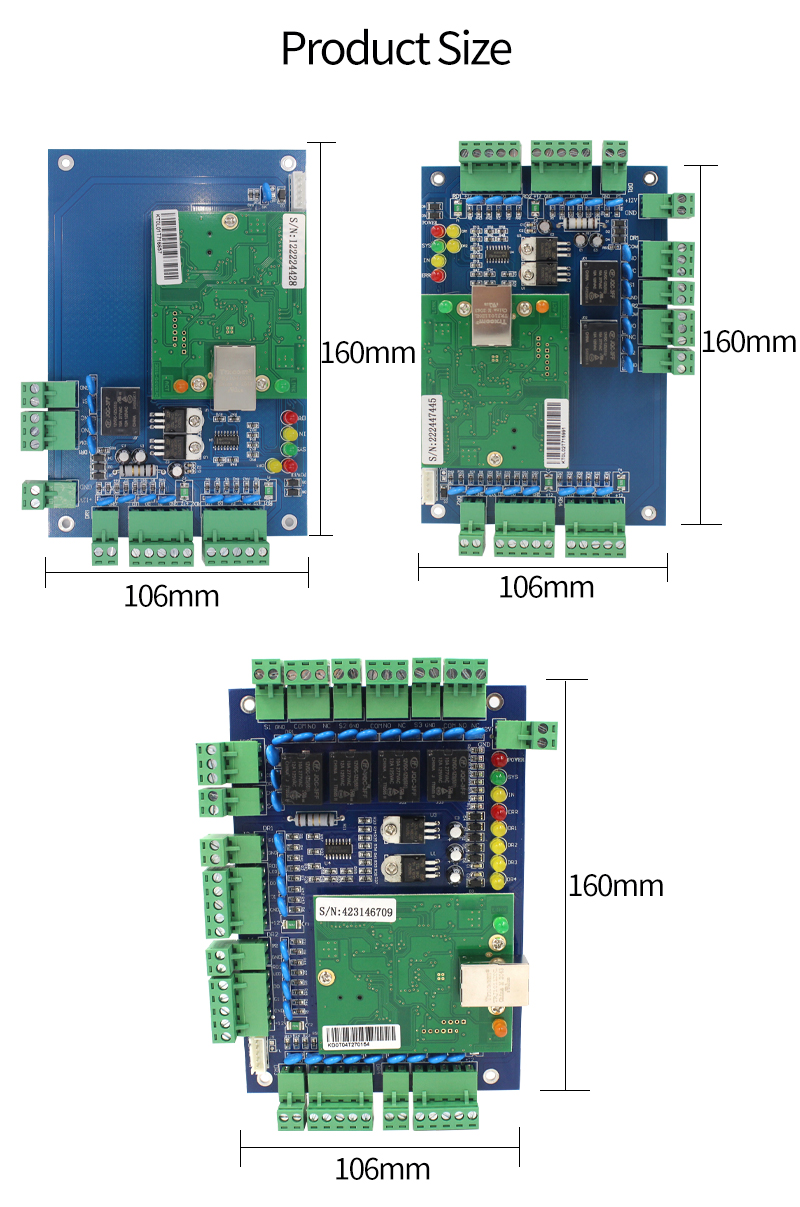

Size(mm)	160*106	160*106	160*106
Reader Capacity	1 pair	2 pairs	4 pairs
Power box	27322865mm 12V3-5A
Max Reed to controller distance	Within 100 meter and 80 meter is better
User Capacity	20,000
Record Capacity	100,000
Max Distance between controller	In the same LAN
Work environment	-35-40 degrees

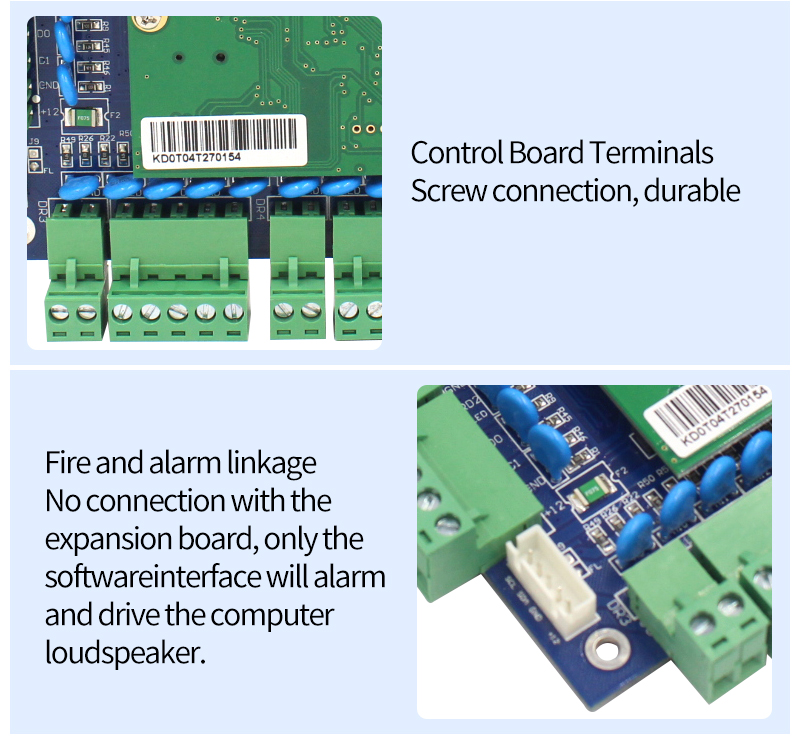

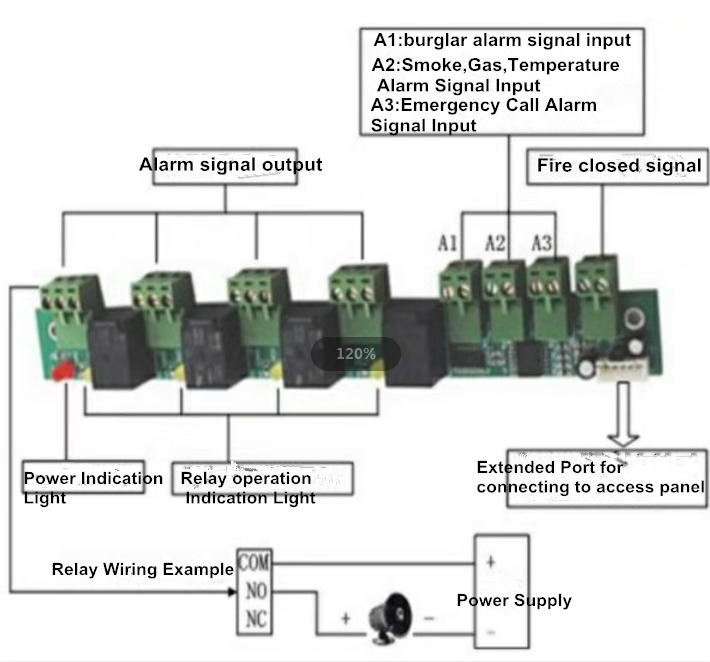

Standard Function:	First card open,Multi card open, interlock,remote open,timing, fire alarm,threat alarm

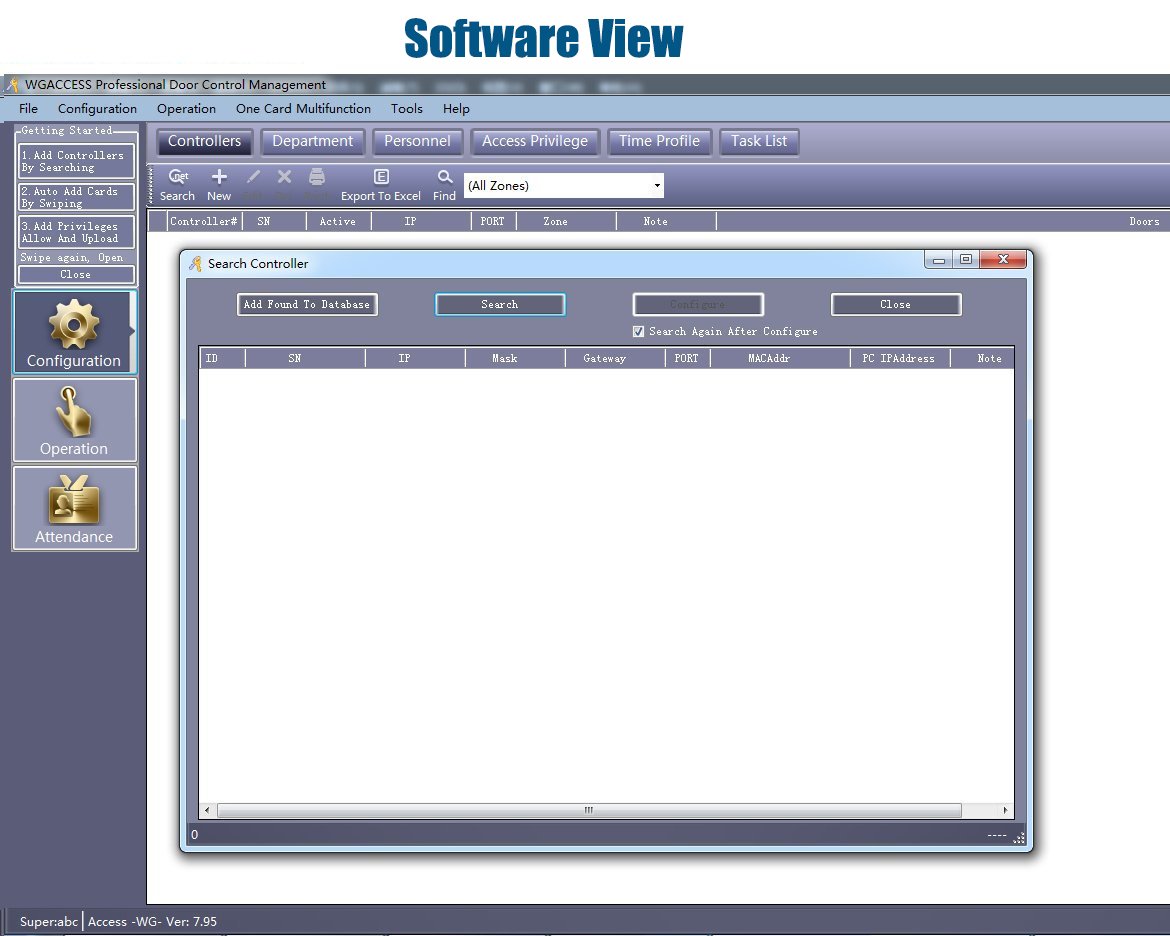

Additional	Web control (available in the same network ,LAN)
