  • Product description: We're professional WIFI Access Controller manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
  • INQUIRY

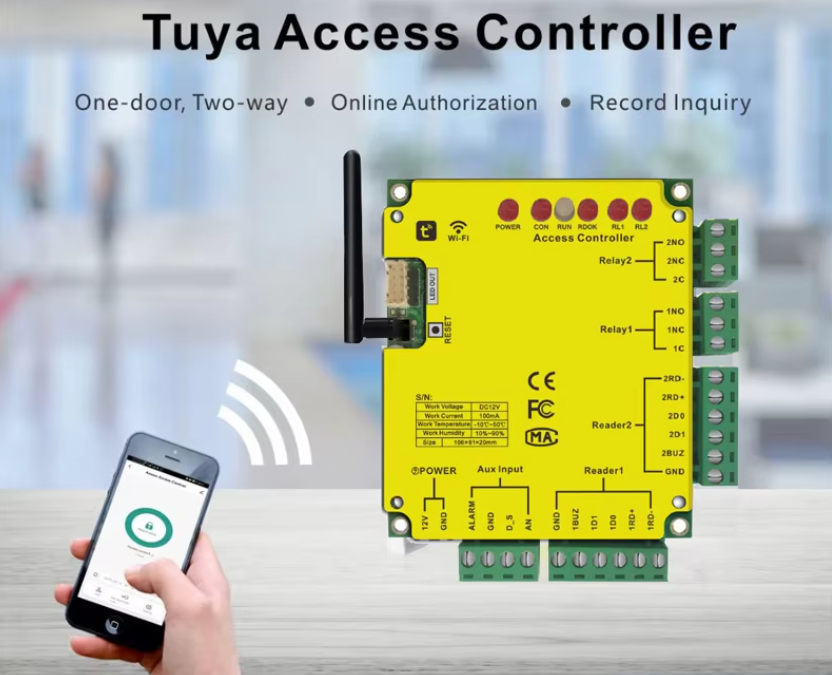

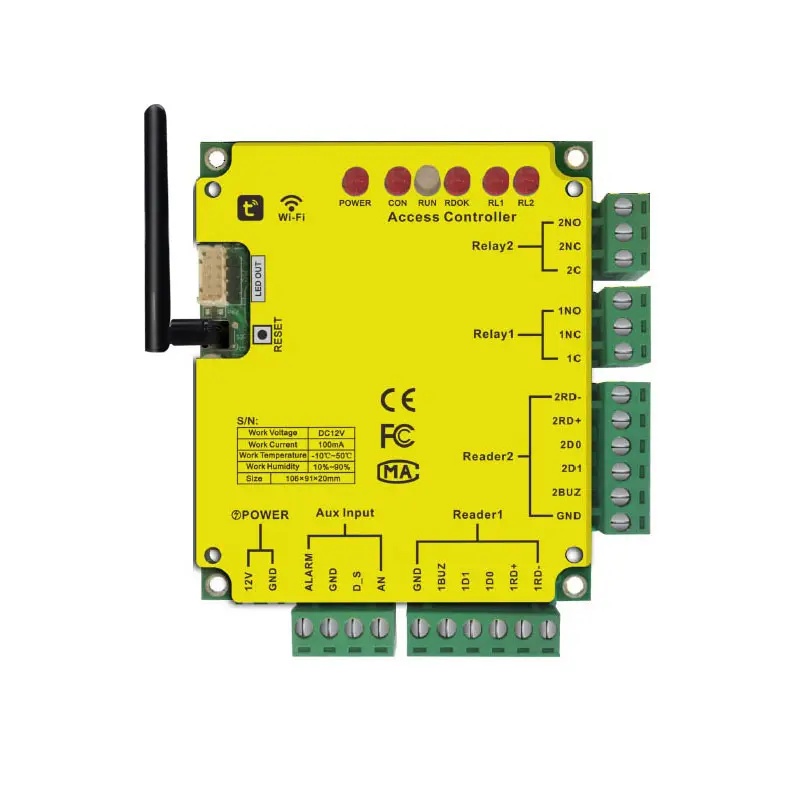

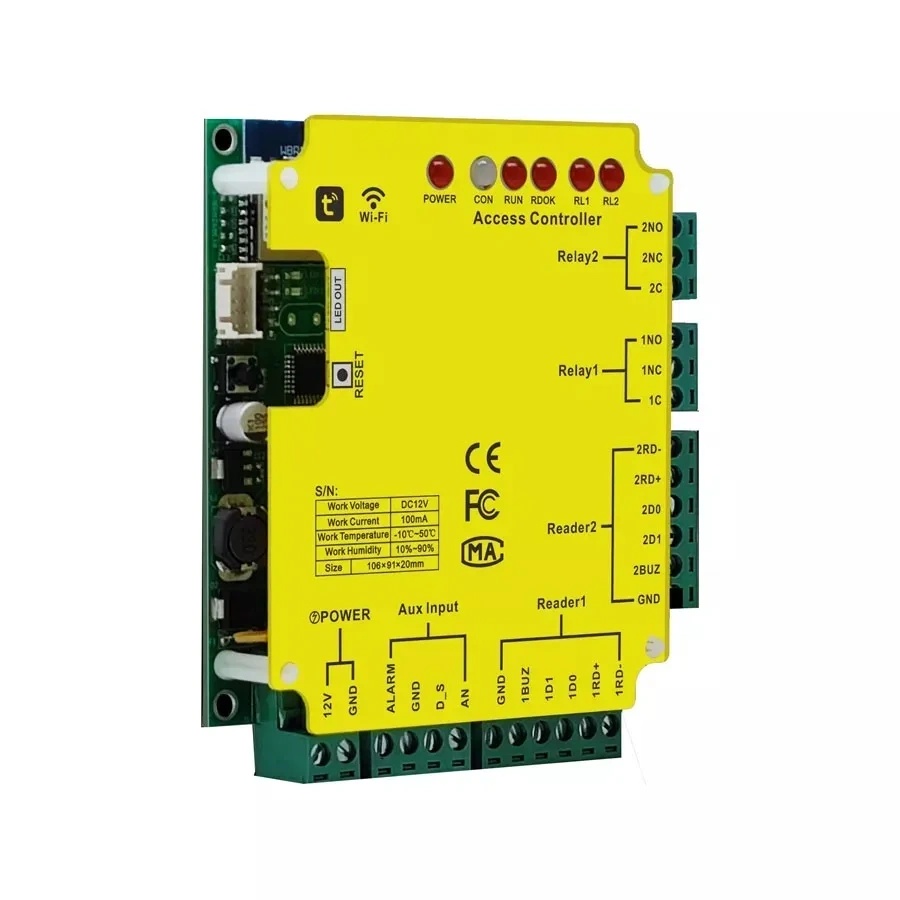

1.Technical Parameters:


WIFI controller data sheet

Model

AC-401WIFI

AC-402WIFI

AC-404WIFI


Brand Positioning

High End tcp/ip

Function

For 1 door entry by card and exit by push button or both by card

For 2 door entry by card and exit by push button or both by card

For 4 door entry by card and exit by push button

Size(mm)

160*106

160*106

160*106

Reader Capacity

1 pair

2 pairs

4 pairs

Power box

273*228*65mm 12V3-5A

Max Reed to controller distance

Within 100 meter and 80 meter is better

User Capacity

20,000

Record Capacity

100,000

Max Distance between controller

In the same LAN

Work environment

-35-40 degrees

Standard Function:

First card open,Multi card open, interlock,remote open,timing, fire alarm,threat alarm

Additional

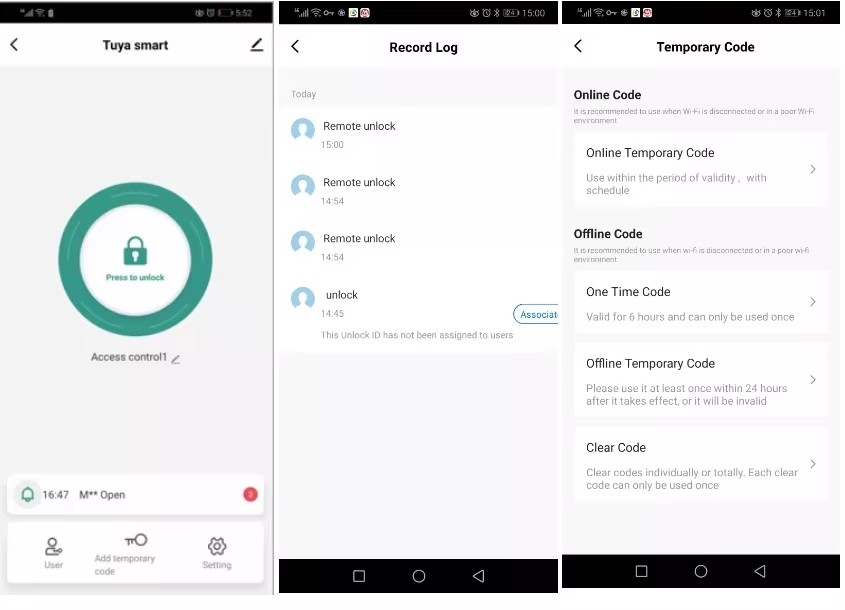

Mobile App control, Bar Code, Web control (available in the same network ,LAN)

2.Wiring Diagram


We take AC-401WIFI 1 door controller for example
