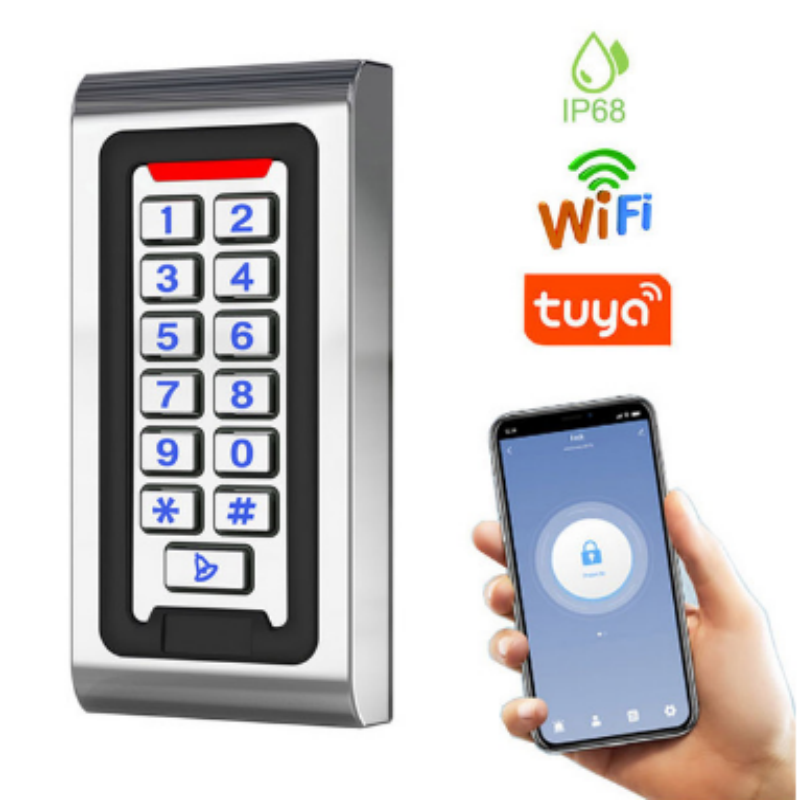

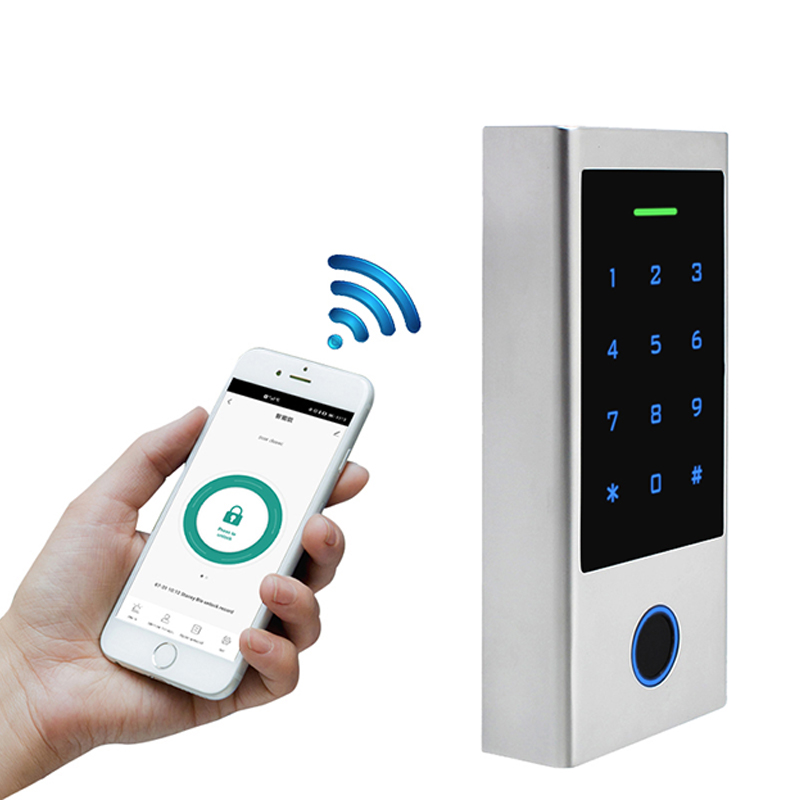

WiFi Tuya App Metal Keypad Standalone Access Control

Technical Parameter

Feature
1. The excellent design, surface waterproof keyboard, silver plating, fashion style.
2. The multi-function equipment.
3. The high and low temperature environment to use, surface waterproof.
4. The storage capacity of 2000 user card, 2000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 50 ma.
7. Keyboard: Be able to operate the keyboard.
8. Large capacity of  users: support 2000 users.
9. Independent password (4 digitals).
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand26/34 output/ input (can connect a card reader and as a reader)
13. With bell,alarm button and time delay function (1-255s adjustable).

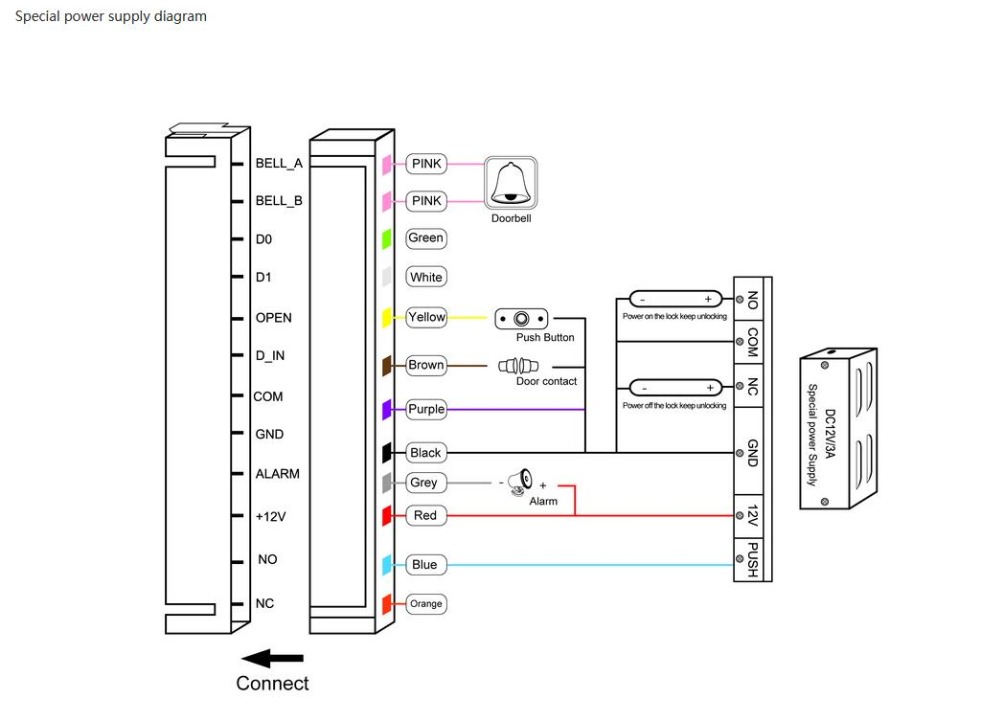

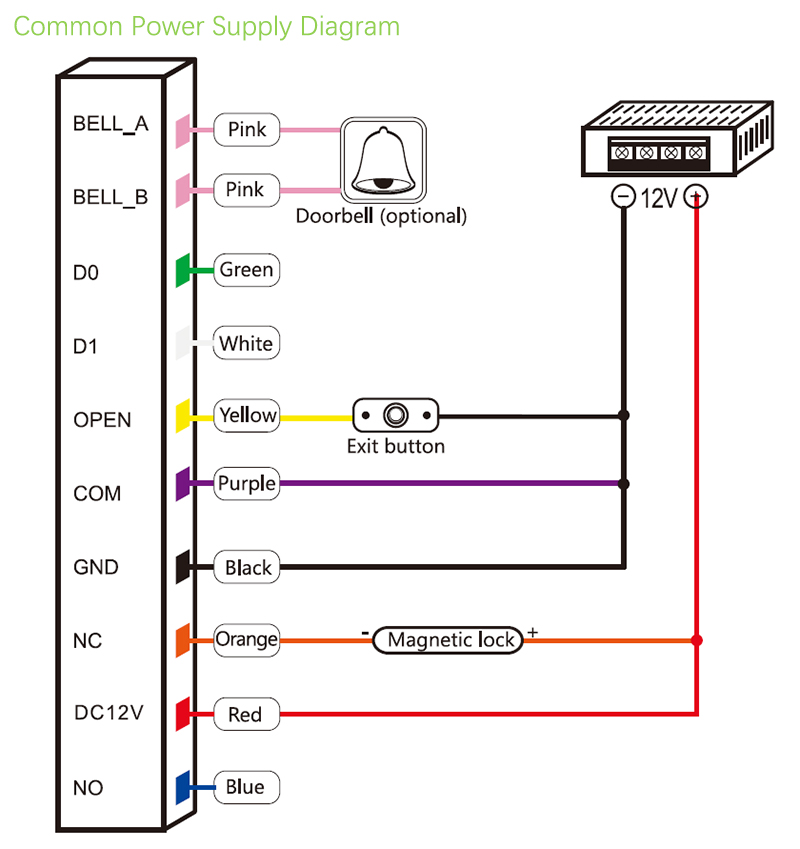

.Wiring Diagram

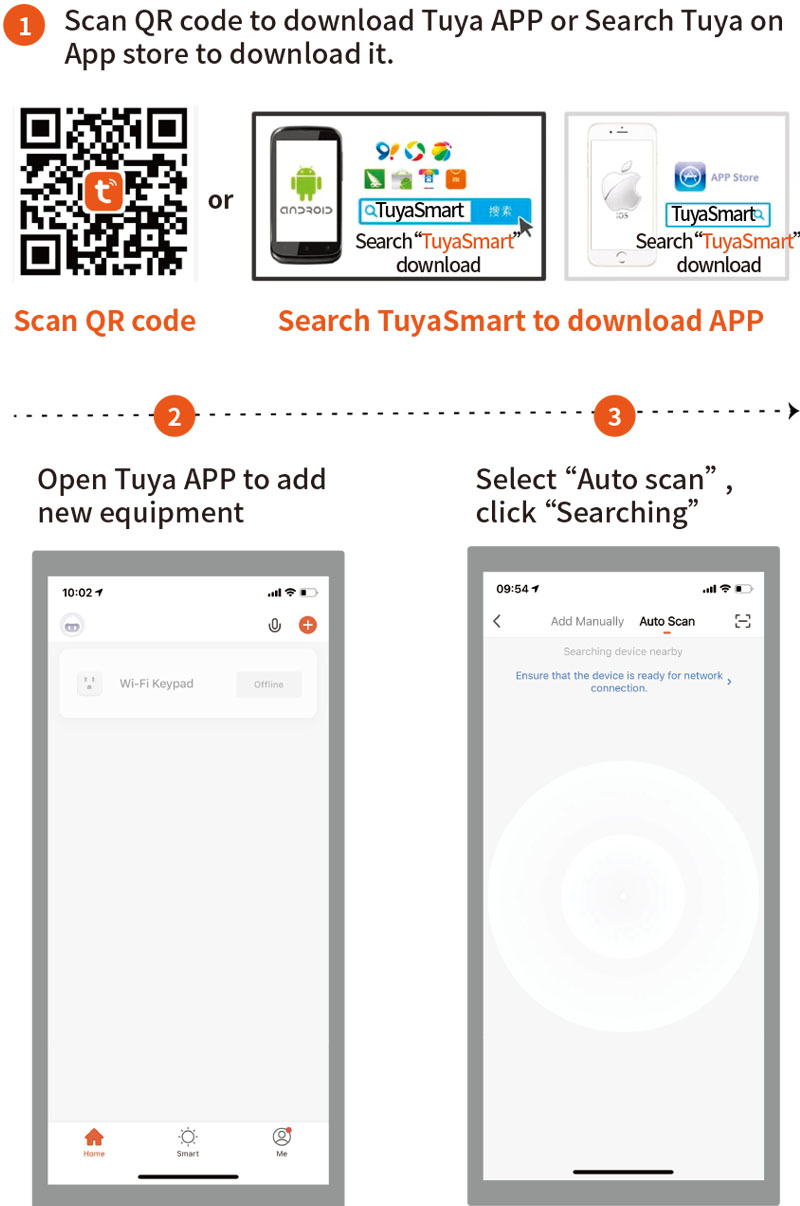

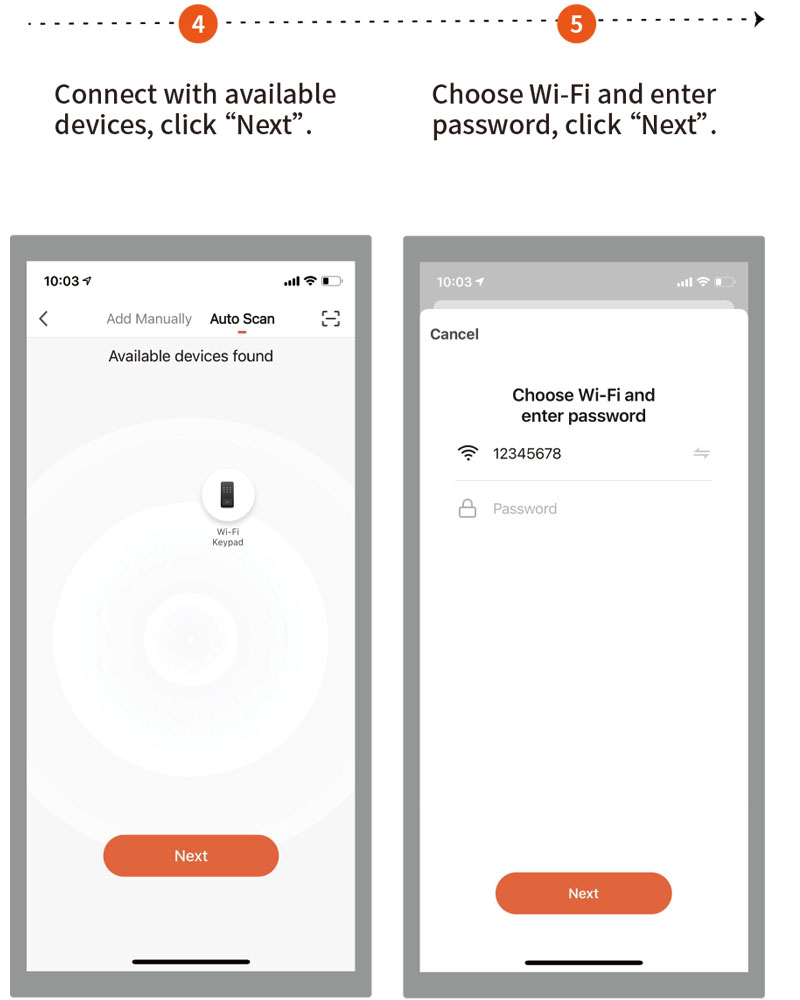

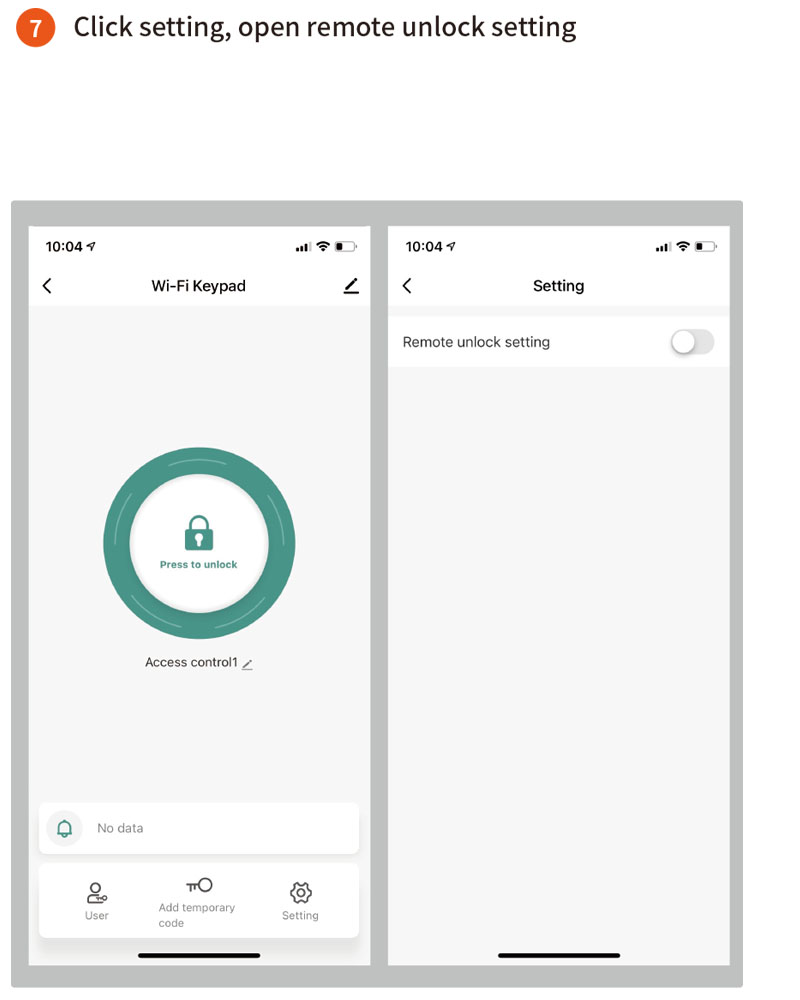

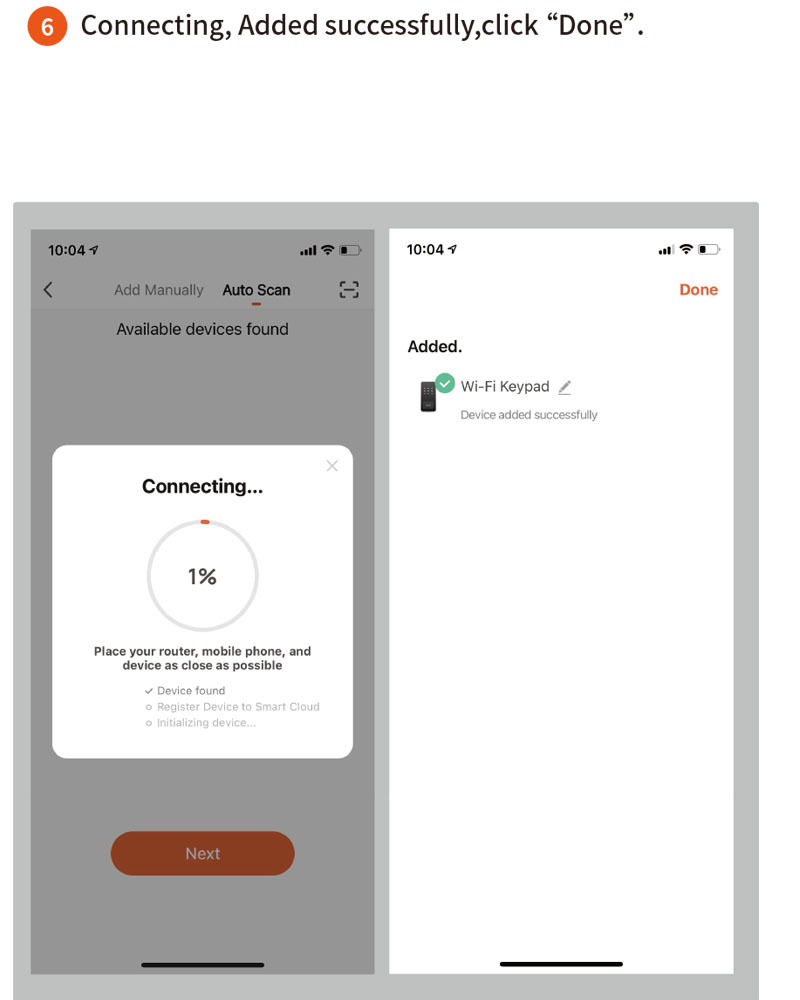

Tuya Mobile app user guide
