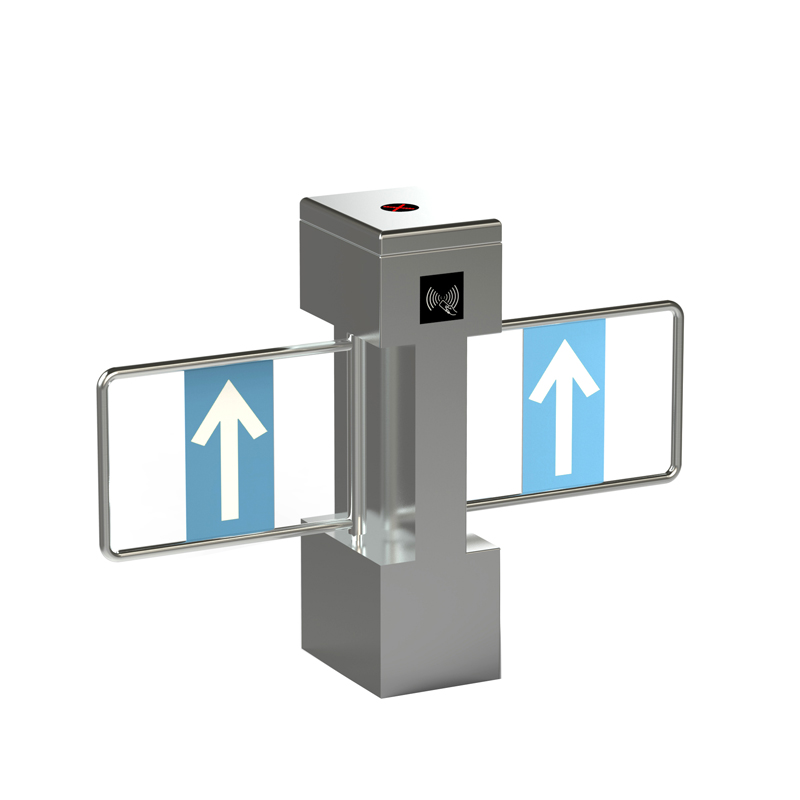

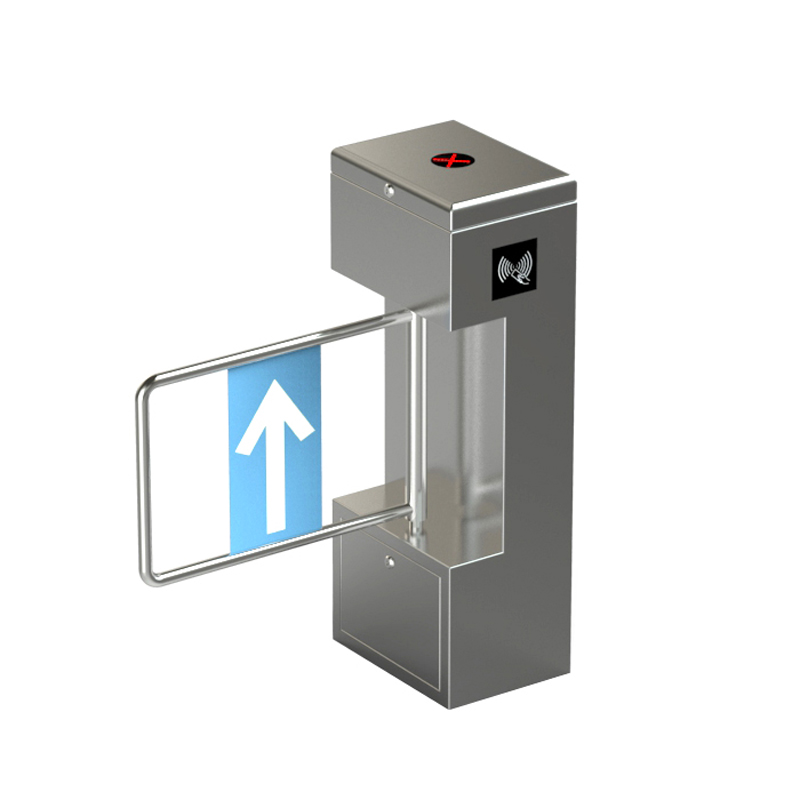

Description:

The Vertical Swing Turnstile Gate is compatible with IC cards, ID cards, barcode cards, fingerprints and other card reading identification devices, providing a civilized and orderly way of passage for personnel entering and exiting, and effectively managing personnel entry and exit

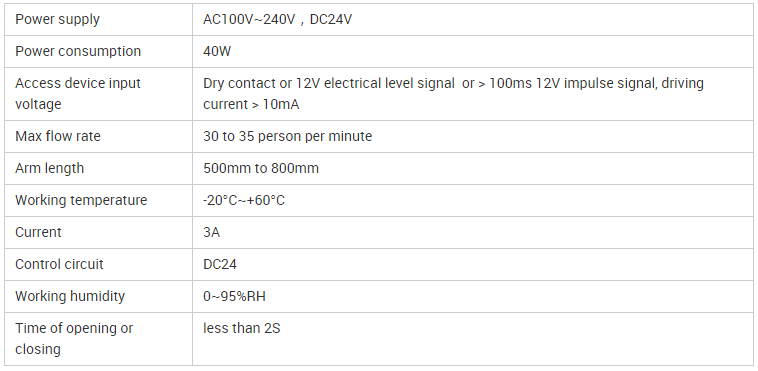

Technical  Parameters:

Functions & Features

1. Rainproof housing, 304 stainless steel(or 316 stainless steel).
2. CNC stamping and laser drilling, presenting a novel and elegant appearance.
3. Innovative and unique mounting surface ensures simple and convenient installationfor system integrators.
4. Direction can be set as single-direction or bi-direction.
5. Direction indicator.
6. Can be used with variety of card readers: IC / ID card readers, bar codes,fingerprints, etc. (Access controller needed)
7. Automatic reset function. Should the user fail to pass within the preset time (default time is 5 seconds), the system will cancel the authority of the current user automatically;
8. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
9.Anti-breakthrough function. The gate is locked automatically until opening signal received.
10. Gate can be set as normally open or normally closed.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

Solutions:

Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.

Advantage:

E) Turn on the power, the system enters working state after 3 seconds.
F) When the card reader reads a valid card, the buzzer will make a pleasant sound to remind pedestrians that the card reading is successful. At the same time, it will judge and process the information read from the card, and send an application pass signal to the main control board .
G) The main control board receives the signals from the card reader and the infrared sensor, and after comprehensive processing, sends an effective control signal to the direction indicator and the motor, turns the direction indicator sign into a green arrow pass sign, and sends out the set voice Reminder, the main control board controls the motor operation, the proximity switch limits the motor rotation angle, and the gate opens to allow pedestrians to pass.
H) In the process of pedestrians passing through the passage, the infrared sensor is always in the sensing state and continuously sends signals to the main control board until the pedestrian has completely passed the passage.
I) When there is no card or an invalid card is read, the system will prohibit pedestrians from passing, and a voice alarm will be issued, causing the pedestrians to exit the passage before the alarm can be cancelled, and the system enters a waiting state.

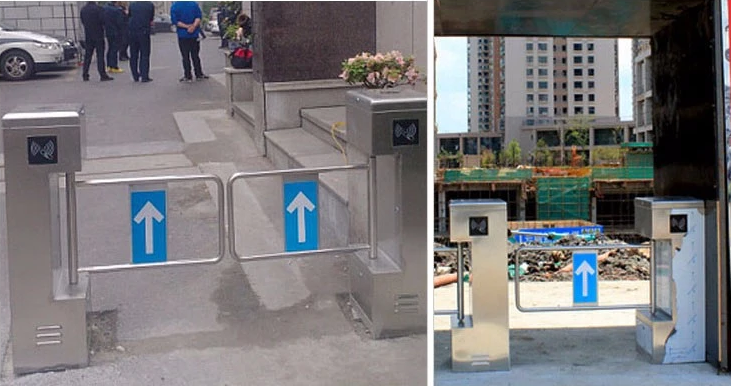

Install example:

It can be widely used in stations, docks, subways, factories, buildings, smart communities, hotels, clubs, enterprises and institutions, etc., where intelligent management of channels is required

Package:

Our standard package is by carton but as for the oversea client we advise to use the wooden case package

In order to protect the machine from damages during the transportation

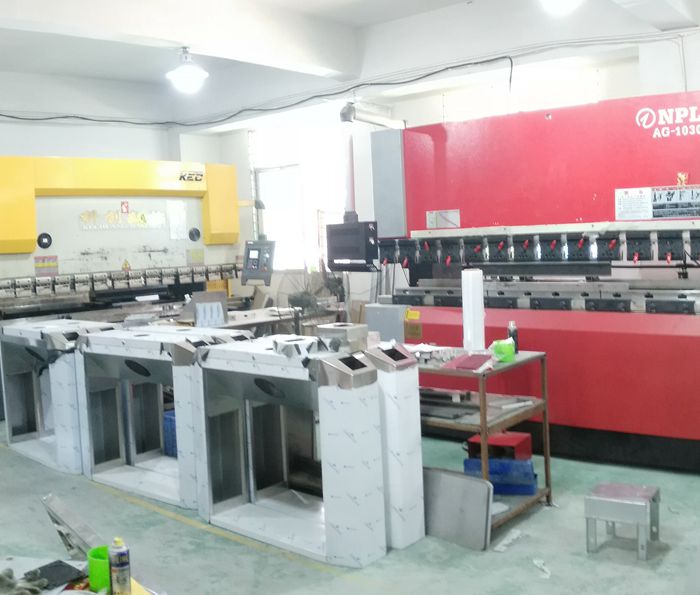

We are original factory in china
