The card reader is a core identification component built into parking ticketing systems. Installed on entry and exit ticket terminals, it reads IC‑cards, RFID proximity cards or temporary parking credentials, verifies user permissions, exchanges data with parking management host and controls barrier‑gate opening and closing. It handles both monthly registered users and temporary visitors, forming the first line of authentication for automated car‑park access. Sintronic card readers have been deployed for overseas parking projects such as the Croatia parking ticketing system project and Nigeria access‑control related projects.

Core Working Principle of Parking Ticketing Card Reader

In a complete Sintronic parking ticketing system, the workflow follows: Card Reader → Parking Terminal → Management Host → Barrier Gate Controller. The card reader completes physical credential reading before passing valid data to upper‑level hardware for logic judgment. The full‑cycle operation includes entry processing and exit processing.

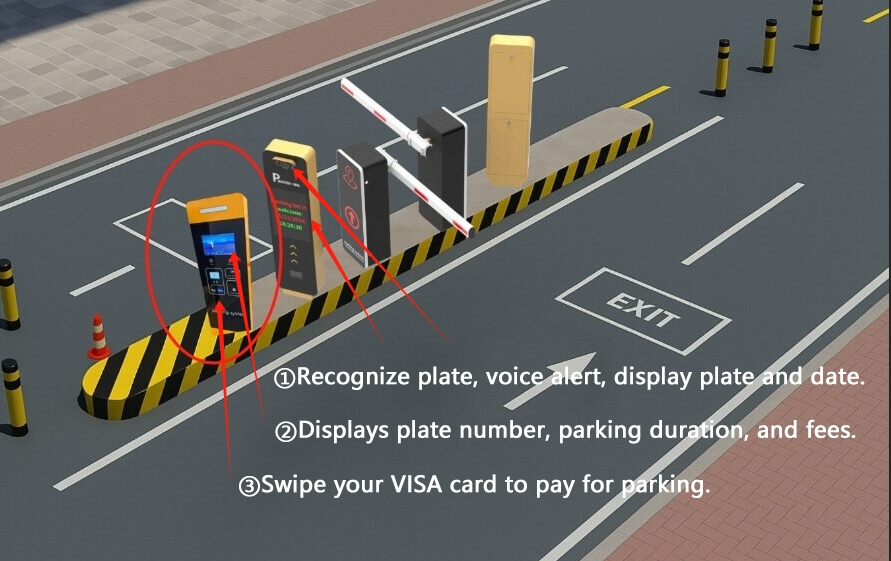

1. Vehicle entry processWhen a vehicle pulls up to the parking entrance, ground loop detector triggers the parking ticketing terminal to activate the built‑in card reader.

• For monthly / registered users: The driver taps or inserts the authorized IC/RFID card near the reader sensing zone. The reader captures unique card ID and transmits this data to the parking management host. The host checks whether this card is within valid validity period. If verification passes, it sends a signal to lift the entrance barrier gate, meanwhile logging entry timestamp and vehicle information into the system database.

• For temporary visitors: Instead of card swiping, the driver presses the button on the ticket machine, and the terminal dispenses a temporary IC parking card. The card reader writes entry‑time data onto this new card. After the driver takes the temporary card, the barrier gate opens for vehicle entry.

2. Vehicle exit processAt the exit lane, the card reader will re‑read credentials when the driver presents their card.

• For monthly registered users: Reader reads card ID again. The host verifies authorization, records exit time and opens barrier gate directly.

• For temporary visitors: Driver inserts the temporary parking card into exit card‑reader slot. Reader reads stored entry‑time data, sends data to management host for parking‑fee calculation. After user completes payment via cash, card or self‑service kiosk, the system triggers barrier‑gate release and recycles the temporary parking card.

3. Real‑time data logging & exception handlingEvery card‑reading action generates timestamped transaction records saved in management software. If the card is expired, invalid, damaged or unrecognizable, the card‑reader terminal gives visual or audio alerts, and keeps the barrier gate closed to reject unauthorized access.
