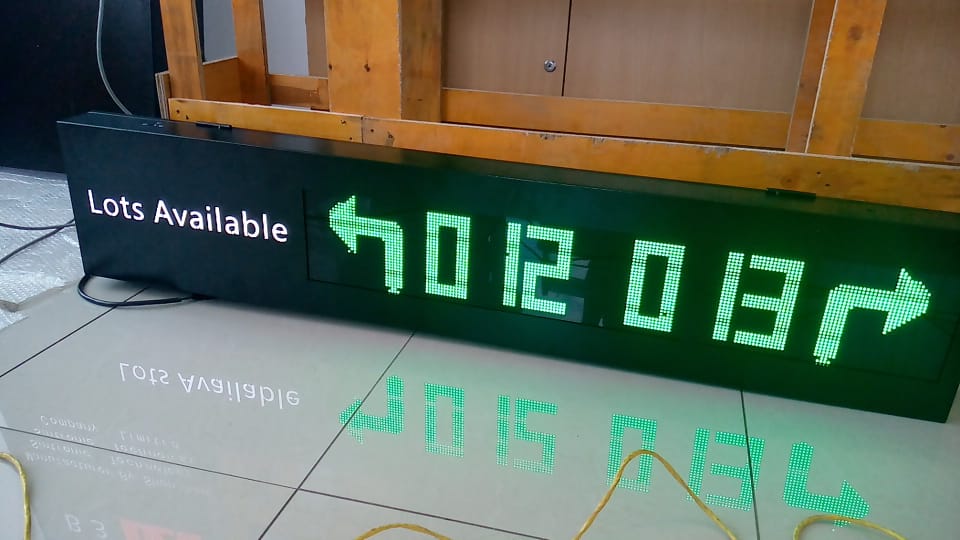

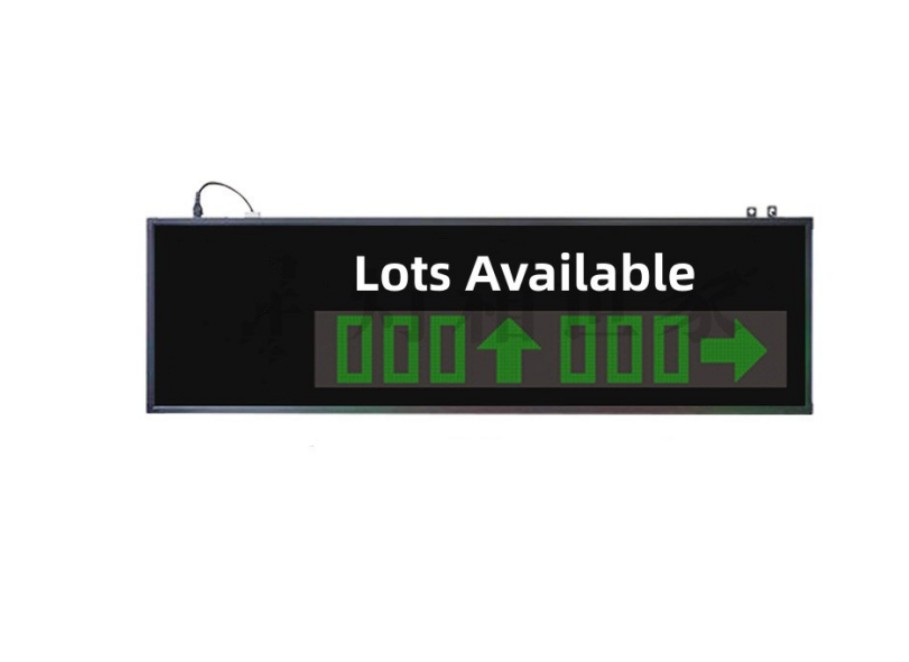

Install sintronic Parking space 2 way guidance indoor led display in an important fork in the parking lot. Receive the output information of the concentrated controller, display the number of empty parking spaces in the area in the form of numbers, arrows, and guide car owners to quickly find the empty parking spaces to ensure the smoothness of the parking lot and the full use of parking spaces.
Technical Parameters
Type |
2 Direction |
Communication |
RS-485 |
Communication Baud Rate |
9600BPS,8,N,1 |
Display Color |
Green/Red |
Lots Number |
3 digits |
Input Voltage |
AC220V |
Working Temp. |
-20℃~+70℃ |
Storage Temp. |
-40℃~+85℃ |
Working Humidity |
30%~90% |
Rated Power |
6.5~7.5W |
Dimensions |
1370*270*75mm 2 way |
Application |
Indoor/Parking lot guidance |
Features:
1.Technical grade stadard
2.Using 32-bit ARM processor
3.Integrated standard word stock in both Chinese and English
4.Text information can be stored
5.Can control rolling display
6.RS485 communication interface
7.Can be set communication address
8.Multi-lingual character can be optional

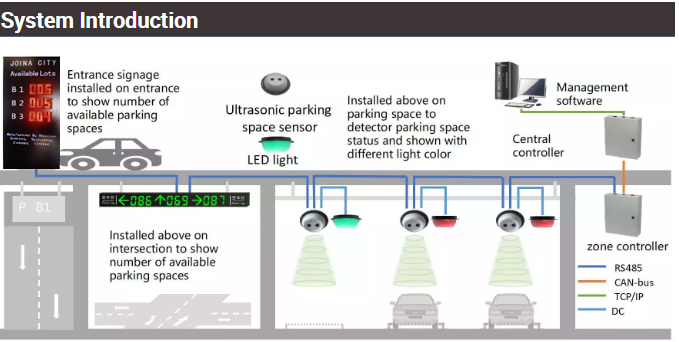

System Diagram

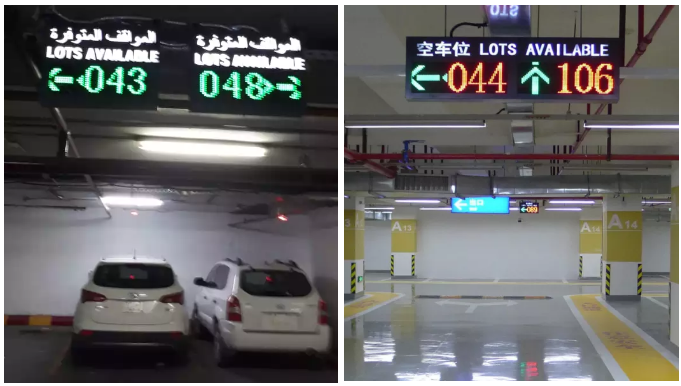

Applications
