Set up

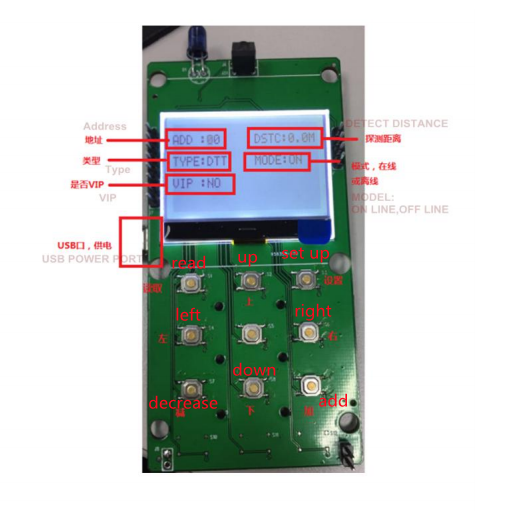

The parameters that can be set are displayed on the screen:
1. Address: Set the address code
2. Detection distance: 0-6M can be set
3. Equipment type: can be set to probe (DTT), screen (screen), wireless light (light) (not used temporarily) factory test mode (farty)
4. Working mode: offline (off) or online mode (on). In online mode, if there is no RS485 connection within one second, the LED will flash. Offline mode does not flash
5. Display type: Normal mode (red and green display), whether it is VIP (red and blue display), and appointment mode (red and yellow display). Up, down, left, and right are used to select which parameter to set, and the cursor will flash on the currently set value. The plus and minus keys change the parameter value. The read key can read the current information of the device. After setting the parameters on the screen, click the setting button to set the corresponding parameters of the device.

Instructions:
1. The initialization is completed in about 1 second after power-on, and the above data is displayed on the screen.
2. Press the read key to read the current device value (this step can be skipped)
3. Use up, down, left and right to select the parameter to be modified, press plus and minus to modify it to the required value
4. After modification, press the set button to complete the modification. If the device receives the modification information and the modification is successful, there will be a blue flash.
